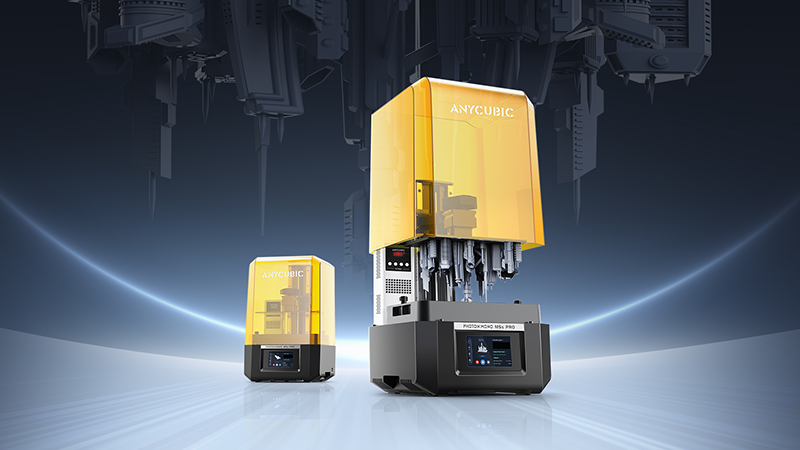

Unveiling Anycubic Photon Mono M5s Pro: Upgrade Premiere

It's time to enhance your 3D printing experience. The highly anticipated Anycubic Photon Mono M5s Pro releases in January 2024, delivering high precision and smooth resin 3D printing with the convenience and intelligence. Building on the success of its predecessor, Photon Mono M5s, Anycubic Photon Mono M5s Pro retains a spacious printing volume and brings multiple upgrades such as 14K high precision, heated resin printing, and intelligent monitoring. Join us and get ready to redefine what's possible with resin 3D printing.

  • LCD Screen: 14K High Resolution (13312*5120 px)
  • Printing Size: 200*223.78*126.38mm (HWD)
  • APP Support: One-touch Slicing and Printing
  • Added Air Heater & Purifier Module
  • Added Resin Residue Detection and Intelligent Release

anycubic photon mono m5s release

Overview of Anycubic Photon Mono M5s Pro

Anycubic Photon Mono M5s Pro is equipped with a 10.1-inch 14K LCD screen and adopts a new leveling-free solution. Realistic and vivid details can be easily printed. It is adapted to the new version of Anycubic APP, supports one-click printing, and has a new resin residue detection function, making it easier for users to master the 3D printing process. The air heater module is introduced to optimize the resin performance in low-temperature environments, aiming to help users cope with challenges of cold winter. Stay tuned for early bird events and product details, and don't miss out on the efficient and intelligent 3D printing experience.

Main Features of Anycubic Photon Mono M5s Pro

14K High Resolution Printing

Resin 3D printers are known for their accuracy and have long been a favorite among 3D printing enthusiasts. 14K resolution means unparalleled precision, which is essential for tiny details and complex designs. Featuring a 10.1-inch monochrome LCD screen with the XY resolution of 16.8*24.8μm, Anycubic Photon Mono M5s Pro has the power to reproduce the most stunning details. The light uniformity has been enhanced to 85%, supporting enhanced visual fidelity, printing models with crisp edges and excellent realism. For users pursuing or curious about high-precision 3D printing, the Photon Mono M5s Pro can fulfill their key needs with high quality.

anycubic photon mono m5s pro introduction the printing resolution 14k resin 3d printing with m5s pro

Air Heater & Purifier

During the winter months, resin 3D printing projects often face many challenges in colder zones. In low-temperature environments, the resin becomes less fluid, and higher viscosity will affect the normal printing process. Uneven curing, poor adhesion between layers, and warping or deformation of 3D prints are all problems that can result. Anycubic Photon Mono M5s Pro is equipped with a air heater&purifier module to support printing in low temperature environments, keeping the resin temperature above 20°C before printing. It has been tested to ensure safe and long-lasting operation and printing in harsh environments. In addition, it also supports a dedicated purification mode to effectively absorb resin odor and provide a more comfortable printing environment.

air heater and purifier of anycubic photon mono m5s pro resin 3d printing temperature

High Speed Printing Experience

High speed and high success rate? For users who pay attention to printing work efficiency, the fast printing capability of resin 3D printers will become key. Anycubic Photon Mono M5s Pro utilizes the third-generation high-speed ACF film, which reduces the peeling force and increases the printing speed. When used with high-speed resin, the M5s Pro can print at an average speed of up to 105mm/h. In high-speed mode, it takes less than two hours to print a 3D model with a height of 180mm.

high speed printing of resin 3d printer anycubic photon mono m5s pro

Convenient, Smart and Efficient Printing

Anycubic Photon Mono M5s Pro stays true to user-friendliness with a new leveling-free solution. With floating platform technology and internal sensors, it ensures even printing and simplifies the process of calibration and leveling. In the intelligent detection module, M5s Pro has added a resin residue detection function, which will be recognized by a mechanical algorithm to avoid printing failure and screen damage. The intelligent calculation of the AI algorithm will also adjust the release height according to the model, making resin 3D printing smoother.

Anycubic APP and One Touch Printing

Photon Mono M5s Pro is compatible with the new version of Anycubic APP. Intuitive controls and simplified settings make it easy for users to master the 3D printing process. Anycubic APP supports one-touch printing and one-touch slicing, and there is the option of slicing STL files for printing popular models. The intelligent task viewing function makes it easy for users to know the printing situation and complete high-quality 3D prints without any effort. The Help Center and Customer Service, they focus on providing user-friendly guides and efficient problem solutions.

anycubic app features for photon mono m5s pro one-touch printing with anycubic app

Specifications of Anycubic Photon Mono M5s Pro

Let’s get to know the machine design of Anycubic Photon Mono M5s Pro. It considers convenience without compromising functionality. The needs of both beginners and experienced hobbyists can be catered to, making it ideal for users of any skill level. M5s Pro is equipped with a spacious 10.1-inch LCD screen and a printing volume of 5.7 liters. The 4.3-inch TFT touch control ensures easy navigation, and supports USB Type-A 2.0 and WiFi two data input methods. To ensure a long-lasting printing experience, the screen comes with an oversized protective film, that is scratch-resistant and replaceable. Detailed parameters about the machine are listed below.

Printing Volume 200oz./5.7L
Printing Dimensions 200*223.78*126.38 mm
LCD Screen 10.1" monochrome screen
Light Source LED matrix UV light source
XY Resolution 13,312*5,120 px
Z-axis Accuracy Double liners with 10 μm
Machine Leveling Leveling-free
Build Platform Laser engraving aluminum alloy
Control Panel 4.3" TFT touch-control
Data Input USB Type-A 2.0, WIFI
Machine Weight 20.7lb./9.4 kg
Machine Dimensions 460*270*290 mm
  • Review Video: Upgrade your 3D printing with Anycubic Photon Mono M5s Pro

Anycubic Photon Mono M5s Pro: Pricing and Availability

Choose Anycubic Photon Mono M5s Pro for a reliable and precise upgrade in your 3D printing journey. The resin 3D printer Photon Mono M5s Pro is available for pre-order in January 2024. Join us and be one of the first users to experience it. The early bird price is only $459, and 2kg of high-speed resin can be obtained for free. Don’t miss the experience of enjoying high-precision and convenient printing, and seize the best opportunity to invest in 3D printing creation!

price of anycubic photon mono m5s pro early bird events of anycubic photon mono m5s pro
