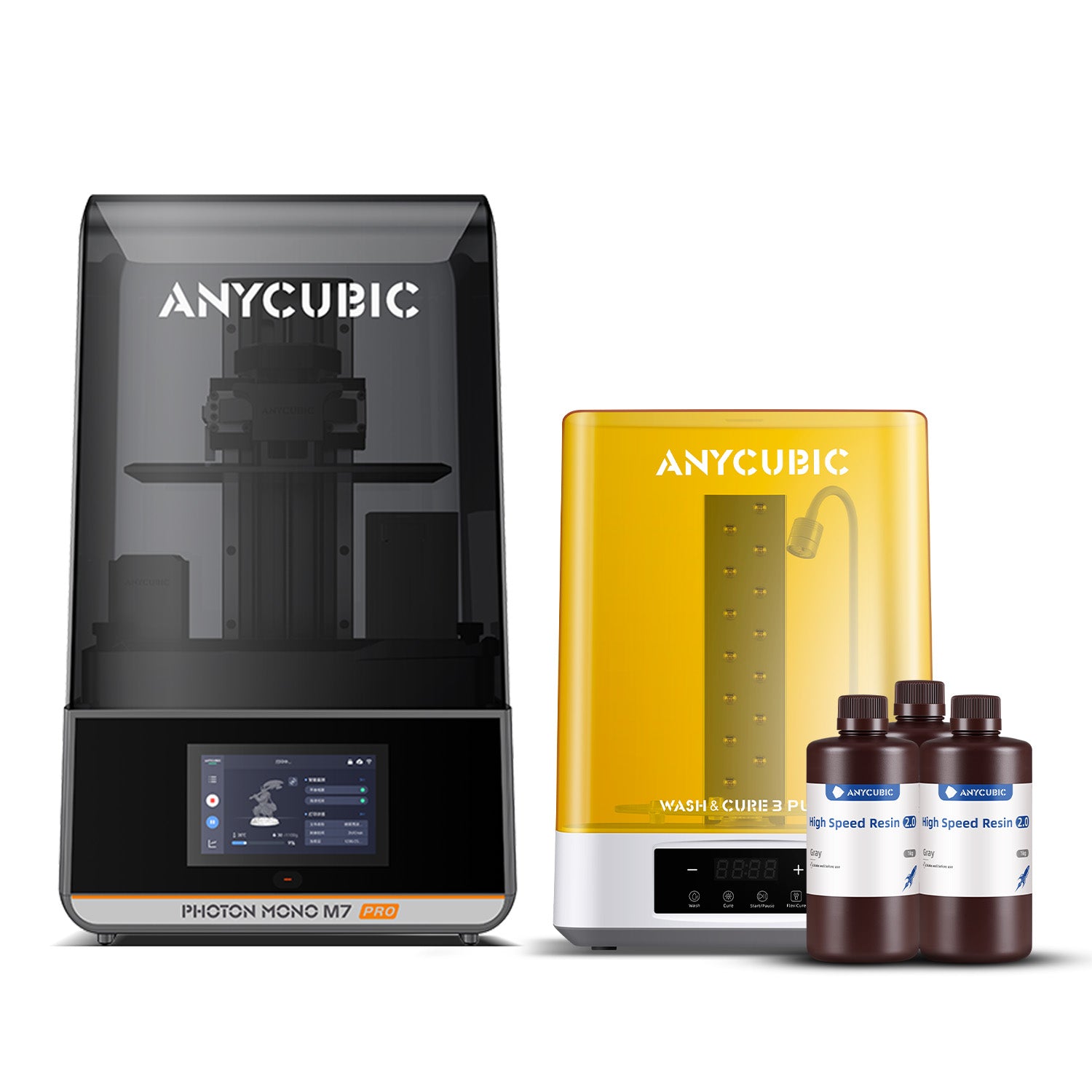

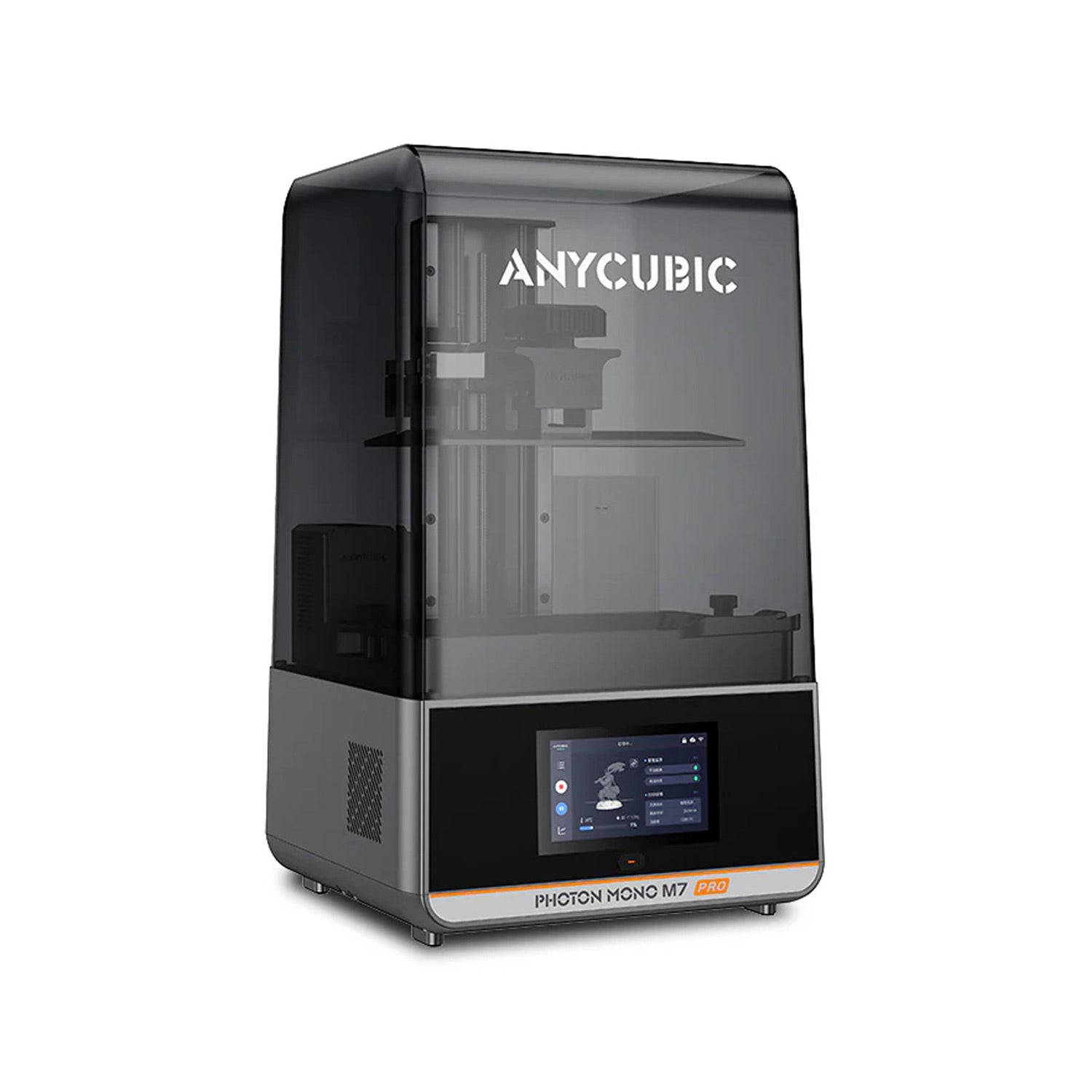

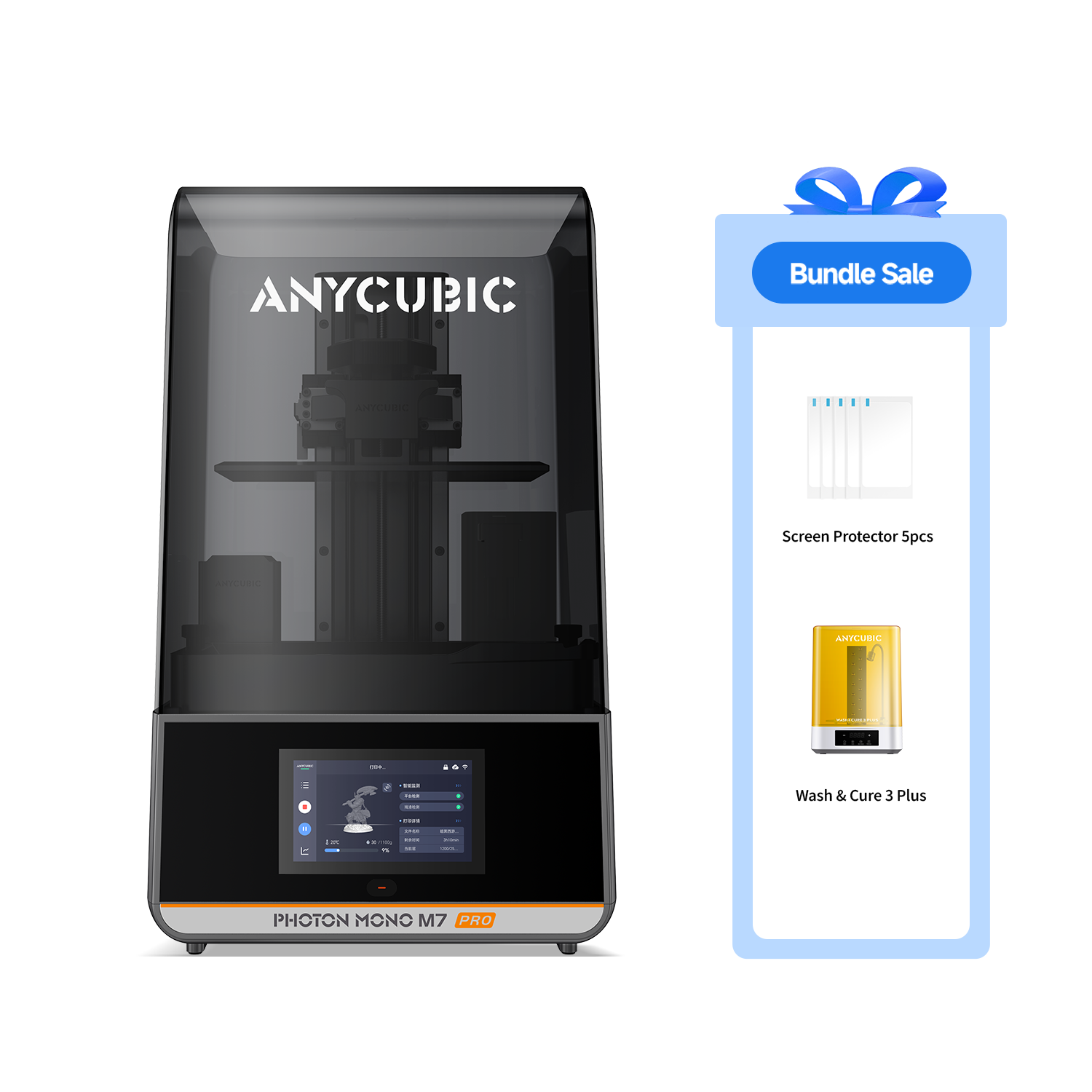

Anycubic Photon Mono M7 Pro

$549.00
$669.00 $549.00
-$120.00
Shipping calculated at checkout.

Product Features
● 170mm/h with High-speed Resin
● 10.1'', 14K (13320 * 5120) LighTurbo 3.0 (COB+Fresnel Lens)
● Auto-Adaptive Technology Control Heating

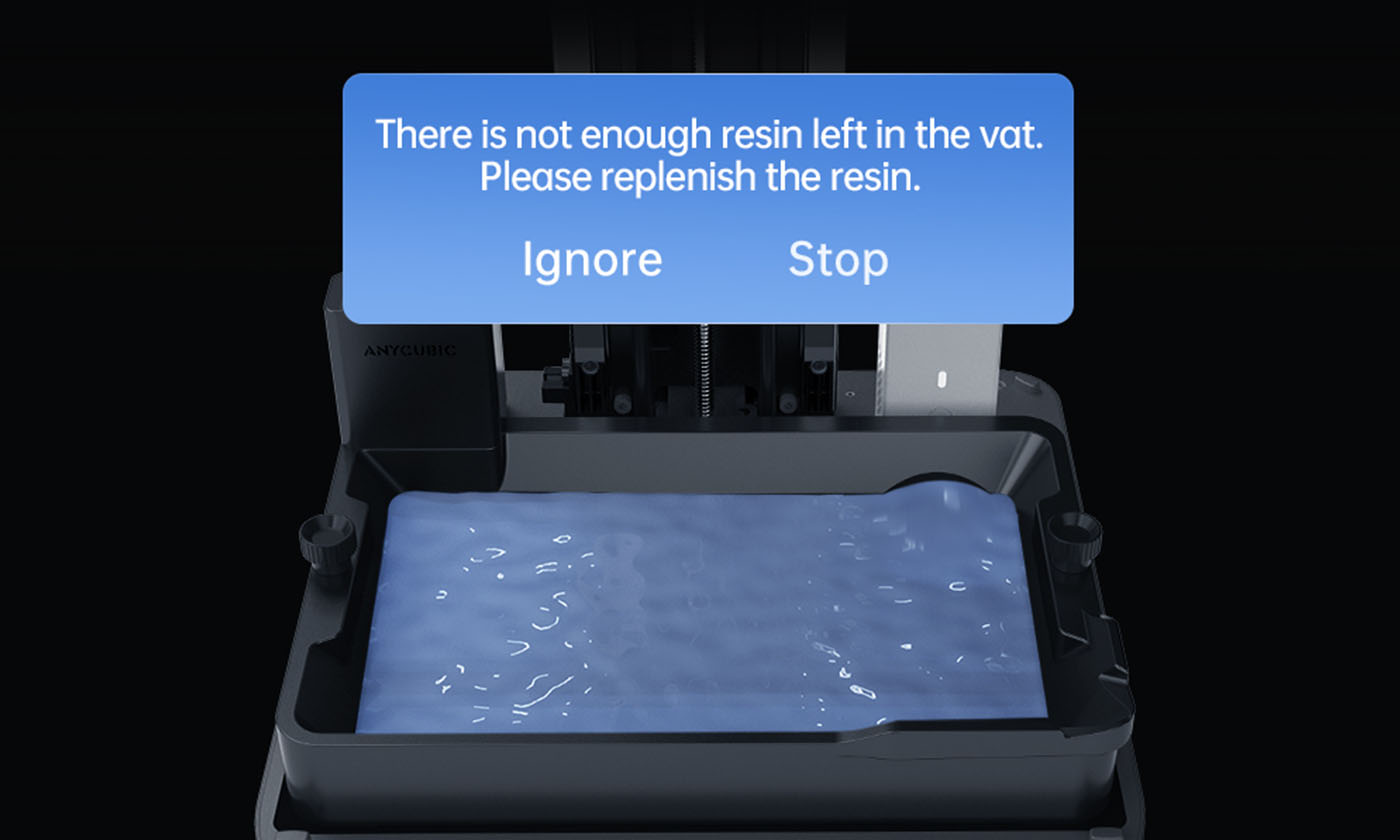

● Auto Resin Refill, Withdrawal

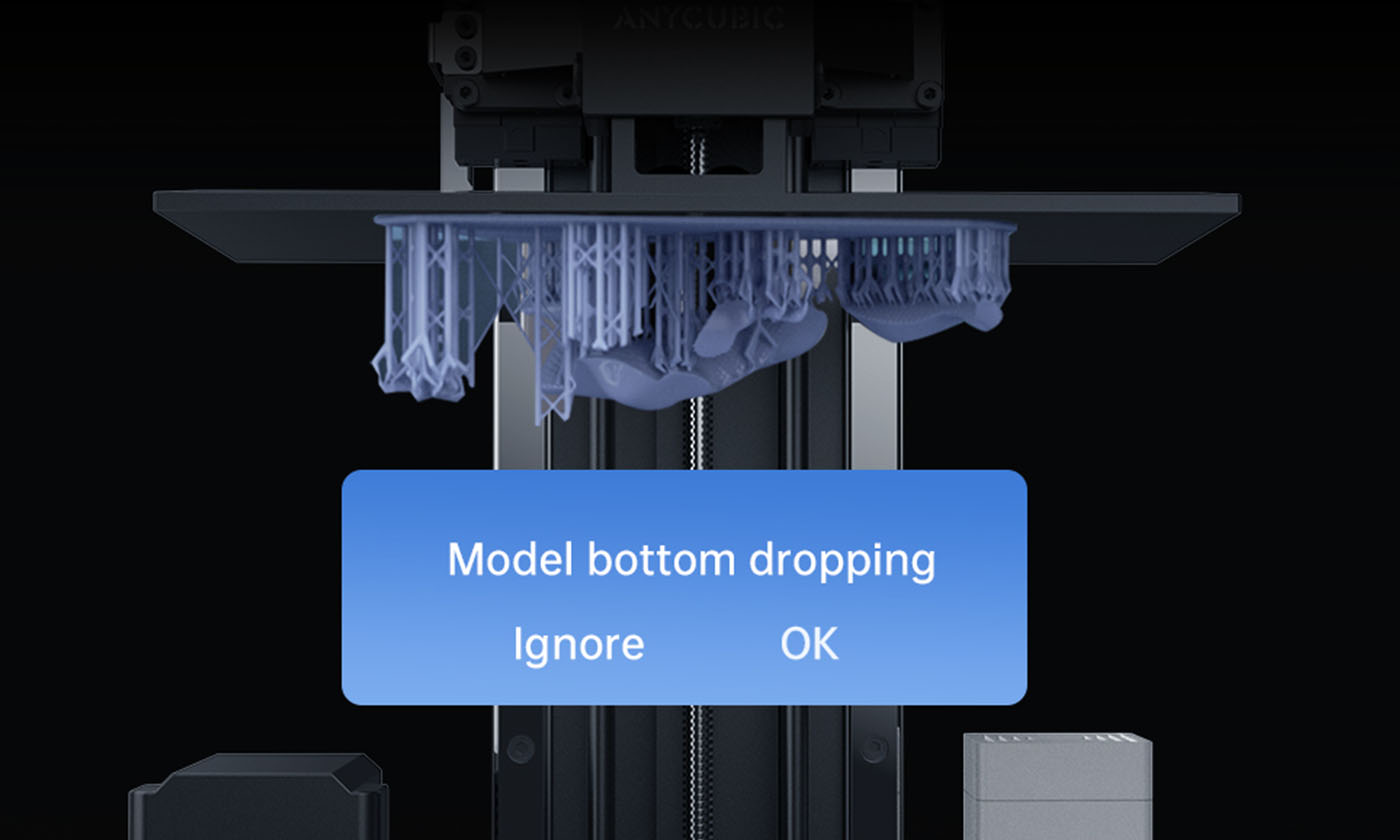

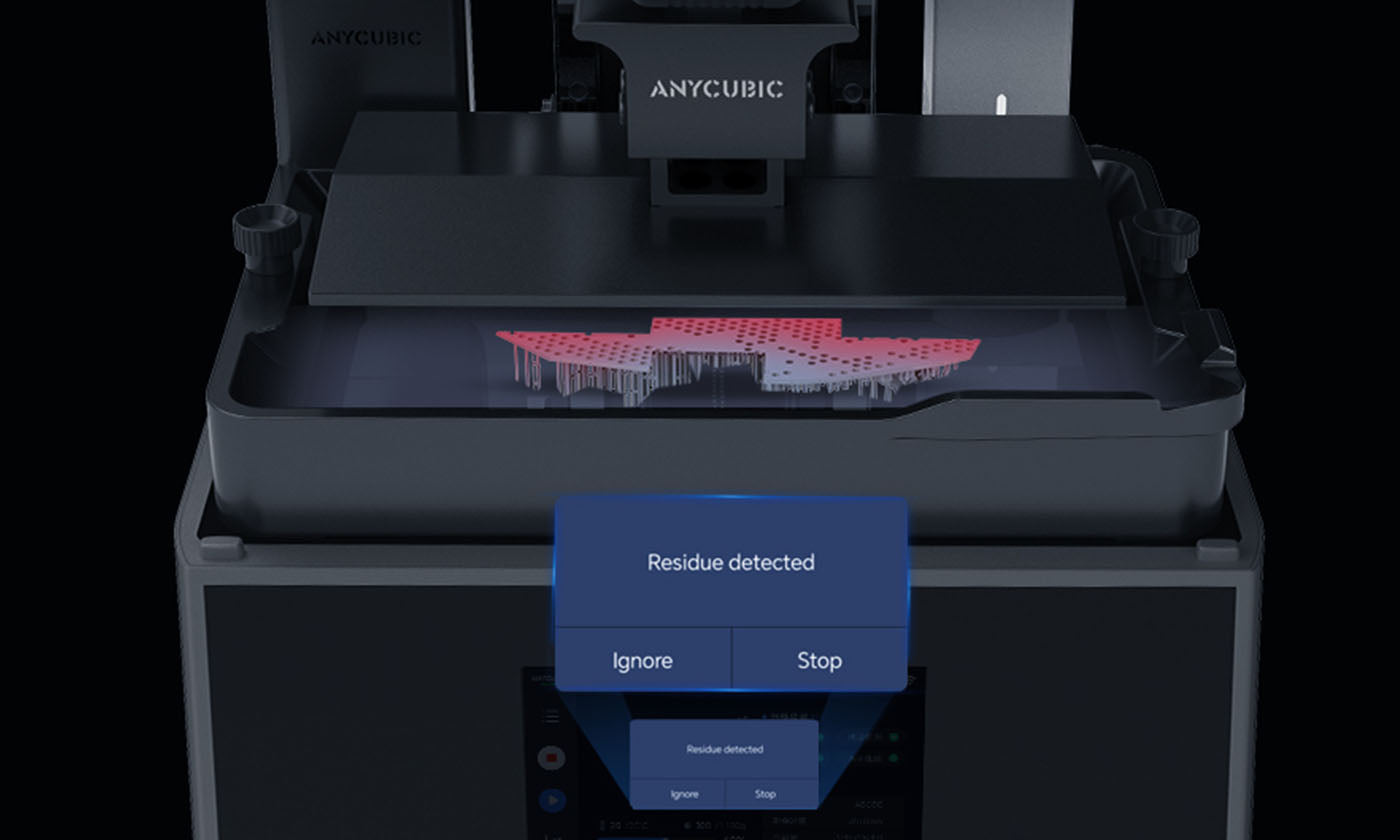

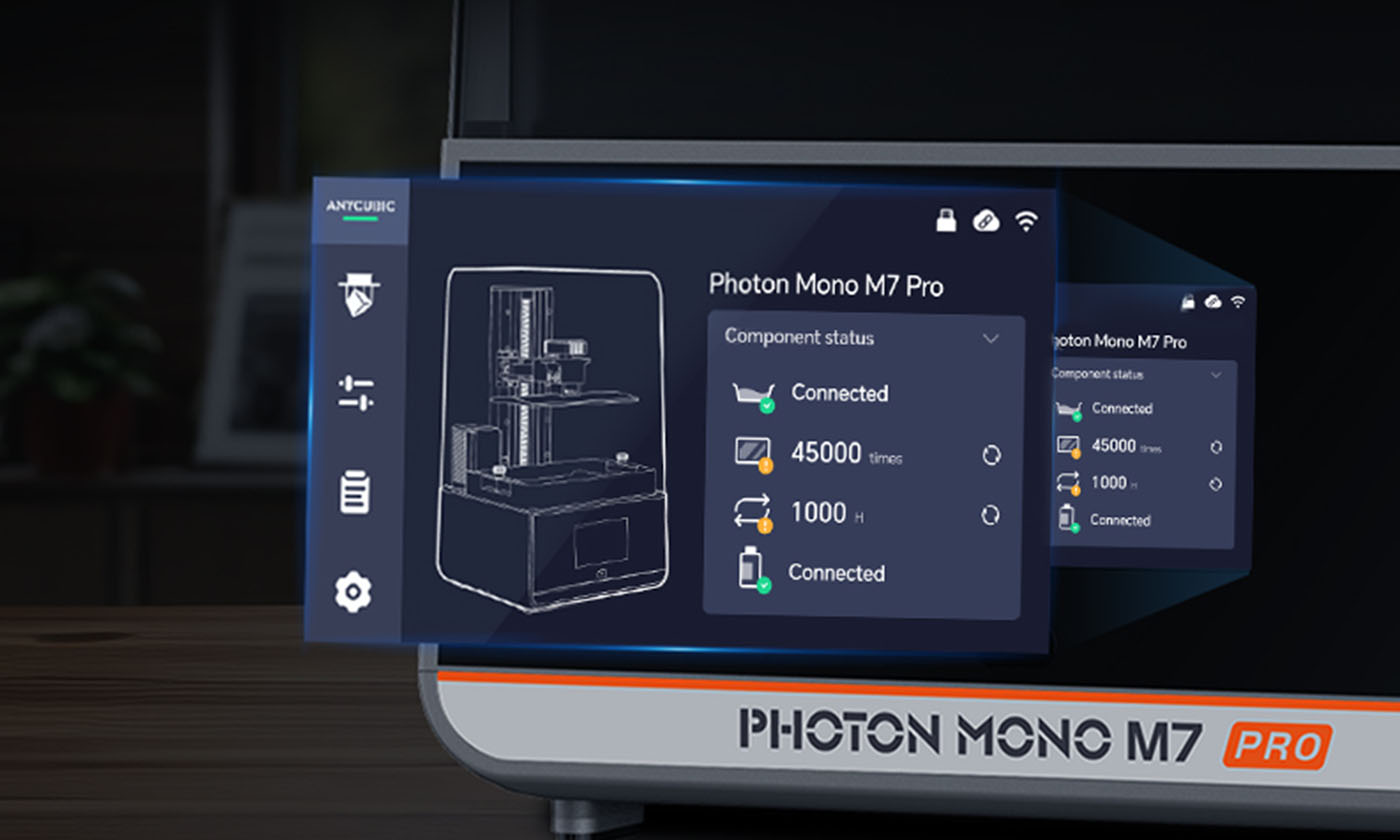

● Intelligent Workflow-Assist Printing
🎉 Price From $549
⏰ Save $120! Don't miss out!

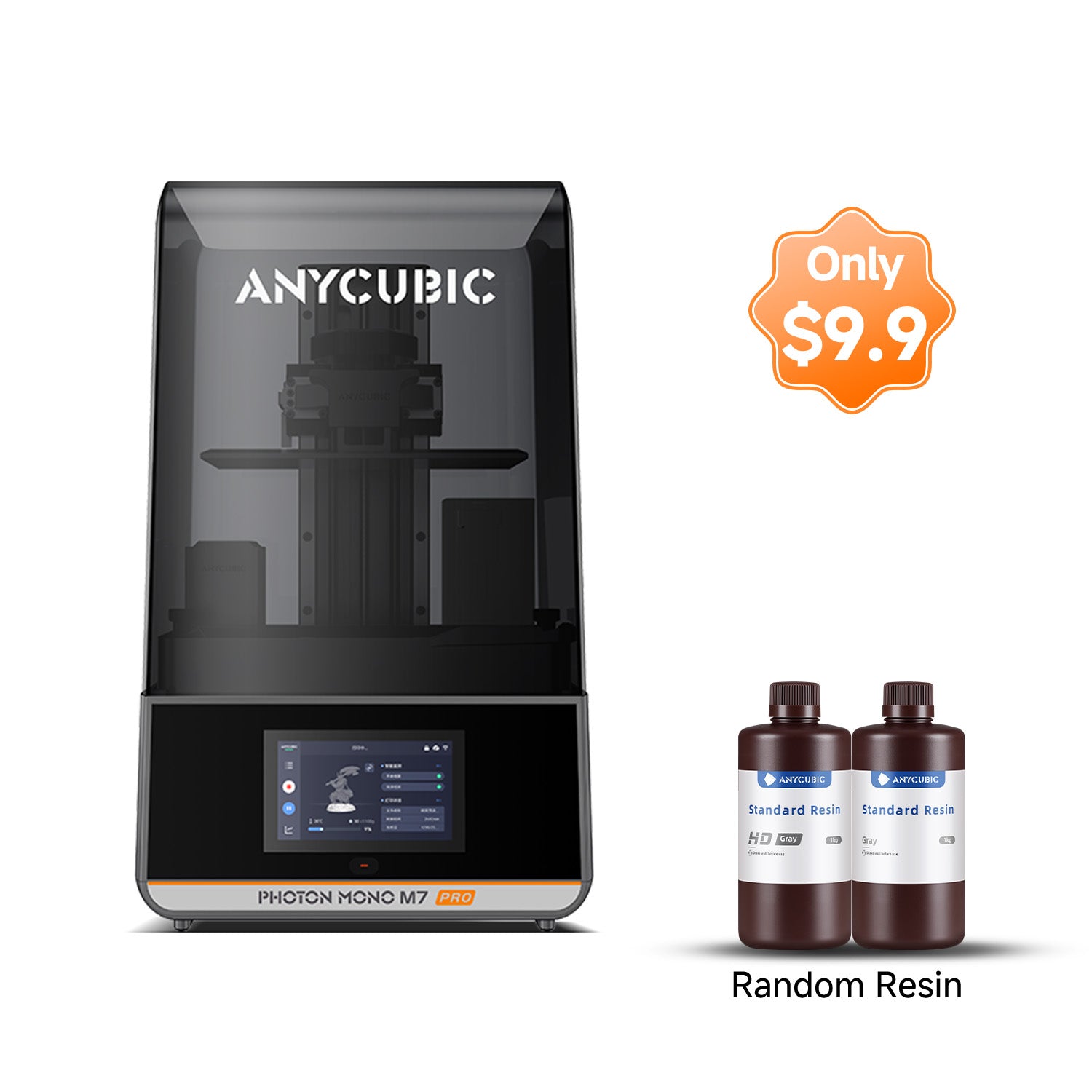

🎁 Limited-time offer in the US: 1KG of free random resin ( Limited stock available, while supplies last. )
Include Machine: Photon Mono M7 Pro
Include High Speed Resin: None
Shipping To: US【🎁Free 1KG Random Resin 】
🚚 Ships in 24 hours

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

$549.00
$669.00 $549.00

Video

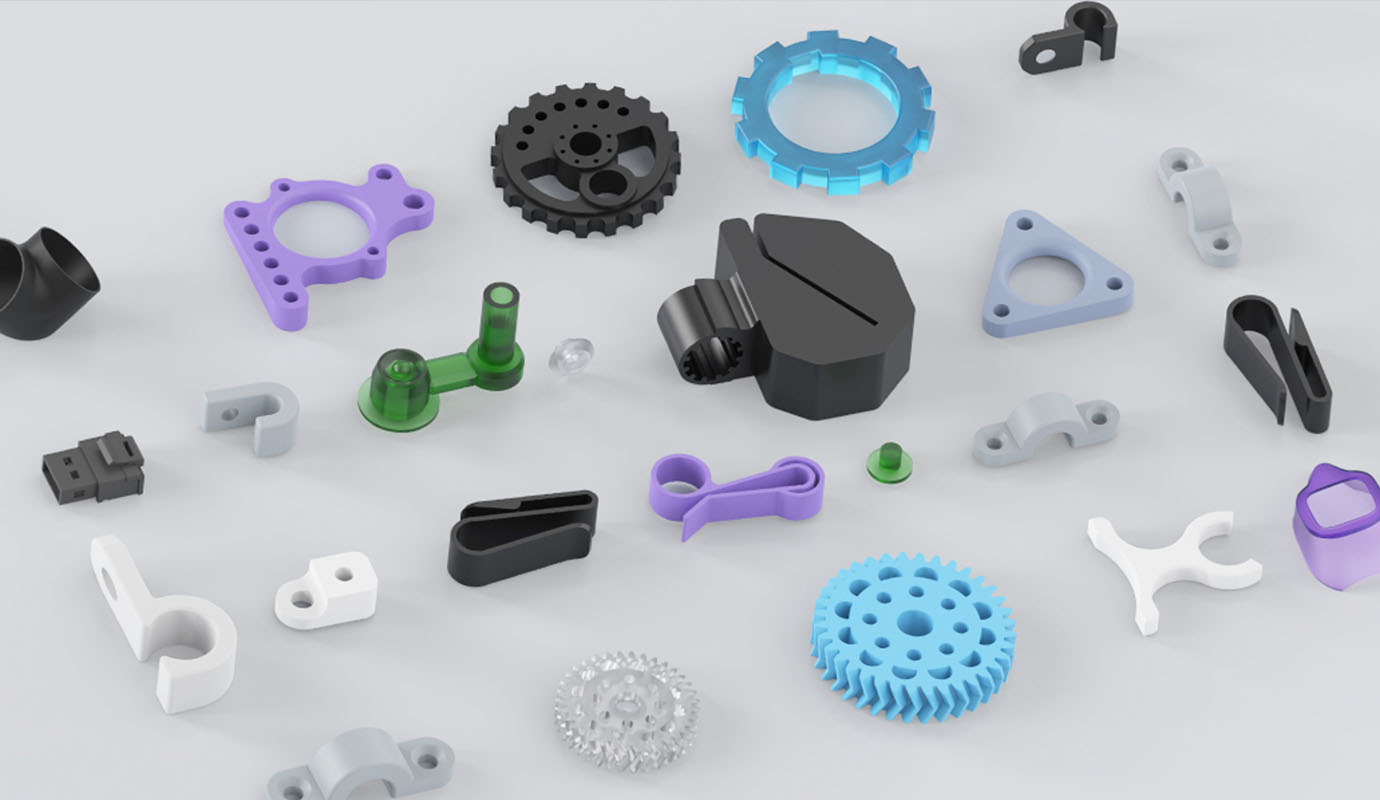

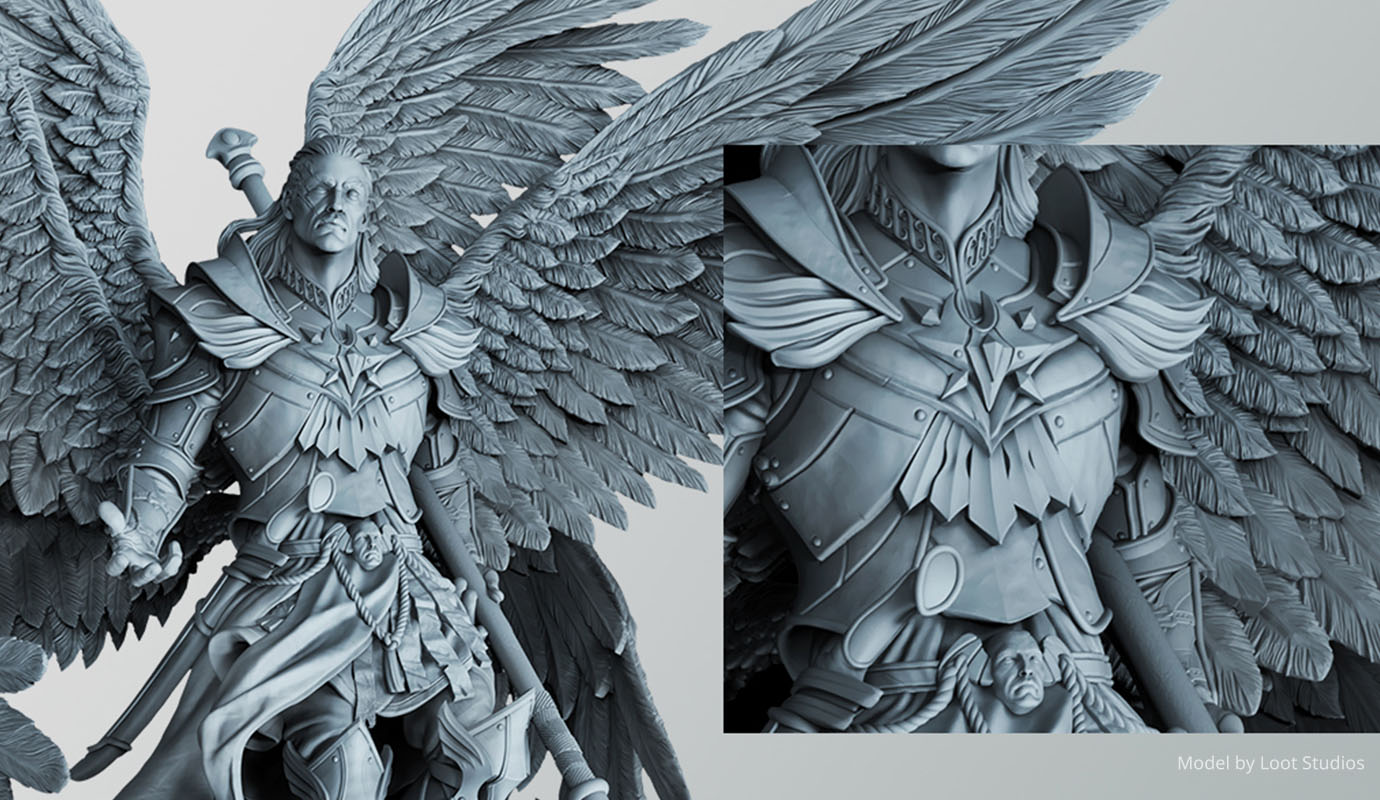

Sample Prints

Specification

Tech specs

  • Build volume

    6.5L

  • Printing volume

    223*126*230mm

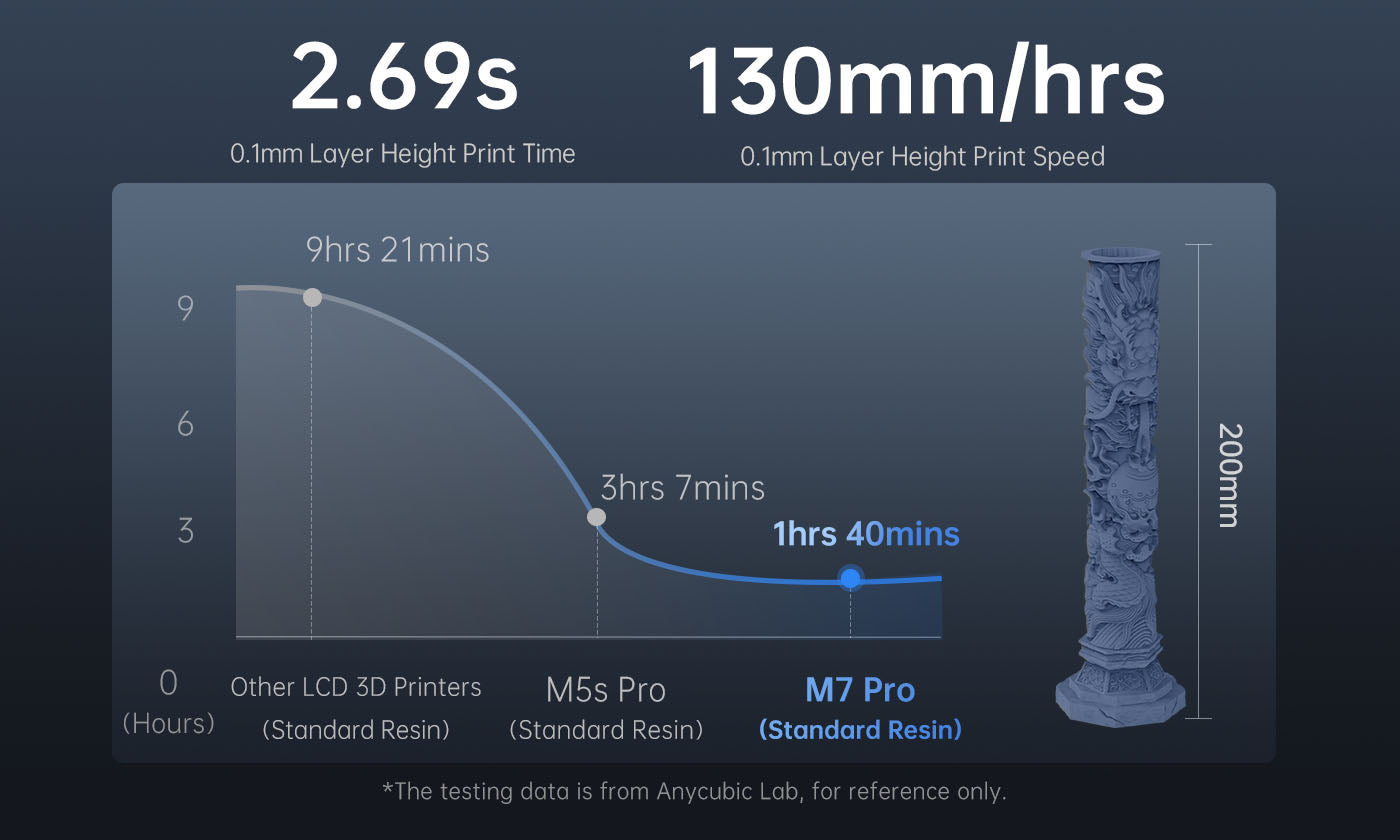

  • Printing speed

    Max Speed 130mm/hr, 0.1mm Layer With Standand Resin; Max Speed170mm/hr, 0.1mm Layer With High Speed Resin; Max Speed190mm/h, 0.15mm Layer With High-Speed Resin; Max Speed 220mm/h, 0.2mm Layer With High-Speed Resin

  • Machine leveling

    Leveling-free

  • Z axis

    Type T (Transport Ball Screw)

  • Lcd screen size

    10.1", 14K (13320 * 5120)

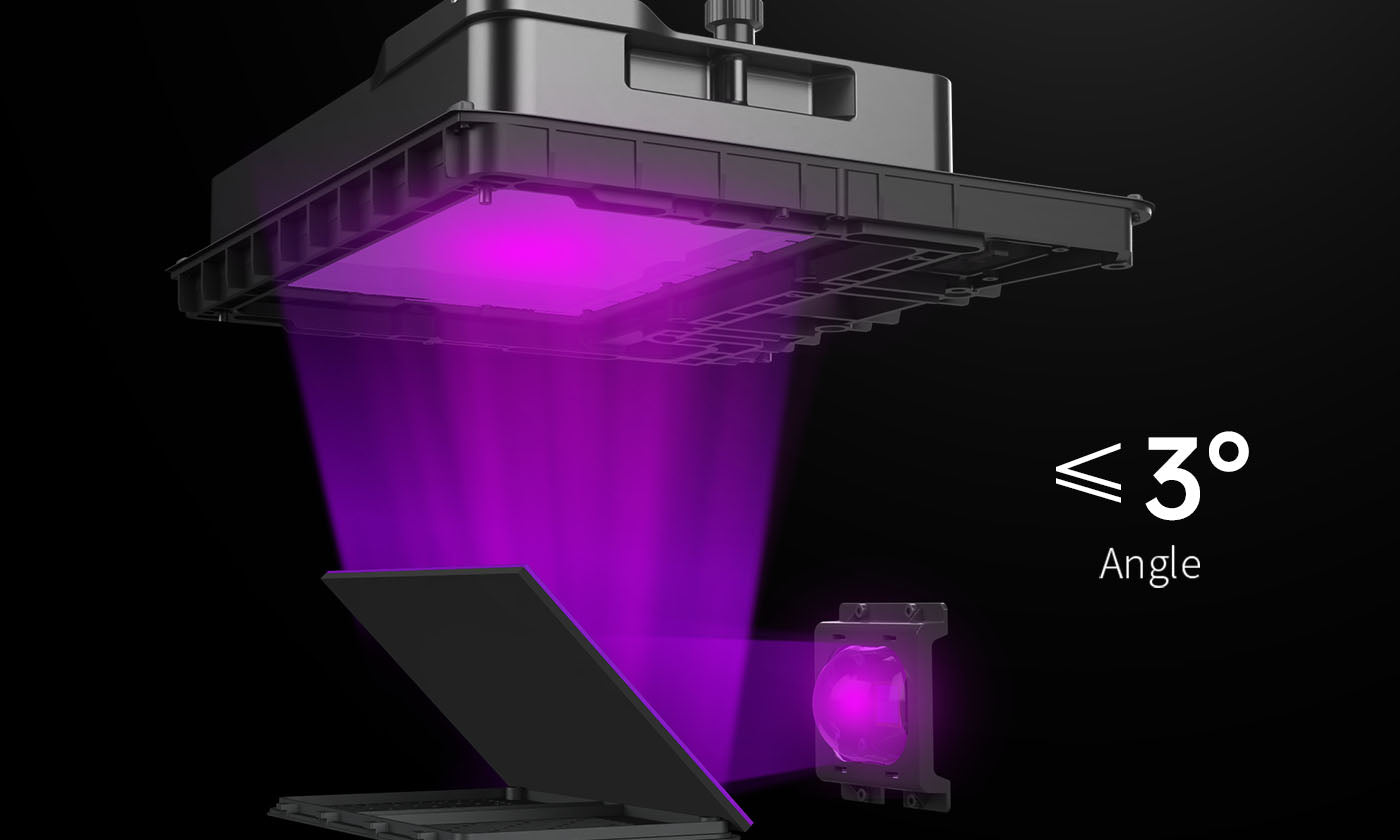

  • Light source

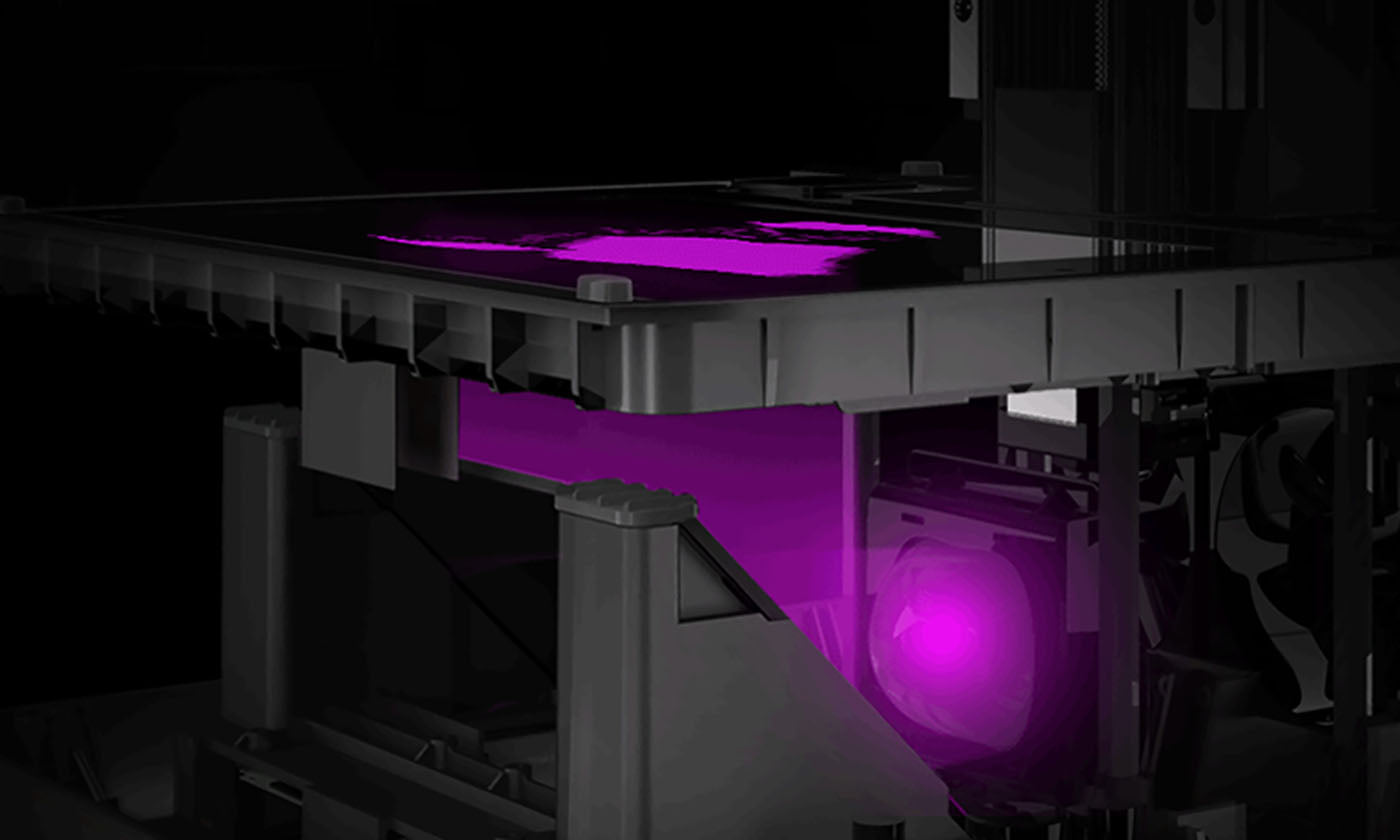

    LighTurbo 3.0 (COB+Fresnel Lens)

  • Build platform

    Laser-carved Plate

  • Operating screen

    4.3" IPS Touch-control

  • Slicing software

    Anycubic Slicing, CHITU,Tango (CHITU and Tango can be supported around the end of May)

  • Material

    Compatible with kinds of resin (high speed, water-washable, standard, ABS-like, plant-based, etc.)

  • Machine dimensions

    312*315*520mm

  • Machine weight

    12.8KG

Products Comparison

Picture Photon Mono M7 Max Photon Mono M7 Pro Photon Mono M7
Printer Model Photon Mono M7 Max Photon Mono M7 Pro Photon Mono M7
Suggested Retail Price $749 $499 $379
Build Volume 298mm x 164mm x 300mm （14.7L） 223*126*230mm 223*126*230mm
Printing Speed Standard Resin 0.05mm layer height: ≤31mm/h peek speed | Standard Resin 0.1mm layer height: ≤63mm/h peek speed | High Speed Resin 0.1mm layer height: ≤86mm/h peek speed Standard Resin 0.1mm layer height: 130mm/h peek speed | High Speed Resin 0.1mm layer height: 170mm/h peek speed Standard Resin 0.1mm layer height: 90mm/h peek speed | High Speed Resin 0.1mm layer height: 150mm/h peek speed
Layer Height 0.01-0.15mm 0.01-0.15mm 0.01-0.15mm
LCD Screen 13.6-inch Mono LCD 10.1-inch Mono LCD 10.1-inch Mono LCD
LCD Resolution 7K 14K 14K
X/Y Axis Resolution 46*46μm 16.8*24.8μm 16.8*24.8μm
Light Source COB light source+ Fresnel lens+Light uniformity algorithm COB light source+ Fresnel lens+Light uniformity algorithm COB light source+ Fresnel lens+Light uniformity algorithm

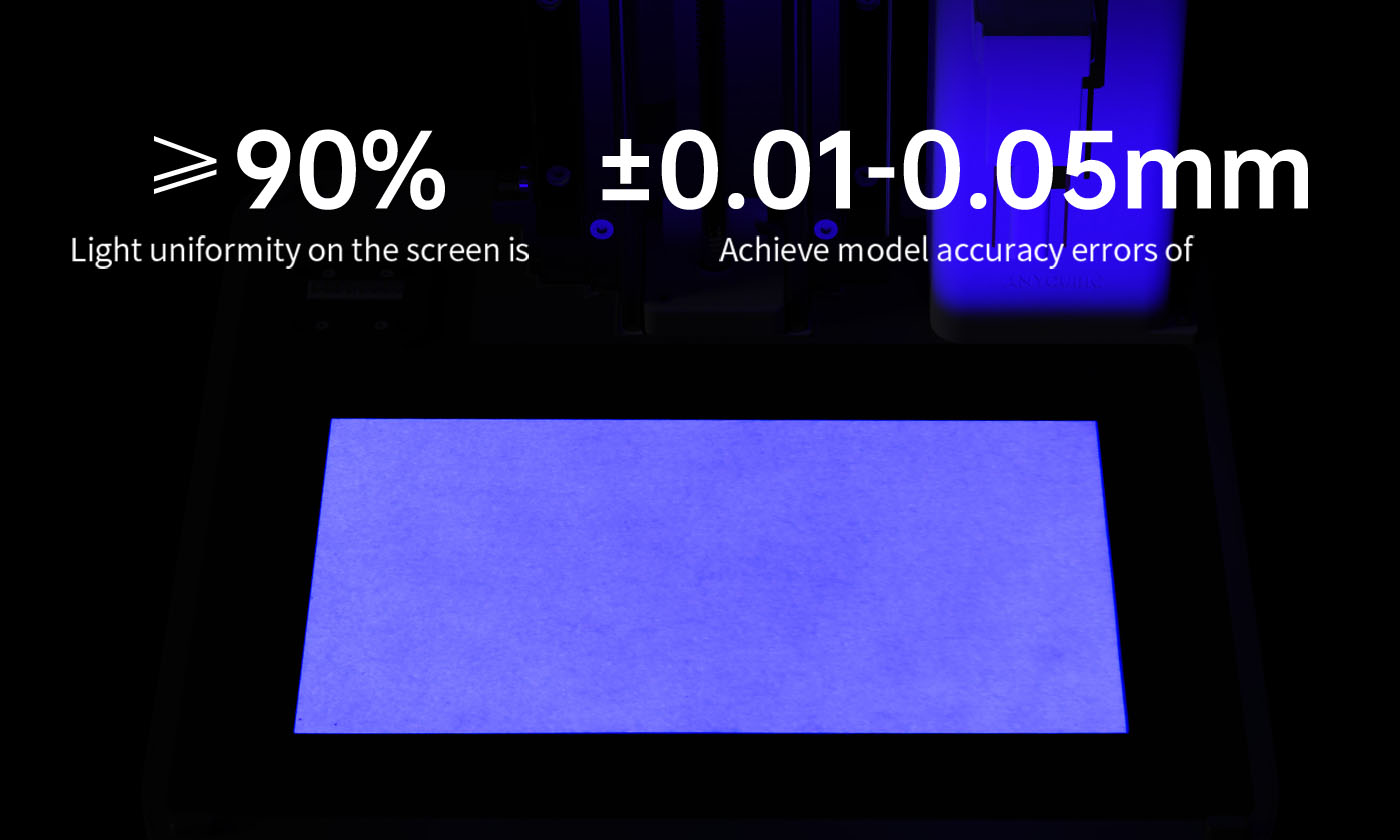

Light Uniformity ≥ 90% ≥ 90% ≥ 90%
Light Intensity 4500±10%μW/cm² 5500±10%μW/cm² 4500±10%μW/cm²
Release Film Improved ACF film Improved ACF film Improved ACF film
Intelligence Assisted Printing System √ √ √
Air vent √ √ √
Dynamic temperature control resin vat √ √ ×
Resin Auto-Fill Unit √ √ ×
Display Screen 4.3-inch colored control screen 4.3-inch colored control screen 4.3-inch colored control screen
Anycubic App √ √ √
Machine leveling 4-point manual leveling Leveling-free Leveling-free
Slicing Software Photon Workshop & Chitubox & Lycheeslicer（Q4） Photon Workshop & Chitubox & Lycheeslicer Photon Workshop & Chitubox & Lycheeslicer
File Transfer USB & WiFi & LAN MODE（2025 Q1） USB & WiFi & LAN MODE（2025 Q1） USB & WiFi & LAN MODE（2025 Q1）
Product Dimensions 425*362*652mm 312*315*520mm 312*315*520mm
Packaging Dimensions 785*520*490mm 620*395*395mm 620*395*395mm
Net Weight 24KG 12.8KG 12KG

In The Box

  • Photon Mono M7 Pro

  • Print platform * 1

  • Resin vat * 1

  • WiFi antenna

  • Hex key set

  • Protective equipment

  • Funnel * 5

  • Scraper * 2

  • Sreen protector kit

  • Leveling paper

  • Manual * 1

  • USB drive * 1

  • Auto-fill unit

  • Power cord

FAQs

What is the hottest temperature that the heater can heat the resin to? Is the temperature control adjustable?

It is adjustable.The default temperature is 25 centigrade, and can be set at 20-40 centigrade.

Can the auto fill unit be used while the cover is on?

Yes it can be used while the cover is on.

Do i need to buy high speed resin for the fast prints? Or this can print fast with the normal resin?

Photon Mono M7 Pro can support both High Speed Resin and Standard Resins. The print speed is different. Max Speed 130mm/hr, 0.1mm Layer With Standand Resin; Max Speed170mm/hr, 0.1mm Layer With High Speed Resin.

What hardware is required when using a printer to clean and cure printed parts?

To clean and cure printed parts using a printer, you will need Cleaning Kit and Wash & Cure Machine.

How about finding out what resins this machine can support and where to find the resin settings for this 3D printer?

For information on resin settings, please visit: Resin Settings for Anycubic 3D Printers.
