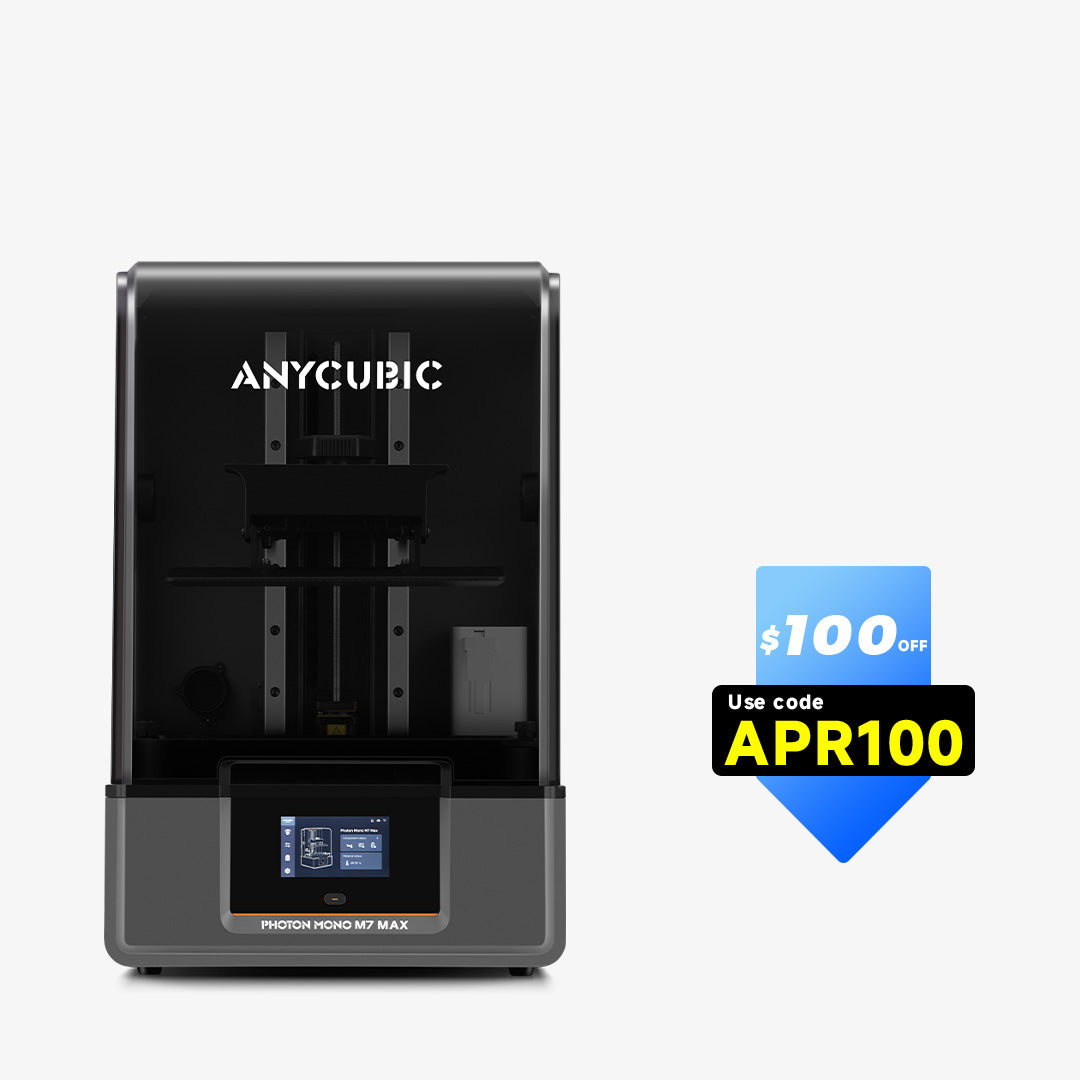

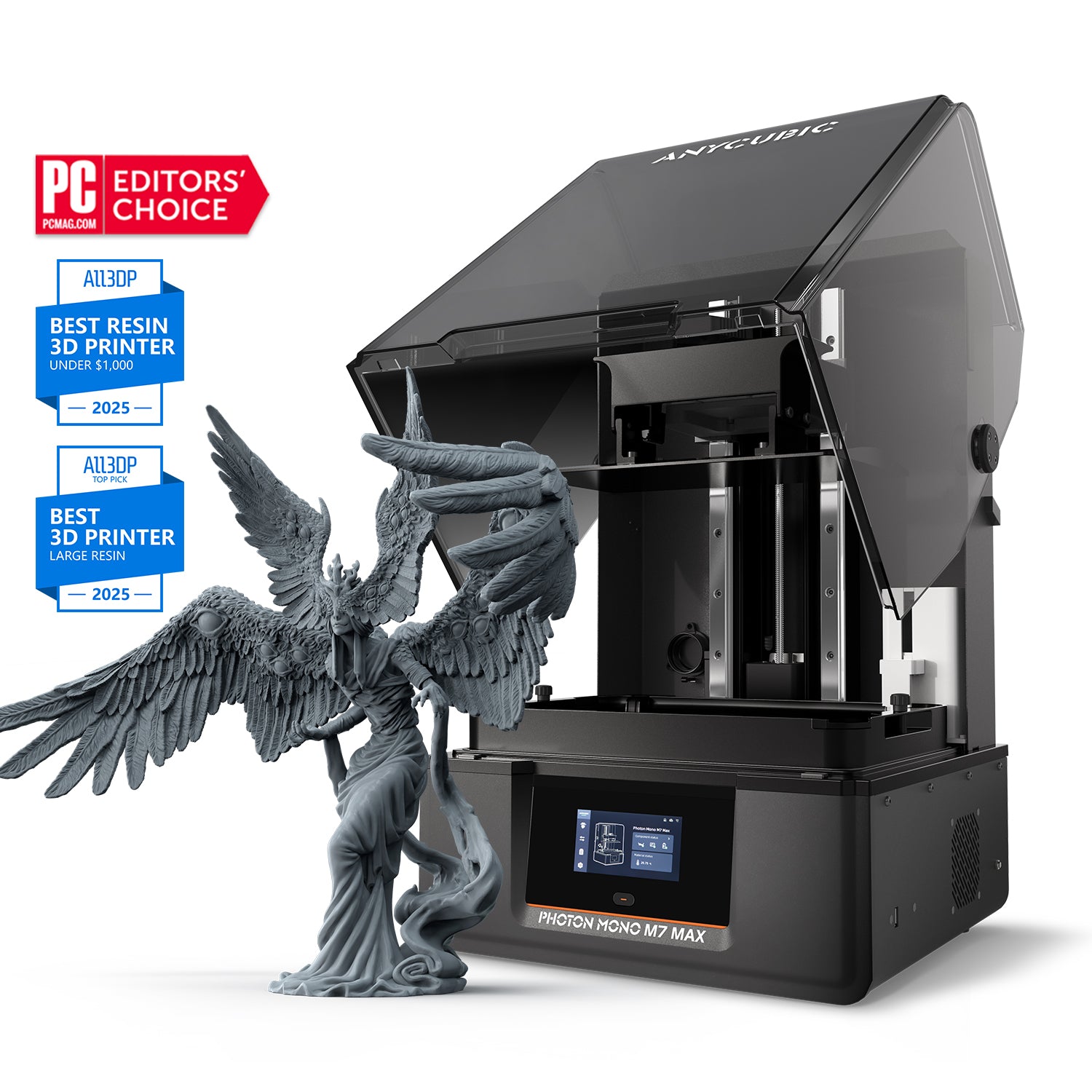

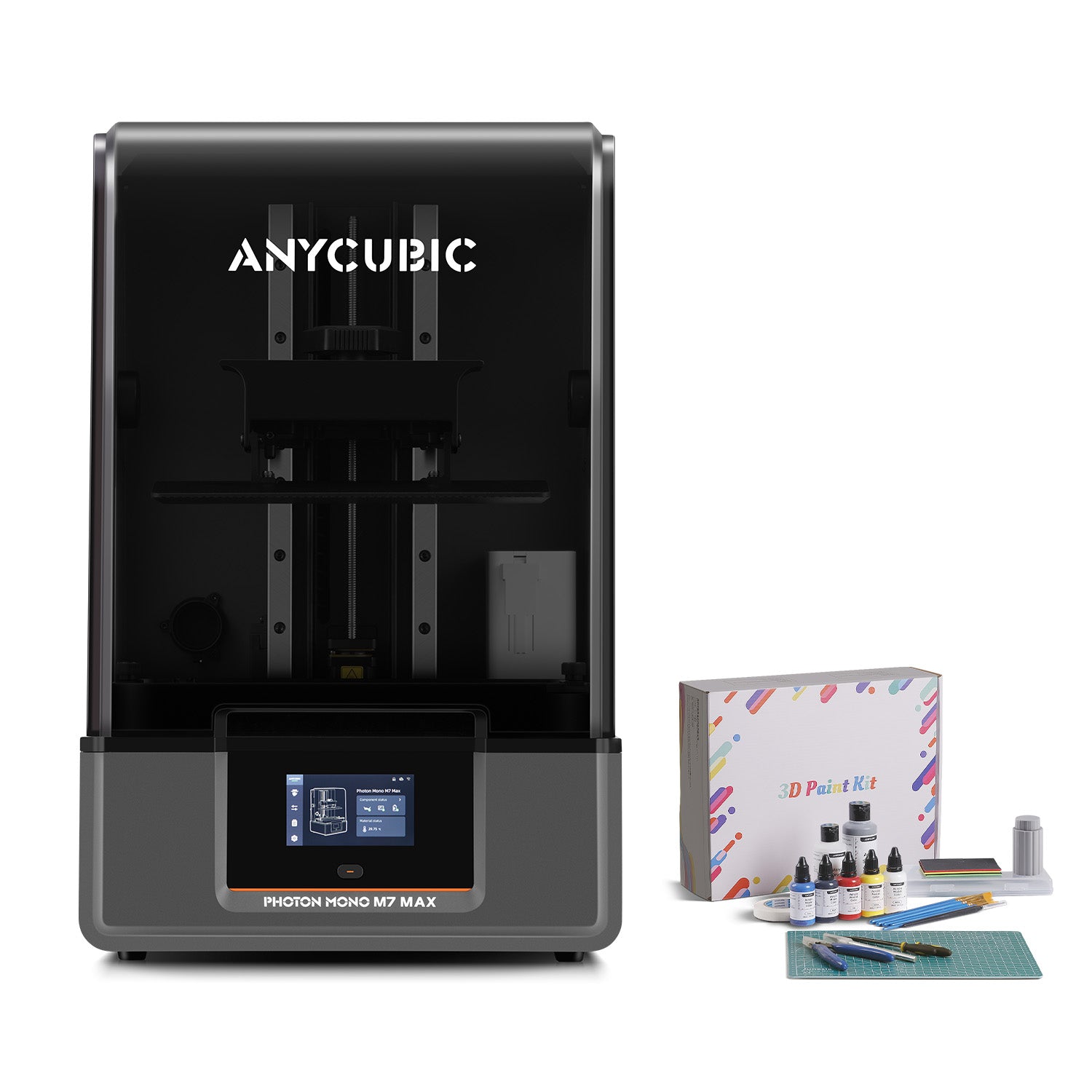

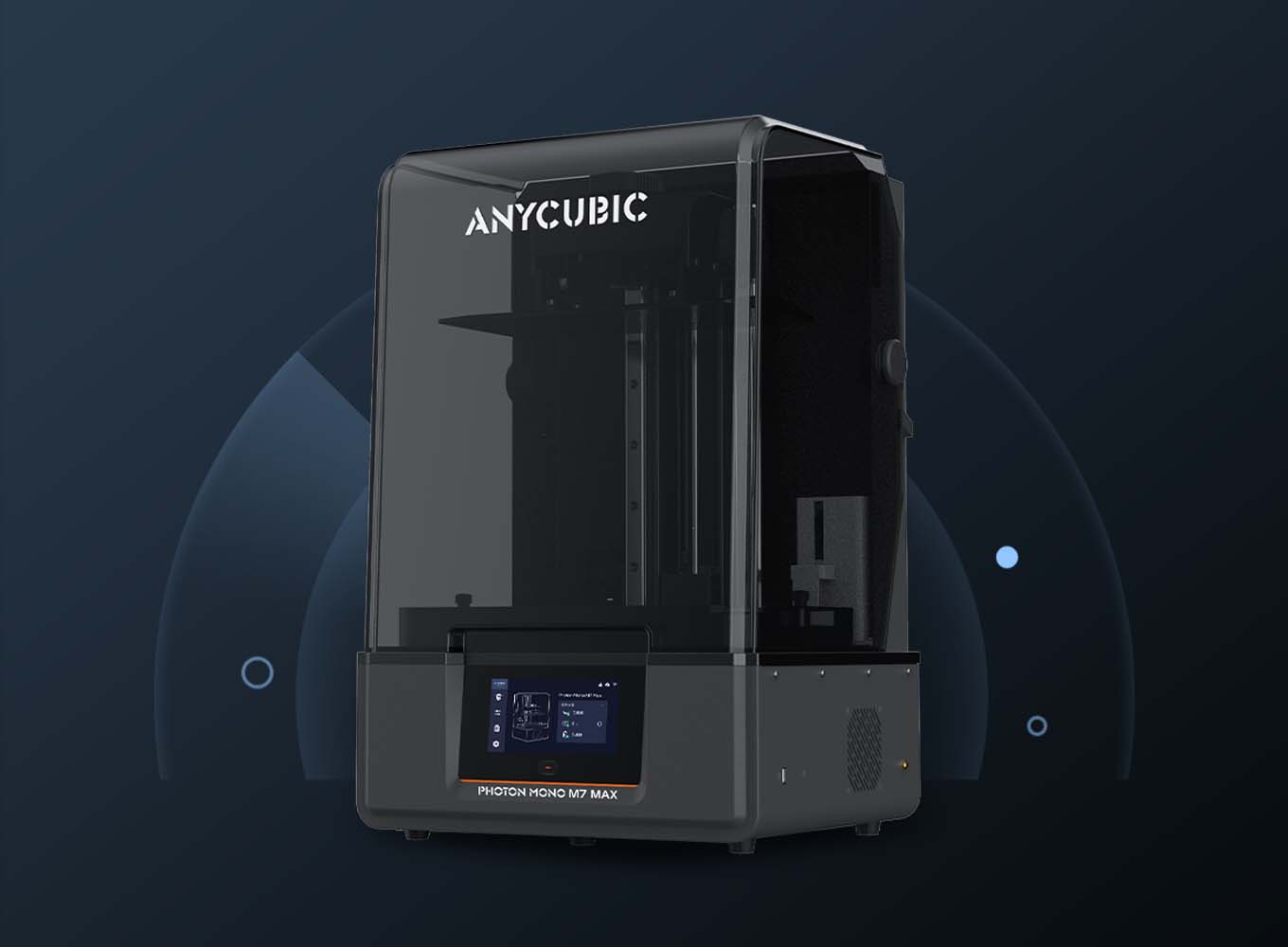

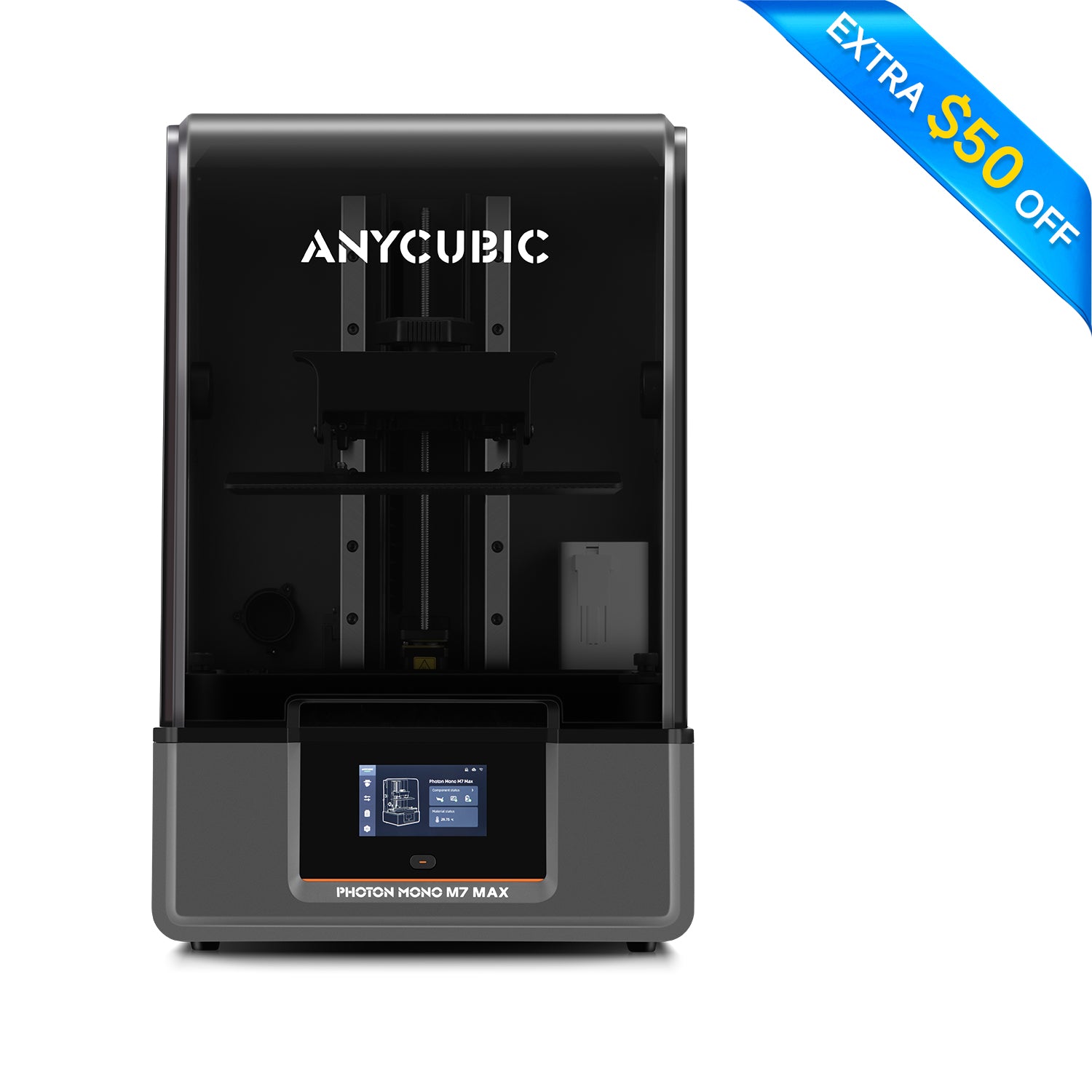

Anycubic Photon Mono M7 Max

$749.00
$899.00 $749.00
-$150.00
Shipping calculated at checkout.

Product Features
● Maximum print speed of 4 Sec. per layer (0.05mm layer height)

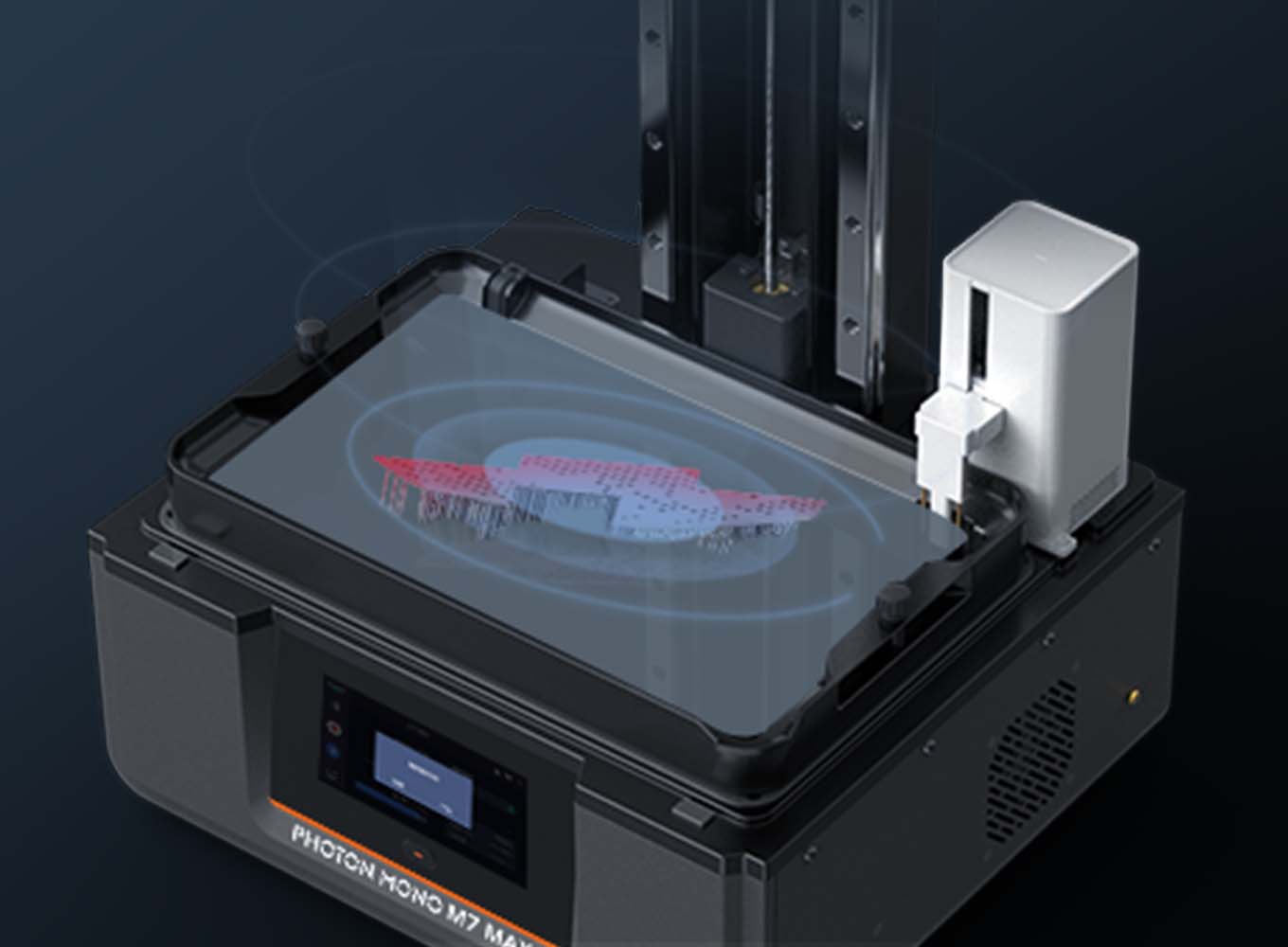

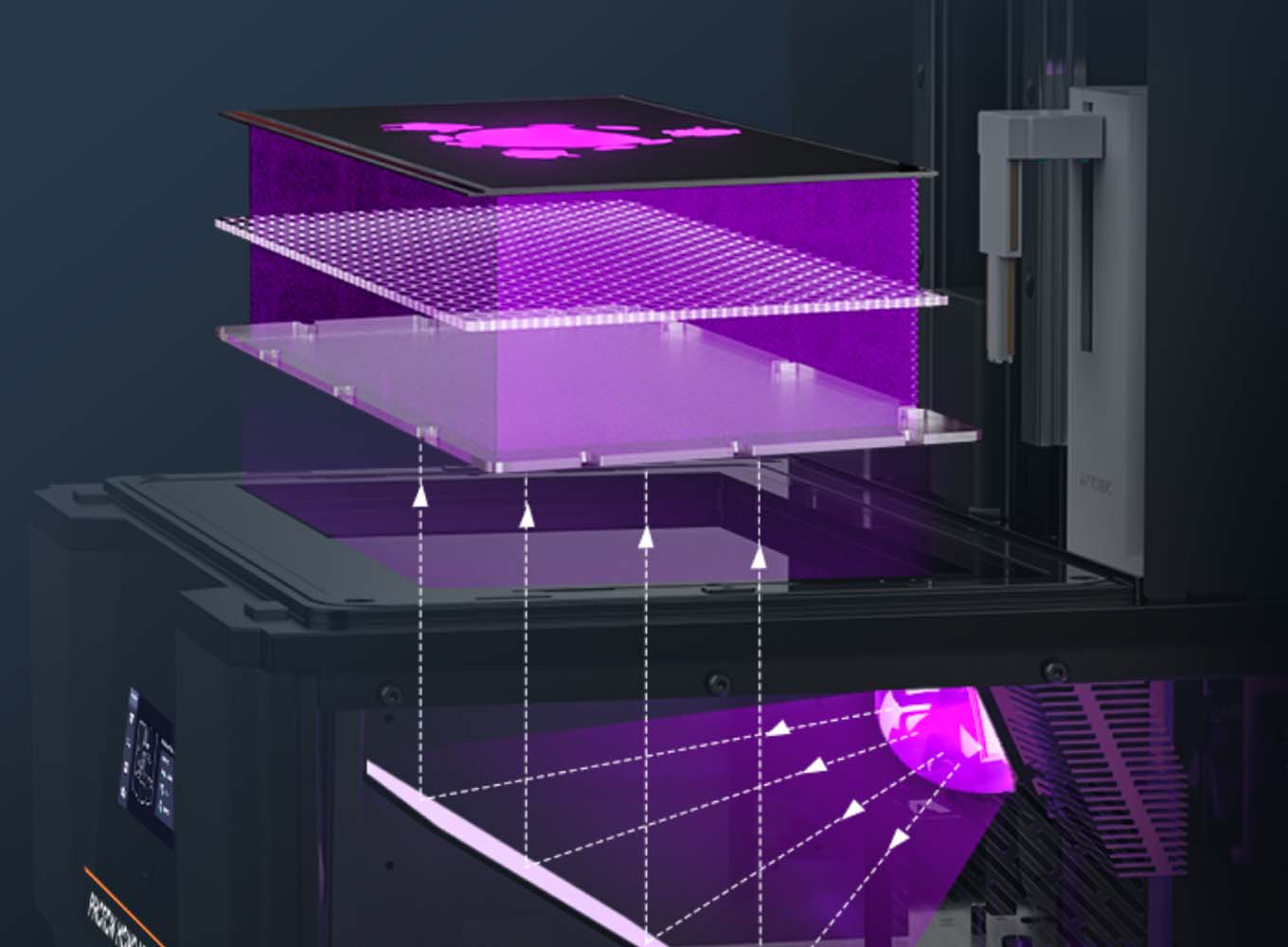

● LighTurbo 3.0 High-Precision Light Source System

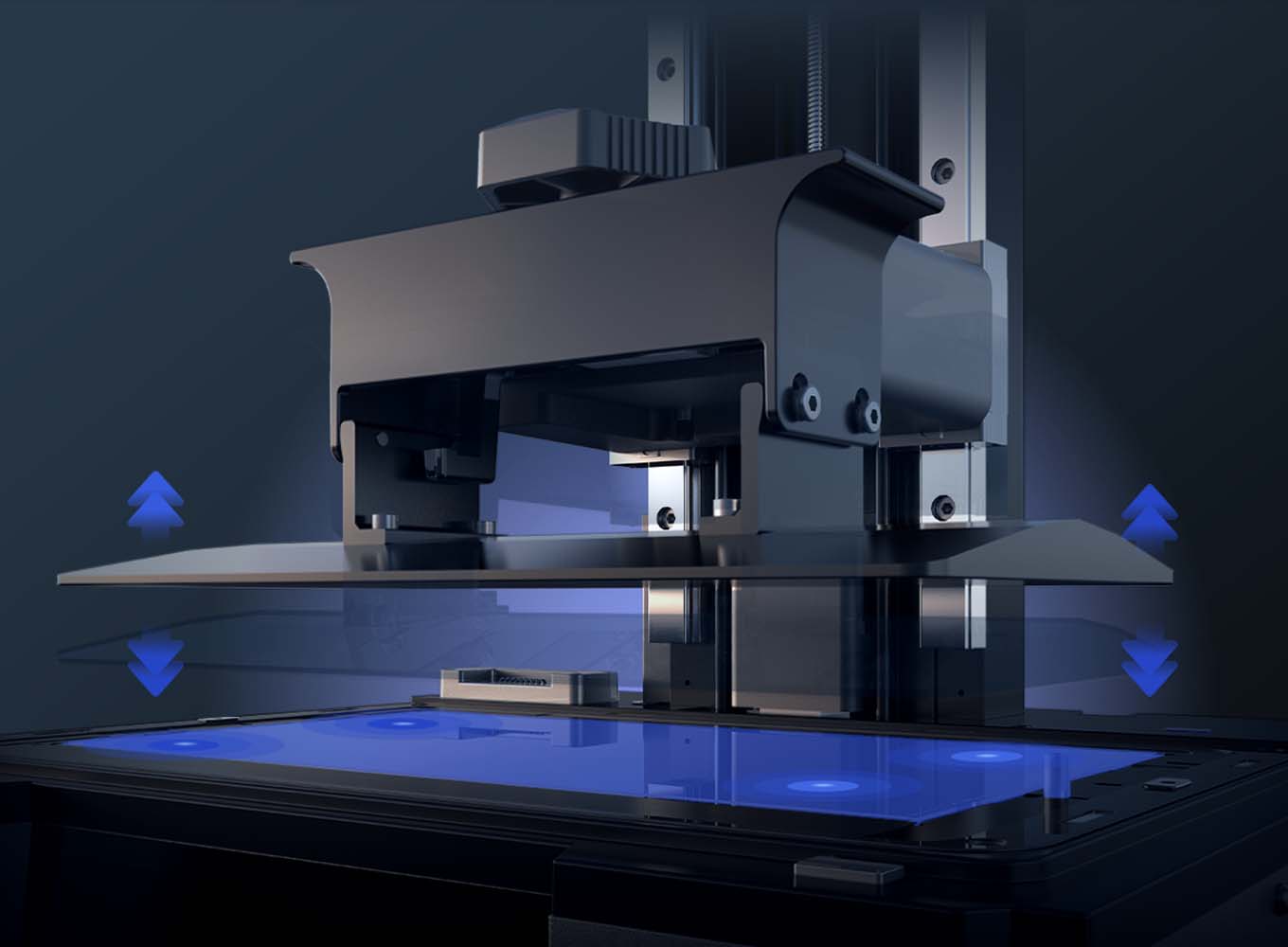

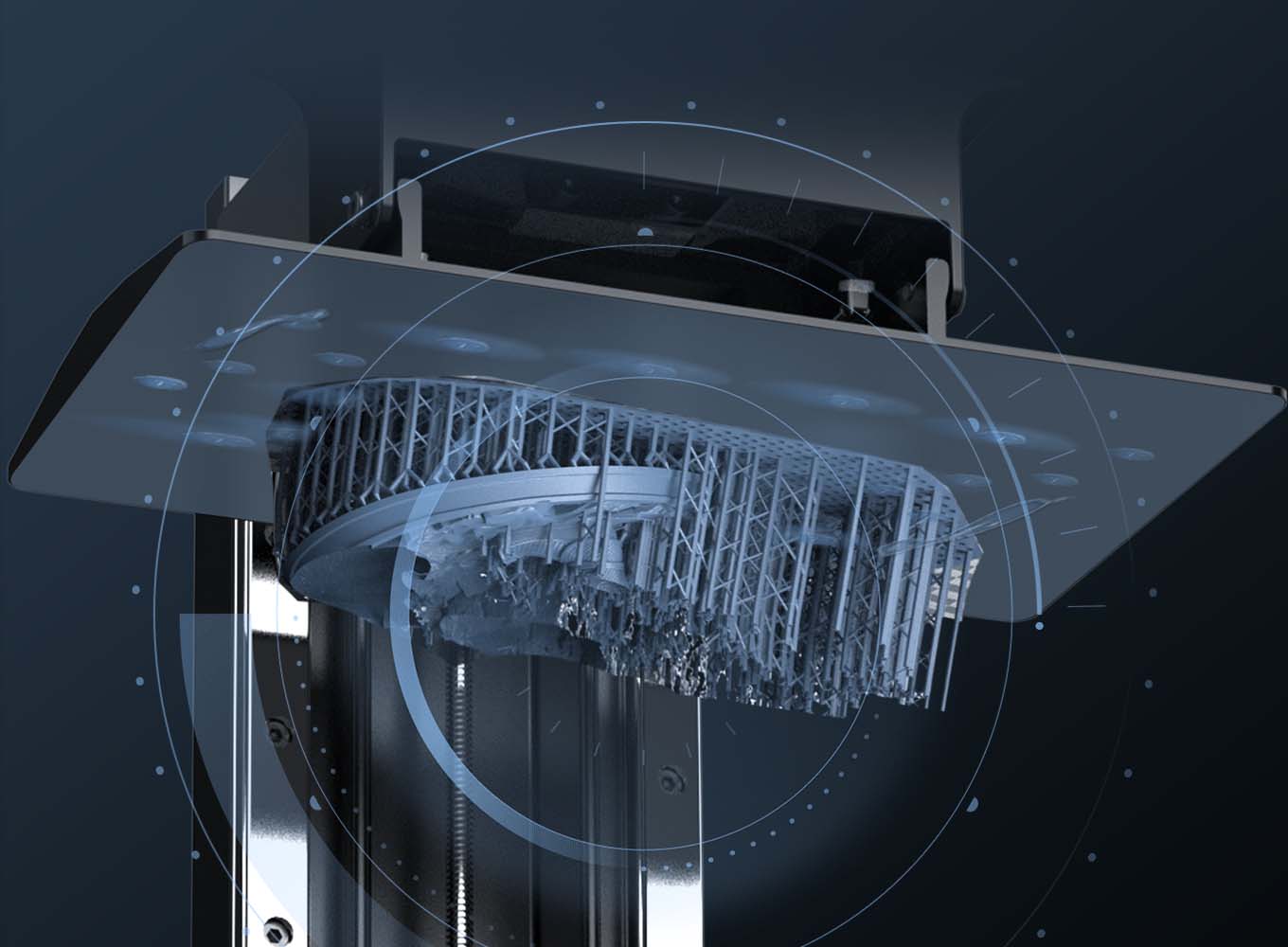

● Intelligent Release 2.0 Precision Control

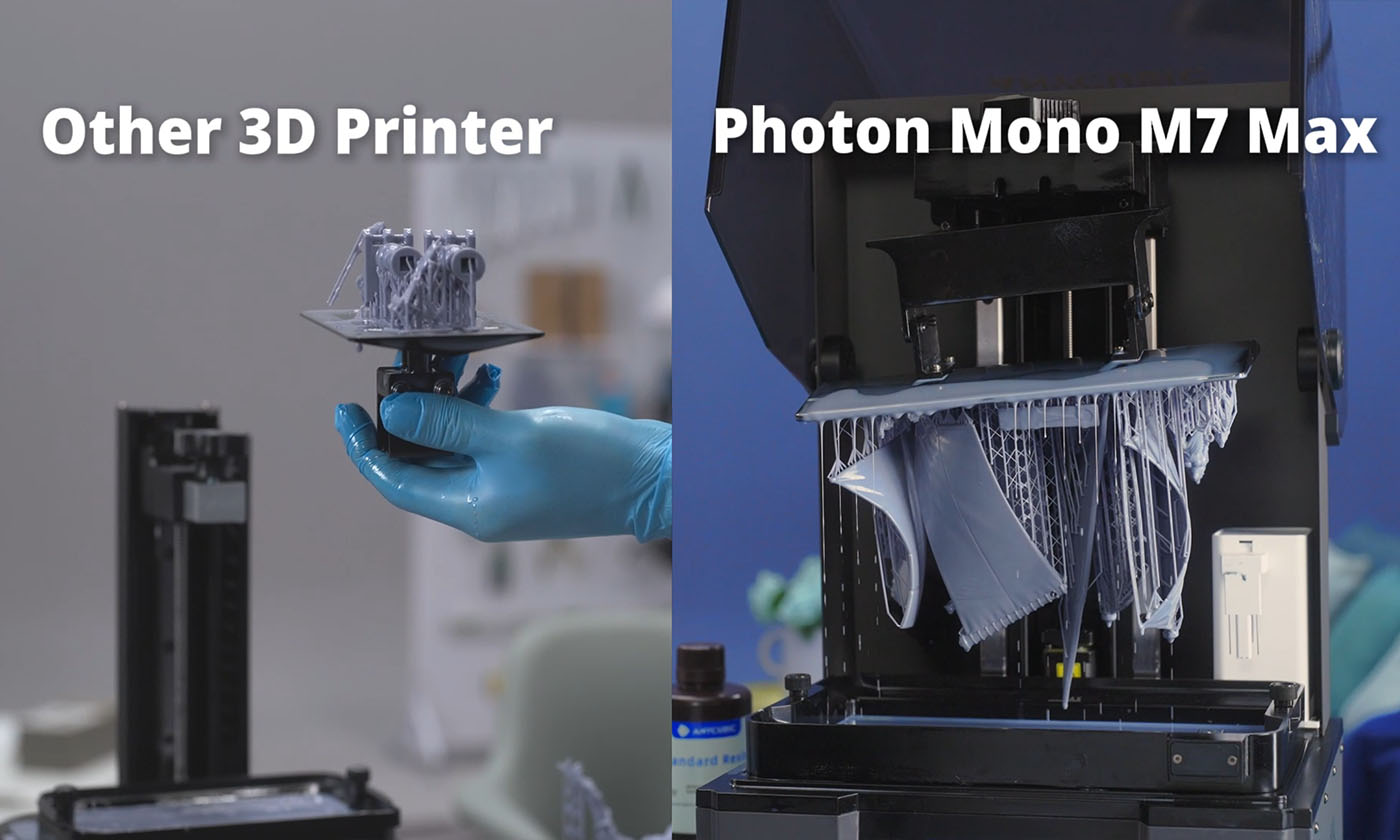

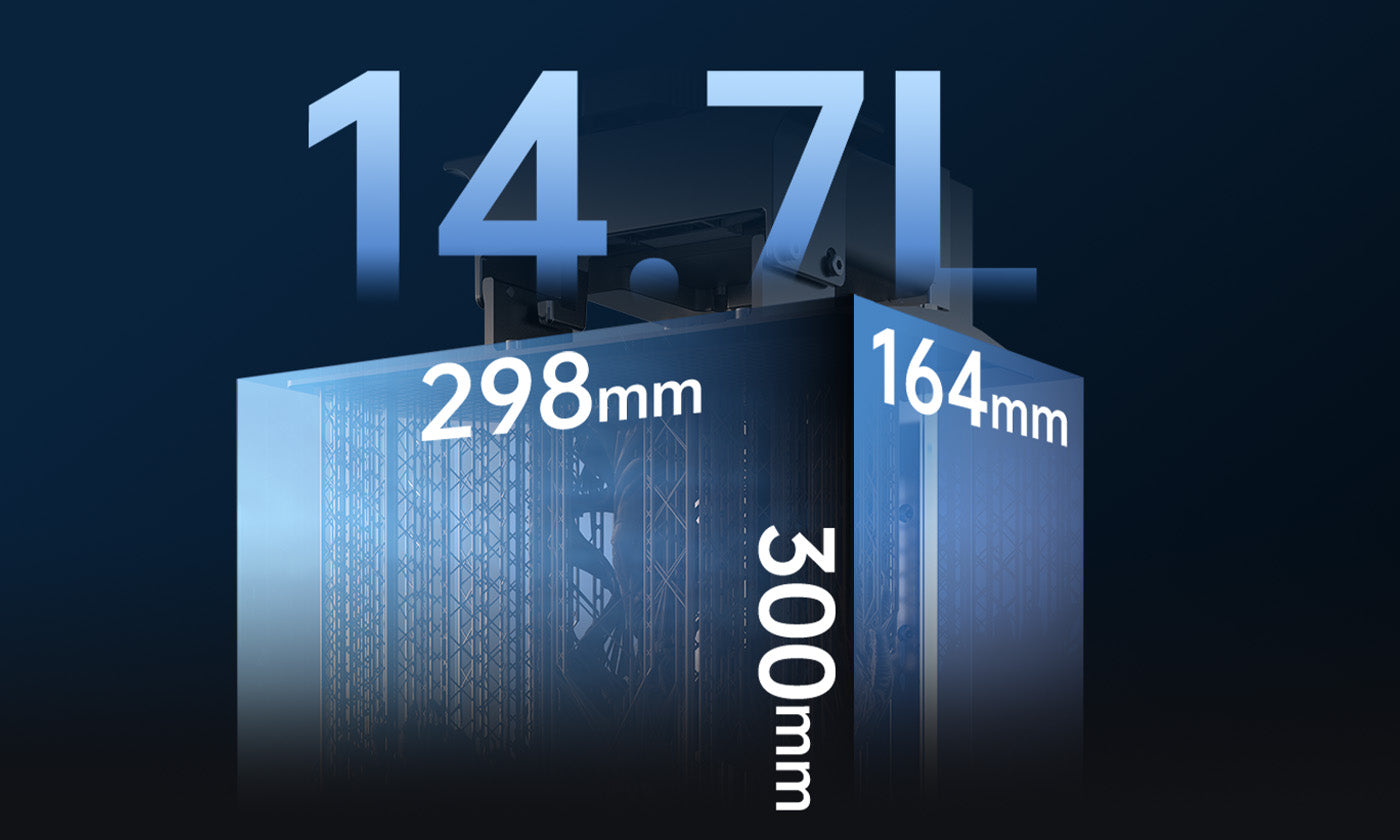

● 14.7L Ultra-Large Print Volume

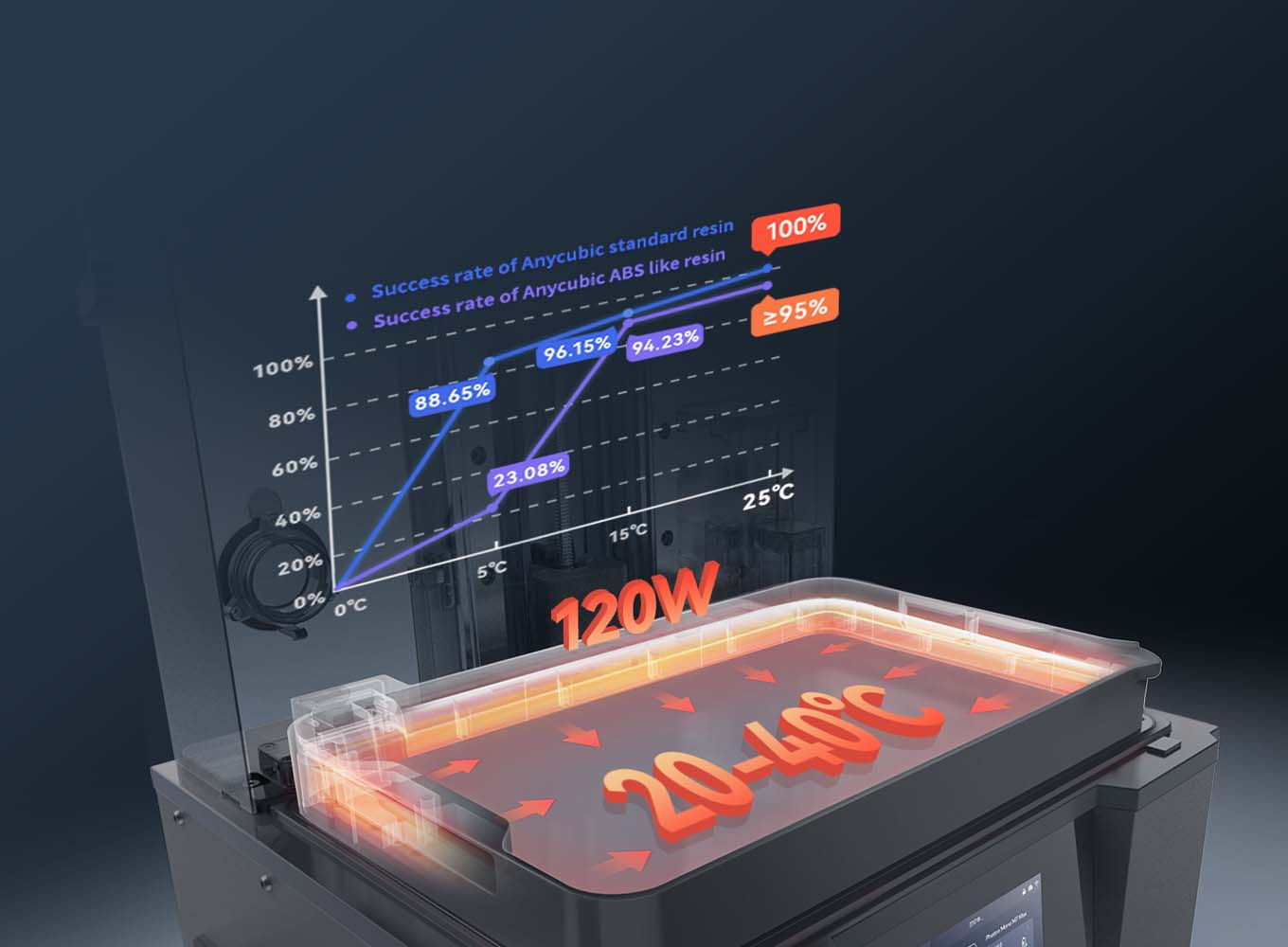

● 20-40'C Resin Temperature Control, Resin Auto-Recycling Management
● 8 User-Friendly lmprovements
🎁 $133.98 Exclusive Benefits：(limit to first 500 orders)

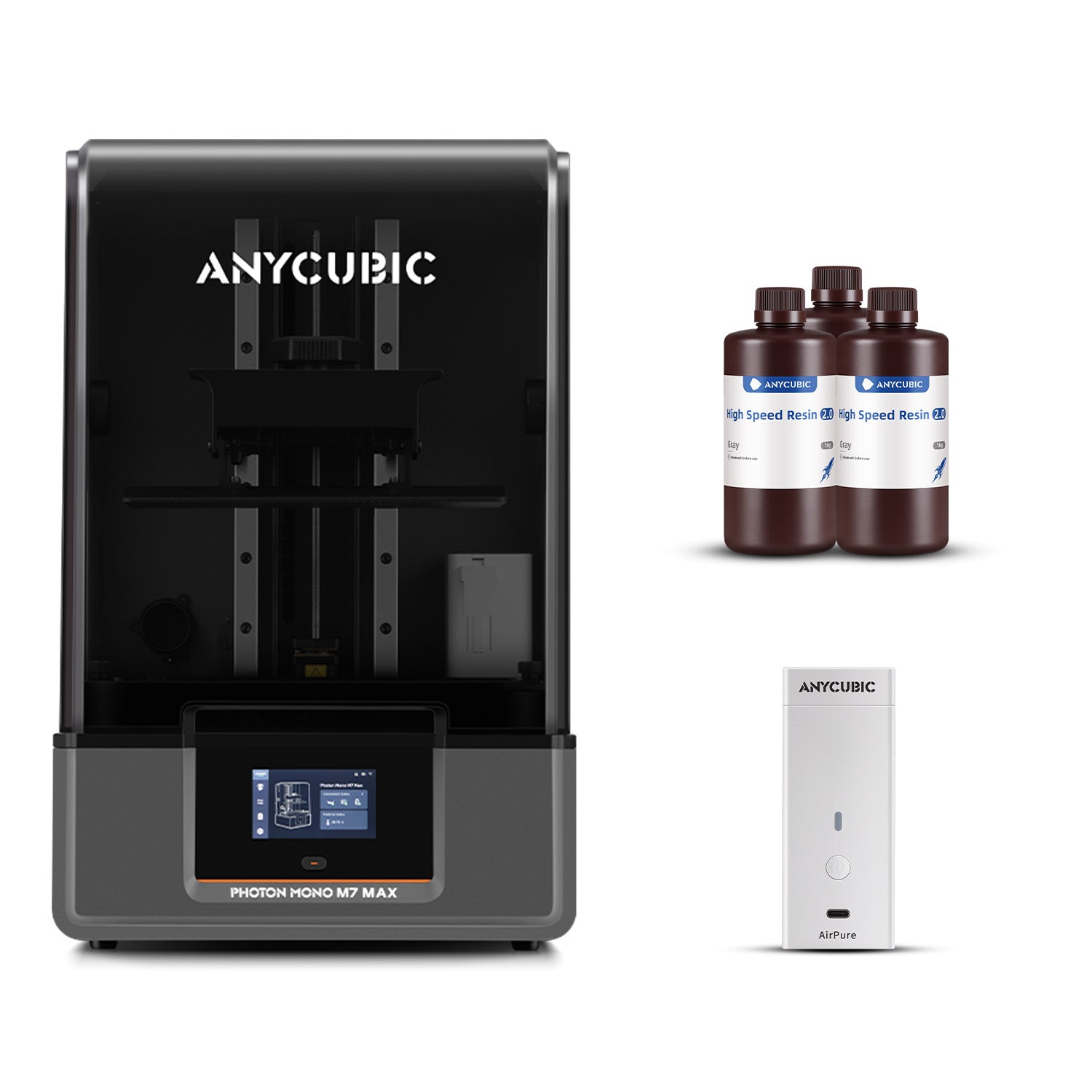

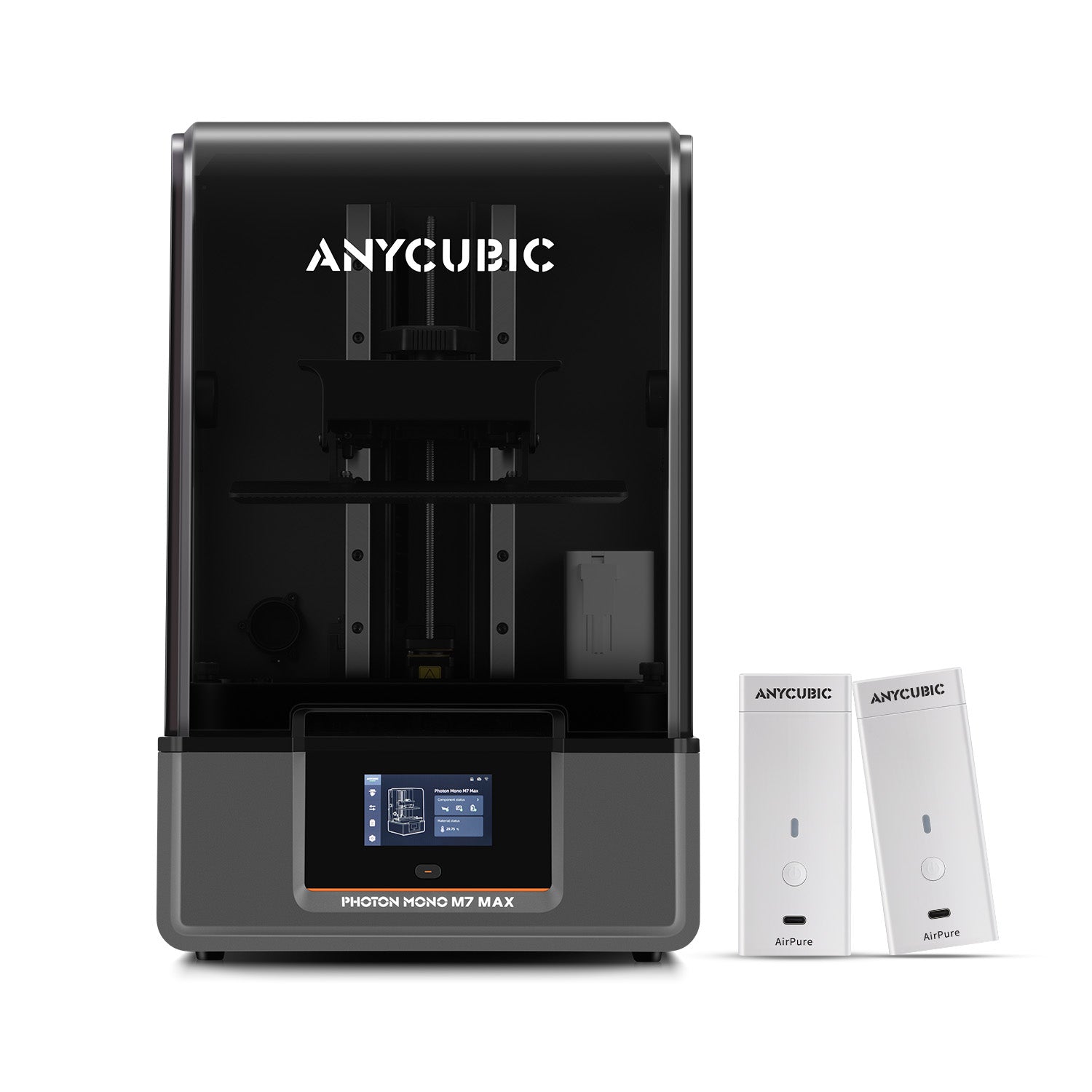

1. Free Airpure * 2 + Free ACF Film * 2 + Free STL Files * 2
2. $30 Discount for Wash & Cure Machine is already applied to the final price.

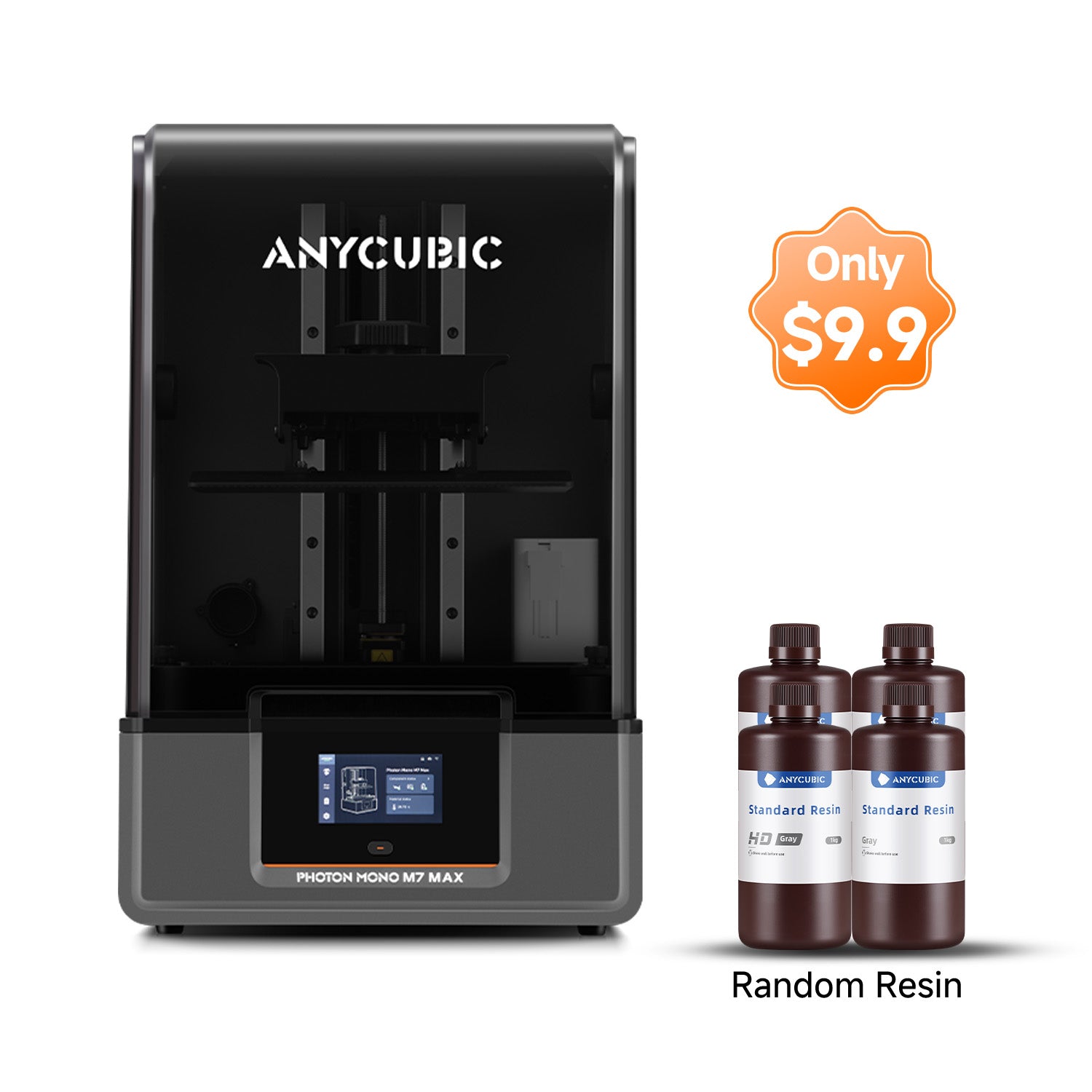

3. Buy 4 Get 1 Free: Add 1KG*5 Standard Resin in cart, get the discount automactially.

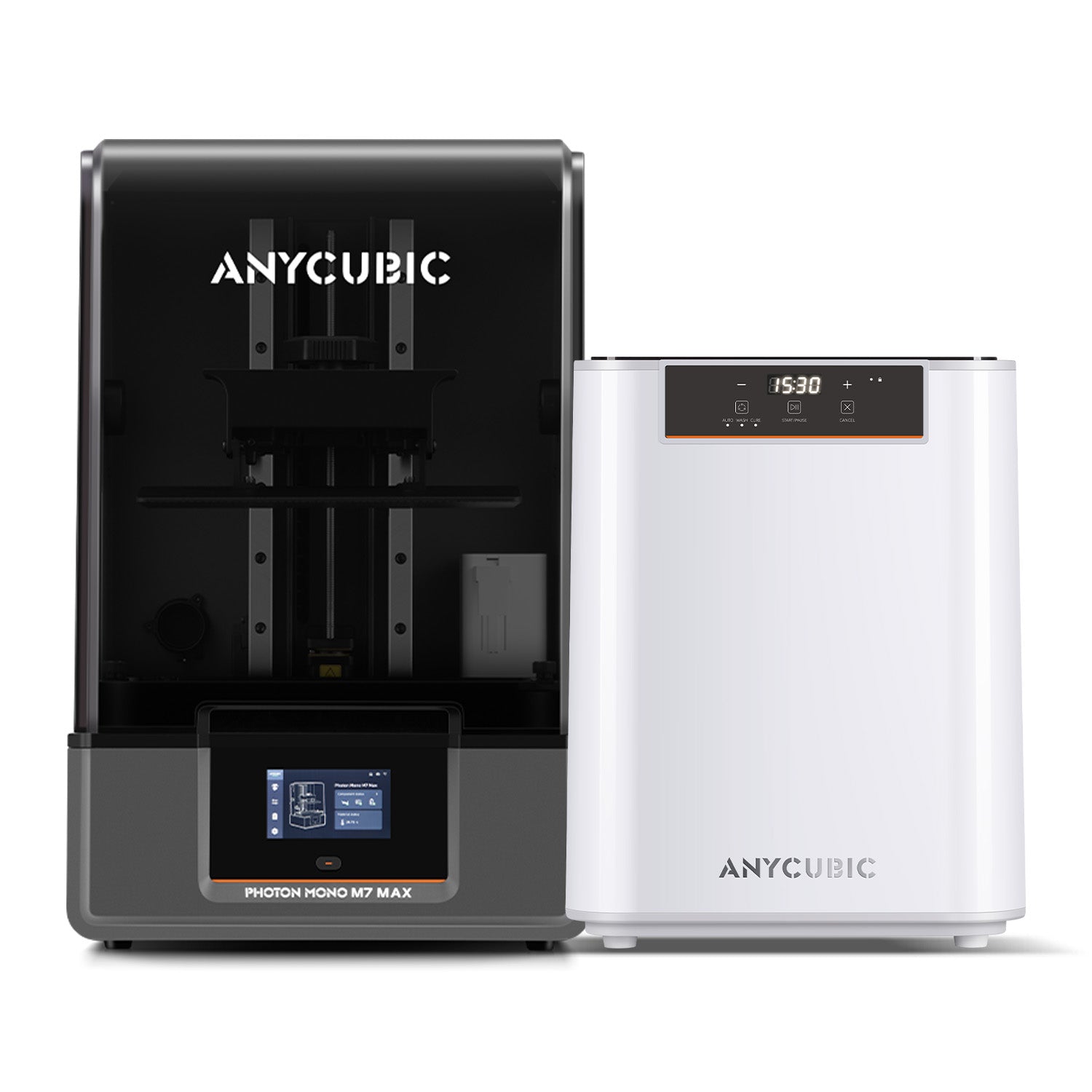

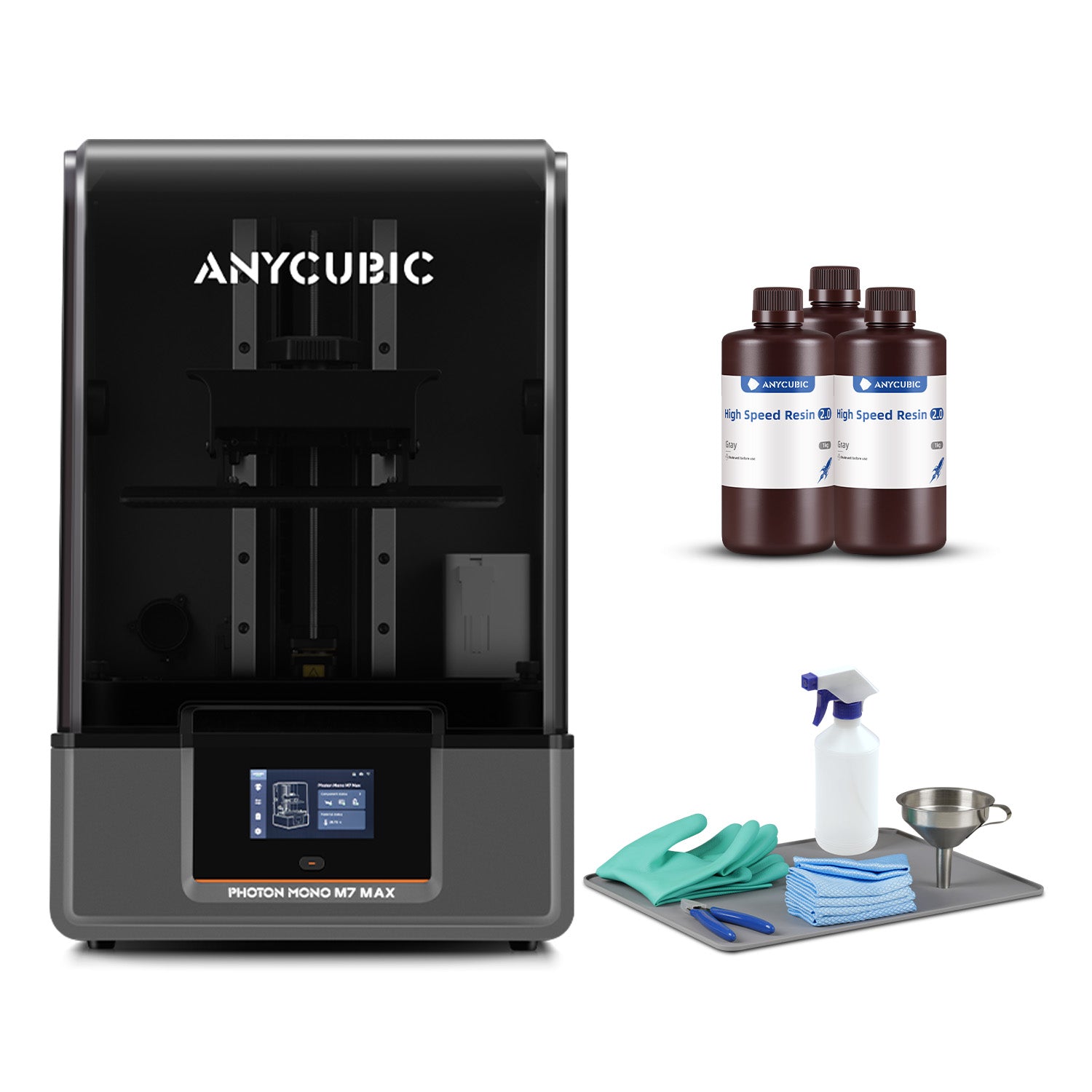

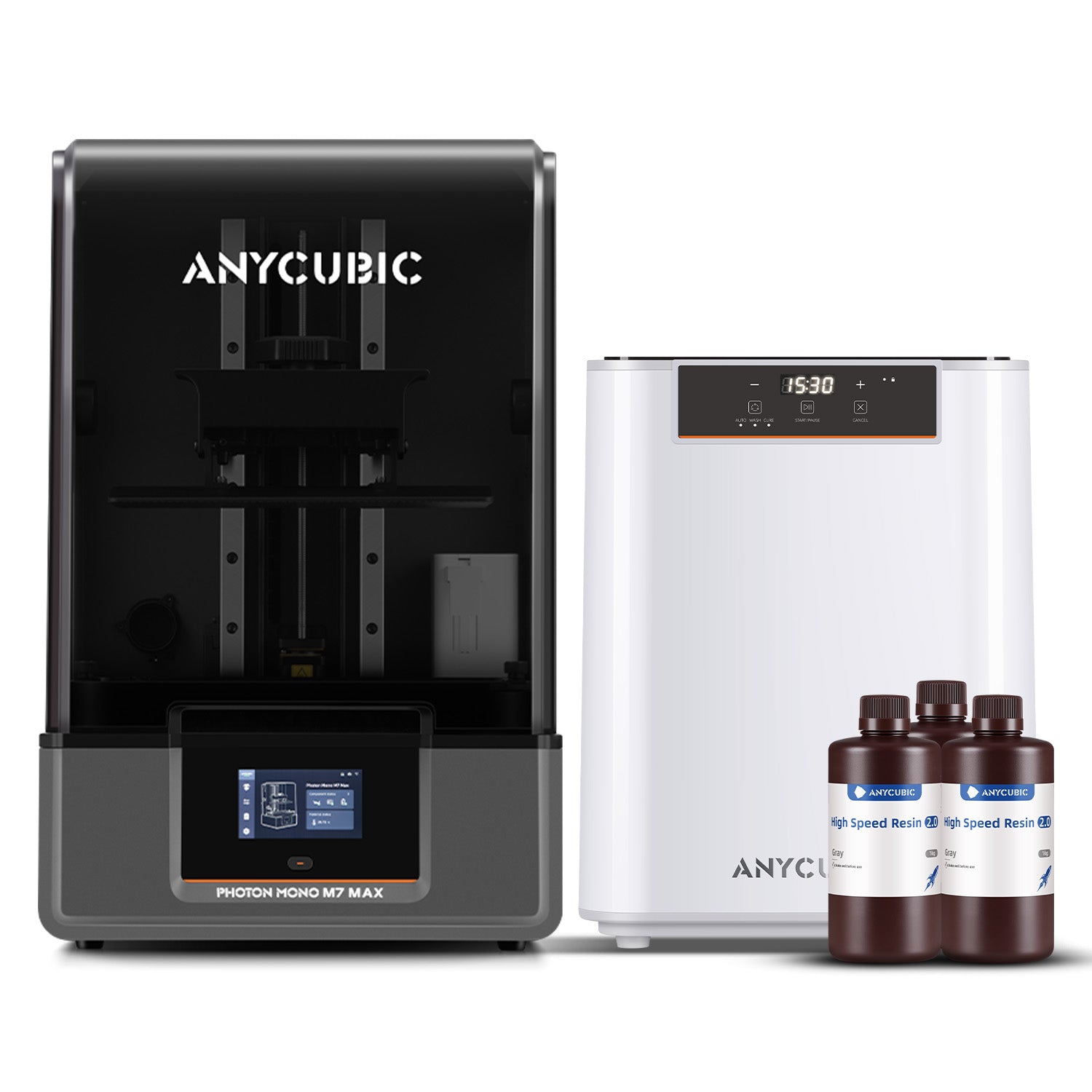

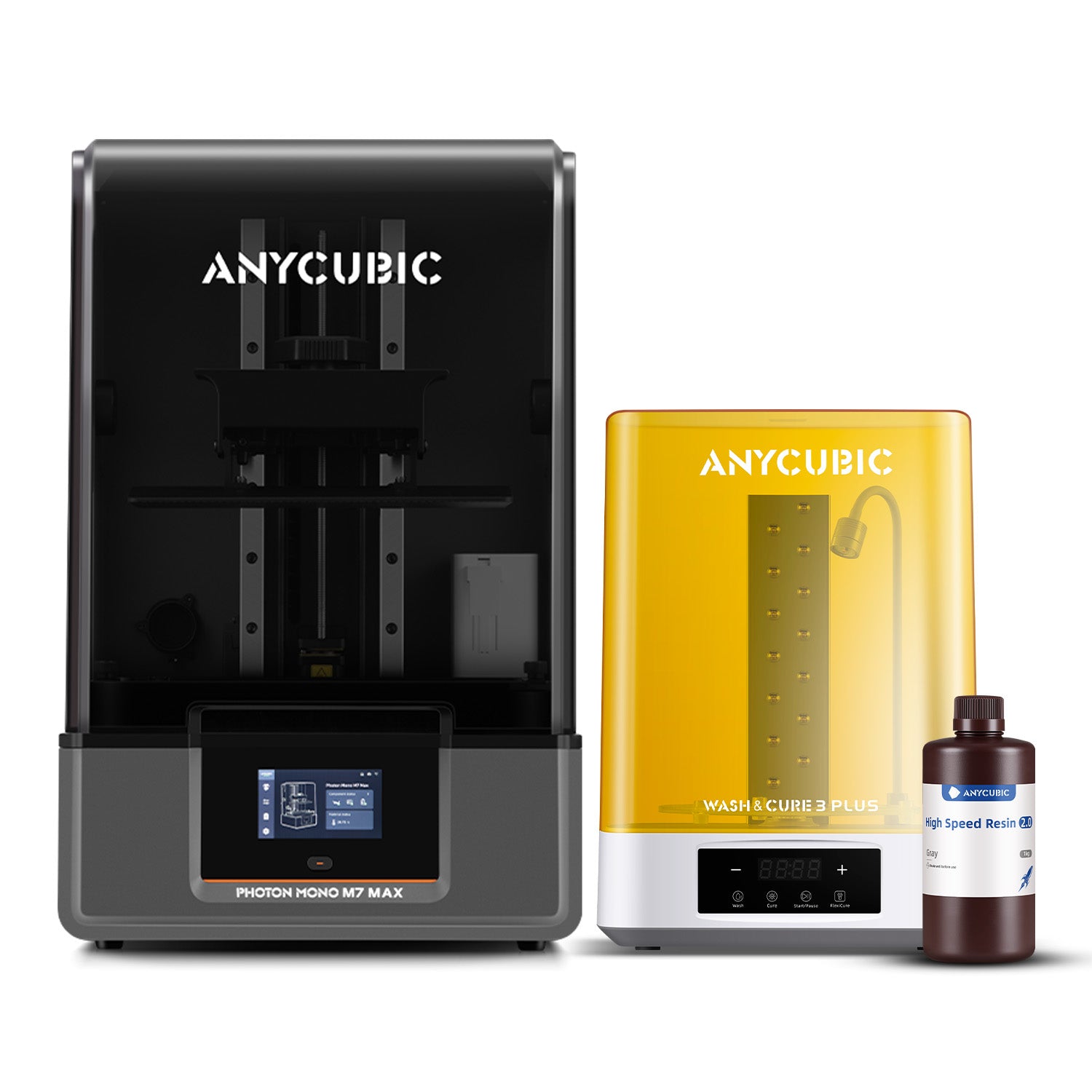

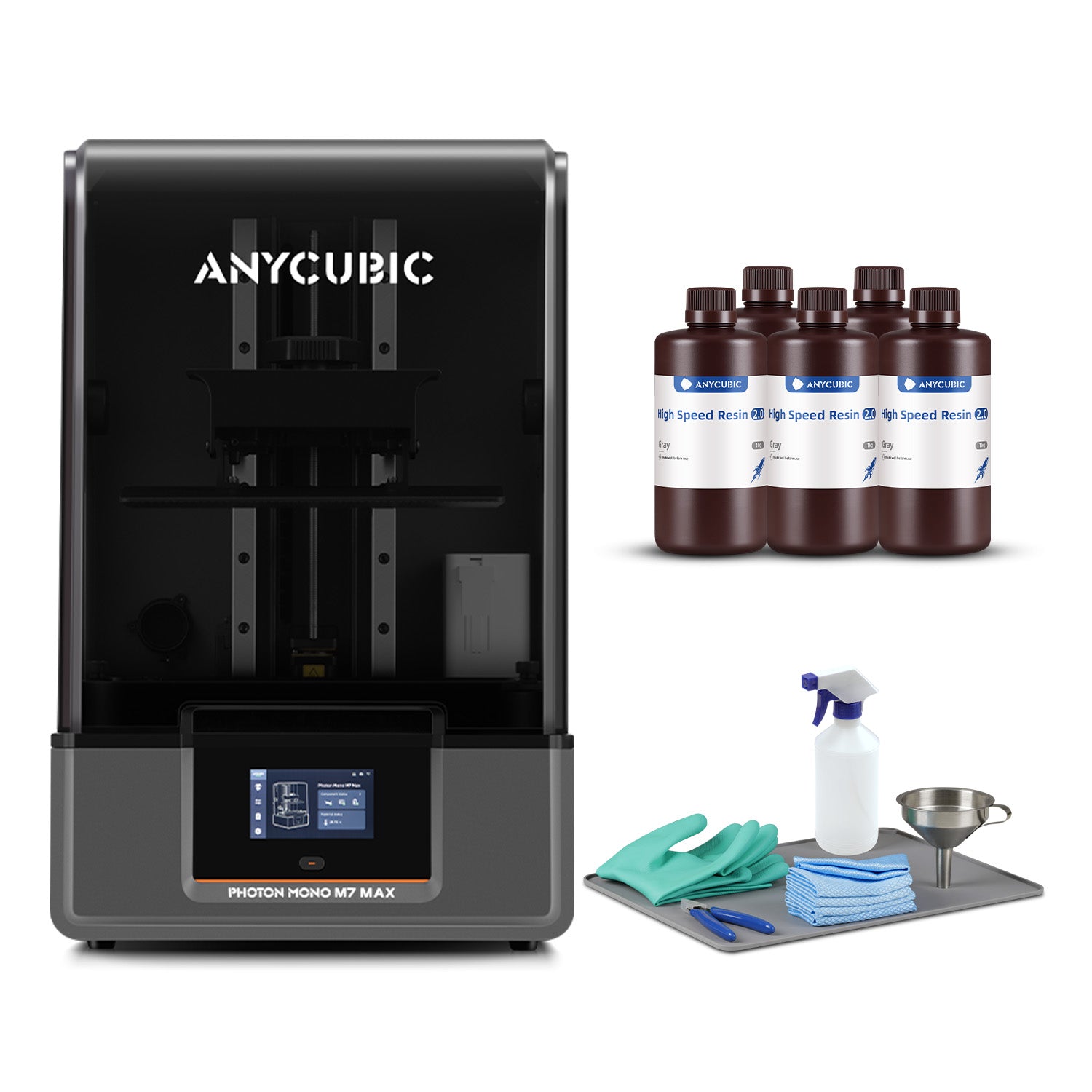

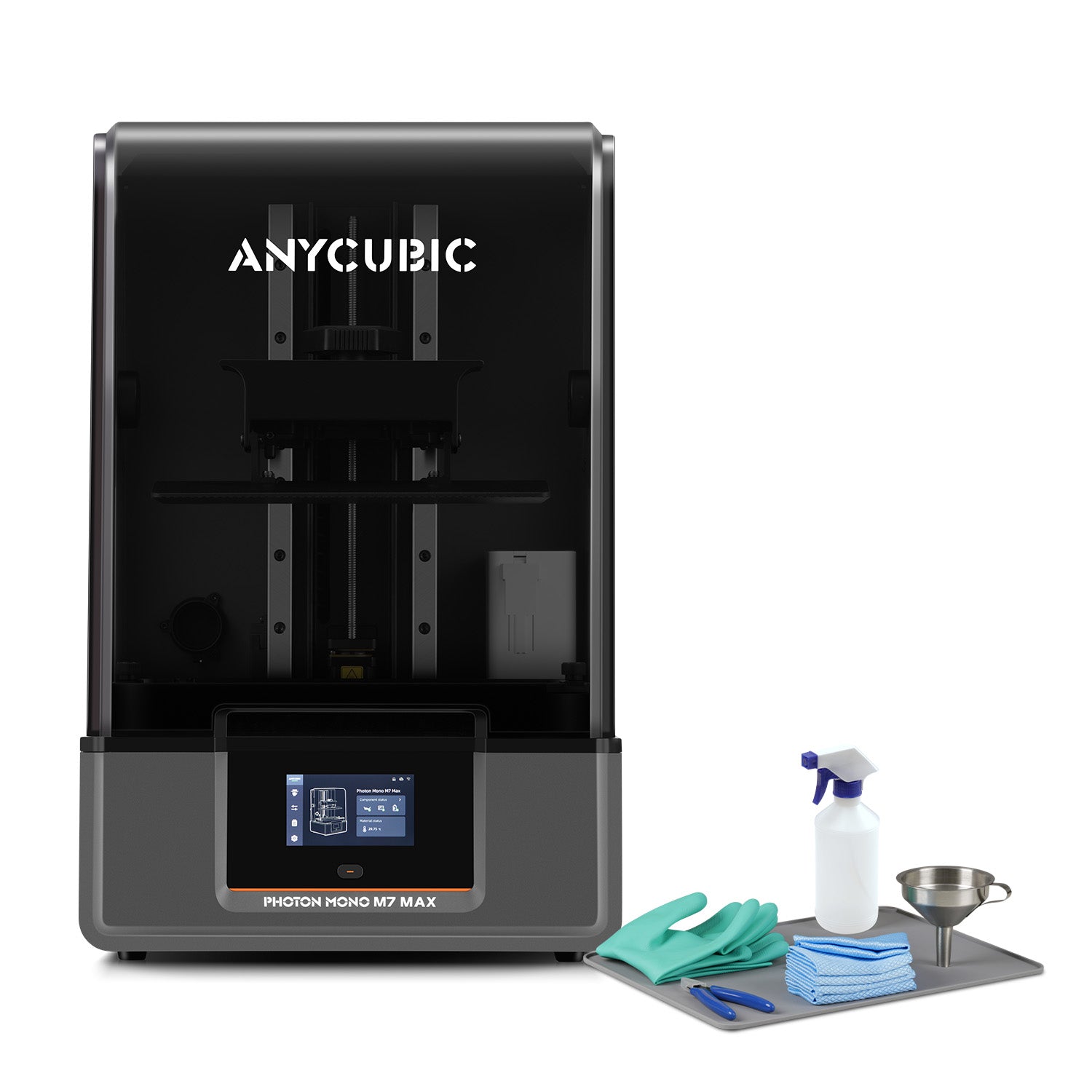

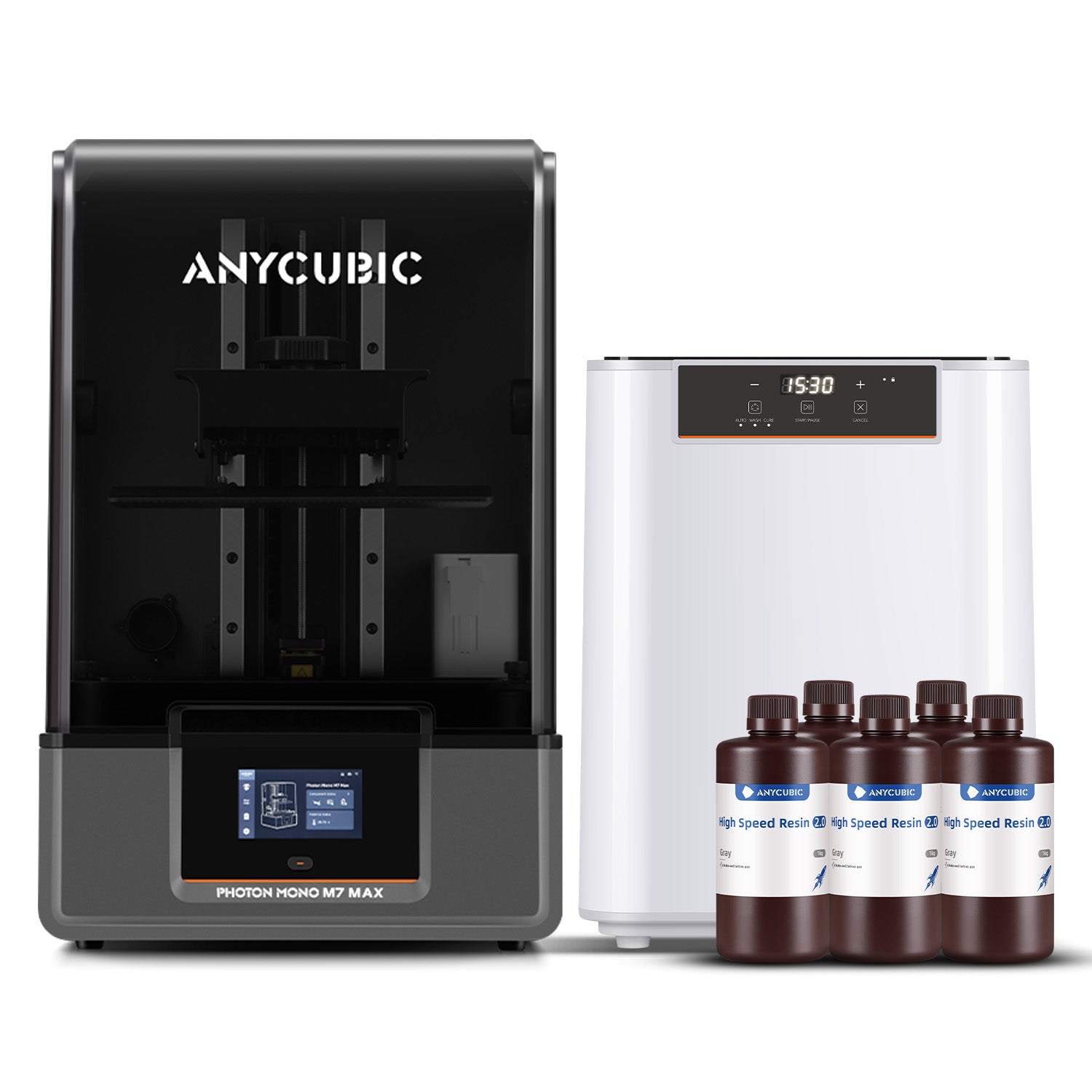

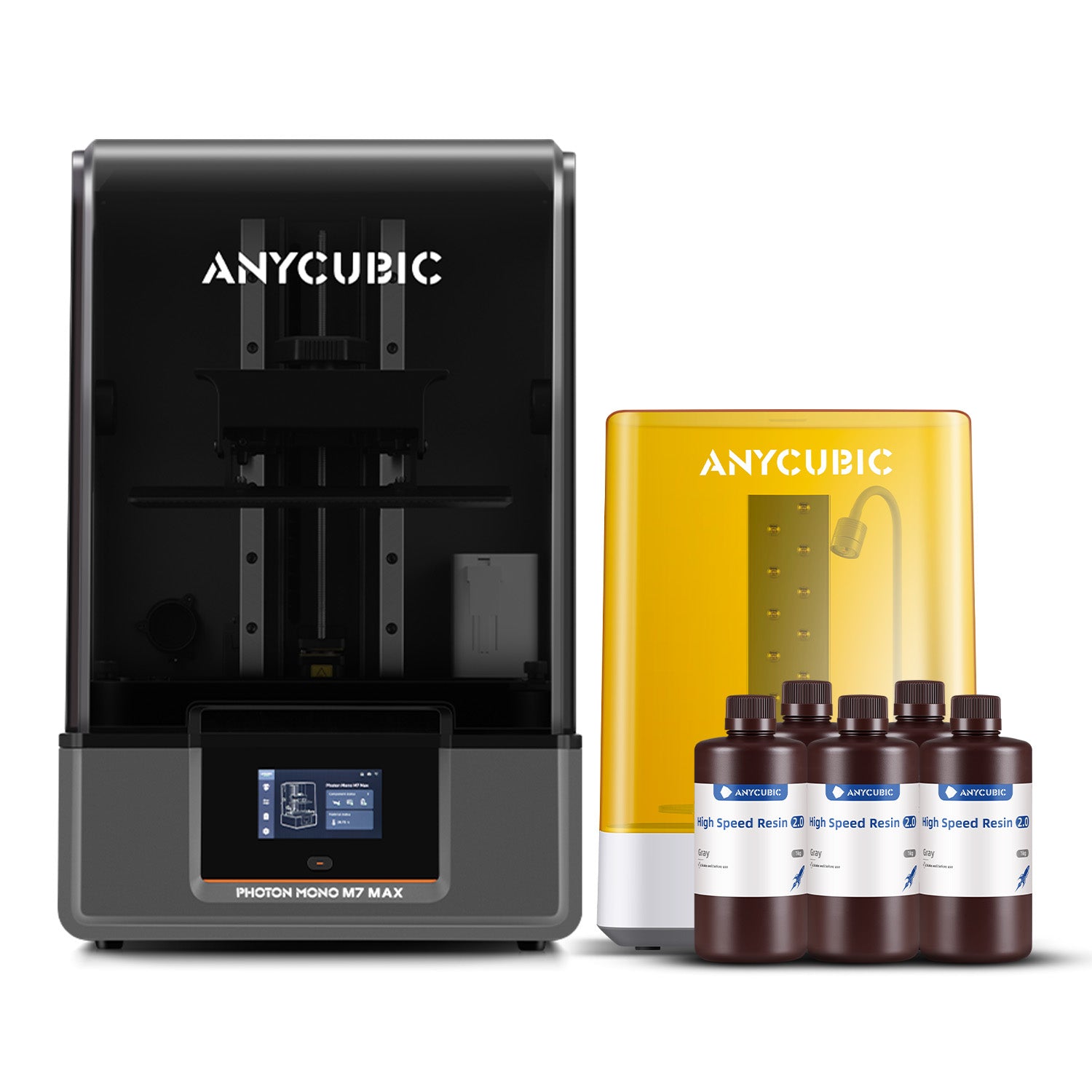

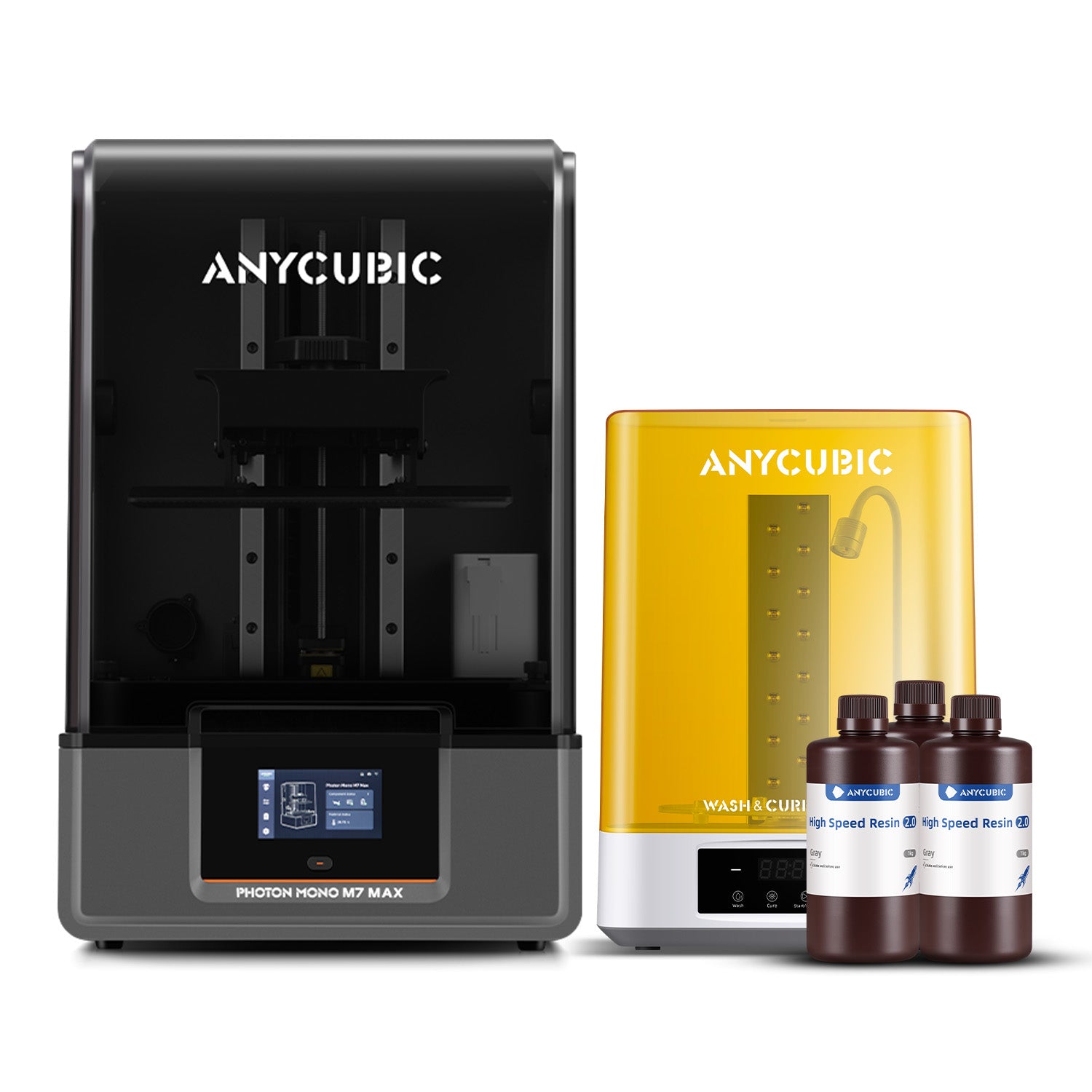

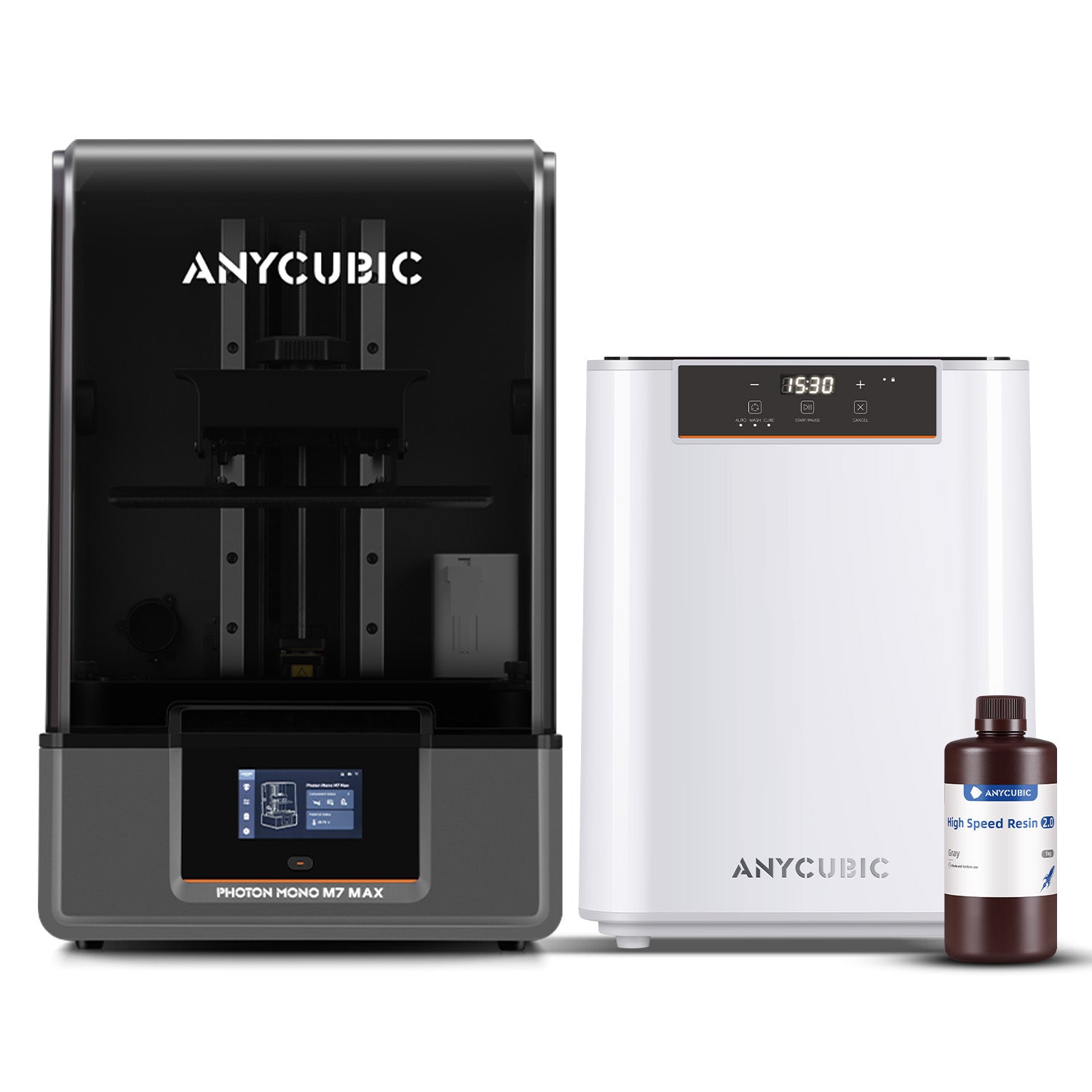

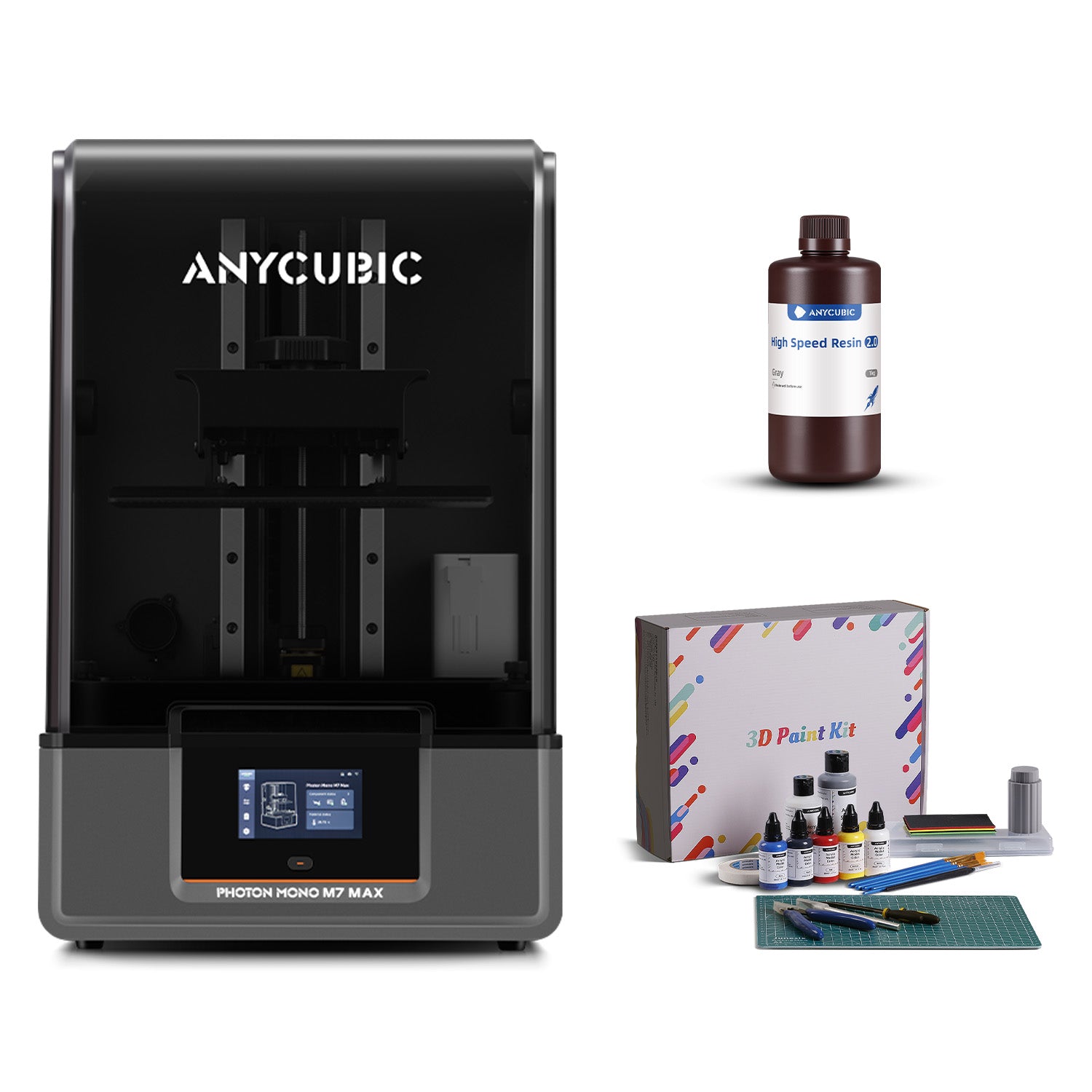

Include Wash&Cure Machine & Accessories: None + 🎁Free ACF Film & AirPure

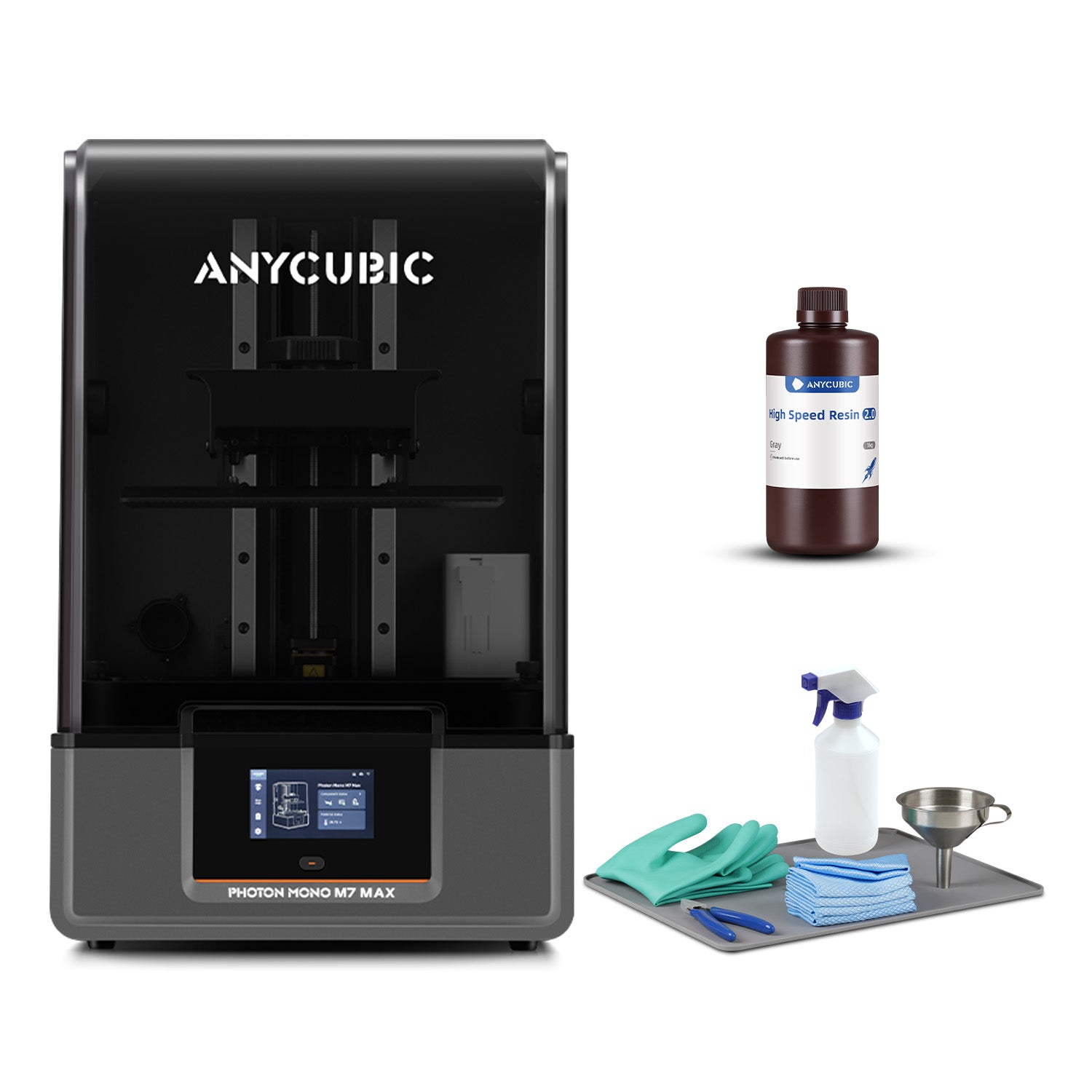

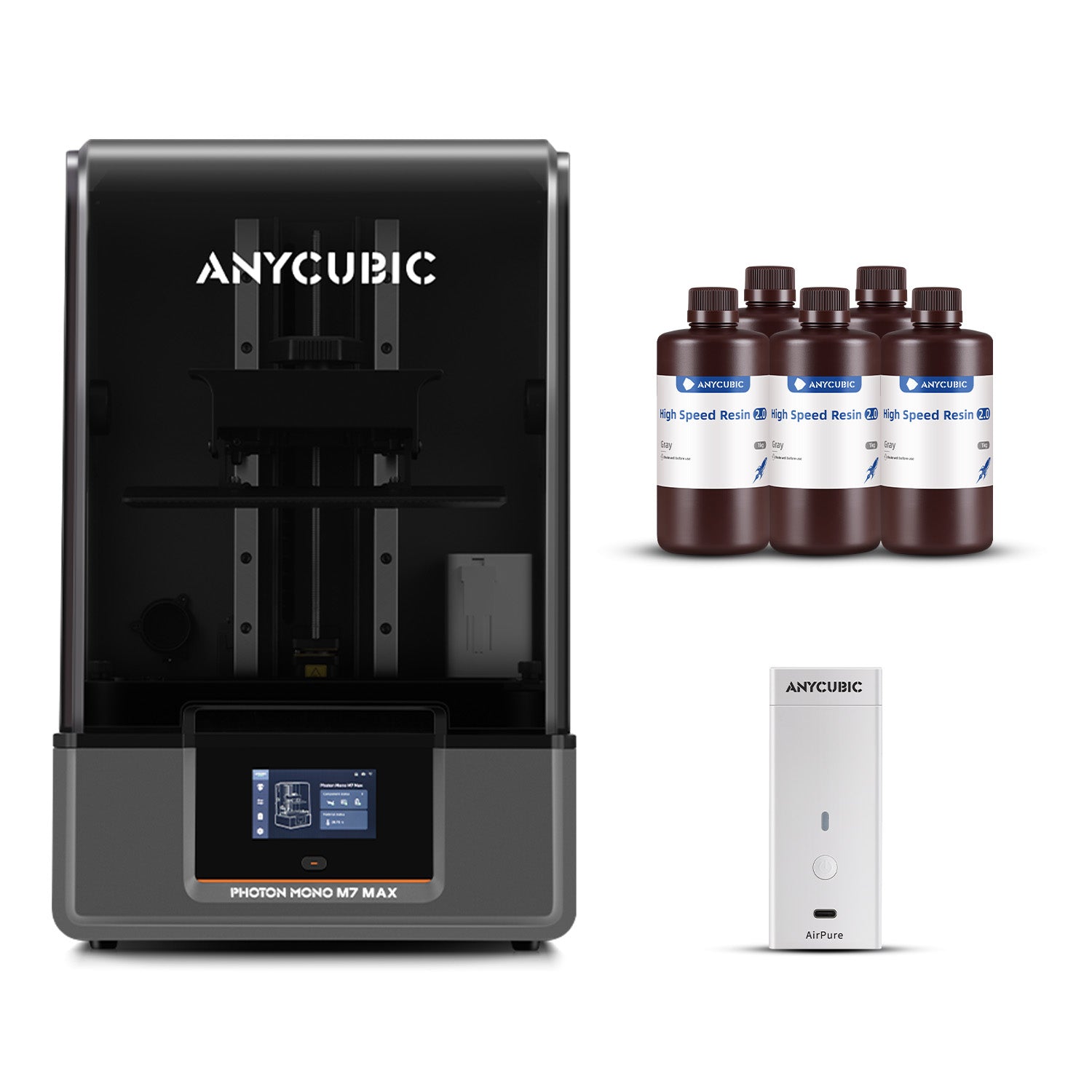

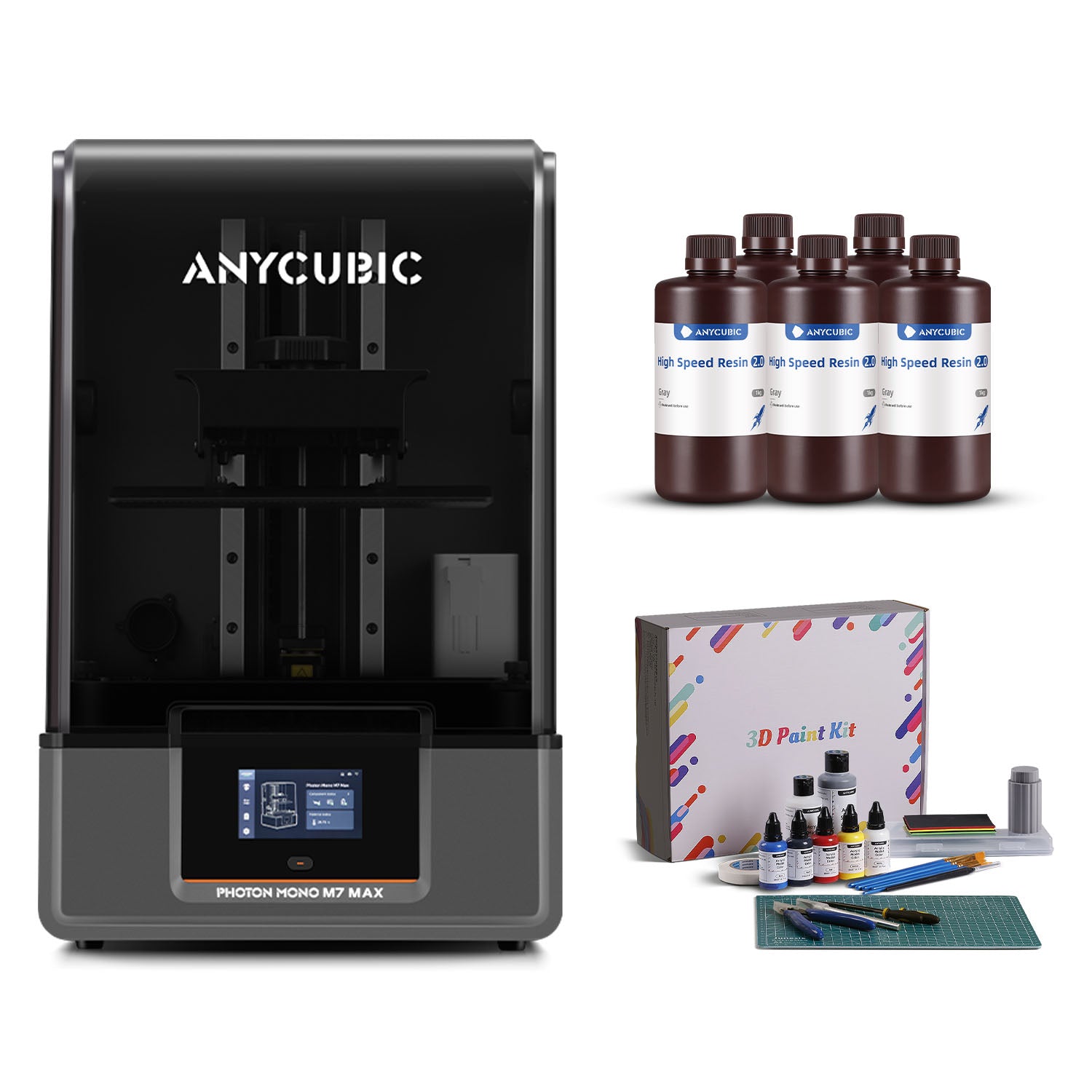

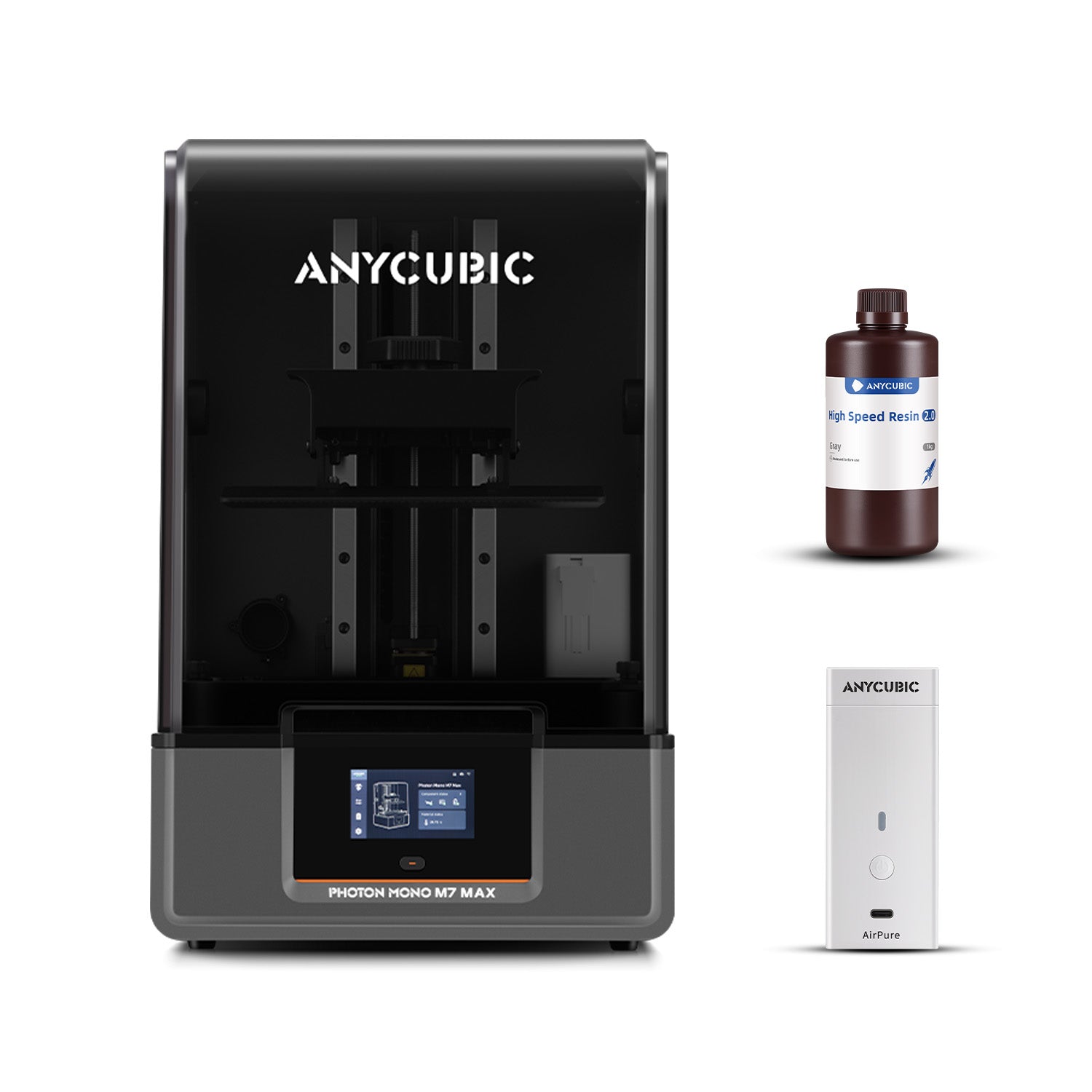

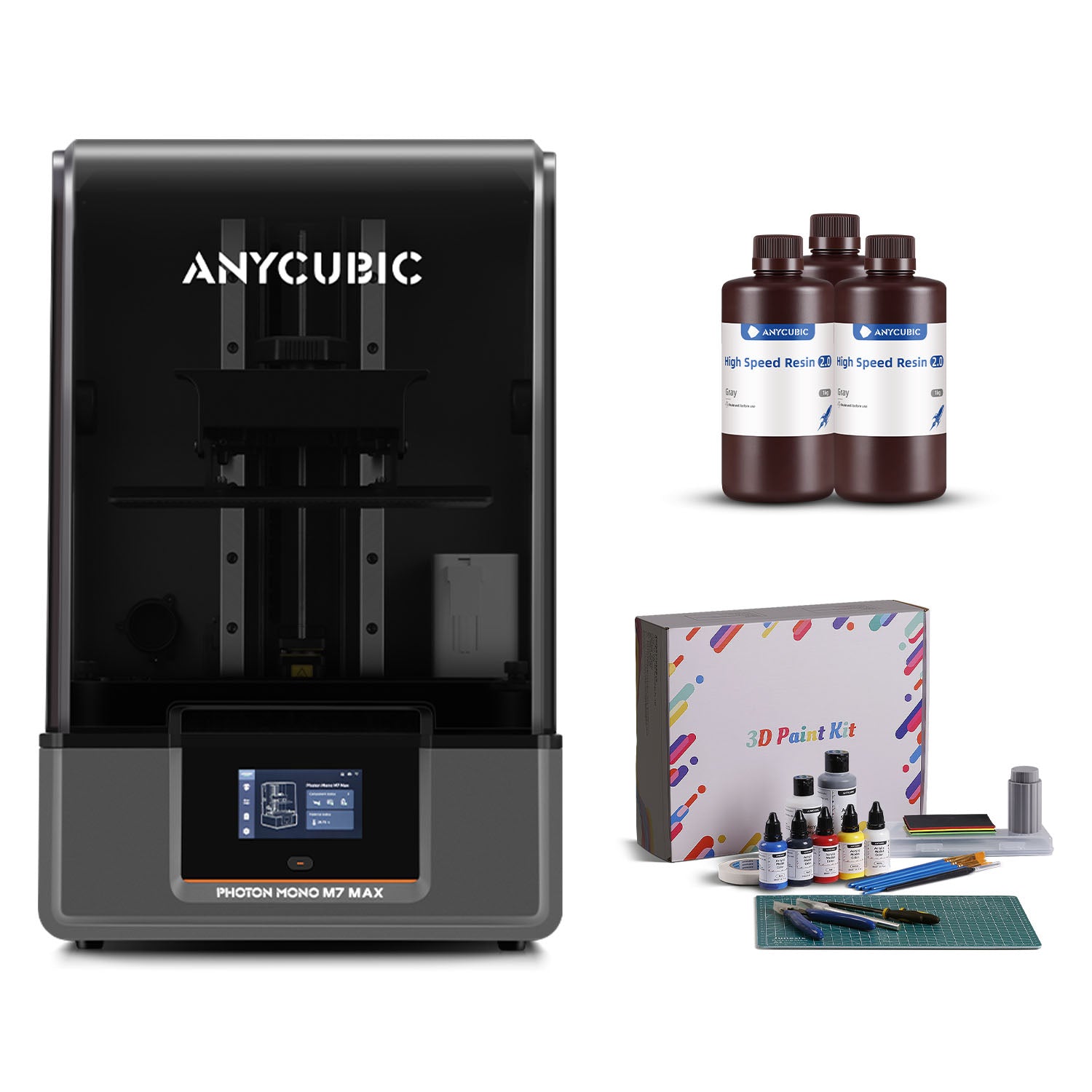

Include High Speed 2.0 Resin: None
Shipping to: US
🚚 US - Estimated Delivery Time: Dec.2nd - Dec.11th
🚚 EU - Estimated Delivery Time: Dec.6th - Dec.16th
🚚 UK - Estimated Delivery Time: Dec.9th - Dec.18th
🚚 AU - Estimated Delivery Time: Nov. 21st - Nov.30th
🚚 CA - Estimated Delivery Time: Dec.6th - Dec.10th

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

$749.00
$899.00 $749.00

Anycubic Multi-Device Software

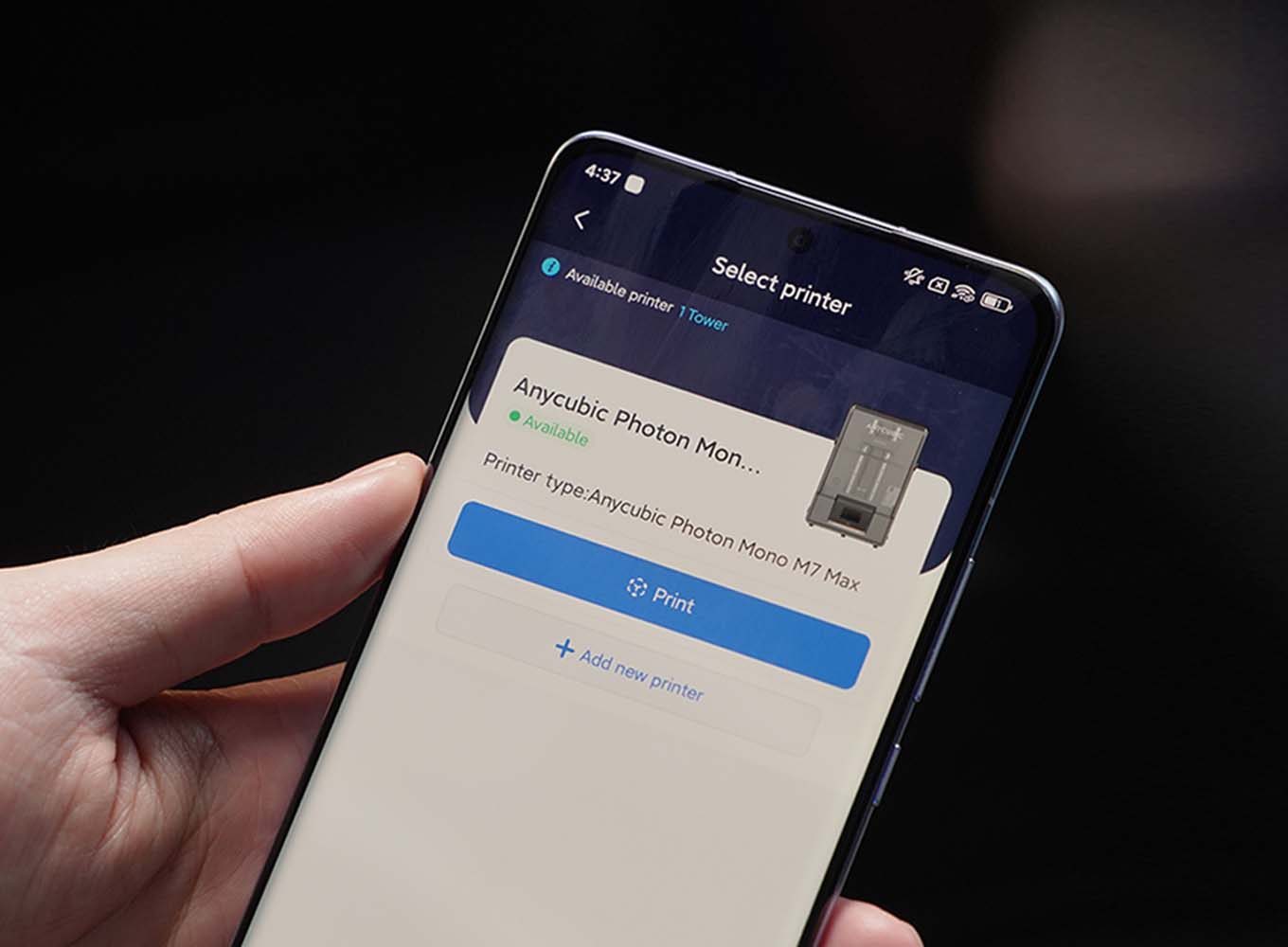

  • The Anycubic App

    Multi-Device Sync: Log in with the same account across the website, slicing software, or printer for seamless connectivity.
    Cloud Printing: Use the Anycubic App to access the Makeronline model library and start cloud prints from your smartphone, with optimized resin print parameters available in the cloud library.

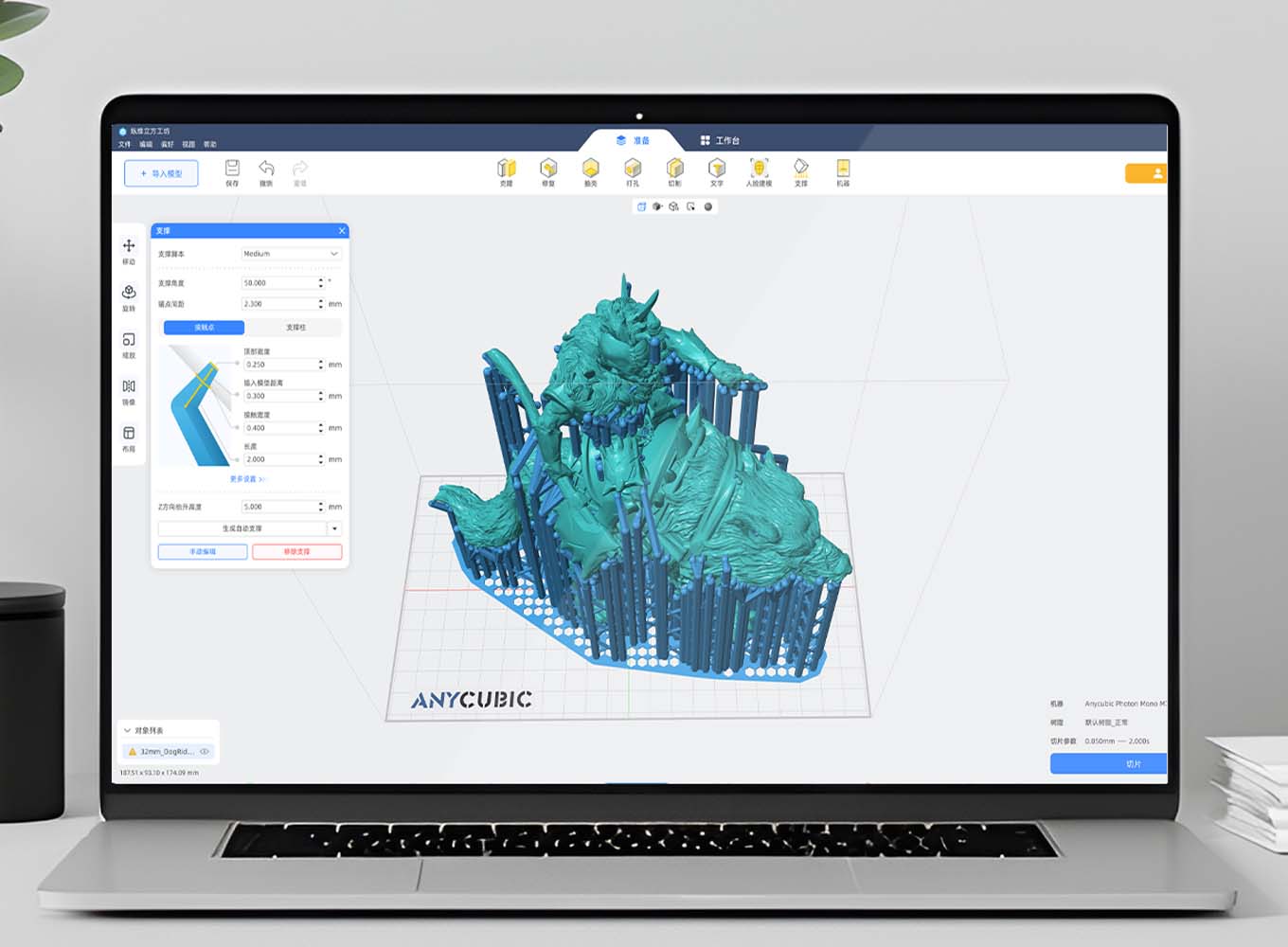

  • Anycubic Photon Workshop Upgrade

    Automated Support Generation: Intelligent analysis optimizes support structures for penetration-free models with smaller touchpoints for easy removal.
    Customizable Support: Adjust supports directly for personalized settings.
    Smooth Layer Transitions: Anti-aliasing reduces layer lines for smoother slopes and curves.
    Remote Operation: Slice, start remote print tasks, and monitor real-time progress and details.

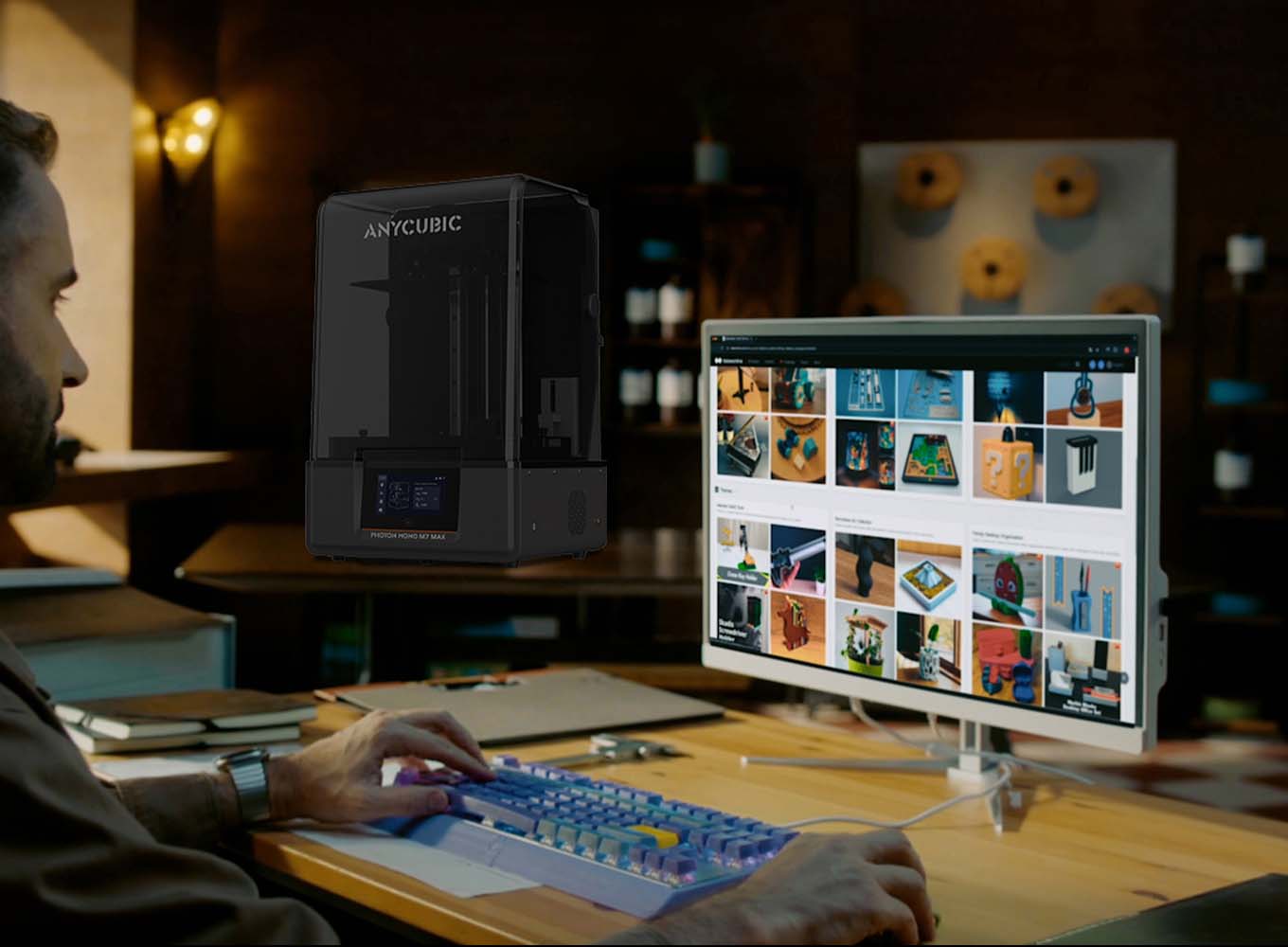

  • Interactive 3D Printing Ecosystem

    Thousands of Free Models: Access designs from over 3,000 creators worldwide.
    Monetize Your Designs: Join model-sharing activities to earn from your creativity.
    Connect Globally: Share insights with 3D printing enthusiasts around the world.
    One-Click Slicing: Launch slicing software instantly for smooth model preparation.

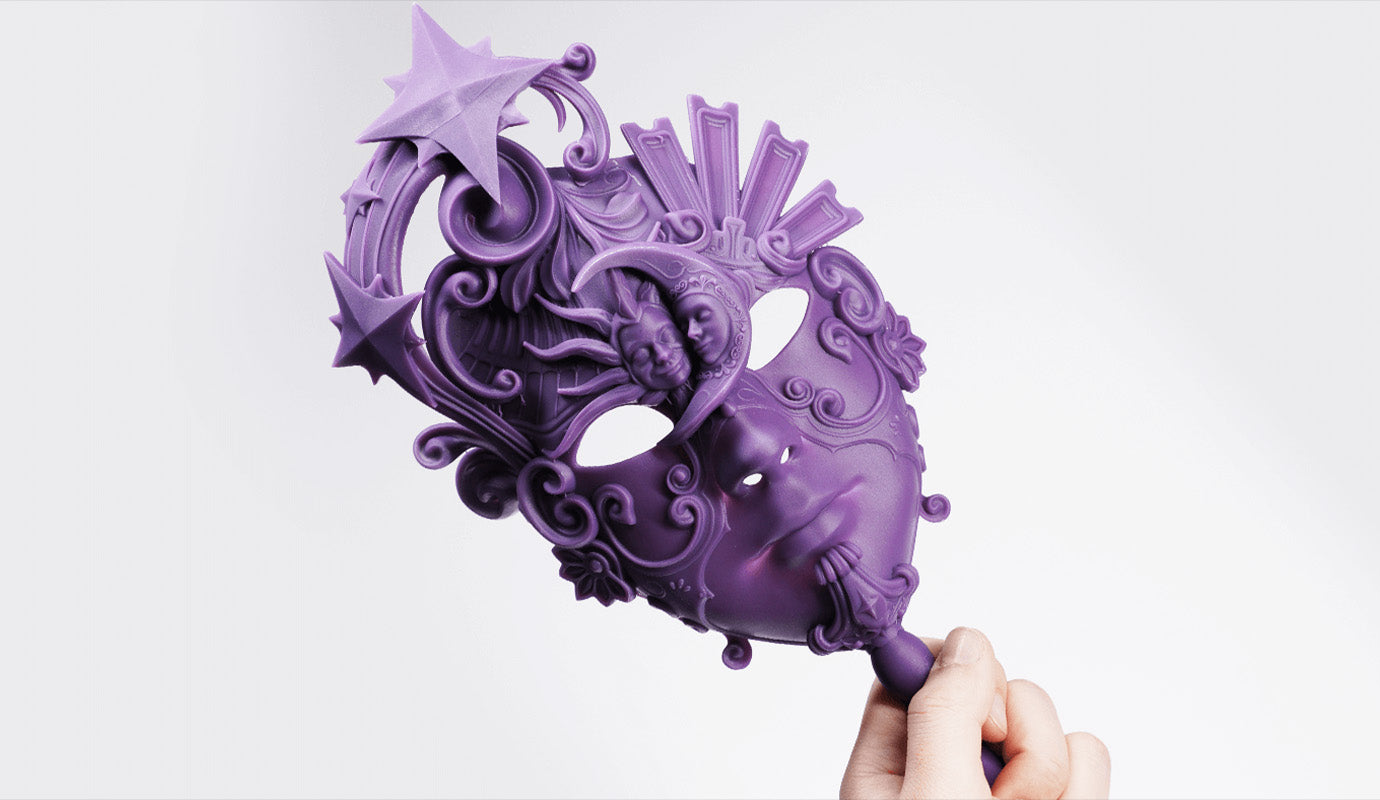

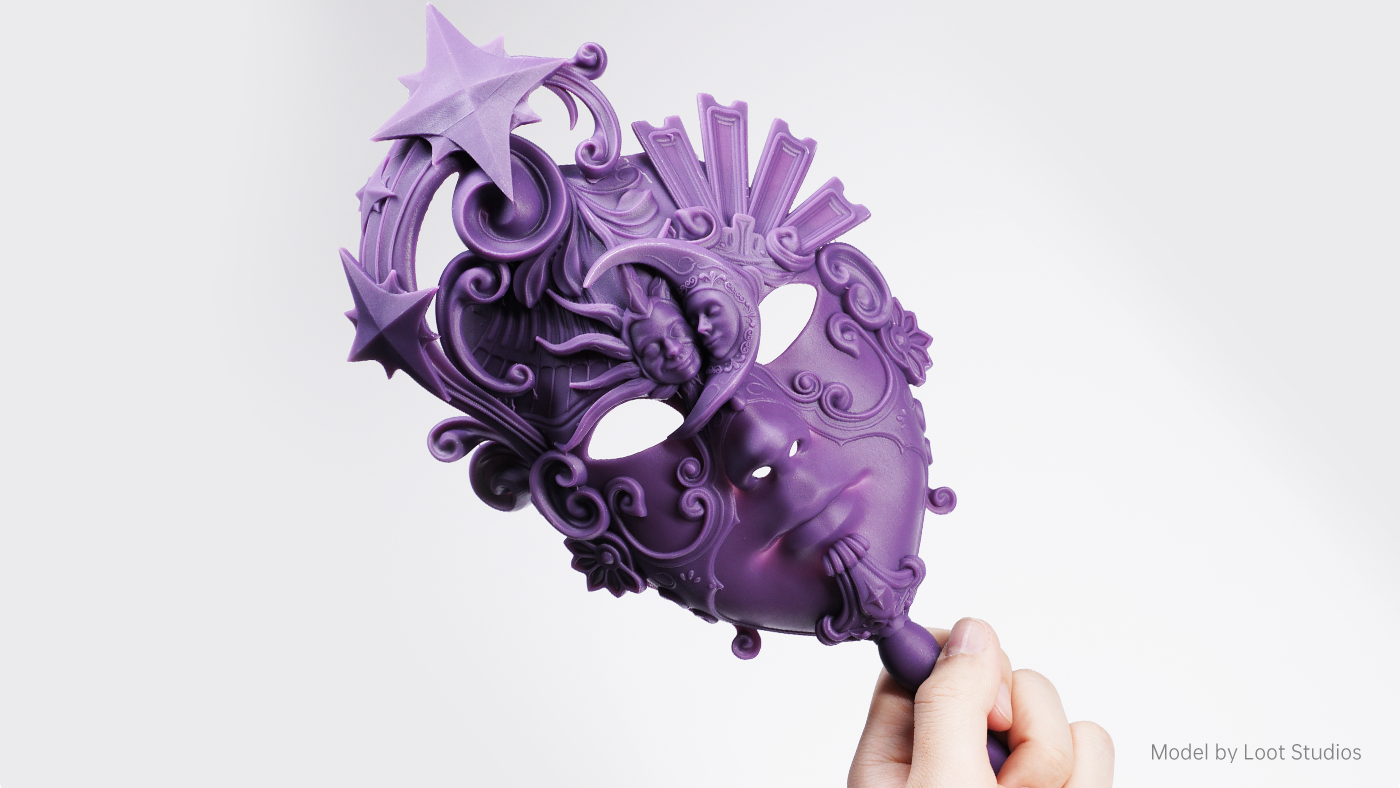

Sample Prints

Specification

Tech specs

  • Printing volume

    14.7L

  • Machine dimensions

    298mm*164mm*300mm

  • Build platform

    Laser engraving aluminum alloy

  • Operating screen

    4.3" Touch-Control

  • Lcd screen size

    13.6", 7K

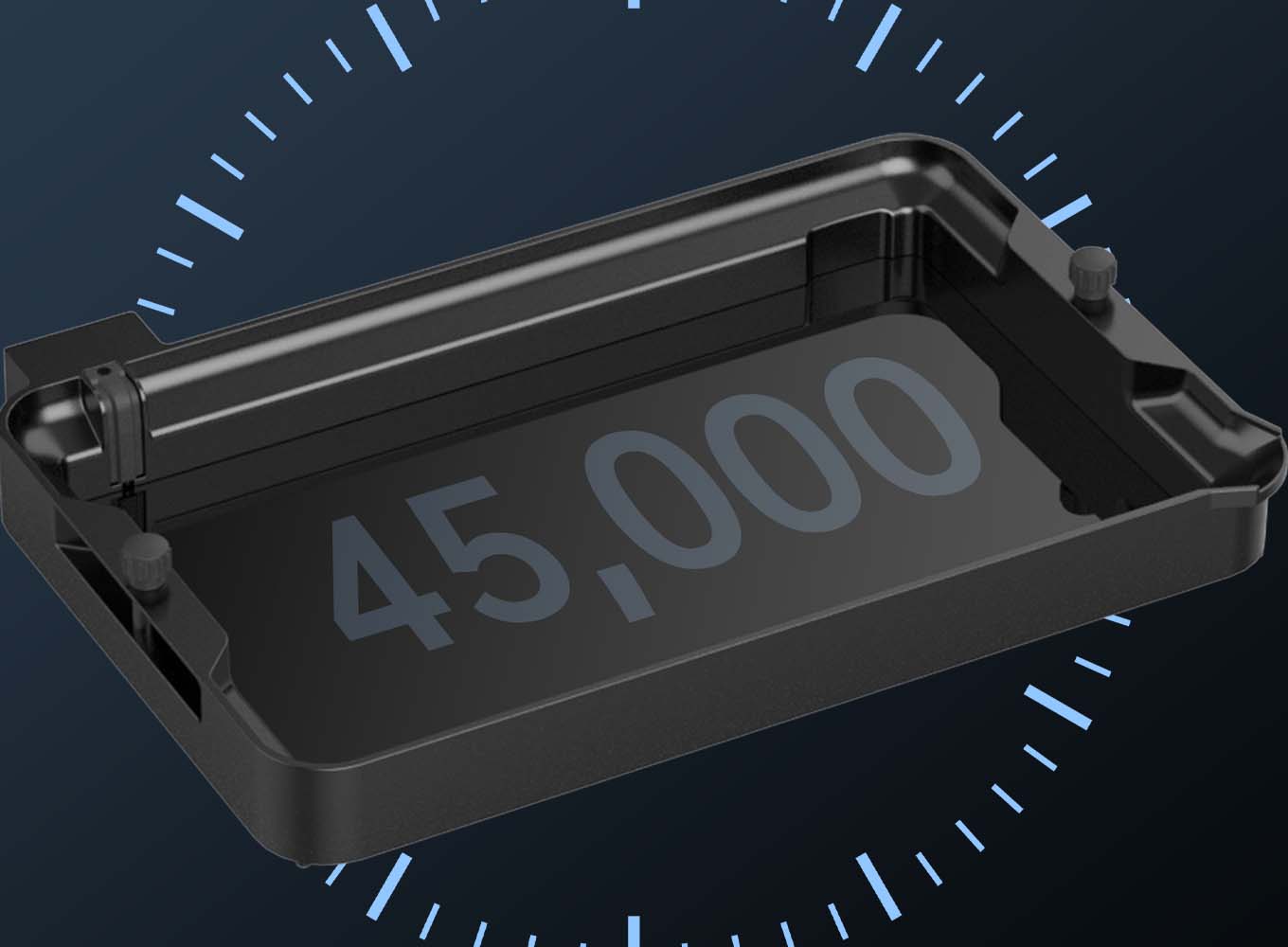

  • Resin vat

    1.3L Unibody desiqn with scale lines

  • Antenna port

    Yes

  • Light source

    COB light source+front-facing reflectors+Fresnel Lens

  • Light uniformity

    ≥90%

  • Light intensity

    4500±500 μw/cm²

  • Machine leveling

    4-point manual leveling

  • Xy resolution

    46*46μm

  • Z axis

    Double liners with 10μm accrace

  • Slicing software

    Anycubic Slicing, CHITU & Lychee (Can be supported by the end of Dec.)

  • File transfer

    USB & WiFi. LAN (Can be supported around Q4 2024）

  • Release film

    ACF Film

  • Power supply

    180W rated power

  • Anycubic app

    Support

  • Weight

    Machine Weight: 24kg / 52.91 lbs, Package Weight: 28.5kg / 62.83 lbs

  • Size

    Machine Dimensions: 425*362*652mm, Package Dimensions: 785mm*520mm*490mm

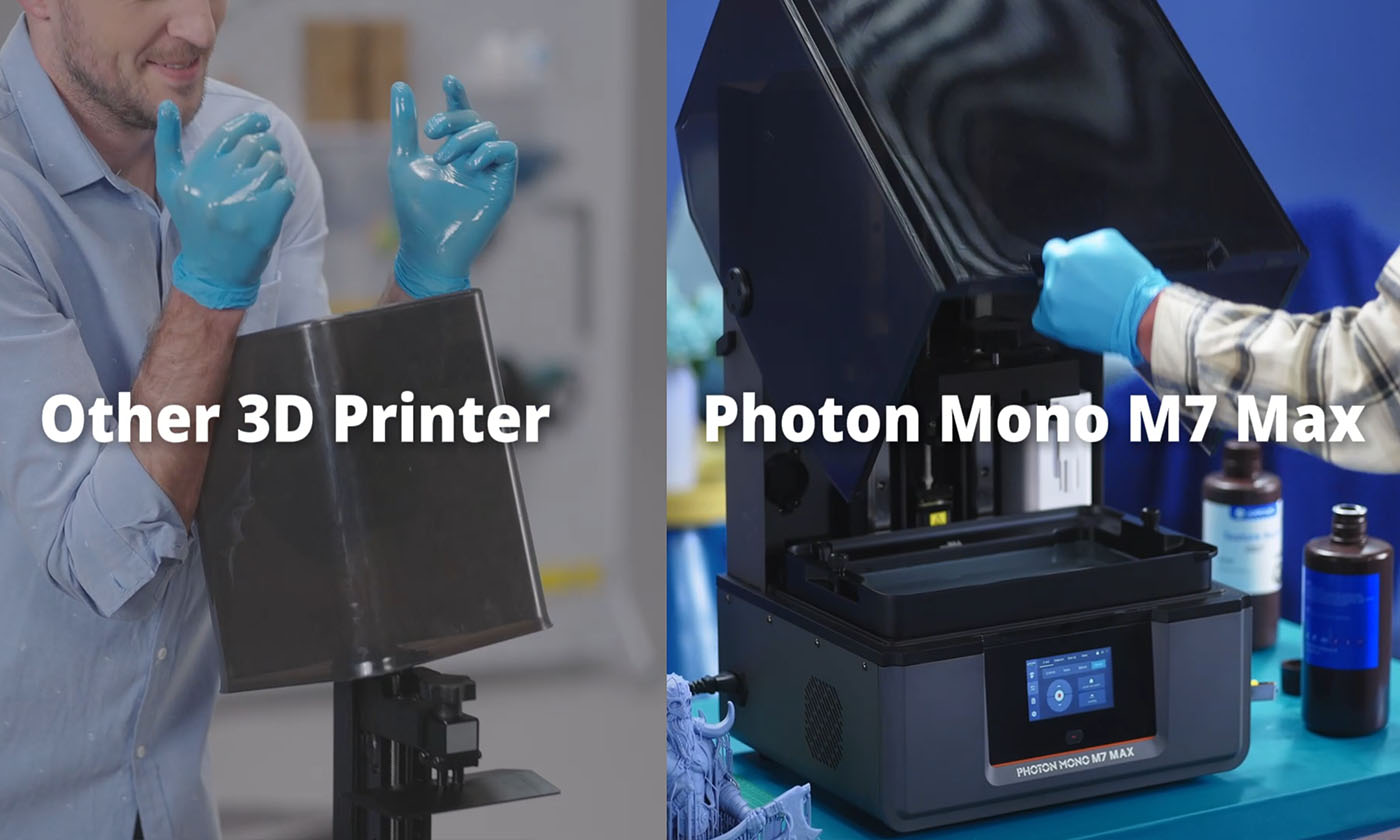

  • Hinged cover

    Effectively blocks UV radiation, Supports one-hand opening and hovering angles anywhere greater than 45°

  • Printing speed

    Max Speed ≤31mm/h, 0.05mm Layer With Standand Resin; Max Speed ≤63mm/h, 0.1mm Layer With Standand Resin; Max Speed ≤86mm/h, 0.1mm Layer With High-Speed Resin

  • Support language

    English, Chinese, German, French, Italian, Spanish, Russian, Japanese.

  • Material

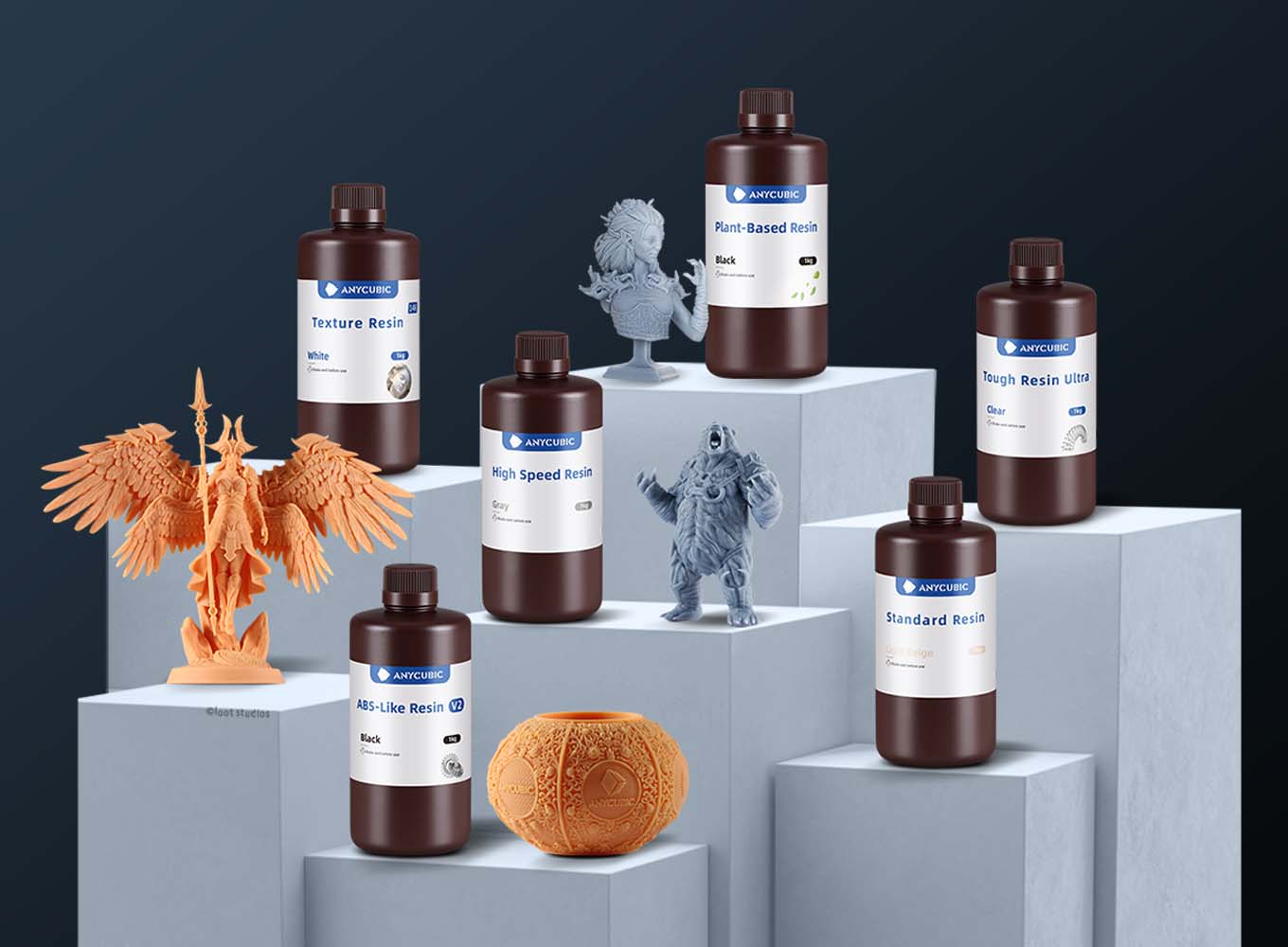

    Compatible with kinds of resin (high speed, water-washable, standard, ABS-like, plant-based, etc.)

  • Resin vat

    1.3L Unibody desiqn with scale lines

  • Protection film

    Replaceable anti-scratch film

  • Air purifier

    USB

In The Box

  • Photon Mono M7 Max

  • Print Platform * 1

  • Resin Vat * 1

  • Scrapers * 2

  • Hex Key Set

  • Leveling Paper

  • Manual * 1

  • Cap part of auto-fill unit

  • Protective Equipment

  • Filter

  • Antenna

  • USB Drive * 1

  • Power Cord

FAQs

Q: How many languages does the Photon Mono M7 Max support?

A: Supports 8 languages (Chinese, English, German, Russian, Spanish, French, Japanese, Italian) .

Q: Is there any environmental requirement for the Photon Mono M7 Max?

A: Recommended ambient temperature: 8℃-40℃. If the temperature falls below this range, it is recommended to enable the resin heating function. Humidity: 20%-50%. Avoid direct sunlight or exposure to other ultraviolet light sources.

Q: Can automatic feeding and air purification be used simultaneously?

A: Currently, only one can be used at a time, as they share a single USB power interface. When using the air purifier, you can switch to Air Purification Mode in advanced settings to turn it off individually if needed.

Q: Are there other slicing software options available?

A: Chitu and Tango can also be used (depending on their latest versions), but Lychee is currently not supported.

Q: What should I do if the power suddenly goes out when the model is almost finished printing?

A: The Photon Mono M7 Max has a power-resume function, but it cannot guarantee a flawless print after resuming.

Q: What should I do if the resin runs out during printing?

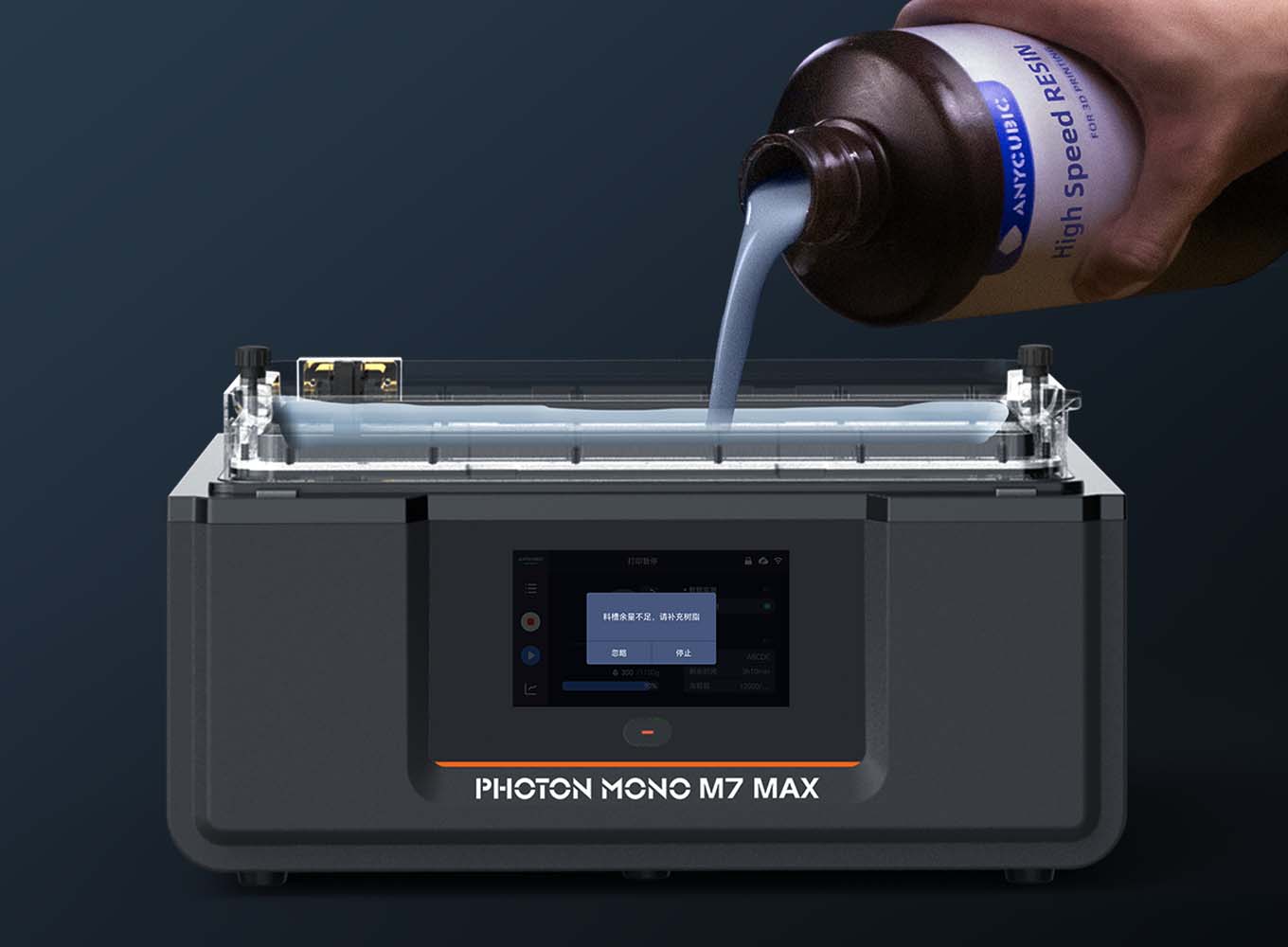

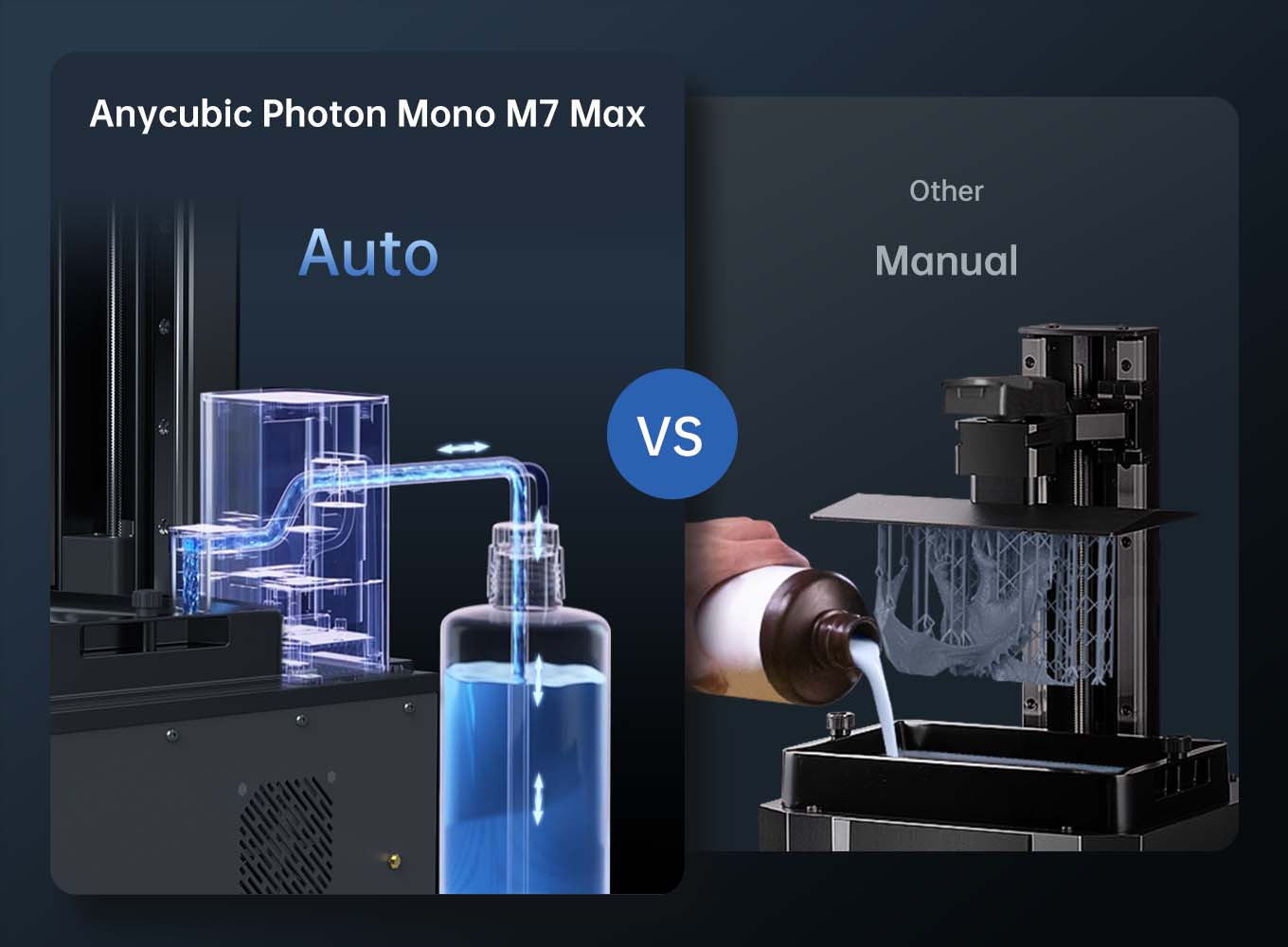

A: The Photon Mono M7 Max supports an automatic feeding function. Ensure the automatic feeding option is selected before starting the print; resin can be refilled during printing (feeding speed may be slower in low-temperature environments).
You can also manually add resin, though there may be some color variation between layers.

Q: What are the suitable scenarios for high-speed printing with the Photon Mono M7 Max?

A: The Photon Mono M7 Max’s high-speed mode is ideal for most common model printing scenarios—specifically, models with 2mm hollowing and vent holes are suitable for high-speed printing. Note that due to differences in high-speed control algorithms, high-speed mode is only supported in Photon Workshop version 3.3.1 and above; other slicing software currently does not support high-speed printing.

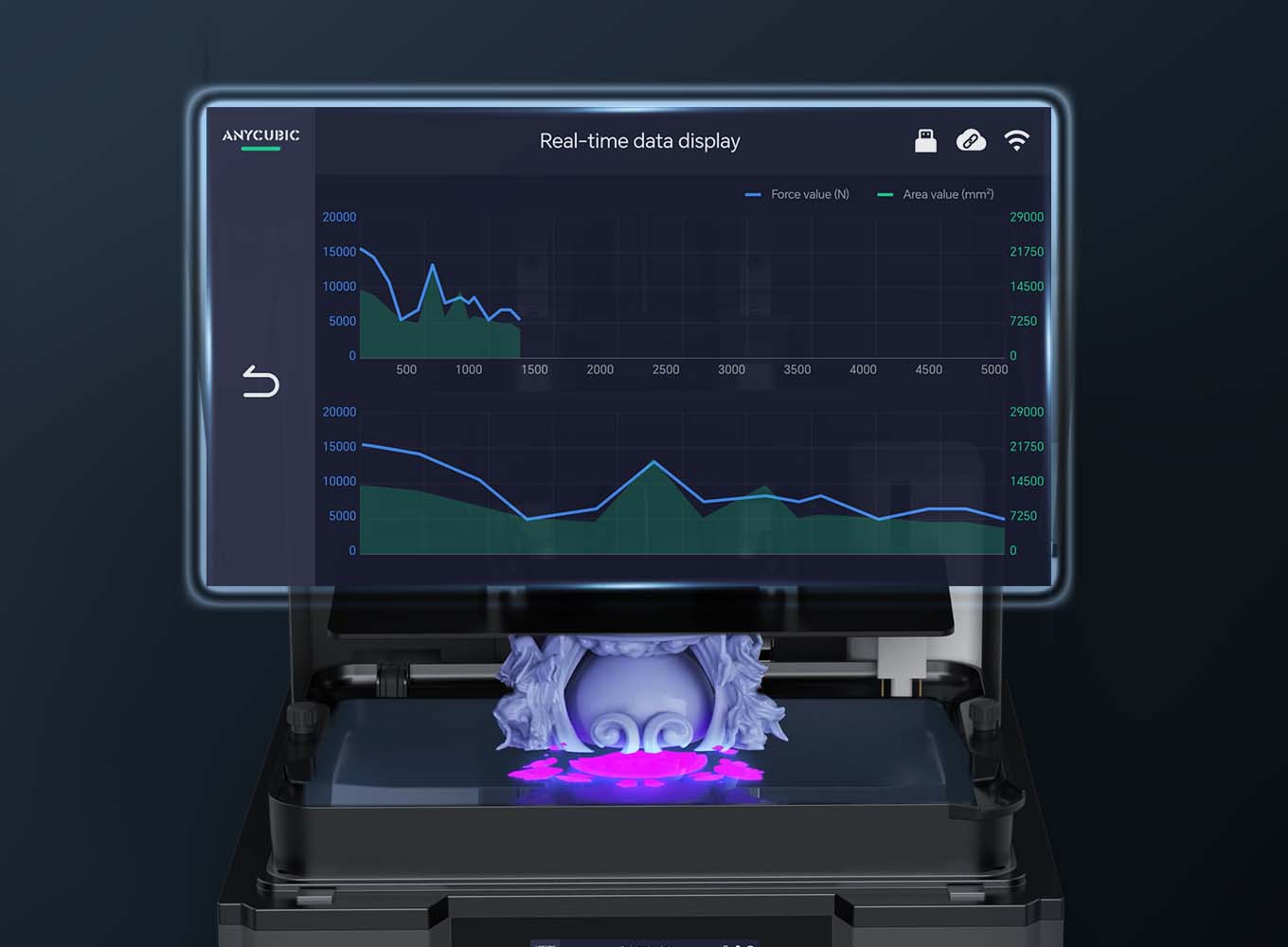

Q: What does the intelligent monitoring system of the Photon Mono M7 Max include?

A: The Photon Mono M7 Max can detect issues during printing such as complete layer separation due to insufficient bottom exposure or vibration, and model detachment caused by inadequate supports, all of which result in a sudden drop in release force to zero.
