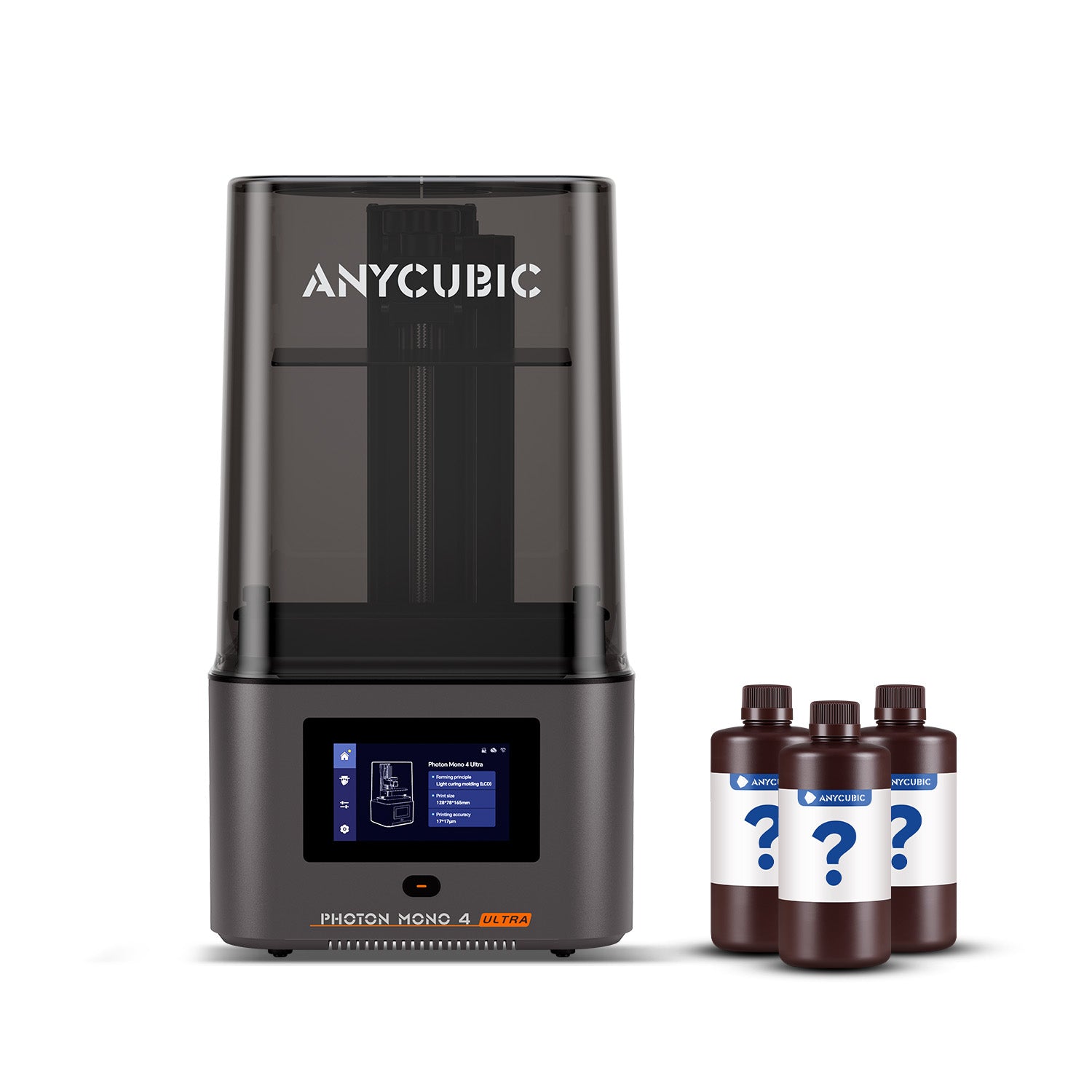

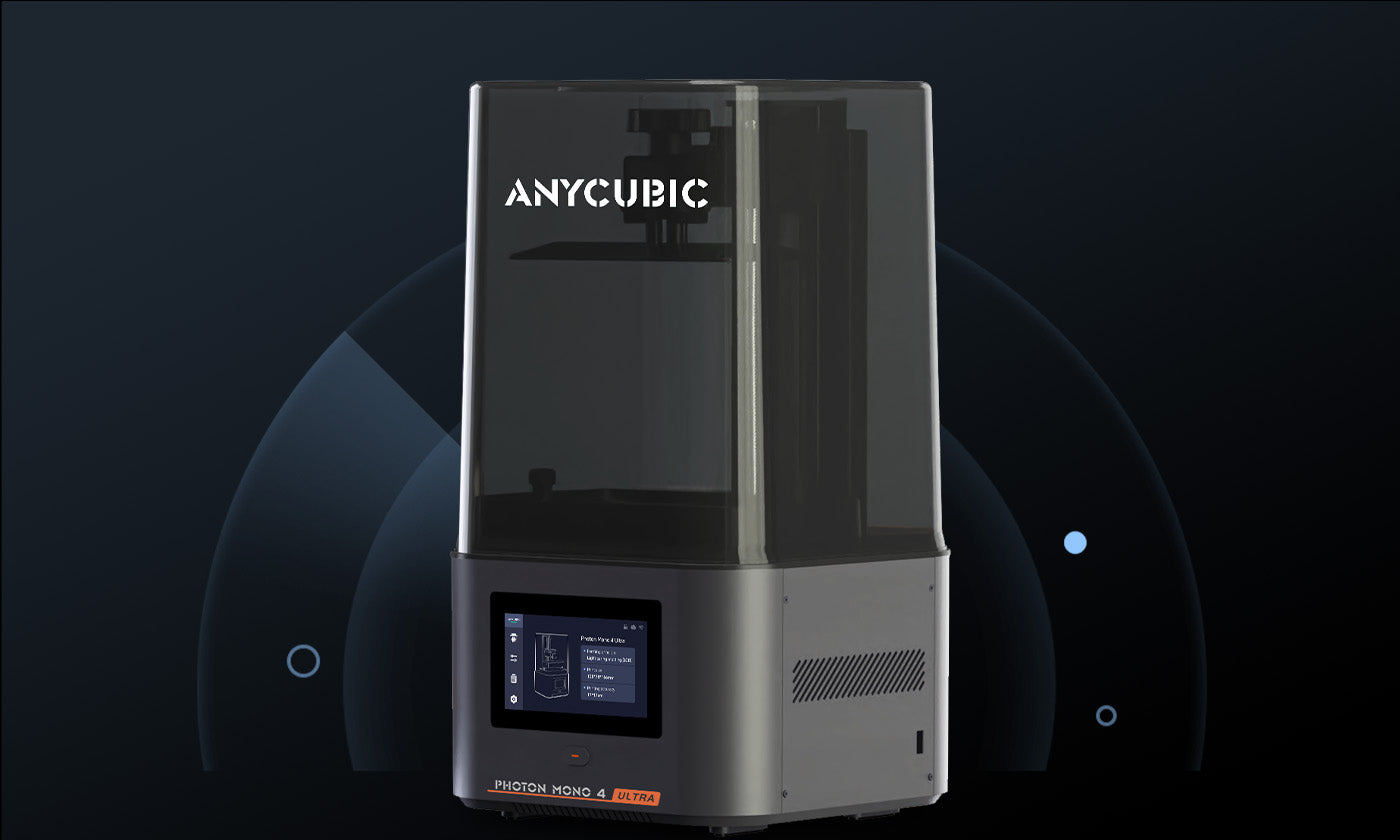

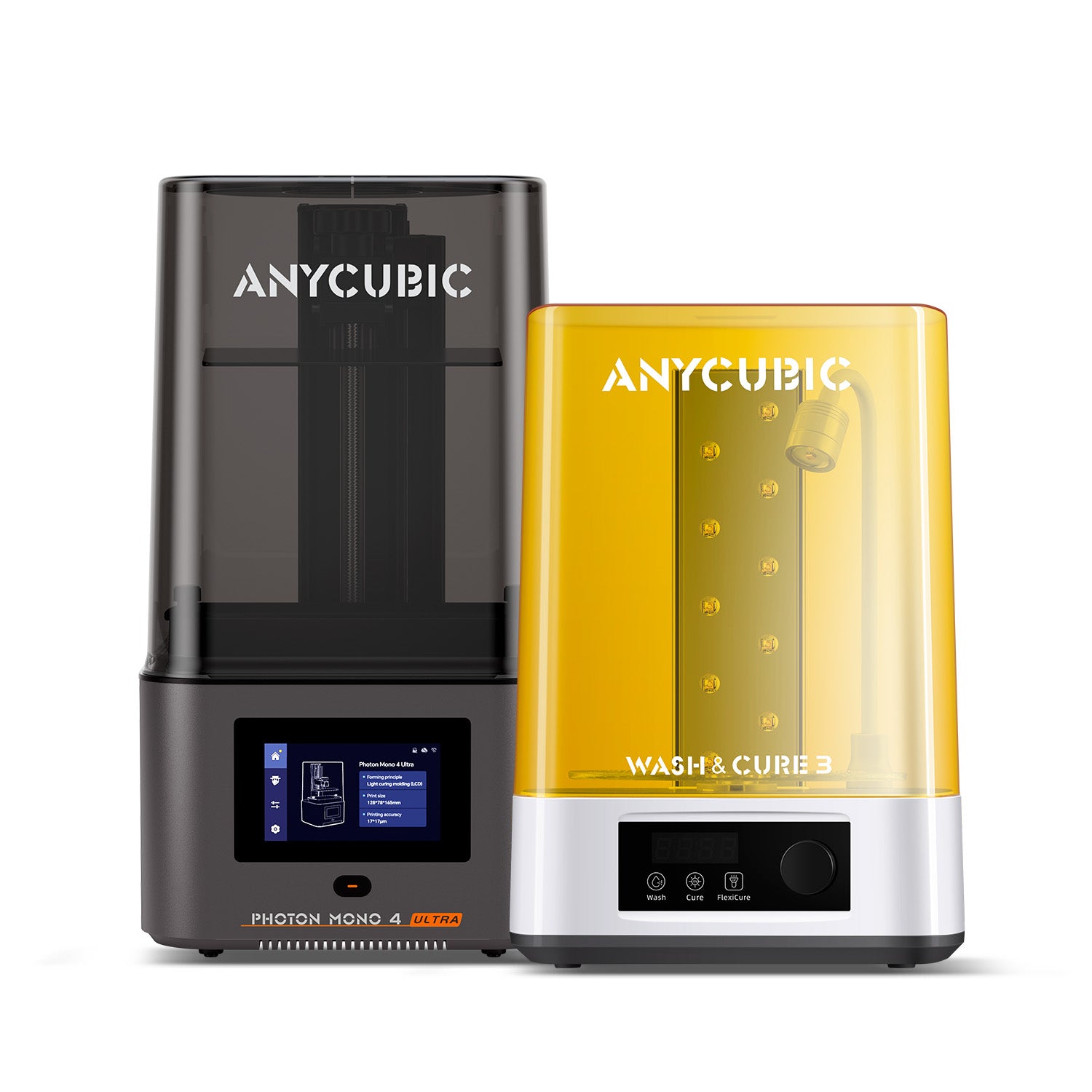

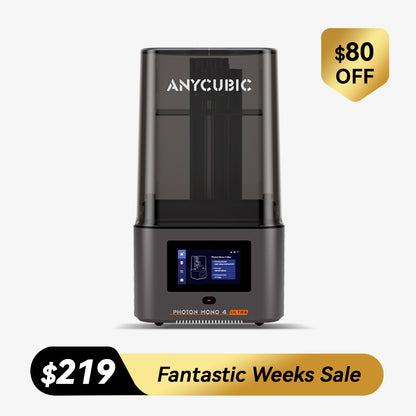

Anycubic Photon Mono 4 Ultra

Regular price $259.00
Regular price $299.00 Sale price $259.00
-$40.00
Shipping calculated at checkout.

Product Features

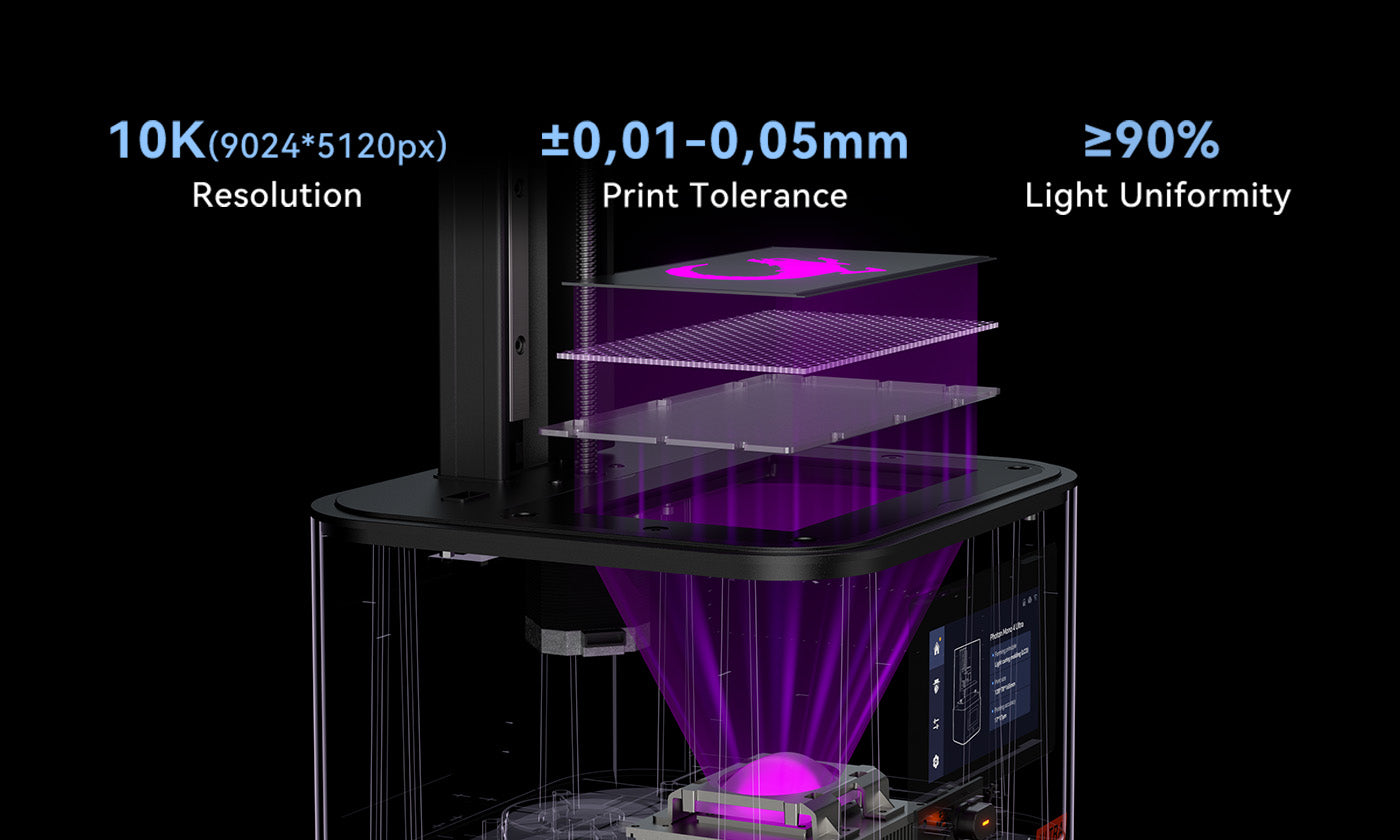

● 7'' 10K screen (9024x5120 resolution) with 17x17μm pixel size

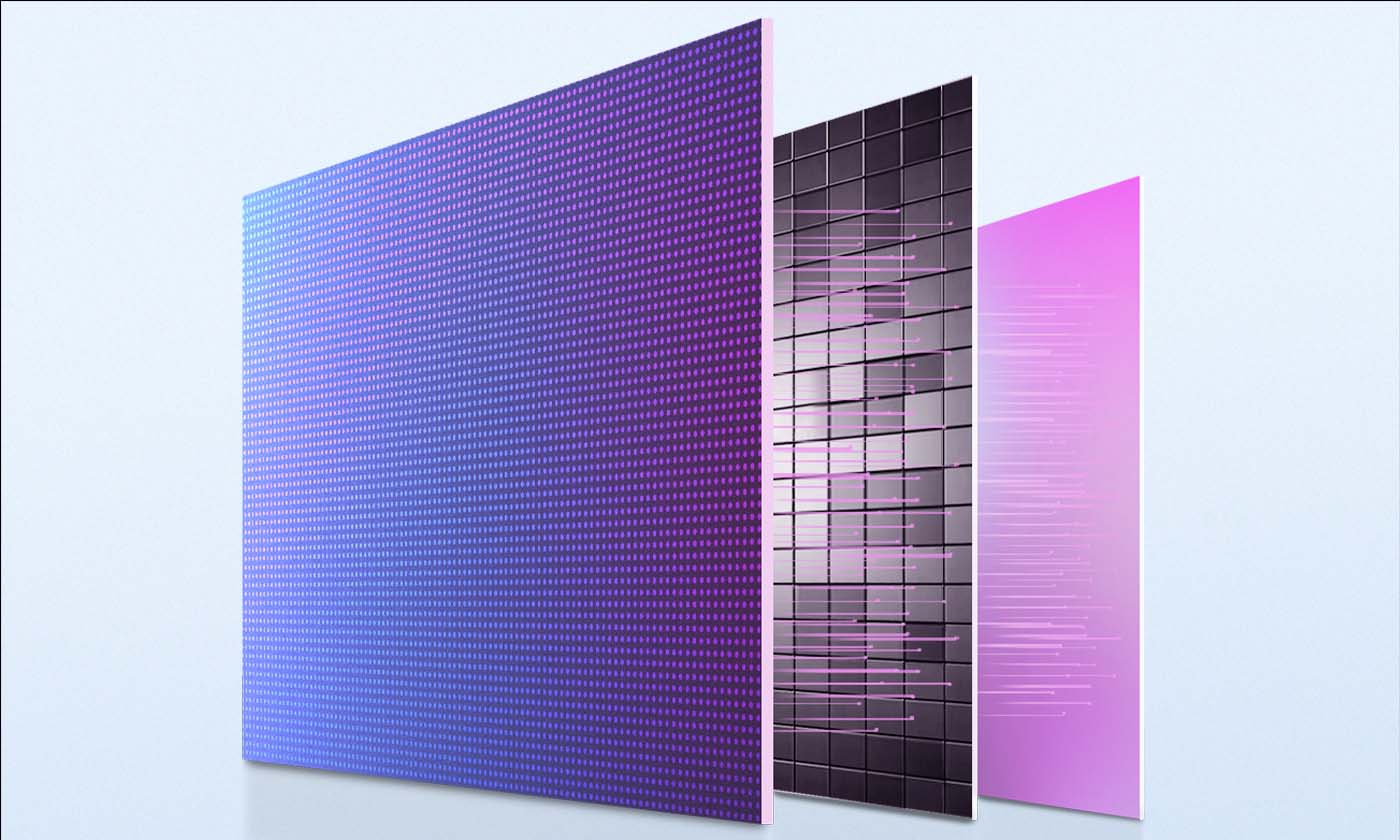

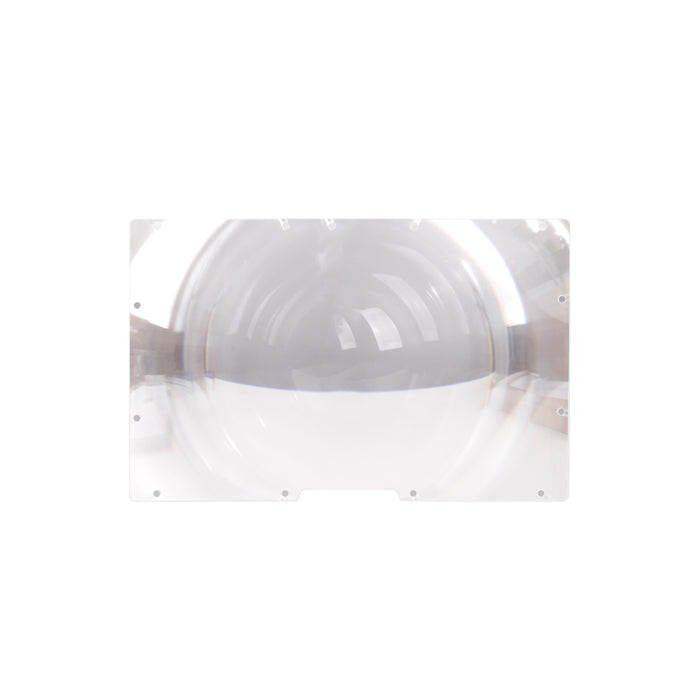

● Advanced COB Light Source and Fresnel Lens

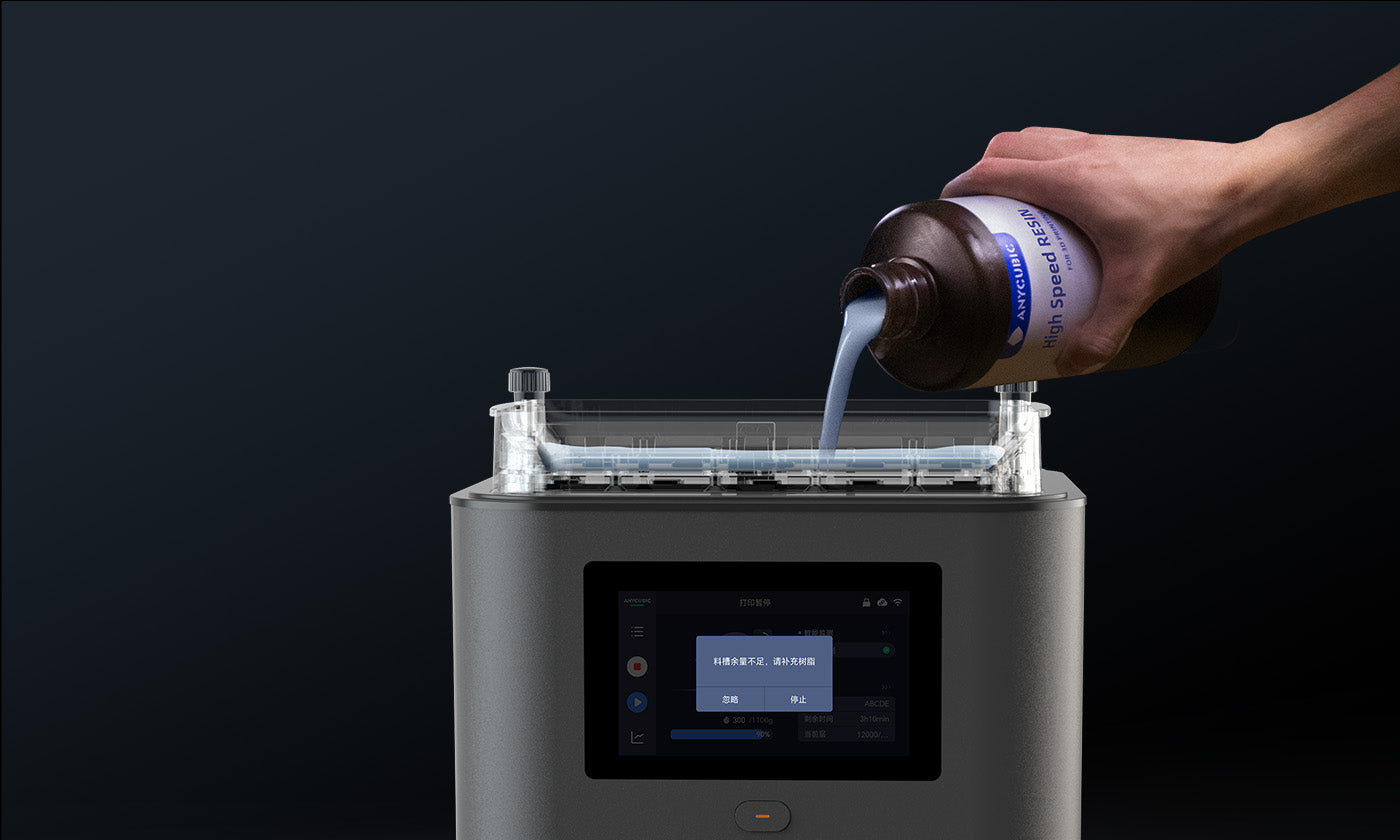

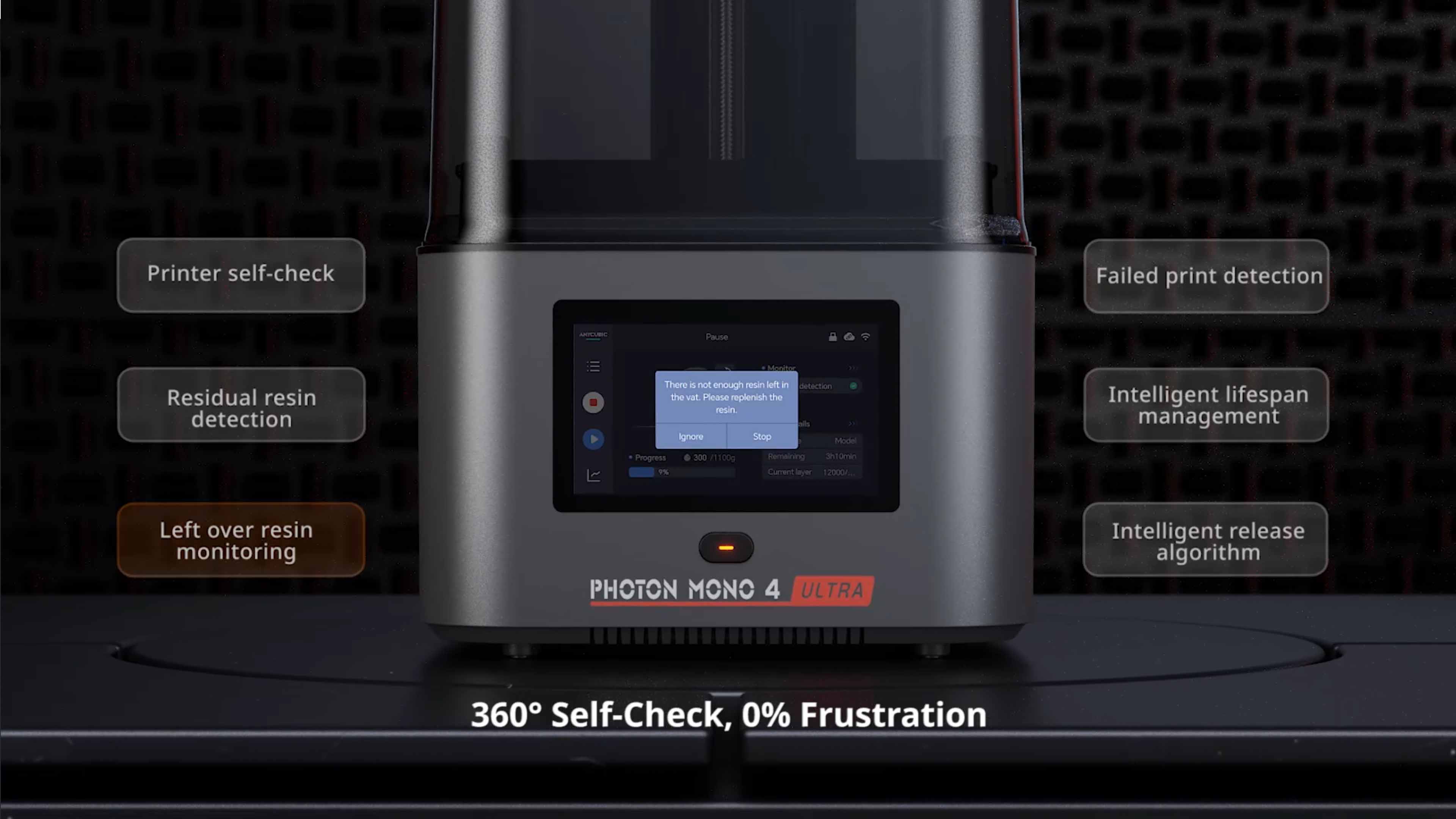

● Intelligence Assisted Printing System
● Faster Printing: 0.1mm at max. 120mm/h with High Speed Resin 2.0
🎁 Pre-Sale Alert: Price From $259
⏰ Save $40 + Bonus STL Files*2!

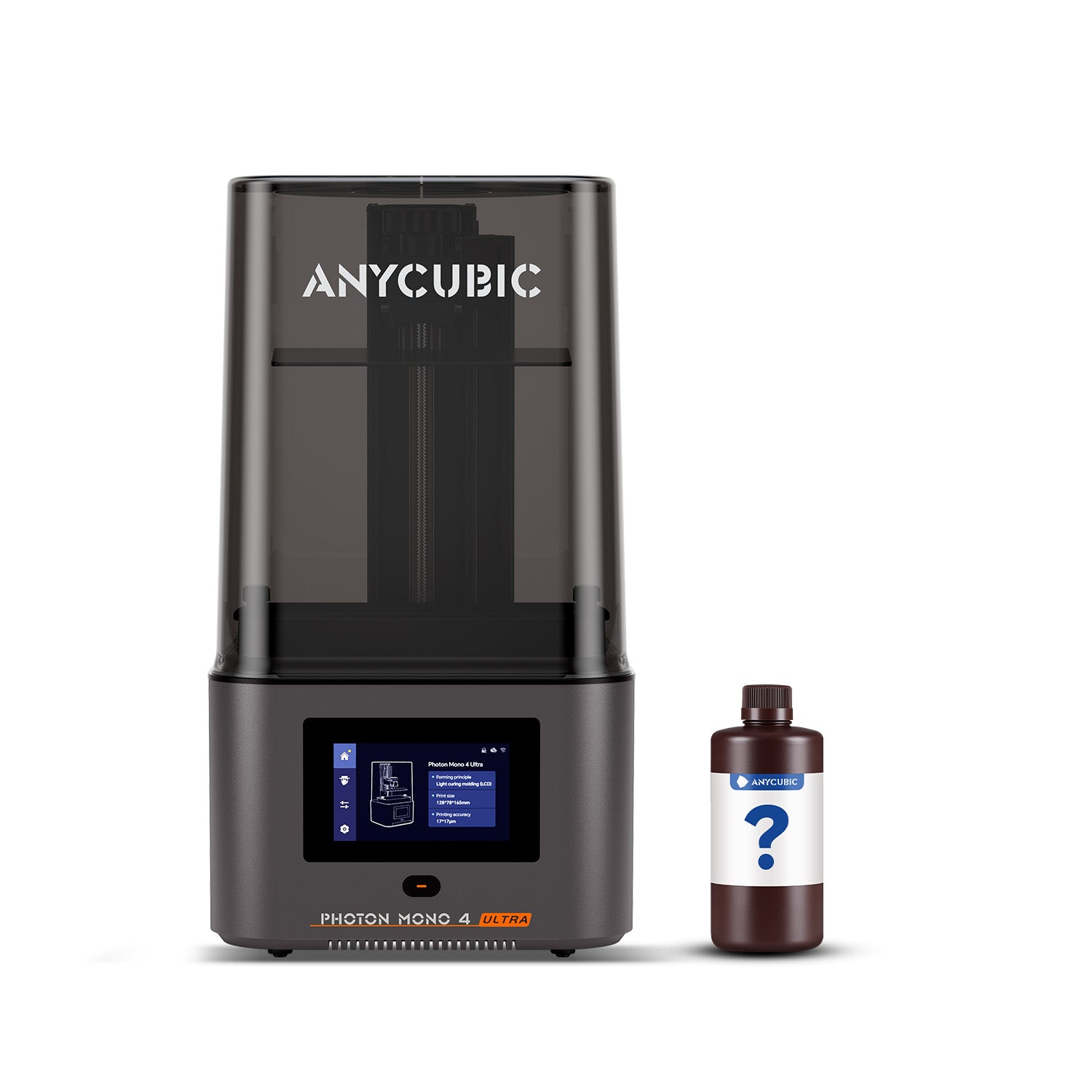

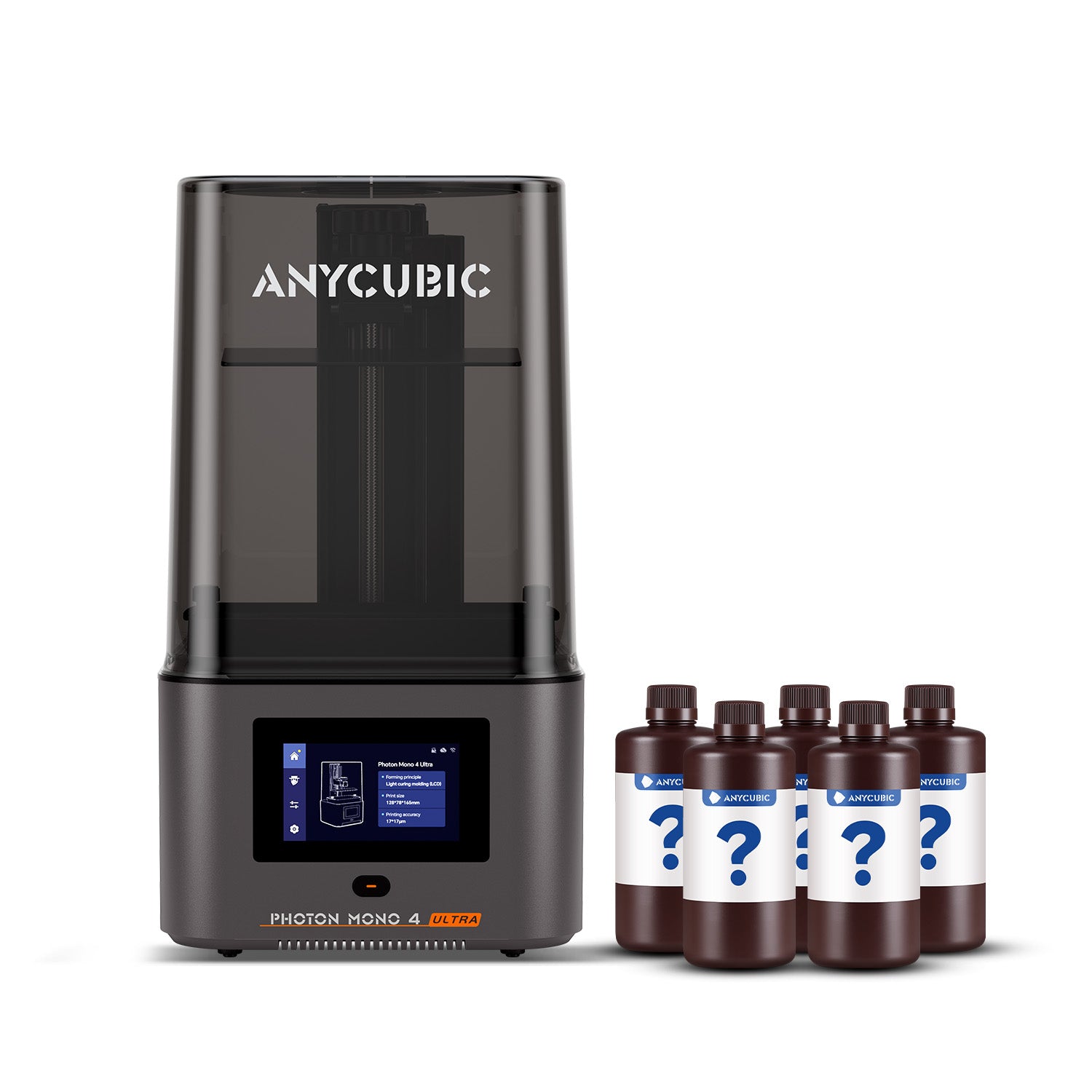

Include Resin: None

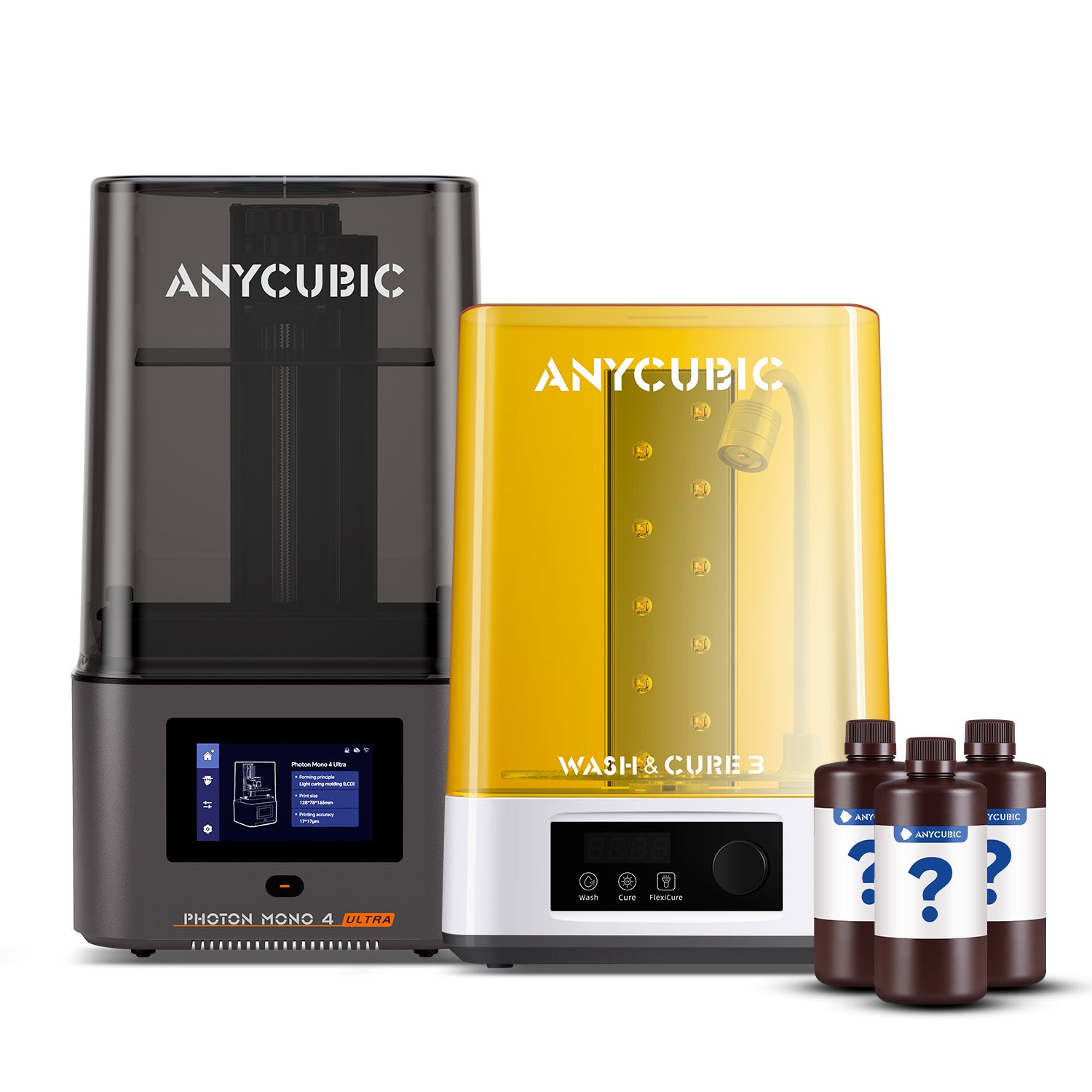

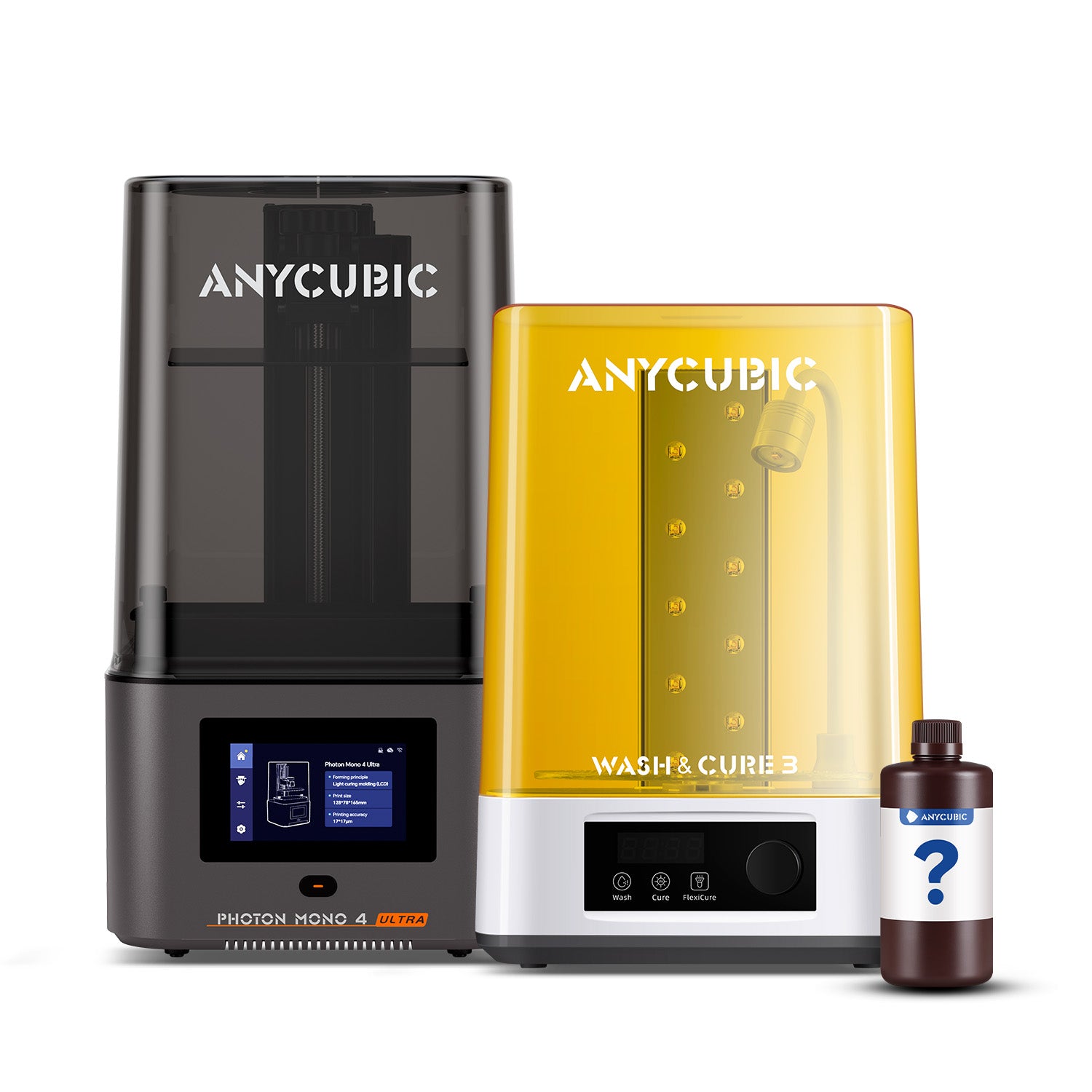

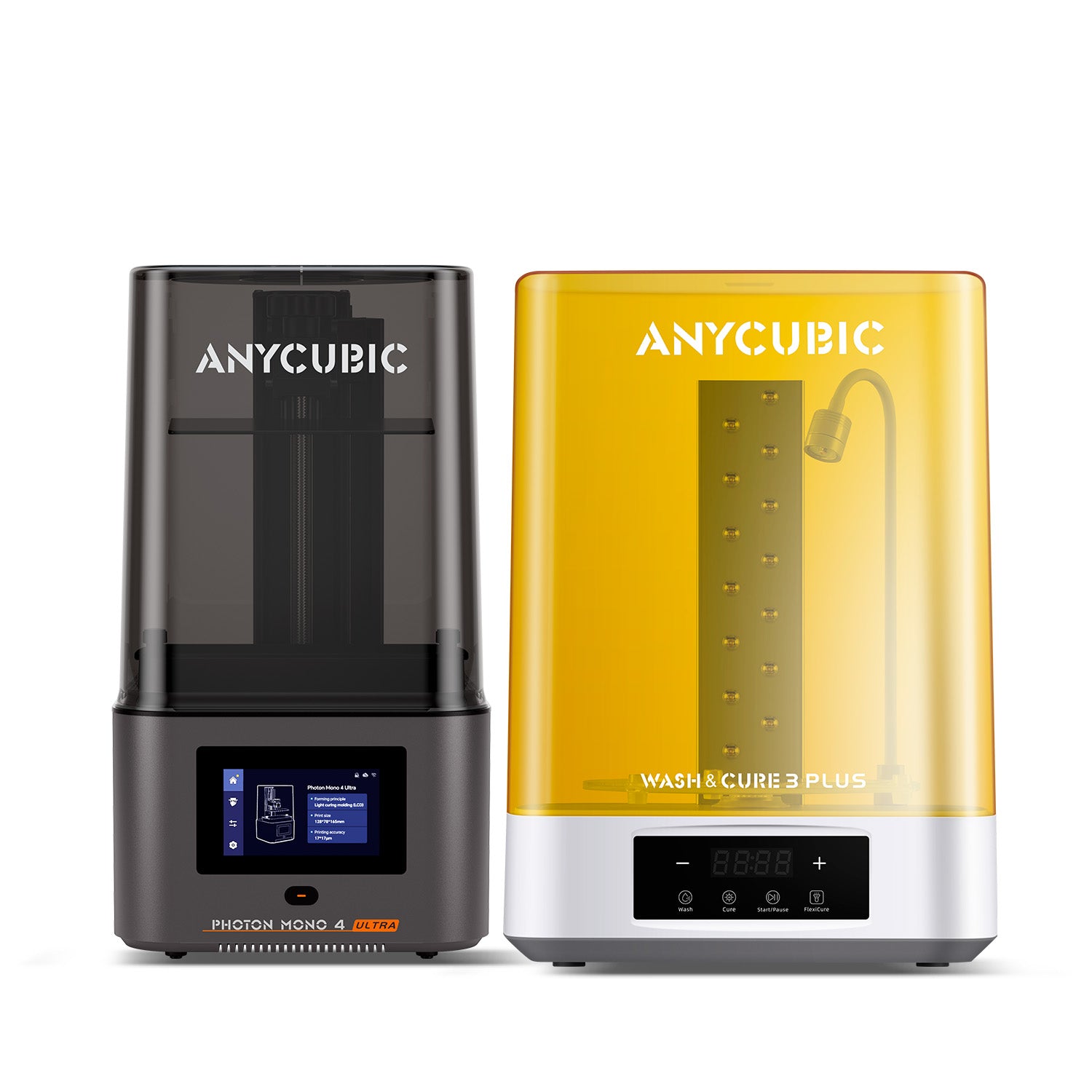

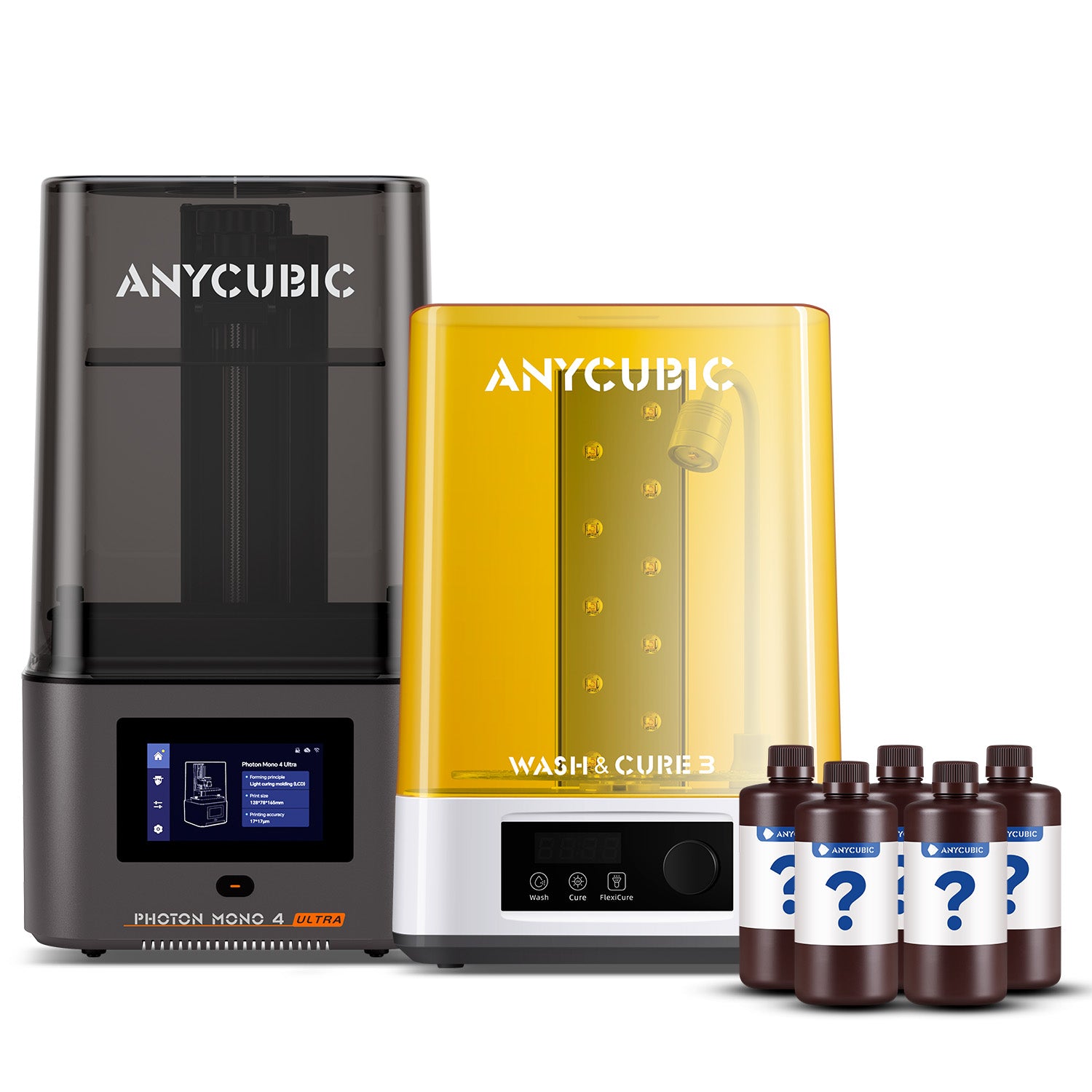

Include Wash&Cure Machine: None
Shipping & Adapter: US
🚚 US - Estimated Delivery Time: Nov. 1st - Nov. 10th
🚚 EU - Estimated Delivery Time: Dec. 5th - Dec. 15th
🚚 UK - Estimated Delivery Time: Nov. 25th - Dec. 5th
🚚 AU - Estimated Delivery Time: Dec. 1st - Dec. 10th
🚚 CA - Estimated Delivery Time: Nov. 25th - Dec. 5th

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

Regular price $259.00
Regular price $299.00 Sale price $259.00

Video

  • The Anycubic App

    Download the Anycubic App to directly access the Makeronline online model library on your smart phone, initiating print tasks through the cloud.

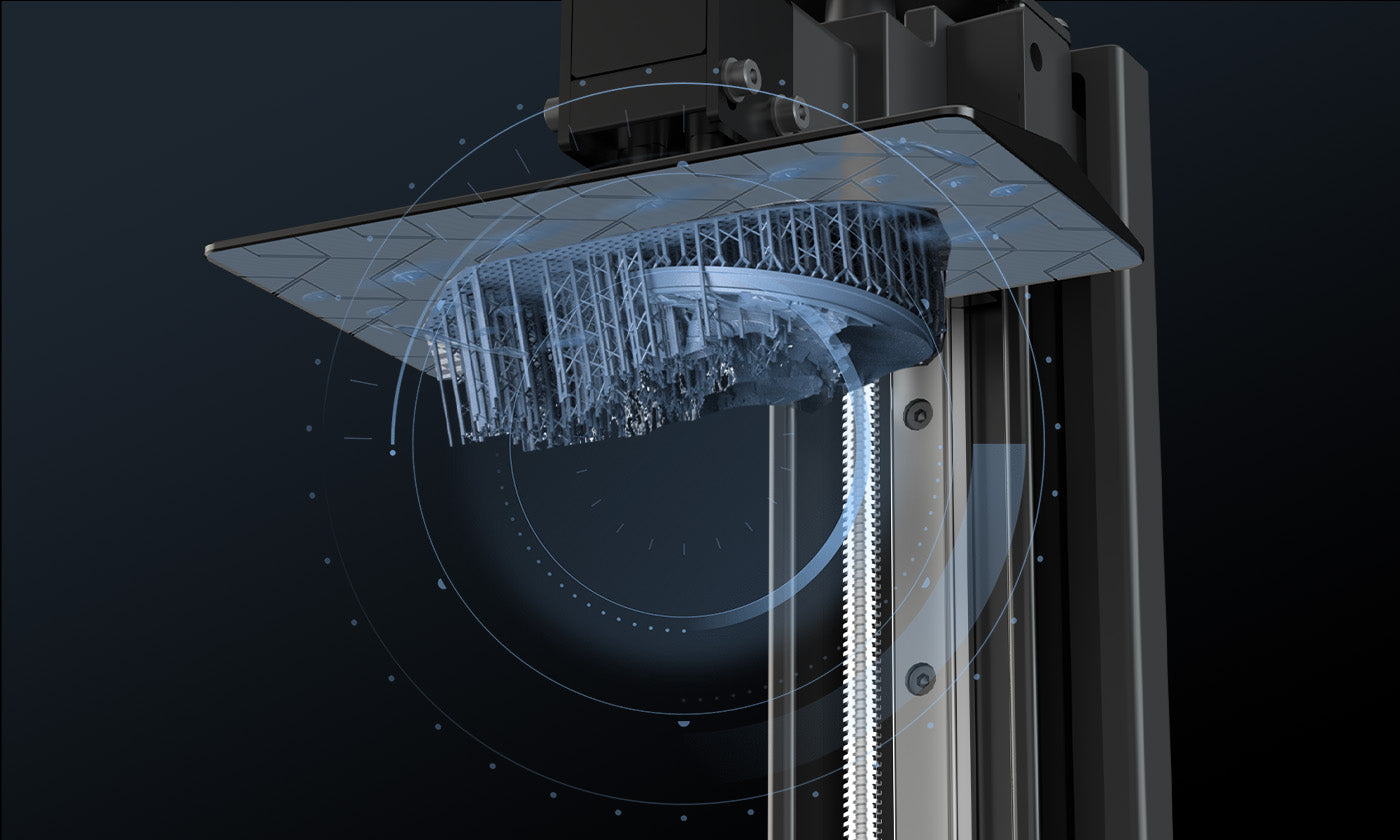

  • Anycubic Photon Workshop Magic

    Fully Automated Support Generation | Customizable Support Optimization| Smooth Layer Transitions | Remote operation

  • Interactive 3D Printing Ecosystem

    Offers models from 3000+ designers, enabling users to earn rewards by sharing work or joining contests.

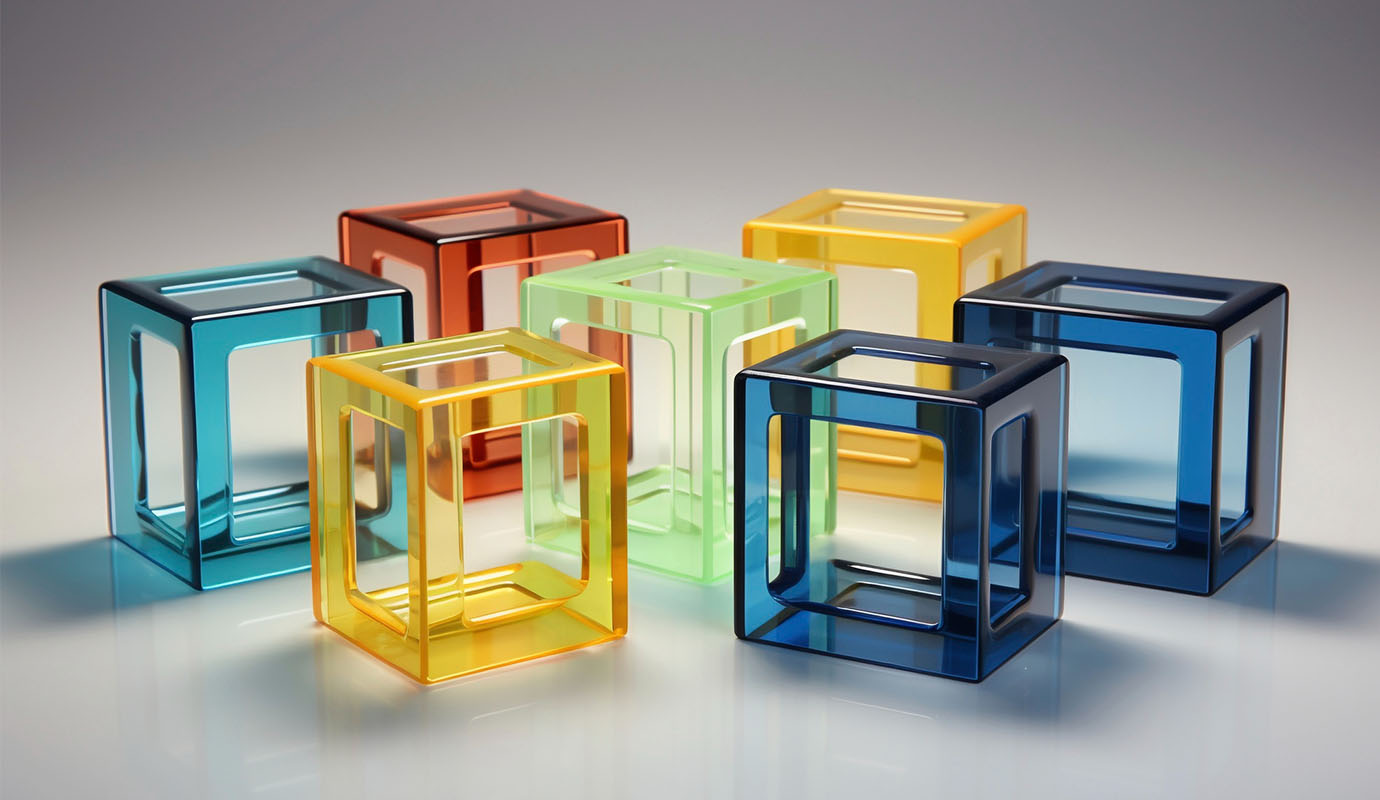

Sample Prints

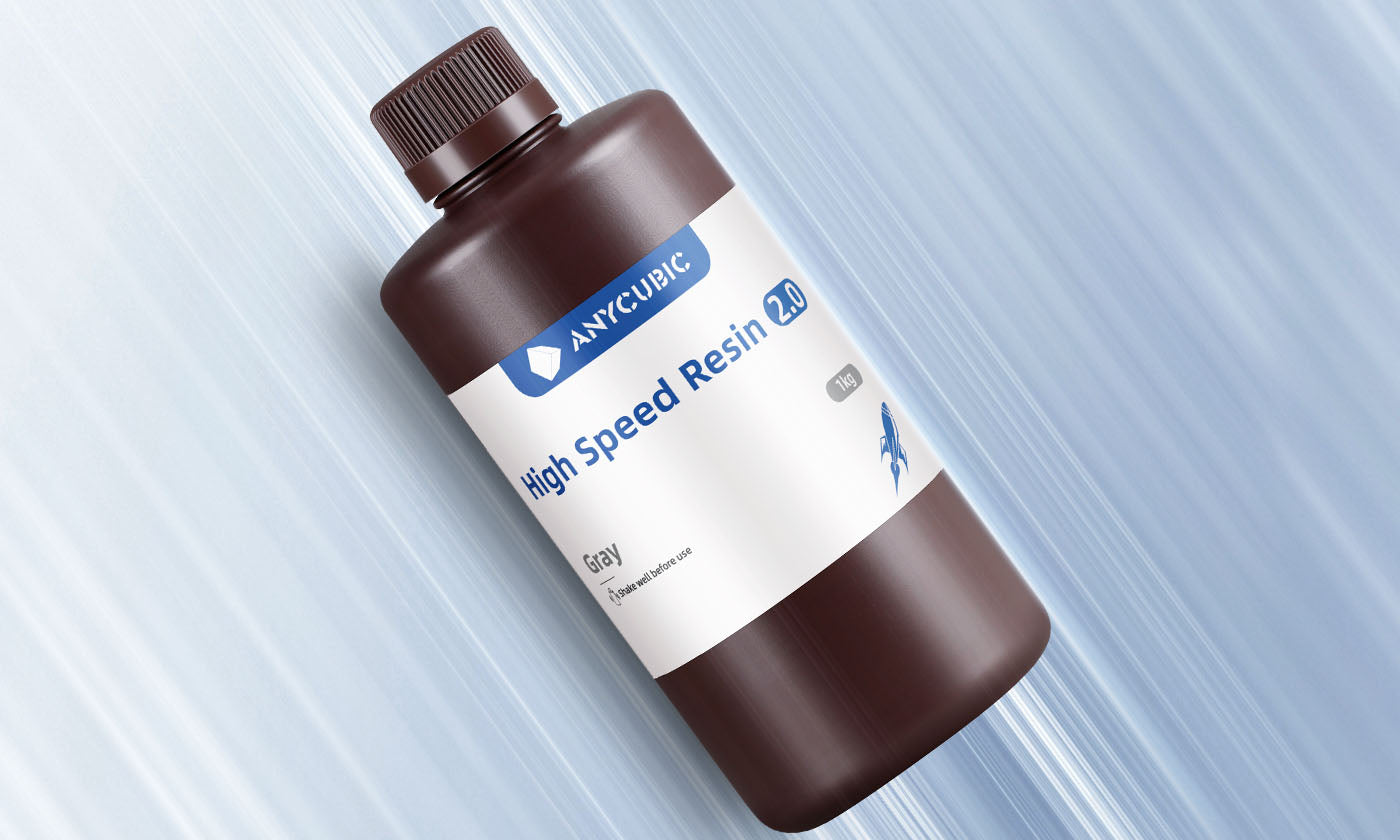

  • High Speed Resin 2.0

    Enables the cured model to have stronger anti-bending and anti-breaking performance, effectively reducing cracking and damage.

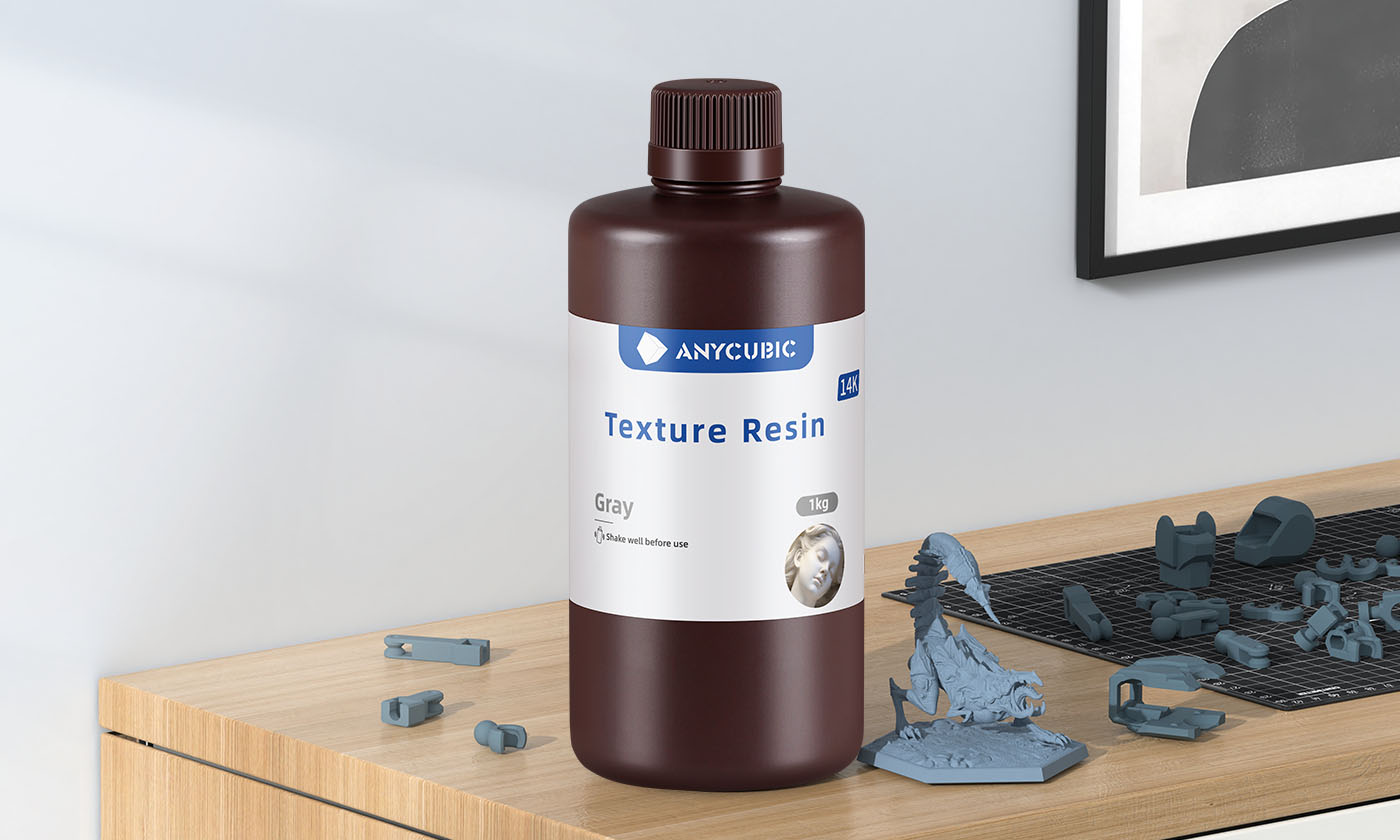

  • Texture Resin

    The Texture Resin gives ultra-indepth print details for miniatures and complex scene.

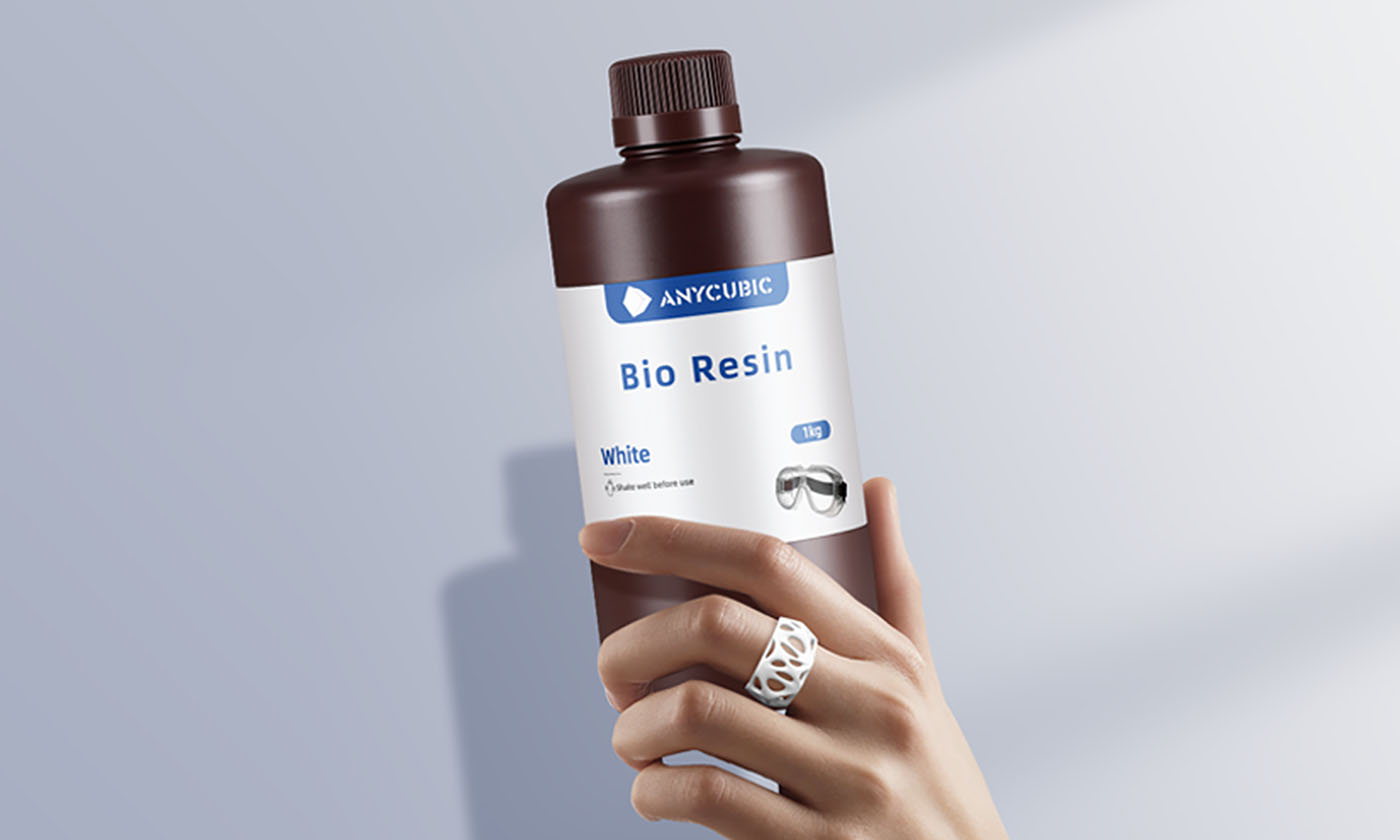

  • Bio Resin

    Low irritation, low odor, environmentally friendly and comfortable wearing experience.

Specification

Tech specs


  • Build volume

    153.4mm*87mm*165mm
  • Machine dimensions

    231mm*236mm*430mm
  • Printing speed

    Standard Resin 0.1mm layer height: 80mm/h peek speed; High Speed Resin 0.1mm layer height: 120mm/h peek speed
  • Machine leveling

    4-point manual leveling
  • Lcd screen size

    7-inch 10K Mono LCD
  • Light source

    COB light source+ Fresnel lens+Light uniformity algorithm
  • Xy resolution

    17*17μm
  • Operating screen

    4.3" TFT touch-control
  • Slicing software

    Photon Workshop
  • Material

    Supports most resins on the market (water-washable, standard, bio resin, plant-based, etc.)
  • File transfer

    USB & WiFi & LAN MODE (Q4)
  • Machine weight

    5KG
  • Light uniformity

    ≥90%

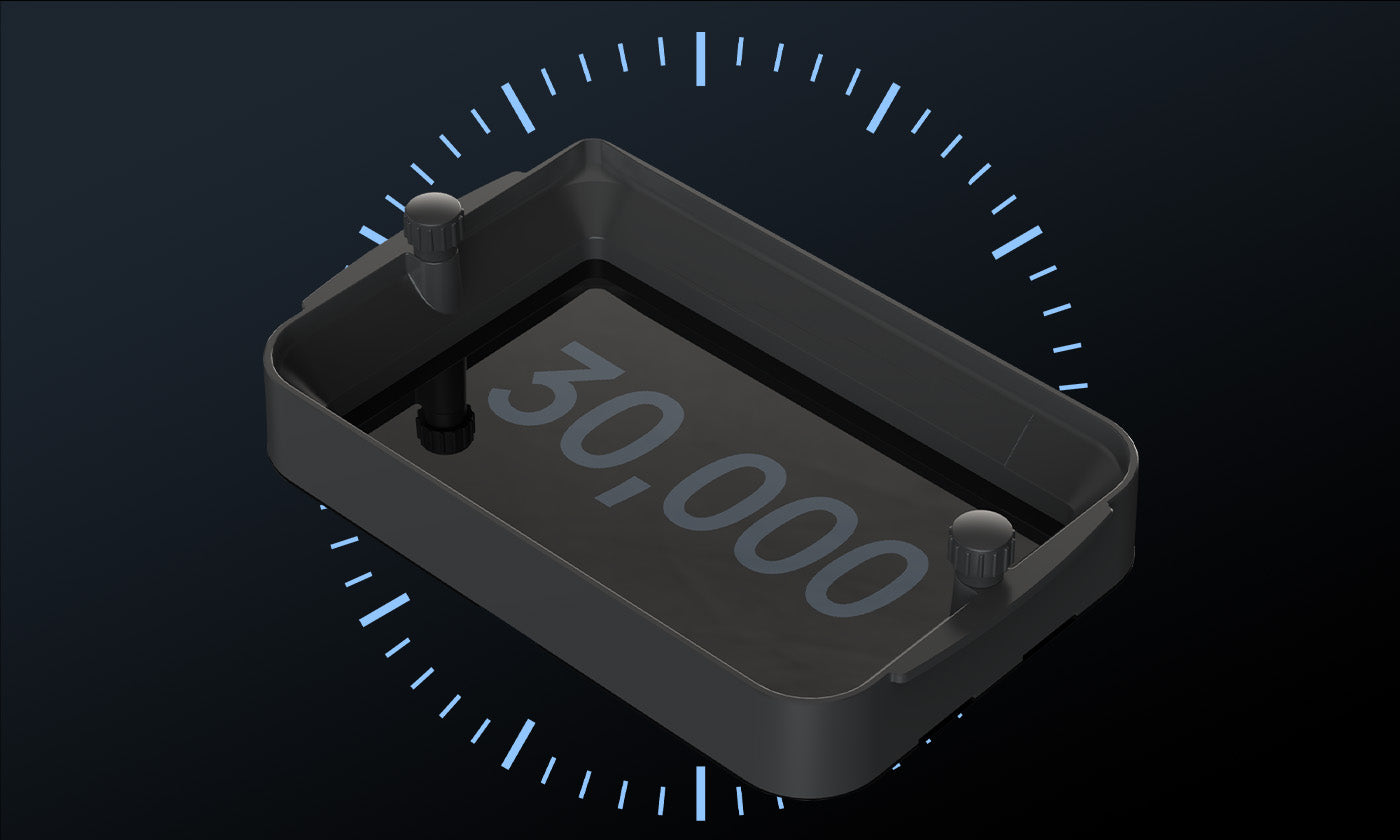

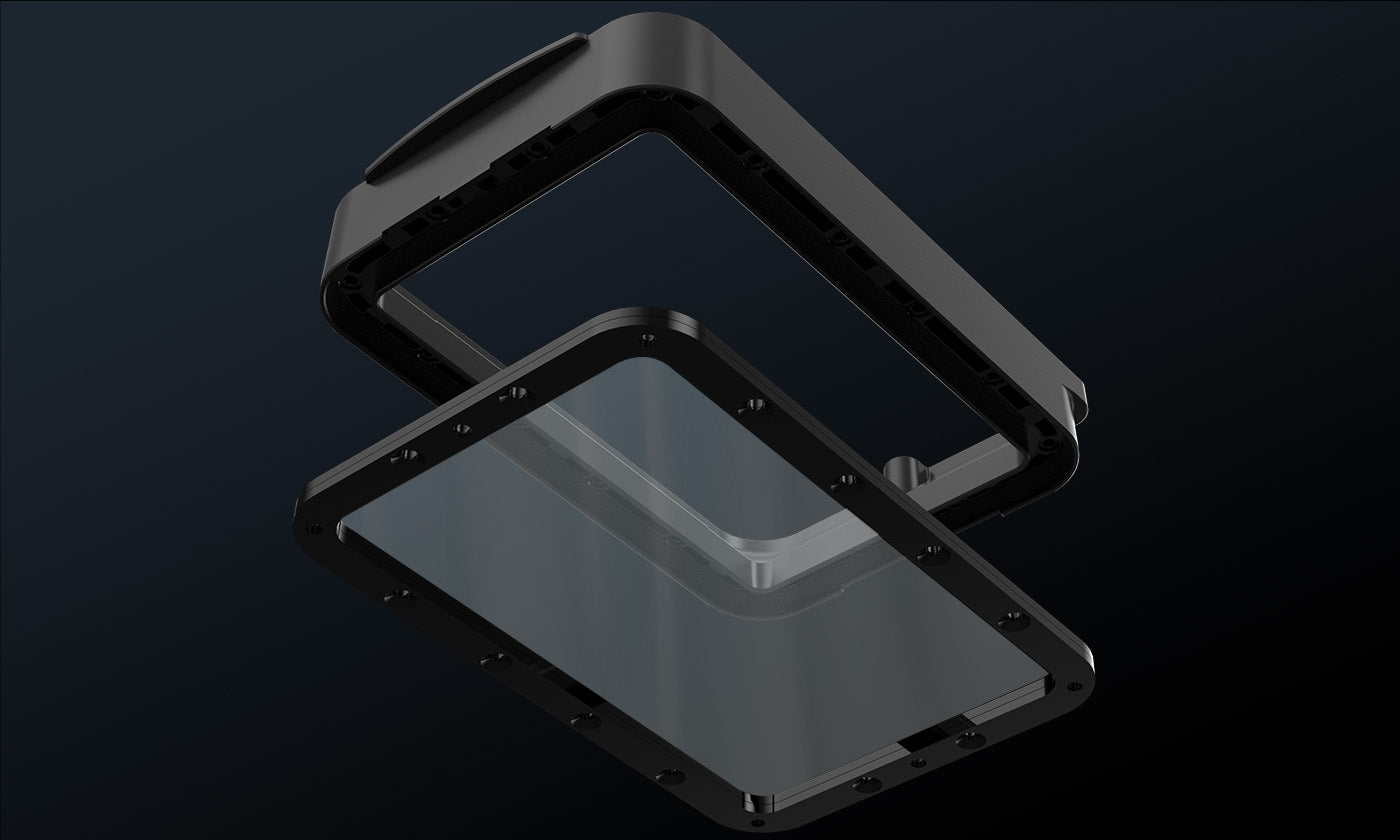

  • Release film

    ACF
  • Light intensity

    ≥3500μW /cm²
  • Layer height

    0.02-0.15mm
  • Package dimensions

    512mm*300mm*305mm

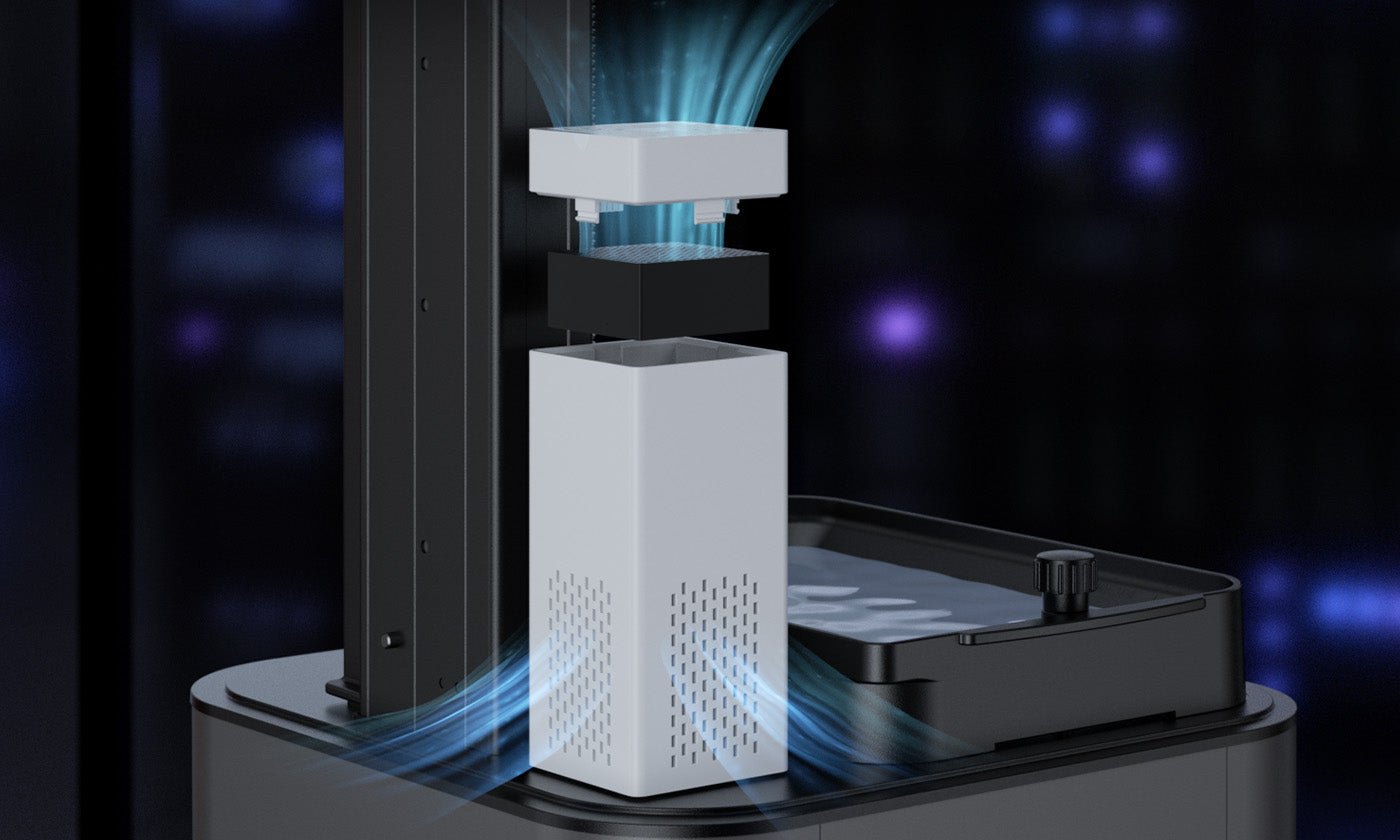

  • Air purifier

    USB
  • Anycubic app

    Support

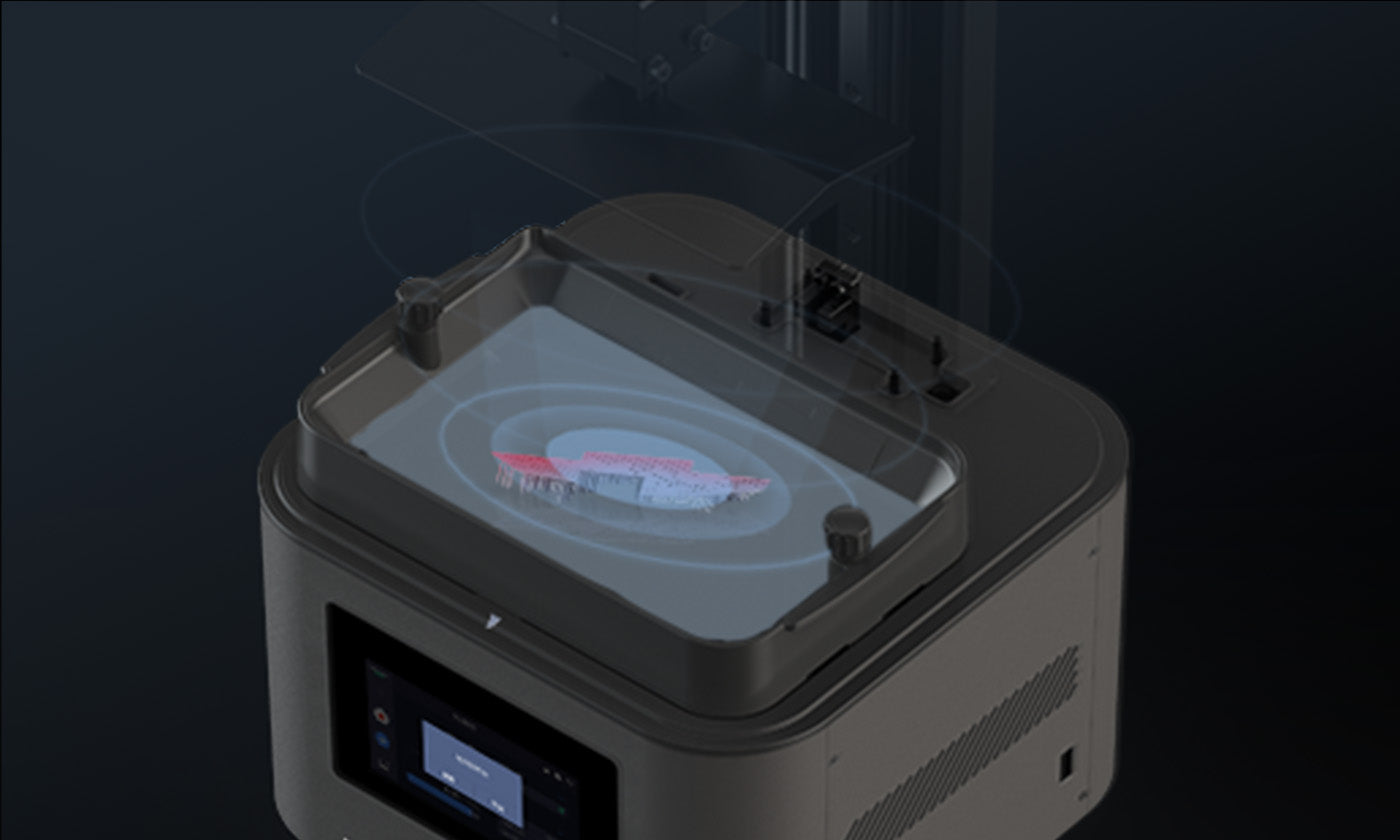

  • Intelligence assisted printing system

    Support

Products Comparison

Picture Photon Mono 4 Photon Mono 4 Ultra
Printer Model Photon Mono 4 Ultra Photon Mono 4
Build Volume 153.4mm*87mm*165mm 153.4mm*87mm*165mm
Product Dimensions 231mm*236mm*430mm 230mm*235mm*391mm
Packaging Dimensions 512mm*300mm*305mm 480mm*300mm*300mm
Net Weight 5KG 4KG
Printing Speed Standard Resin 0.1mm Layer Thickness Peak speed 80mm/h | High Speed Resin 0.1mm Layer Thickness Peak speed 120mm/h Standard Resin 0.1mm Layer Thickness Peak speed ≤50mm/h | High Speed Resin 0.1mm Layer Thickness Peak speed ≤70mm/h
Layer Height 0.02-0.15mm 0.03-0.15mm
LCD Screen 7-inch Mono LCD 7-inch Mono LCD
Printing Resolution 10K 10K
X/Y Axis Resolution 17*17um 17*17um
Light Source COB light source+ Fresnel lens+Light uniformity algorithm Parallel matrix upgrade light source
Light Uniformity ≥90% 80-90%
Full-Stage Intelligent Assisted Printing System ×
Light Intensity ≥3500μW /cm² ~3000μW /cm²
Release Film ACF FEP
AirPure Optional(USB) Optional(Rechargeable)
Display Screen 4.3" TFT touch-control 2.8" TFT touch-control
Anycubic App ×
Machine leveling 4-point manual leveling 4-point manual leveling
Slicing Software Photon Workshop Photon Workshop
File Transfer USB & WiFi& LAN MODE(Q4) USB

In The Box

  • Photon Mono 4 Ultra
