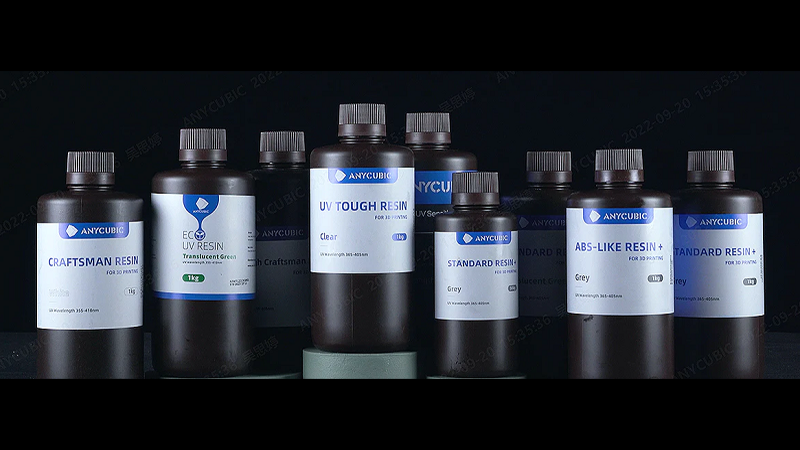

Resin Settings for Anycubic Photon Series 3D Printer

Resin is the most important material for LCD/SLA 3D printing, which can be used to produce 3D printed objects directly. It is a kind of material for printing objects in 3D printers, especially for desktop 3D printers.

Moreover, the resin is the easiest way to get started with 3D printing, but you may get confused when it comes to resin 3D printer settings, do not worry, we are here to write the best resin settings for Anycubic resin 3d printer below.

anycubic photon workshop resin settings

NOTE:

1. If the printing environment is lower than 68°F/20°C, it is recommended to increase the exposure time by 30%, and reduce the Z Lift Speed by 30%.

2. The data comes from the Anycubic Laboratory and is for reference only.

3. Different printing parameters and post-processing processes will present different results. If you encounter problems during printing, feel free to contact our customer service for support.

4. The following processing reference parameters are suitable for the factory default energy state of the Resin 3D printer. If the light energy is adjusted, the reference processing parameters need to be adjusted accordingly.

5. If you still fail to print on the default parameters, Please contact our customer service for professional guidance.

Printing Settings for Photon Mono M7 Pro

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm /
Exposure Time 2s 2s 2s 2s 2s / 4s 2s 1.5s 2s 2s 2s 2s 2s 2s /
Light-Off Time 0.5s 0.5s 0.5s 2s 0.5s / 2s 0.5s 0.5s 0.5s 0.5s 2s 2s 0.5s 0.5s /
Bottom Exposure Time 25s 25s 25s 25s 25s / 25s 25s 15s 25s 25s 25s 25s 25s 25s /
Bottom Layer 4 4 4 4 4 / 4 4 5 4 4 4 4 4 4 /
Z Lift Distance 8mm 8mm 8mm 8mm 8mm / 8mm 8mm 4mm 8mm 8mm 8mm 8mm 8mm 8mm 8mm
Z Lift Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s / 6mm/s 6mm/s 15mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s
Z Retract Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s / 6mm/s 6mm/s 15mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s
Anti-Aliasing Level 1 1 1 1 1 / 1 1 1 1 1 1 1 1 1 /

Printing Settings for Photon Mono M5s Pro

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.1mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm /
Exposure Time 3.6s 3.6s 3.6s 3s 2.8s / 4s 3.6s 1.9s 3.6s 3.6s 3.6s 3.6s 3.6s 3.6s /
Light-Off Time 0.5s 0.5s 0.5s 0.5s 0.5s / 0.5s 0.5s 0.5s 0.5s 0.5s 1s 1s 0.5s 0.5s /
Bottom Exposure Time 30s 30s 30s 30s 25s / 35s 35s 10s 30s 30s 30s 30s 35s 35s /
Bottom Layer 5 5 5 5 5 / 5 5 5 5 5 5 5 5 5 /
Z Lift Distance 8mm 8mm 8mm 8mm 8mm / 8mm 8mm 3mm 8mm 8mm 8mm 8mm 8mm 8mm /
Z Lift Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s / 6mm/s 6mm/s 20mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s /
Z Retract Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s / 6mm/s 6mm/s 20mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s /
Anti-Aliasing Level 1 1 1 1 1 / 1 1 1 1 1 1 1 1 1 /

Printing Settings for Photon Mono M5s

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.1mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm /
Exposure Time 2.8s 2.8s 3s 3.6s 3.6s / 5s 2.8s 1.7s 2.8s 2.8s 2.8s 2.8s 3s 2.8s /
Light-Off Time 0.5s 0.5s 0.5s 0.5s 0.5s / 0.5s 0.5s 0.5s 0.5s 0.5s 1s 1s 0.5s 0.5s /
Bottom Exposure Time 25s 25s 30s 30s 30s / 35s 25s 10s 25s 25s 25s 25s 30s 25s /
Bottom Layer 5 5 5 5 5 / 5 5 3 5 5 5 5 5 5 /
Z Lift Distance 8mm 8mm 8mm 8mm 8mm / 8mm 8mm 3mm 8mm 8mm 8mm 8mm 8mm 8mm /
Z Lift Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s / 6mm/s 6mm/s 20mm/s 5mm/s 5mm/s 5mm/s 5mm/s 6mm/s 6mm/s /
Z Retract Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s / 6mm/s 6mm/s 20mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s /
Anti-Aliasing Level 1 1 1 1 1 / 1 1 1 1 1 1 1 1 1 /

Printing Settings for Photon Mono M5

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm /
Exposure Time 2.8s 2.8s 3s 3s 2.8s / 5s 2.8s / 2.8s 2.8s 2.8s 2.8s 3s 2.8s /
Light-Off Time 0.5s 0.5s 0.5s 0.5s 0.5s / 0.5s 0.5s / 0.5s 0.5s 1s 1s 0.5s 0.5s /
Bottom Exposure Time 25s 25s 30s 30s 25s / 35s 25s / 25s 25s 25s 25s 30s 25s /
Bottom Layer 5 5 5 5 5 / 5 5 / 5 5 5 5 5 5 /
Z Lift Distance 8mm 8mm 8mm 8mm 8mm / 8mm 8mm / 8mm 8mm 8mm 8mm 8mm 8mm /
Z Lift Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s / 6mm/s 6mm/s / 5mm/s 5mm/s 5mm/s 5mm/s 6mm/s 6mm/s /
Z Retract Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s / 6mm/s 6mm/s / 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s /
Anti-Aliasing Level 1 1 1 1 1 / 1 1 / 1 1 1 1 1 1 /

Printing Settings for Photon M3 Max

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 3s 3s 2s 3s 3s 3s 4.5s 3s / 3s 3s 3s 3s 3s 3s 3s
Light-Off Time 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s 2s / 2.5s 2.5s 2s 2s 2.5s 2.5s 2.5s
Bottom Exposure Time 50s 50s 35s 50s 50s 50s 30s 30s / 35s 35s 35s 35s 30s 50s 35s
Bottom Layer 6 6 6 6 6 6 6 6 / 6 6 6 6 6 6 6
Z Lift Distance 10mm 10mm 8mm 10mm 10mm 10mm 10mm 10mm / 10mm 10mm 10mm 10mm 10mm 10mm 10mm
Z Lift Speed 2mm/s 2mm/s 3mm/s 2mm/s 2mm/s 10mm/s 2mm/s 4mm/s / 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 10mm/s 2mm/s
Z Retract Speed 3mm/s 3mm/s 4mm/s 3mm/s 3mm/s 2mm/s 3mm/s 4mm/s / 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 2mm/s 3mm/s
Anti-Aliasing Level 1 1 1 1 1 1 1 1 / 1 1 1 1 1 1 1

Printing Settings for Photon Mono X 6Ks

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm /
Exposure Time 2.5s 2.5s 2s 3s 2.5s / 4 2.5s / 2.5s 2.5s 2.5s 2.5s 3s 2.5s /
Light-Off Time 0.5s 0.5s 0.5s 0.5s 0.5s / 0.5s 0.5s / 0.5s 0.5s 0.5s 0.5s 1s 1s /
Bottom Exposure Time 20s 20s 20s 20s 20s / 25s 20s / 20s 20s 20s 20s 20s 20s /
Bottom Layer 5 5 5 5 5 / 5 5 / 5 5 5 5 5 5 /
Z Lift Distance 8mm 8mm 8mm 8mm 8mm / 8mm 8mm / 8mm 8mm 8mm 8mm 8mm 8mm /
Z Lift Speed 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s / 2mm/s 2mm/s / 3mm/s 3mm/s 3mm/s 3mm/s 2mm/s 2mm/s /
Z Retract Speed 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s / 3mm/s 3mm/s / 4mm/s 4mm/s 4mm/s 4mm/s 3mm/s 3mm/s /
Anti-Aliasing Level 1 1 1 1 1 / 1 1 / 1 1 1 1 1 1 /

Printing Settings for Photon Mono X2

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s 4 2.5s / 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s
Light-Off Time 0.5s 0.5s 0.5s 1s 0.5s 1s 0.5s 0.5s / 0.5s 0.5s 1s 1s 1s 1s 0.5s
Bottom Exposure Time 25s 20s 20s 20s 20s 20s 25s 25s / 20s 20s 20s 20s 20s 20s 20s
Bottom Layer 5 5 5 5 5 5 5 5 / 5 5 5 5 5 5 5
Z Lift Distance 8mm 8mm 8mm 8mm 8mm 8mm 8mm 8mm / 8mm 8mm 8mm 8mm 8mm 8mm 8mm
Z Lift Speed 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s / 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s
Z Retract Speed 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s / 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s
Anti-Aliasing Level 1 1 1 1 1 1 1 1 / 1 1 1 1 1 1 1

Printing Settings for Photon Mono 2

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s 4.5s 2.5s / 2.5s 2.5s 2.5s 2.5s 3s 2.5s 3s
Light-Off Time 1s 1s 1s 1s 1s 1s 1s 1s / 1s 1s 1s 1s 1s 1s 1s
Bottom Exposure Time 25s 25s 25s 25s 25s 25s 25s 25s / 25s 25s 25s 25s 25s 25s 25s
Bottom Layer 5 5 5 5 5 5 5 5 / 5 5 5 6 5 5 5
Z Lift Distance 6mm 6mm 6mm 6mm 6mm 6mm 6mm 6mm / 6mm 6mm 6mm 6mm 6mm 6mm 6mm
Z Lift Speed 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s / 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s
Z Retract Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s / 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s
Anti-Aliasing Level 1 1 1 1 1 1 1 1 / 1 1 1 1 1 1 1

Printing Settings for Photon D2

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 2.8s 2.5s 2.5s 2.5s 2.5s 2.5s 4.5s 2.5s / 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s
Light-Off Time 1s 1s 1s 1s 1s 1s 1s 1s / 1s 1s 1s 1s 1s 1s 1s
Bottom Exposure Time 30s 28s 28s 28s 28s 28s 35s 28s / 28s 28s 28s 28s 28s 28s 28s
Bottom Layer 6 5 5 5 5 5 4 5 / 6 5 5 5 5 5 5
Z Lift Distance 5mm 5mm 5mm 5mm 5mm 5mm 5mm 5mm / 5mm 5mm 5mm 5mm 5mm 5mm 5mm
Z Lift Speed 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 2mm/s 2mm/s / 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s
Z Retract Speed 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s / 2mm/s 2mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s
Anti-Aliasing Level 16 16 16 1 16 16 4 1 / 16 16 16 1 16 16 16

Printing Settings for Photon M3 Plus

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 2.8s 2.5s 2.5s 2.5s 2.5s 2.5s 4.5s 2.5s / 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s
Light-Off Time 1s 1s 1s 1s 1s 1s 1s 1s / 1s 1s 1s 1s 1s 1s 1s
Bottom Exposure Time 30s 28s 28s 28s 28s 28s 35s 28s / 28s 28s 28s 28s 28s 28s 28s
Bottom Layer 6 5 5 5 5 5 4 5 / 6 5 5 5 5 5 5
Z Lift Distance 5mm 5mm 5mm 5mm 5mm 5mm 5mm 5mm / 5mm 5mm 5mm 5mm 5mm 5mm 5mm
Z Lift Speed 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 2mm/s 2mm/s / 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s
Z Retract Speed 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s / 2mm/s 2mm/s 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s
Anti-Aliasing Level 1 1 1 1 1 1 1 1 / 1 1 1 1 1 1 1

Printing Settings for Photon M3

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 2s 3s 2s 3s 2s 2s 2s 2s / 2s 2s 2s 2s 2s 2s 2s
Light-Off Time 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s / 0.5s 0.5s 1s 1s 0.5s 0.5s 0.5s
Bottom Exposure Time 23s 23s 23s 23s 23s 23s 23s 23s / 25s 25s 25s 25s 23s 23s 23s
Bottom Layer 4 4 4 4 4 4 4 4 / 5 5 5 5 4 4 6
Z Lift Distance 6mm 6mm 6mm 6mm 6mm 6mm 6mm 6mm / 6mm 6mm 6mm 6mm 6mm 6mm 6mm
Z Lift Speed 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 6mm/s 3mm/s 3mm/s / 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 6mm/s 3mm/s
Z Retract Speed 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s 3mm/s 4mm/s 4mm/s / 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s 3mm/s 4mm/s
Anti-Aliasing Level 1 1 1 1 1 1 1 1 / 1 1 1 1 1 1 1

Printing Settings for Photon M3 Premium

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s 4s 2.5s / 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s 2.5s
Light-Off Time 0.5s 0.5s 0.5s 1s 0.5s 1s 0.5s 0.5s / 0.5s 0.5s 1s 1s 1s 1s 0.5s
Bottom Exposure Time 25s 25s 25s 25s 25s 25s 25s 25s / 25s 25s 30s 25s 25s 25s 25s
Bottom Layer 2 2 2 2 2 2 3 3 / 2 2 2 5 2 2 2
Z Lift Distance 8mm 8mm 8mm 8mm 8mm 8mm 8mm 8mm / 8mm 8mm 8mm 8mm 8mm 8mm 8mm
Z Lift Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s / 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s
Z Retract Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s / 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s
Anti-Aliasing Level 1 1 1 1 1 1 1 1 / 1 1 1 1 1 1 1

Printing Settings for Photon Ultra

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm / 0.05mm / 0.05mm 0.05mm / 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 2s / 2s / 2s 2s / 2s / 2s 2s 2s 2s 2s 2s 2s
Light-Off Time 1s / 1s / 1s 1s / 1s / 1s 1s 1s 1s 1s 1s 1s
Bottom Exposure Time 35s / 35s / 35s 35s / 35s / 35s 35s 35s 35s 35s 35s 35s
Bottom Layer 4 / 4 / 4 4 / 4 / 5 5 5 5 4 4 6
Z Lift Distance 5mm / 6mm / 5mm 5mm / 5mm / 5mm 5mm 5mm 5mm 5mm 5mm 5mm
Z Lift Speed 2mm/s / 5mm/s / 2mm/s 5mm/s / 2mm/s / 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 5mm/s 2mm/s
Z Retract Speed 2mm/s / 2mm/s / 2mm/s 2mm/s / 2mm/s / 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s
Anti-Aliasing Level 4 / 4 / 1 4 / 1 / 4 4 4 1 4 4 4

Printing Settings for Photon Mono X

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 2s 2s 2s 2s 2s 2s 4s 2s / 2s 2s 2s 2s 2s 2s 2s
Light-Off Time 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s / 0.5s 0.5s 1s 1s 0.5s 0.5s 0.5s
Bottom Exposure Time 28s 28s 30s 28s 28s 28s 28s 28s / 28s 28s 28s 28s 28s 28s 30s
Bottom Layer 4 4 8 4 4 4 4 4 / 5 4 5 6 4 4 6
Z Lift Distance 8mm 8mm 8mm 8mm 8mm 8mm 8mm 8mm / 8mm 8mm 8mm 8mm 8mm 8mm 8mm
Z Lift Speed 2mm/s 2mm/s 4mm/s 2mm/s 2mm/s 8mm/s 2mm/s 2mm/s / 2mm/s 4mm/s 4mm/s 4mm/s 2mm/s 8mm/s 5mm/s
Z Retract Speed 3mm/s 3mm/s 4mm/s 3mm/s 3mm/s 2mm/s 3mm/s 3mm/s / 3mm/s 4mm/s 4mm/s 4mm/s 3mm/s 2mm/s 3mm/s
Anti-Aliasing Level 4 / 4 / 1 4 / 1 / 4 4 4 1 4 4 4

Printing Settings for Photon Mono 4K

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 2s 2.3s / 2.3s 2s 2s 4s 2s / 2s 2s 2s 2s 2s 2s 2s
Light-Off Time 0.5s 0.5s / 0.5s 0.5s 0.5s 0.5s 0.5s / 0.5s 0.5s 1s 1s 0.5s 0.5s 0.5s
Bottom Exposure Time 40s 40s / 40s 40s 40s 40s 40s / 40s 40s 40s 40s 40s 40s 40s
Bottom Layer 1 1 / 1 1 1 1 1 / 1 1 1 1 1 1 1
Z Lift Distance 6mm 6mm / 6mm 6mm 6mm 6mm 6mm / 6mm 6mm 6mm 6mm 6mm 6mm 6mm
Z Lift Speed 4mm/s 4mm/s / 4mm/s 4mm/s 6mm/s 4mm/s 4mm/s / 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s 6mm/s 4mm/s
Z Retract Speed 6mm/s 6mm/s / 6mm/s 6mm/s 4mm/s 6mm/s 6mm/s / 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 4mm/s 6mm/s
Anti-Aliasing Level 1 1 / 1 1 1 1 1 / 1 1 1 1 1 1 1

Printing Settings for Photon Mono X 6K

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 2s 2.3s 2.5s 2s 2s 2s 4s 2s / 2s 2s 2s 2s 2s 2s 2s
Light-Off Time 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s / 0.5s 0.5s 1s 1s 0.5s 0.5s 0.5s
Bottom Exposure Time 23s 23s 40s 23s 23s 23s 23s 23s / 25s 25s 28s 28s 23s 23s 25s
Bottom Layer 6 6 8 6 6 6 6 6 / 6 6 6 6 6 6 6
Z Lift Distance 8mm 8mm 8mm 8mm 8mm 8mm 8mm 8mm / 8mm 8mm 8mm 8mm 8mm 8mm 8mm
Z Lift Speed 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 8mm 2mm/s 2mm/s / 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s 2mm/s
Z Retract Speed 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 2mm 3mm/s 3mm/s / 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s 2mm/s 3mm/s
Anti-Aliasing Level 1 1 1 1 1 1 1 1 / 1 1 1 1 1 1 1

Printing Settings for Photon Mono SQ

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm / / / / / / / 0.05mm 0.05mm 0.05mm
Exposure Time 2.3s 2.3s / 2.3s 2.3s 2.3s / / / / / / / 2.3s 2.3s 2.5s
Light-Off Time 0.5s 0.5s / 0.5s 0.5s 0.5s / / / / / / / 0.5s 0.5s 0.5s
Bottom Exposure Time 23s 23s / 23s 23s 23s / / / / / / / 23s 23s 23s
Bottom Layer 6 6 / 6 6 6 / / / / / / / 6 6 6
Z Lift Distance 5mm 5mm / 5mm 5mm 5mm / / / / / / / 5mm 5mm 5mm
Z Lift Speed 3mm/s 3mm/s / 3mm/s 3mm/s 5mm/s / / / / / / / 3mm/s 5mm/s 3mm/s
Z Retract Speed 3mm/s 3mm/s / 3mm/s 3mm/s 5mm/s / / / / / / / 3mm/s 3mm/s 3mm/s
Anti-Aliasing Level 1 1 / 1 1 1 / / / / / / / 1 1 1

Printing Settings for Photon Mono SE

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm / / / / / / / 0.05mm 0.05mm 0.05mm
Exposure Time 2.3s 2.3s / 2.3s 2.3s 2.3s / / / / / / / 2.3s 2.3s 2.5s
Light-Off Time 0.5s 0.5s / 0.5s 0.5s 0.5s / / / / / / / 0.5s 0.5s 0.5s
Bottom Exposure Time 23s 23s / 23s 23s 23s / / / / / / / 23s 23s 23s
Bottom Layer 6 6 / 6 6 6 / / / / / / / 6 6 6
Z Lift Distance 5mm 5mm / 5mm 5mm 5mm / / / / / / / 5mm 5mm 5mm
Z Lift Speed 3mm/s 3mm/s / 3mm/s 3mm/s 5mm/s / / / / / / / 3mm/s 5mm/s 3mm/s
Z Retract Speed 3mm/s 3mm/s / 3mm/s 3mm/s 5mm/s / / / / / / / 3mm/s 3mm/s 3mm/s
Anti-Aliasing Level 1 1 / 1 1 1 / / / / / / / 1 1 1

Printing Settings for Photon Mono

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm 0.05mm
Exposure Time 2s 2s 2.5s 2s 2s 2.5s 4s 2.5s / 2s 2s 2.5s 2.5s 2.5s 2.5s 2.5s
Light-Off Time 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s 0.5s / 0.5s 0.5s 1s 1s 0.5s 0.5s 0.5s
Bottom Exposure Time 40s 40s 40s 40s 40s 40s 40s 40s / 40s 40s 40s 40s 40s 40s 40s
Bottom Layer 6 6 6 6 6 6 6 6 / 6 6 6 5 6 6 6
Z Lift Distance 6mm 6mm 6mm 6mm 6mm 6mm 6mm 6mm / 6mm 6mm 6mm 6mm 6mm 6mm 6mm
Z Lift Speed 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s 6mm/s 4mm/s 3mm/s / 4mm/s 4mm/s 4mm/s 4mm/s 4mm/s 6mm/s 6mm/s
Z Retract Speed 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 4mm/s 6mm/s 3mm/s / 6mm/s 6mm/s 6mm/s 6mm/s 6mm/s 4mm/s 4mm/s
Anti-Aliasing Level 1 1 1 1 1 1 1/ 1 / 1 1 1 1 1 1 1

Printing Settings for Photon S

Resin Type Standard Resin Plant-Based Resin DLP Craftsman Resin UV Tough Resin Water-Wash Resin+ Standard Resin+ High Clear Resin ABS-Like Resin V2 High Speed Resin Standard Resin V2 ABS-Like Resin Pro 2 Tough Resin 2.0 Tough Resin Ultra ABS-Like Resin Pro ABS-Like Resin+ Plant-Based Resin+
Layer Thickness 0.05mm 0.05mm / 0.05mm 0.05mm 0.05mm / / / / / / / 0.05mm 0.05mm 0.05mm
Exposure Time 8s 8s / 8s 8s 9s 12s 8s / / / / / 9s 9s 9s
Light-Off Time 1s 1s / 1s 1s 1s 1s 1s / / / / / 1s 1s 1s
Bottom Exposure Time 60s 60s / 60s 60s 60s 60s 60s / / / / / 60s 60s 60s
Bottom Layer 6 6 / 6 6 6 6 6 / / / / / 6 6 6
Z Lift Distance 6mm 6mm / 6mm 6mm 6mm 6mm 6mm / / / / / 5mm 5mm 5mm
Z Lift Speed 3mm/s 3mm/s / 3mm/s 3mm/s 6mm/s 3mm/s 3mm/s / / / / / 3mm/s 6mm/s 3mm/s
Z Retract Speed 3mm/s 3mm/s / 3mm/s 3mm/s 3mm/s 3mm/s 3mm/s / / / / / 3mm/s 3mm/s 3mm/s
Anti-Aliasing Level 1 1 / 1 1 1 1 1 / / / / / 1 1 1

Anycubic offers high quality and easy-to-use resins for SLA/DLP/LCD 3D Printer, abundant color in choice, click the image above to learn more.

Tags:
All You Need to Know about Vyper
All You Need to Know about Photon Mono SQ
