Anycubic Photon Mono X
Regular price
$549.00
Regular price
$549.00
Sale price
$549.00
Unit price
per
Shipping calculated at checkout.
Couldn't load pickup availability

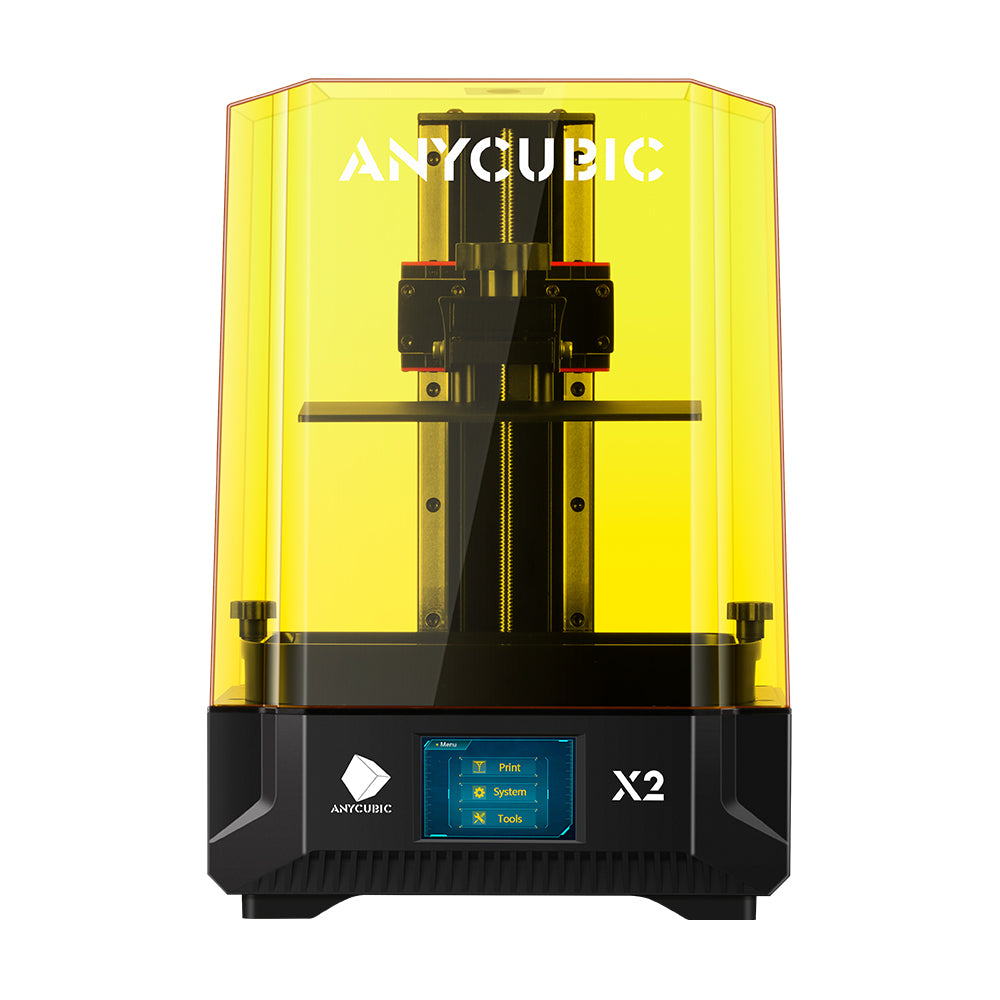

Upgrade to our latest model Anycubic Photon Mono X2.
Product Description
- 8.9" 4K Monochrome LCD
- 4K resolution at 8.9 inch size, allows larger prints, more detail and accuracy.
- Fast Printing Speed
- Making printing speed 3X faster than the Photon.
- Large Build Volume
- A large build area for your 3D-printed creations : 192mm (L) * 120mm (W) * 245mm (H).
- APP Remote Control
- Remote control of print operations.
- Technical Specifications
- ● System : ANYCUBIC Photon Mono X
- ● Operation : 3.5 inch Touch Screen
- ● Build Volume: 192mm(L）*120mm(W）*245mm（H）
- ● Light-source: high-quality filament（wavelength 405nm）
- ● XY Res.: 0.050mm 3840*2400（4K）
- ● Z Axis Res.: 0.01mm
- ● Layer Res.: 0.01-0.15mm
- ● Printing Speed: MAX 60mm/h
- ● Rated Power: 120W
- ● Material: 405nm UV Resin
- ● Software : ANYCUBIC Photon workshop
- ● Connectivity : USB
- ● Technology: LCD-based SLA
- ● Printer Size : 270mm(L)*290mm(W)*475mm(H)
- ● Net Weight: ~10.75kg
- Safe Design
- Printer will be immediately shut off if the top cover has been removed. This feature is turned off by default
- Anycubic Slicer Software
- New features are added to the software. Supports up to 8x anti-aliasing: Fast slicing, Hollowing, Split Model, Text Paste
- Fast Printing Speed
- The time of exposure is as low as 1.5-2 seconds, and the max print speed is 60mm/h, making printing speed 3X faster than the Photon.
- High Performance Z-axis
- The Z-axis is supported by dual linear rails，stepper motor and clearance nut combination which dramatically improves stability while in motion and reduces the risk of layer shifting.
- New Matrix UV Light Source
- High quality quartz lamp bead and new matrix design for uniform UV light energy. 4K monochrome LCD delivers high-quality prints
- Anycubic APP Remote Control
- Remote control of print operations，monitor printing progress，adjust the print settings, you could download it from HERE.
- UV Cooling System
- Cooling device for stable printing performance and longer service life.
- Large Build Volume
- A large build area for your 3D-printed creations :192mm(L）*120mm(W）*245mm（H）
- 8.9″ 4K Monochrome LCD
- Monochrome screens can last several thousand hours. Monochrome screens allow for very short layer exposure times for faster print times.
Parts List
User Manual
SD-Card
Tool set
SD-Card Reader
Scraper
Resin Vat
Platform
Power Cord
Service Card
Wifi Antenna
Glove
| Machine Weight | 10.8kg | 4.3kg | 11kg |
| Machine Size | 475x290x270mm | 383x227x222mm | 475x290x270mm |
| LCD Resolution | 3840x2400px(4k) | 3840x2400px(4k) | 5760x3600px(6k) |
| LCD Size | 8.9’’ monochrome | 6.23’’ monochrome | 9.25’’ monochrome |
| XY Resolution | 50 microns | 35 microns | 34 microns |
| Z axis Accuracy | 10 microns | 10 microns | 10 microns |
| Build volume | 245xx192x120mm(5.6L) | 165x132x80mm(1.74L) | 245x197x122mm(5.89L) |
| Max.Printing Speed | 60mm/h | 50mm/h | 80mm/h |
-
- Photon
- LCD-based SLA
- Build Area: 115x65x155mm
- Filament:405nm UV Resin
- Diffusion Illuminant
- Single Z-axis
-
- Photon S
- LCD-based SLA
- Build Area: 115x65x165mm
- Filament:405nm UV Resin
- Matrix Illuminant
- Double Z-axis
-
- 4Max Pro
- FDM (Fused Deposition Modeling)
- Build Area: 270x205x205mm
- Filament: PLA, ABS, HIPS, PETG,
Wood and TPU - Titan Extruder
Suspended Filament Rack - Single Z-axis
