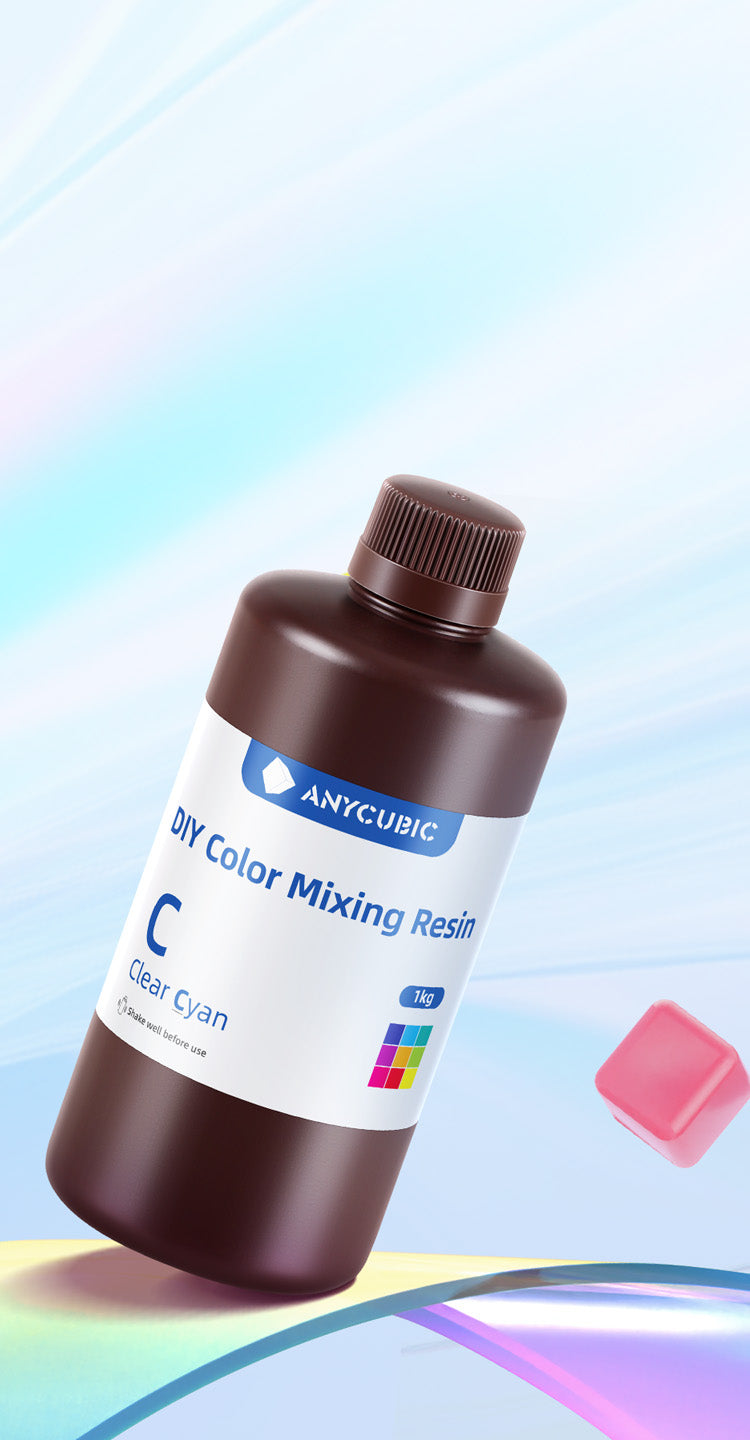

DIY Color Mixing Resin
Couldn't load pickup availability
Video
Enjoy DIY, Endless Creative Fun
DIY vibrant colors, each mix unveils surprises, making your creations uniquely yours. Save time on painting, perfect for various applications.
Infinite Hues, Reliable Performance
Blend colors as you like. The resin's performance, detail representation, and precision remain consistent.

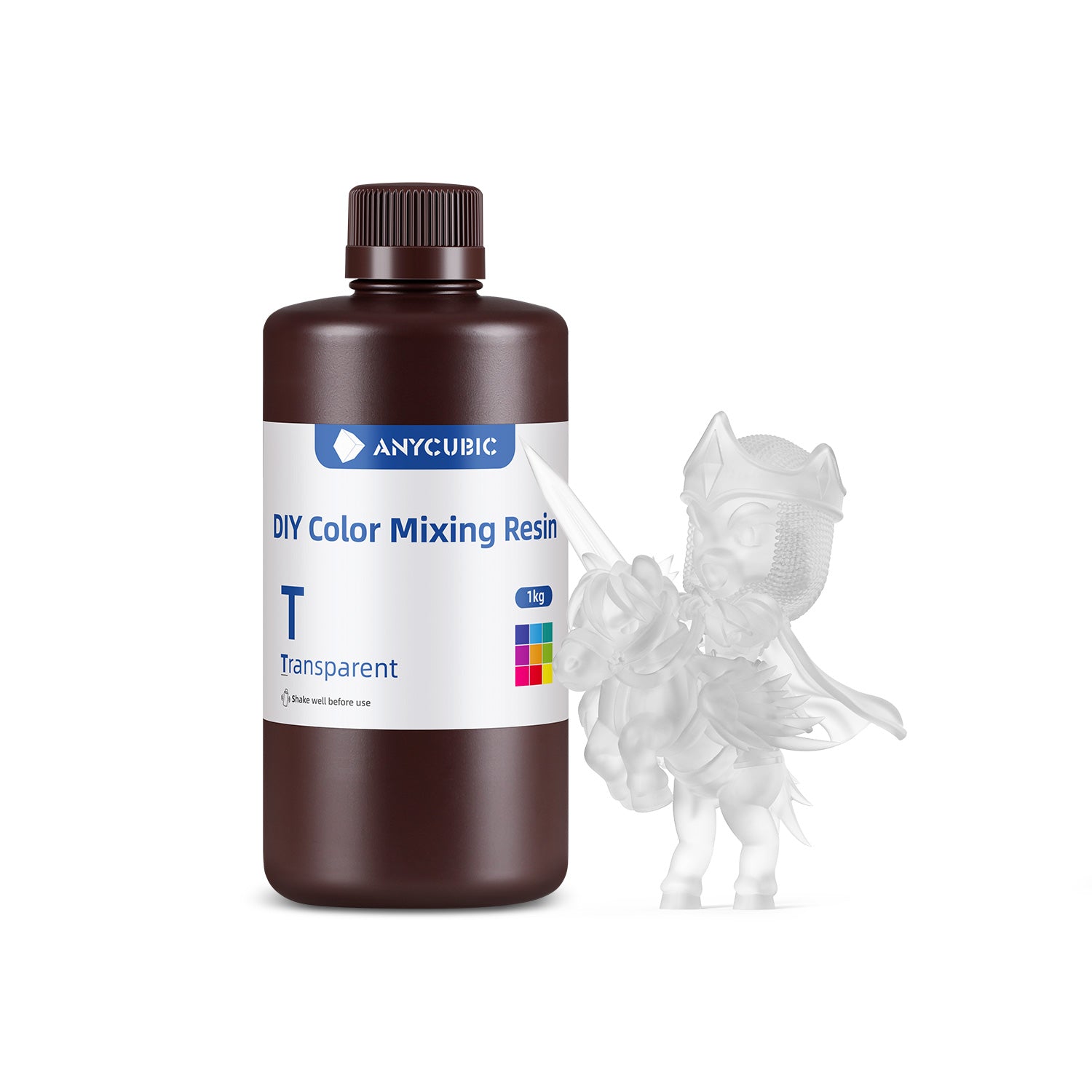

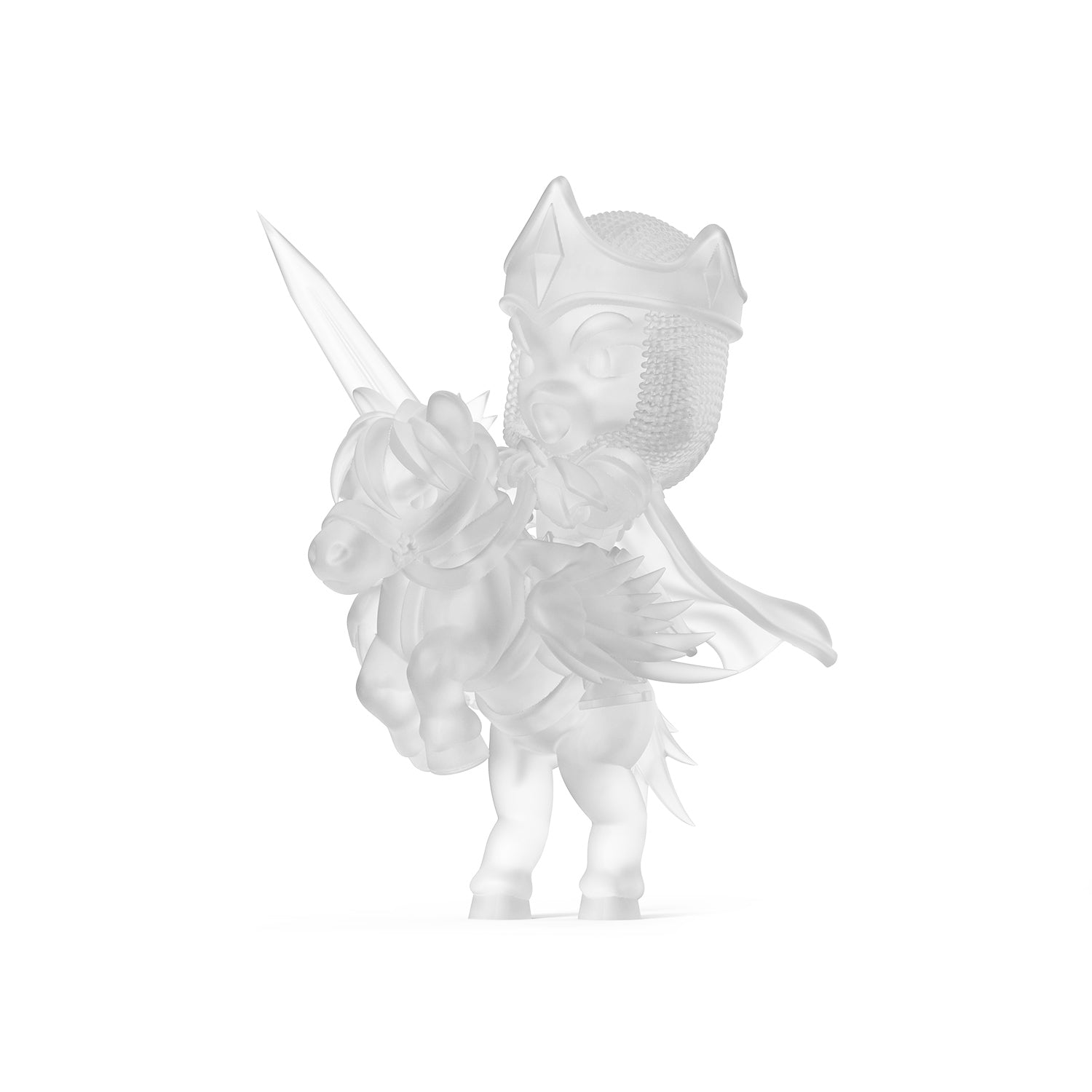

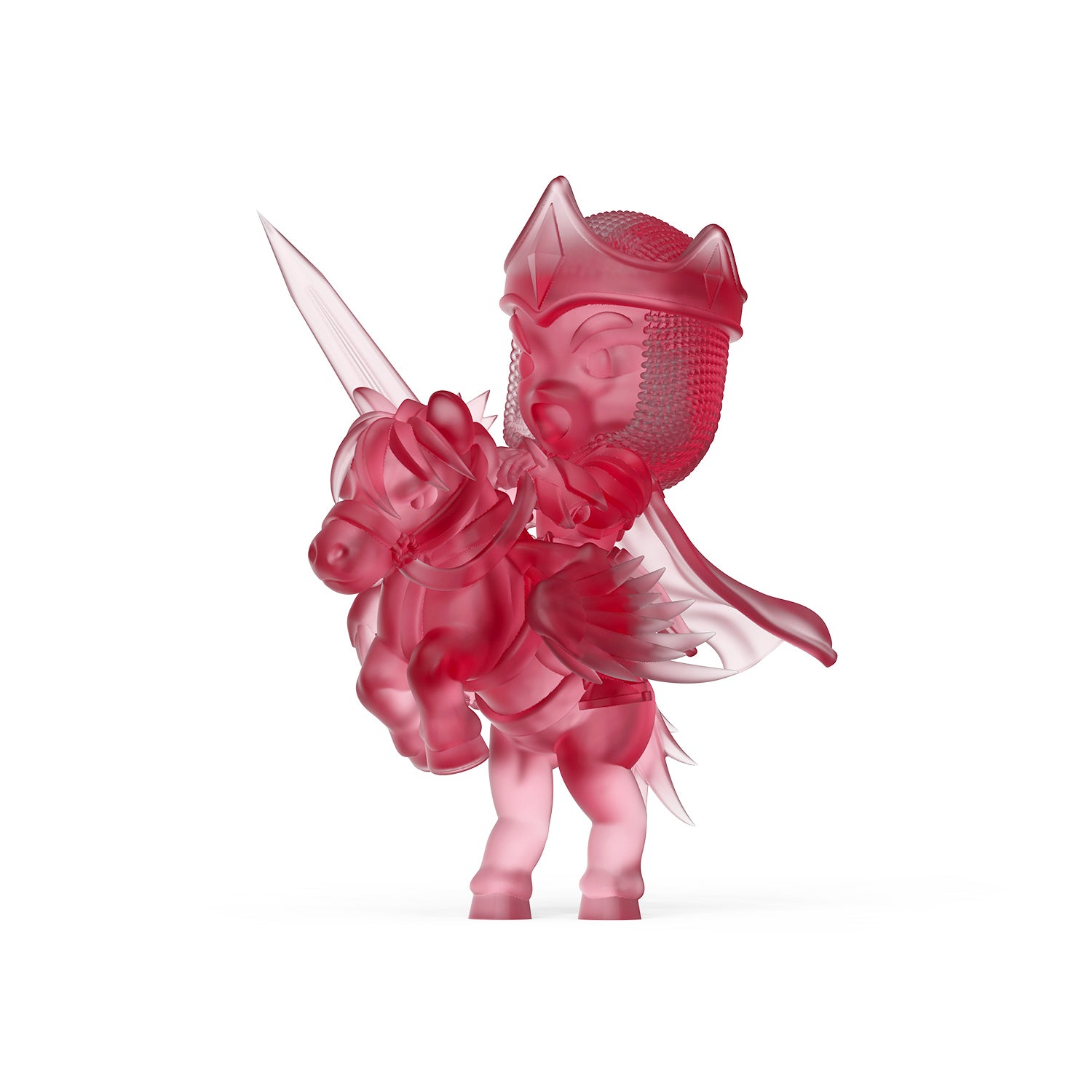

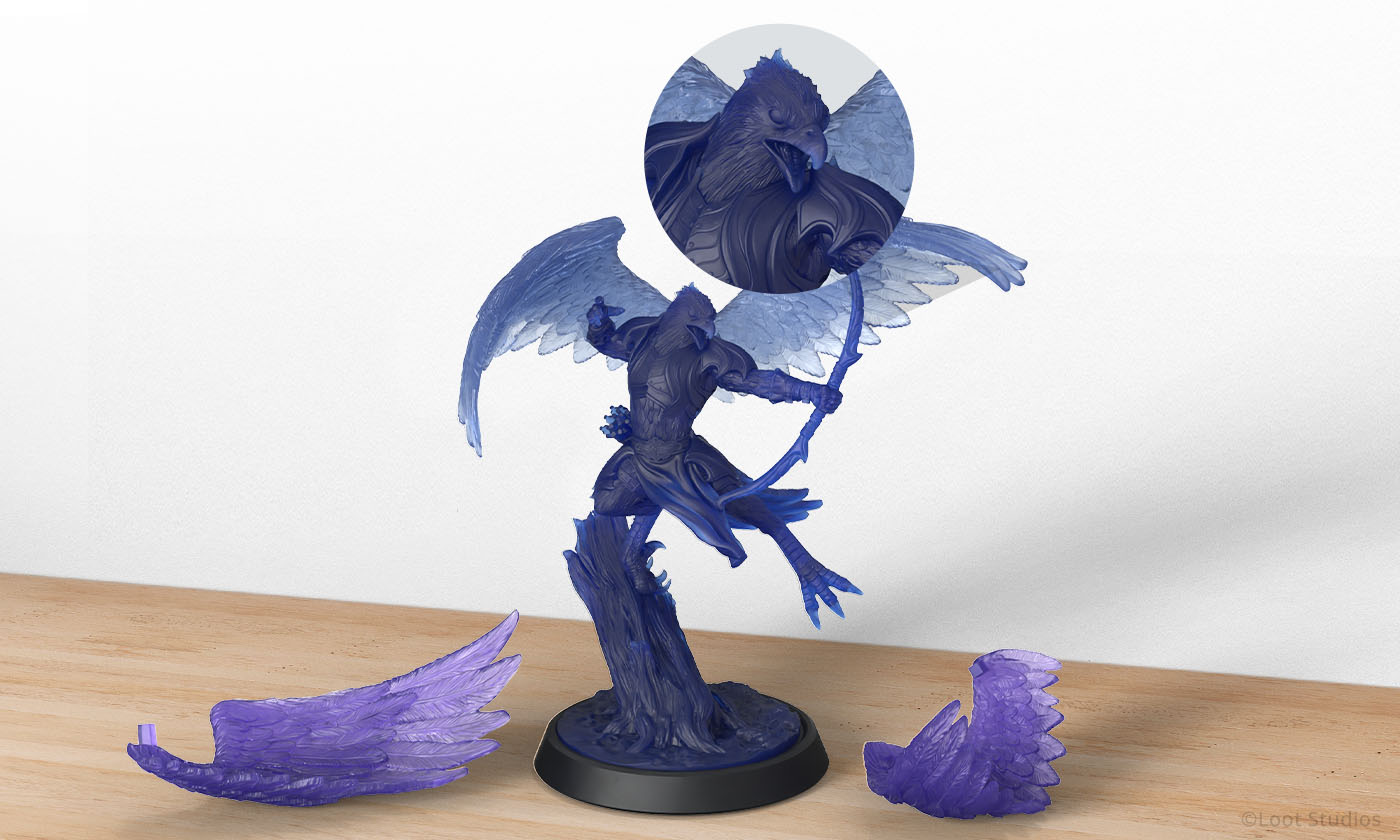

Adjustable Transparency

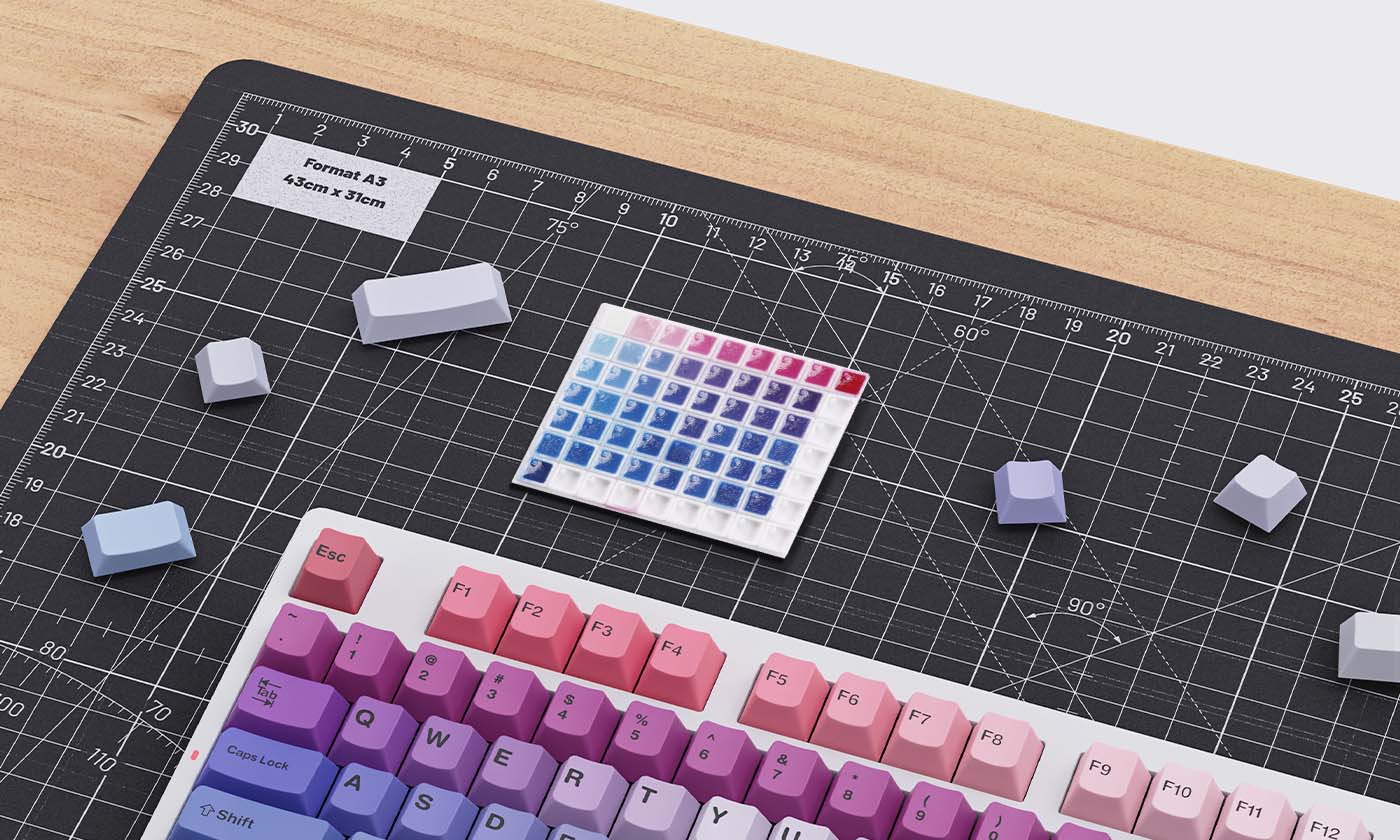

Customize your prints across a range of transparency levels. More colors and more fun are on their way.
Six to Countless, Evoke Your Idea
Official color mixing guide with easy steps for quick mastery.
DIY color Mixing is easy and simple!
Step 1: Press"T" to zero the scale
Step 2: Pour in clear cyan(C) resin to 1g
Step 3: Zero the scale again

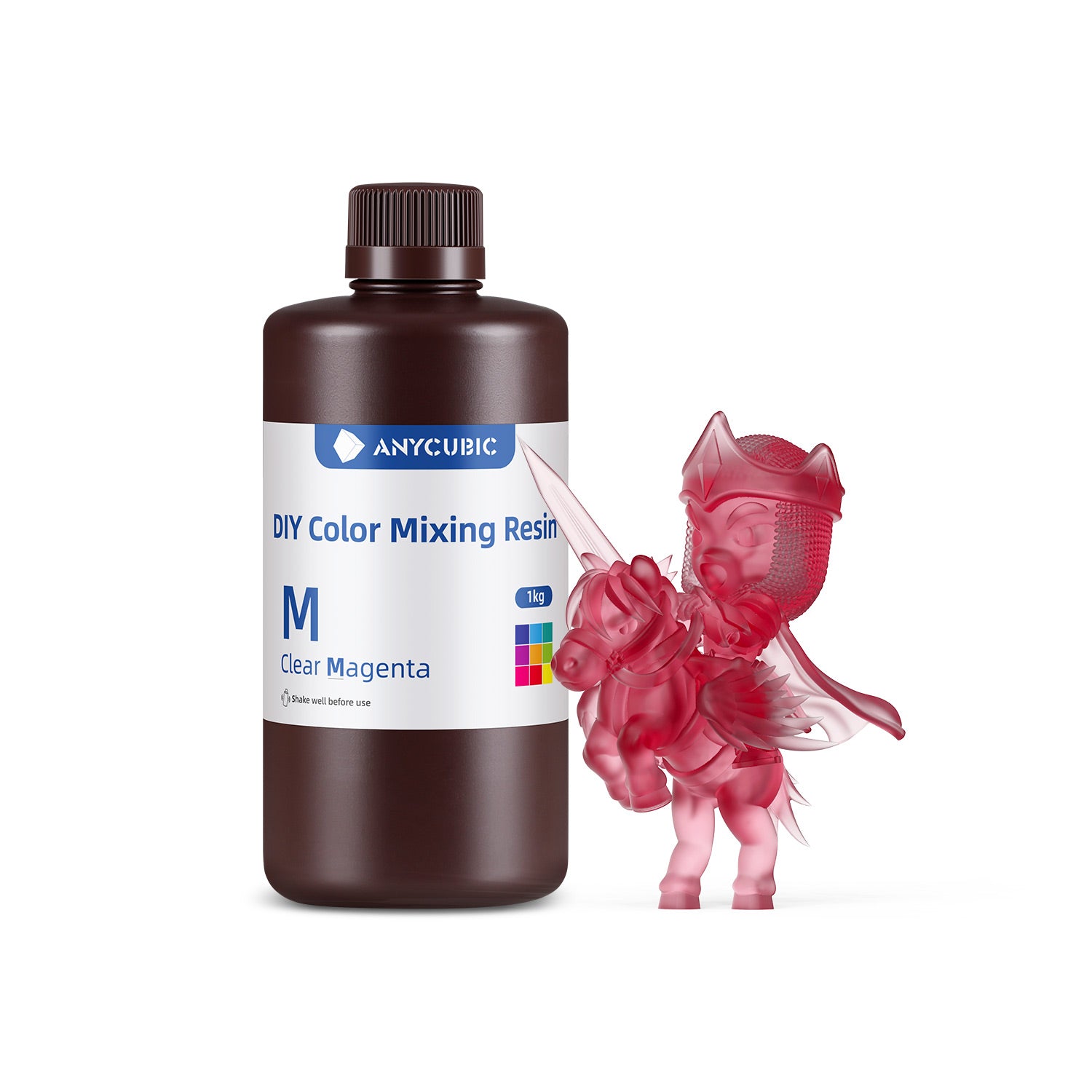

Step 4: Pour in magenta (M) resin to 39g
Step 5: Zero the scale againStep 6: Pour in the white (W) resin to 60g
Step 7: Stir well and compare to the color wheel
Operation steps: if you want to get a Color Red, look at the ratio: C0 M36 Y54 W10, and put 0g Cyan + 36g magenta + 54g Yellow + 10g White into the beaker.

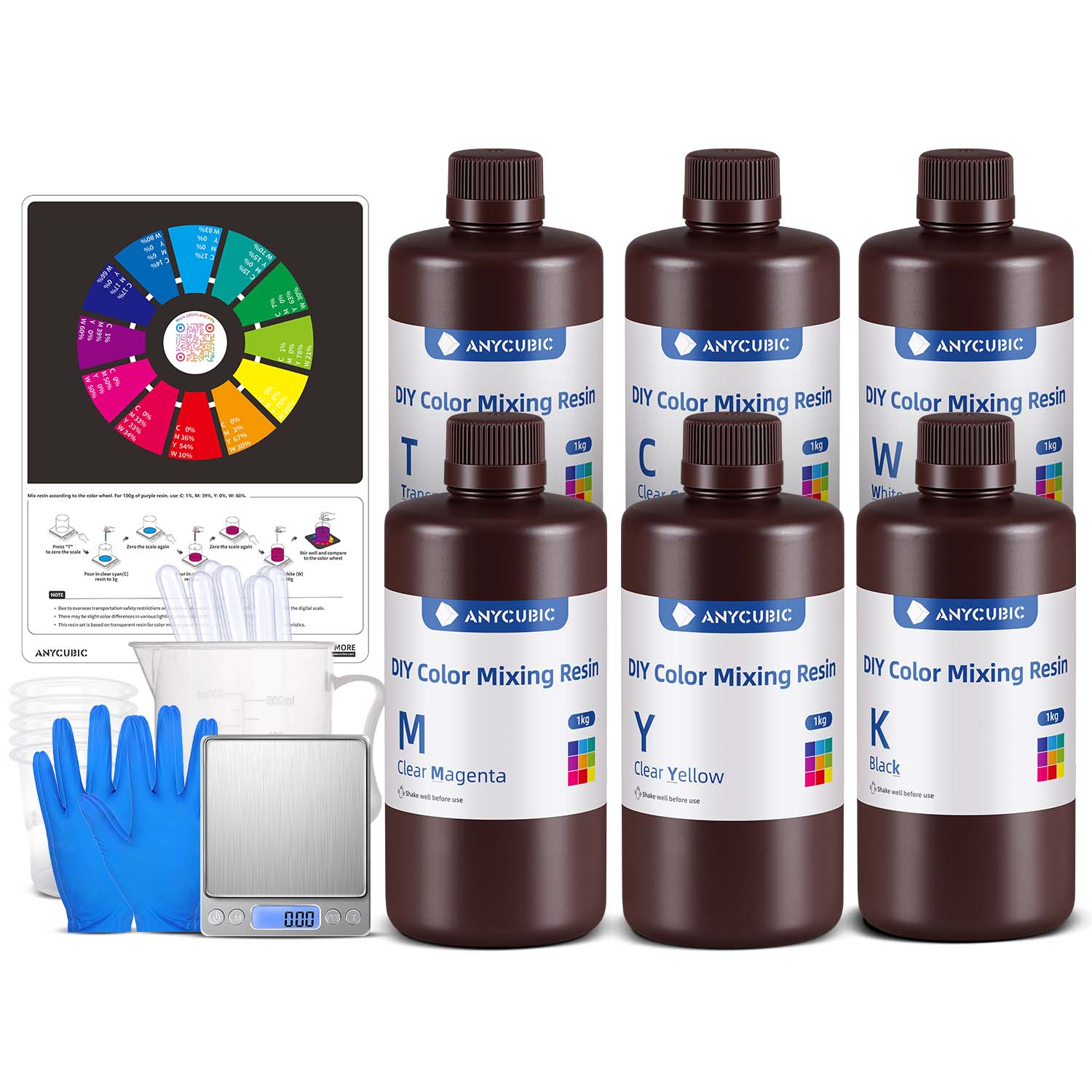

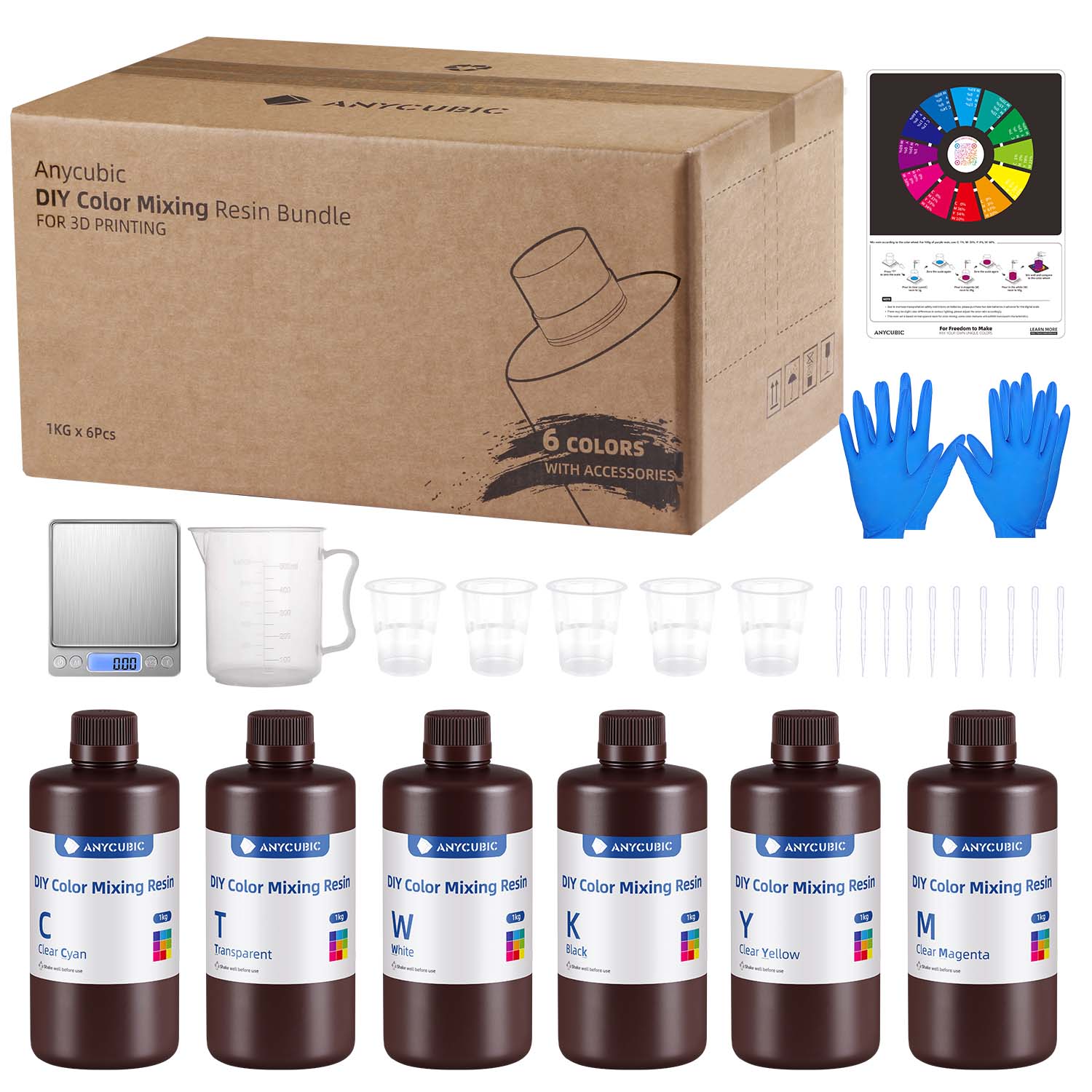

DIY Accessory Kit
-
Electronic Scale*1
-
Nitrile Gloves*4
-
Color Mixing Chart Instruction Manual *1
-
Transparent Beaker*1
-
Transparent plastic dropper *10
-
Transparent plastic cup*5
Video
Download
Resin Parameters
Color Type
Resin Color
Recommended Printing Parameters
| Printer Model | Layer Thickness | Exposure Time | Light-Off Time | Bottom Exposure Time | Bottom Layers | Anti-Aliasing Level | Z Lift Distance | Z Lift Speed | Z Retract Speed |
| Photon Mono M7 Pro | 0.05 mm | 2 s | 0.5 s | 25 s | 4 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono M7 | 0.05 mm | 2.5 s | 1 s | 35 s | 4 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono 4 Ultra | 0.05 mm | 3 s | 1 s | 35 s | 5 | 1 | 6 mm | 4 mm/s | 6 mm/s |
| Photon Mono 4 | 0.05 mm | 2.4 s | 1 s | 30 s | 5 | 1 | 5 mm | 8 mm/s | 8 mm/s |
| Photon Mono M5s Pro | 0.05 mm | 3.6 s | 0.5 s | 30 s | 5 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono M5s | 0.05 mm | 2.8 s | 0.5 s | 25 s | 5 | 1 | 8 mm | 5 mm/s | 6 mm/s |
| Photon Mono M5 | 0.05 mm | 2.8 s | 0.5 s | 25 s | 5 | 1 | 8 mm | 5 mm/s | 6 mm/s |
Instructions for Use
(1) Before use:
Shake the liquid resin before use. Clean the resin tank and the molding platform to keep the bottom of the resin tank in good condition for light transmission.
(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements. Select the correct print parameters and settings for printing.
(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonal pliers, tweezers, containers, gloves; ethanol(≥95%), lactate, or isopropyl alcohol cleaning solution;
(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade.
B. Submerge the model in the cleaning solution, rinse or ultrasonically wash, then take out and drain; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C.Proper processing, such as removing support, polishing, coloring, etc.
Precautions
- The ideal condition for storing uncured resin is a cool, dark place at room temperature and protected from light to avoid high temperatures or sunlight.
- Suggested operating temperature is 18-35°C, and a low temperature may affect the printing effect; thus, the resin can be properly preheated before use (not more than 60°C).
- If the resin pigment settles, it can be used after stirring or shaking.
- In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
- To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
- To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing. Therefore, the following steps are recommended:
(1) The intensity of the mercury lamp or LED light source is 5-10 mW/m², and the duration is no more than 1 hour (self-regulation);
(2)The exposure time in the sun (summer) is around 1 hour;
(3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury lamps is prohibited.
(4) It is recommended to print in a dark room or be covered with a lid while printing, as resin is a photosensitive material.
