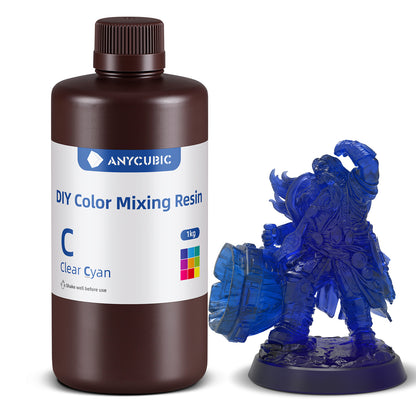

DIY Color Mixing Resin

$28.99
$28.99 $28.99
Shipping calculated at checkout.

Product Features
● Enjoy DIY , Endless Creative Fun
● Infinite Hues, Reliable Performance
● Adjustable Transparency
● Color Guidance，Six to Countless
🎁 Special Offer for Black Friday Sale: 10% OFF
🔥 3KG price as low as $18.54/KG
🎈 5KG price as low as $18.18/KG
🎉 6KG price as low as $17.85/KG
Discount applied automatically.
Size: 1KG
Color: Clear Cyan
Shipping to: US
🚚 EU - Ships in 24 hours
🚚 US - Estimated arrival: Nov. 22th - Nov. 30th

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

$28.99
$28.99 $28.99

DIY color Mixing is easy and simple!

Step 1: Press"T" to zero the scale
Step 2: Pour in clear cyan(C) resin to 1g
Step 3: Zero the scale again
Step 4: Pour in magenta (M) resin to 39g
Step 5: Zero the scale again
Step 6: Pour in the white (W) resin to 60g
Step 7: Stir well and compare to the color wheel

Operation steps: if you want to get a Color Red, look at the ratio: C0 M36 Y54 W10, and put 0g Cyan + 36g magenta + 54g Yellow + 10g White into the beaker.

More colors are waiting for you to create!

  • W=White

  • B=Black

  • T=Transparent

  • M=Magenta

  • Y=Yellow

  • C=Cyan

Official Color Matching Guide

Recommended ratio Color Display
C0 M36 Y54 W10 Red
C0 M3 Y67 W30 Orange
C0 M0 Y75 W25 Yellow
C1 M0 Y78 W21 Yellow-Green
C7 M0 Y63 W30 Green
C15 M0 Y15 W70 Cyan-Green
C17 M0 Y0 W83 Cyan
C14 M6 Y0 W80 Cyan-Blue
C17 M17 Y0 W66 Blue
C1 M39 Y0 W60 Purple
C0 M50 Y0 W50 Magenta
C0 M33 Y33 W34 Orange-Red

Model Print

Resin Parameters

UV wavelength 365-405nm Elongation at break 14~18%
Density 1.08~1.1g/cm³ Viscosity 250
Flexural strength 64~83 Hardness 82HD
Felxural modulus 2040~2600 MPa Tensile strength 42~57 MPa
Bottom exposure time 20~40 Normal exposure time 1.8~3
Heat Deflection Temperature 60-65°C (pantalla a color 60s) Shelf life 1.5 Years

Recommended Printing Parameters

Printer Model Layer Thickness Exposure Time Off Time Bottom Exposure Time Bottom Layers Anti-alias Z Lift Distance Z Lift Speed Z Retract Speed
Photon Mono 4 Ultra 0.05mm 3s 1s 35s 5 1 6mm 4mm/s 6mm/s
Photon Mono 4 0.05mm 2.4s 1s 30s 5 1 5mm 8mm/s 8mm/s
Photon Mono M7 0.05mm 2.5s 1s 35s 4 1 8mm 6mm/s 6mm/s
Photon Mono M7 Pro 0.05mm 2s 0.5s 25s 3 1 8mm 6mm/s 6mm/s
Photon Mono M5s Pro 0.05mm 3.6s 0.5s 30s 5 1 8mm 6mm/s 6mm/s
Photon Mono M5s 0.05mm 2.8s 0.5s 25s 5 1 8mm 6mm/s 6mm/s
Photon Mono M5 0.05mm 2.8s 0.5s 25s 5 1 8mm 6mm/s 6mm/s
Photon Mono X 6Ks 0.05mm 2.5s 0.5s 20s 5 1 8mm 2mm/s 3mm/s
Photon Mono 2 0.05mm 2.5s 1s 25s 5 1 6mm 4mm/s 6mm/s
Photon Mono M3 Max 0.05mm 3s 2.5s 50s 6 1 10mm 2mm/s 3mm/s
Photon Mono X2 0.05mm 2.5s 0.5s 20s 5 1 8mm 2mm/s 3mm/s
Photon M3 Premium 0.05mm 2.5s 0.5s 25s 2 1 8mm 6mm/s 6mm/s
Photon X 6K 0.05mm 2s 0.5s 23s 6 1 8mm 2mm/s 3mm/s
Photon Mono 4K 0.05mm 2s 0.5s 40s 6 1 6mm 4mm/s 6mm/s
Photon D2 0.05mm 2.5s 1s 28s 5 16 5mm 2mm/s 3mm/s

DIY Accessory Kit

  • Transparent plasticcup*5

  • Transparent Beaker*1

  • Kitchen Scale*1

  • Nitrile Gloves*4

  • Color Mixing Chart Instruction Manual *1

  • Transparentplastic dropper *10

Instructions for Use

(1) Before use:
Shake the liquid resin before use; Clean the resin tank and the molding platform to keep the bottom of the resin tank in light transmission.

(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements; Select the correct print parameters and settings for printing.

(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonal pliers,tweezers,containers,gloves; ethanol(≥95%),lactate or isopropyl alcohol cleaning solution;

(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade;
B. Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then taken out and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C.Proper processing, such as removing support, polishing, coloring, etc.

Precautions

  1. The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light
    to avoid high temperature or sunlight.
  2. Suggested operating temperature is 18-35'c, and a low temperature may affect the printing effect, thus, the resin can be properly preheated before use (not more than 60°C).
  3. If the resin pigment settles, it can be used after stirring or shaking.
  4. In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
  5. To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
  6. To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing. Therefore, the following steps are recommended:
    (1) The intensity of mercury lamp or LeD light source is 5-10mW/m?, and the duration is no more than 1 hour (self-regulation);
    (2)The exposure time in the sun (summer) is around 1 hour;
    (3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury lamps is prohibited.
    (4) lt is recommended to print in a dark room or be covered with a lid while printing as resin is a photosensitive material.


Ps: Material properties willvary depending on the molding equipment, post-curing method and testing equipment. For safetyinformation please refer to the MSDS of this product. lf you encounter any problems while using, please feel free to contact us.

FAQs

Q: What models are suitable for printing with DIY Color Mixing Resin?

A: The DIY Color Mixing Resin is suitable for printing parts in different colors and is ideal for creating customized transparent models and character figurines.

Q: How do I mix different colors of resin?

A: You can use a measuring cup or scale to mix different resin colors proportionally for the desired color effect. It’s recommended to test with a small amount first before mixing in large quantities.

Q: Can the color-mixing resin be combined with other types of resin, such as standard or transparent resin?

A: Mixing with other resin types is not recommended, as it may affect the color result and final product quality.

Q: What if I’m not satisfied with the color result after mixing?

A: You can adjust by adding small amounts of other colors or tweaking exposure settings to refine the final color effect.

Q: Where can I find the recommended printing parameters for Anycubic's printers when using DIY Color Mixing Resin?

A: You can view the recommended printing parameters on this details page. If you do not find the results you want, please contact our support team for answers.

Q: Where can I download the model for free?

A: Click here to download the free model.

Q: Where can I download the MSDS file?

A: Click here to download the MSDS of the resin.

Q: What should I do if my model keeps failing to print?

A: If you are unable to print or printing fails, please contact our support team for answers.
