The choice of material for 3D printing is a key link. Because the materials will play a key role in determining the quality, strength and versatility of the printed object. Anycubic Tough Resin is one of the reliable choices. It has the flexibility, high abrasion resistance, and adhesion of polyurethane, which makes it a radiation-curing material with excellent overall performance. This user guide deeply discusses the introduction, characteristics and recommended Anycubic flexible tough resin settings, which can be used as a reference for users to optimize 3D printing quality.
Features of Anycubic UV Tough Resin
Anycubic Tough Resin is a polyurethane acrylate light-curing resin. In addition to high wear resistance, adhesion, and flexibility, it also has the excellent low-temperature resistance of polyurethane as well as excellent optical properties and weather resistance. When it is used in a resin printer, the resin creates models with exceptional strength, flexibility, and elasticity. It exhibits a remarkable ability to withstand tensile and compressive forces, and it also has the ability to maintain deformation without breaking.
Why choose Anycubic UV Tough Resin
- Applicable band: 365-405nm. Ideal match for various desktop SLA 3D printers on the market.

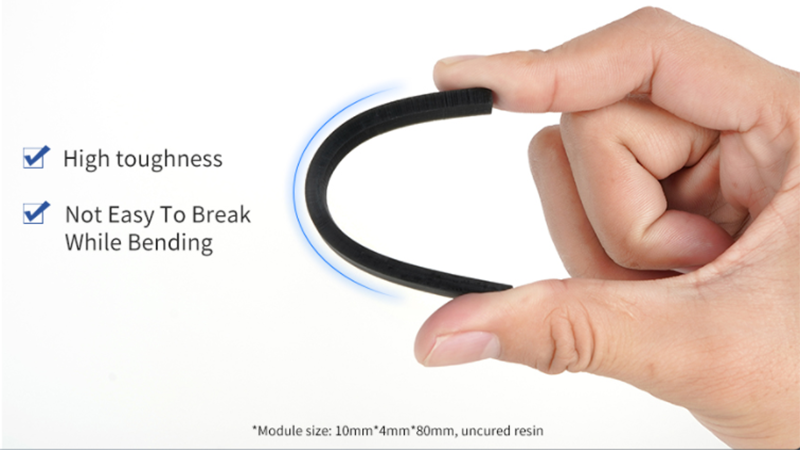

- Balanced flexibility and toughness. Also known as Anycubic flexible tough resin.
- Drop and impact resistance.
- Easily bends and holds shape without bre aking.
- The printing accuracy is good and the surface is smooth.
Anycubic UV Tough Resin Settings: Recommended Printing Parameters
Adjusting and controlling printing parameters according to the type of resin used, it not only helps to obtain the best printing results, but also ensures that the unique properties of the resin are fully utilized and the advantages of the material are fully utilized. With Anycubic flexible tough resin, it is recommended that users fine-tune exposure times, layer thicknesses and cure settings. The following are recommended printing parameters for Anycubic Tough Resin for reference.
| Tough Resin | Layer Thickness | Normal Exposure Time | Off Time | Bottom Exposure Time | Bottom Layers | Z Lift Distance | Z Lift Speed | Z Retract Speed |
| Photon Mono | 0.05 mm | 2 s | 0.5 s | 40 s | 6 | 6 mm | 4 mm/s | 6 mm/s |
| Photon Mono X | 0.05 mm | 2 s | 0.5 s | 28 s | 4 | 8 mm | 2 mm/s | 3 mm/s |
| Photon Mono X 6K | 0.05 mm | 2 s | 0.5 s | 23 s | 6 | 8 mm | 2 mm/s | 3 mm/s |
| Photon Mono 4K | 0.05 mm | 2.3 s | 0.5 s | 40 s | 6 | 6 mm | 4 mm/s | 6 mm/s |
| Photon M3 | 0.05 mm | 3 s | 0.5 s | 23 s | 4 | 6 mm | 3 mm/s | 4 mm/s |
| Photon M3 Plus | 0.05 mm | 1.5 s | 0.5 s | 23 s | 3 | 6 mm | 6 mm/s | 6 mm/s |
| Photon M3 Max | 0.05 mm | 3 s | 2.5 s | 50 s | 6 | 10 mm | 2 mm/s | 3 mm/s |
| Photon M3 Premium | 0.05 mm | 2.5 s | 1 s | 25 s | 2 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono X2 | 0.05 mm | 2.5 s | 1 s | 20 s | 5 | 8 mm | 2 mm/s | 3 mm/s |
| Photon Mono 2 | 0.05 mm | 2.5 s | 1 s | 25 s | 5 | 6 mm | 4 mm/s | 6 mm/s |
| Photon Mono X6Ks | 0.05 mm | 2.5 s | 0.5 s | 20 s | 5 | 8 mm | 2 mm/s | 3 mm/s |
| Photon Mono M5 | 0.05 mm | 3 s | 0.5 s | 30 s | 5 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono M5s | 0.05 mm | 3 s | 0.5 s | 30 s | 5 | 8 mm | 6 mm/s | 6 mm/s |
Usually, you can find the best point for resin printing by trying different exposure times; adjusting the layer thickness will affect the overall strength and flexibility of the printed model. Exploring the parameter settings for resin printing can continually optimize the experience of using resin and resin printers. For more information about Anycubic flexible tough resin settings, you can seek support from the technical service team.
Anycubic UV Tough Resin Settings: Available Colors and Sales
- Available Colors of Anycubic Tough Resin: White, Black, Gray, Clear, Transparent Green.
