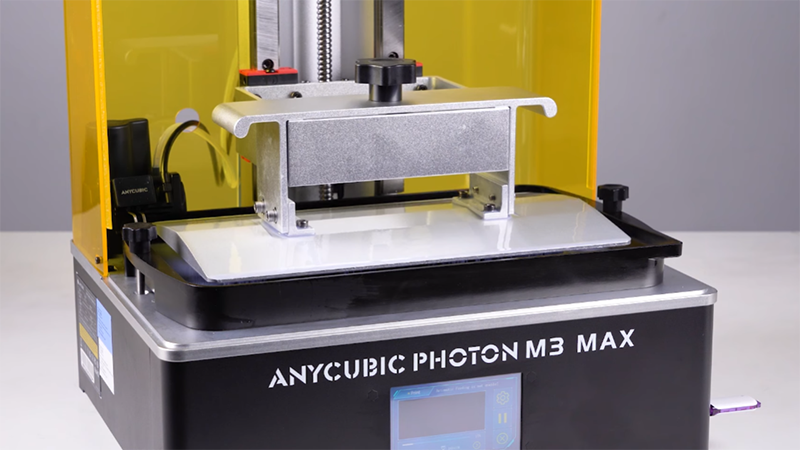

A Guide to Replacing the Z-Axis Motor in Your Anycubic Photon M3 Max Resin Printer

Z axis and Z-axis motor are responsible for the vertical movement of the resin 3D printer. They are crucial for resin 3D printers, which are known for their precision. What should you do when the Z-axis motor fails? How do users replace the Z-axis motor? Many parts of resin 3D printers require regular inspection and maintenance to ensure them working properly. Anycubic Photon M3 Max is a large-size resin printer equipped with a 13-inch 7K monochrome screen and a printing size of 300x298x164mm (HWD). It is chosen and loved by many users. This guide will explore common z-axis issues users may face and provide a comprehensive tutorial on how to replace the z-axis motor of Anycubic Photon M3 Max.

Checking and Maintaining Z-axis of Photon M3 Max

Role of the Z-Axis and Z-Axis Motor: The Z-axis is an important part of a resin 3D printer. The vertical movement of the build platform relies on the work of the Z-axis and Z-axis motor. When the resin 3D printer is running, the Z-axis motor drives precise up and down movements to solidify the resin layer by layer. If the Z-axis motor encounters problems or malfunctions, it will be difficult for users to successfully print ideal models. Common effects are: layer misalignment, uneven surfaces, abnormal noise or erratic movement of the printer.

Regularly checking your resin printer can be part of your daily maintenance. Check whether the Z-axis motor has any signs of wear, damage or abnormal sound during operation, and to identify the cause of the problem, you can contact Anycubic's technical support team. for help and solutions. When persistent layer issues occur or the build platform cannot move smoothly, the M3 Max's Z-axis motor may need to be replaced in time. Below is a step-by-step guide and video tutorial.


How to Replace Z-axis Motor for Anycubic Photon M3 Max

When replacing the Z-axis motor of Anycubic Photon M3 Max, please turn off the power of the printer and ensure safety during the replacement process. Prepare the tools: M2.5 hex key, Motor. For any operational issues and accessory issues please contact the customer support team. Anycubic Official: accessories store.

Step 1: Remove the automatic feeding device. Pull out the automatic feeding device hose and wiring plug. Use an M2.5 hex key to loosen the screws that fix the rear cover of the printer and remove the rear cover of the printer.

Step 2: Replace the motor. Pull out the wiring plug connected to the motor. Use an M2.5 hex key to loosen the upper screw of the coupling. Use an M2.5 hex key to loosen the screw fixing the ball screw stopper and remove the stopper.

Step 3: Use the M2.5 hex key to loosen and remove the limit module screw that fixes the motor. And then loosen the lower screw of the coupling. Install the coupling on the motor, use the M2.5 hex key to fix the lower screw, and install the fixed limit module.

Step 4: Tighten the screws fixing the pole limits with and M2.5 liner hexagon wrench. Install the limit module. Connect the motor wiring plug back to the motor port. Connect the wiring plug of the automatic feeding device back to the rear cover of the printer and use the M2.5 hex key to fix the rear cover of the printer.

Step 5: Connect the wiring plug of the automatic feeding device and reconnect the feeding hose to the automatic feeding device. After replacement, the printer needs to be leveled again.

Tutorial Video: How to Replace the Z-axis Motor of Anycubic Photon M3 Max
