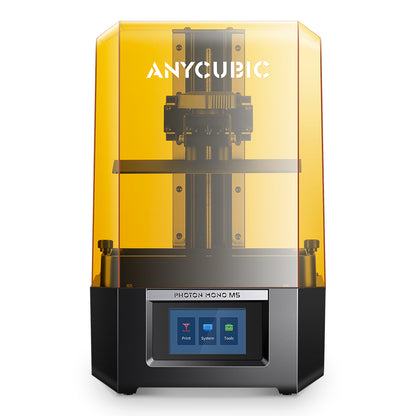

Anycubic Photon Mono M5
Anycubic Photon Mono M5
Anycubic Photon Mono M5
Anycubic Photon Mono M5
Anycubic Photon Mono M5
Anycubic Photon Mono M5

Anycubic Photon Mono M5

Regular price $449.00 Sale price$329.00
/

● 10.1 Inch 12K Exquisite Details 11520x5120 Resolution
● Upgraded Workshop 3.1, Better Slicing Experience
● Big Printing Dimensions: 200x218x123mm(HWD)
Discounted Price: $329
🎁Plus Free 1KG of Resin Worth $29
Include AirPure and Wash&Cure Machine
Include Resin
Shipping to
🚚Ships in 24 hours
  • Free Express Shipping
  • 14-Day No Reason Return
  • 30-Day After-Sales Guarantee
  • One-Year Warranty For 3D Printers
  • 100% Secure Payment

If the in-stock orders are available in the US, EU, UK, CA, AU warehouses, they will ship within 1 business day, with delivery taking 3-5 business days.

Please select the designated region to order your product. In case of sold-out status, click 'Notify Me' or explore alternative material options.

Orders may be seperated to ship, learn more about Shipping.

Anycubic Photon Mono M5 Anycubic Photon Mono M5 Anycubic Photon Mono M5 Main Features Anycubic Photon Mono M5 Main Features

Anycubic Photon Mono M5
Main Features

12K Exquisite Details

Photon Mono M5 is the first to feature a 10.1-inch monochrome LCD screen with a resolution of 11520*5120, with a horizontal pixel size of 19 μm, which can offer printing details as precise as a hair thickness. The contrast ratio is 480:1, making the model's edges clear and well-defined.

Anycubic Photon Mono M5 - 12K Exquisite DetailsAnycubic Photon Mono M5 - 12K Exquisite Details

Anycubic App

Popular sliced models/STLs available for you to experience 3D printing in just one touch. Task viewing ensures your printing process in control.

Anycubic Photon Mono M5 - Anycubic AppAnycubic Photon Mono M5 - Anycubic App

Upgraded Anycubic Photon Workshop 3.1

Better Slicing Experience

The upgraded free self-developed slicer Anycubic Photon Workshop 3.1 brings you an even better slicing experience in punching, supporting, shelling and layout arranging.Simplified UI makes slicing easier. The new model repairing function also helps boost the printing success rate.

Anycubic Photon Mono M5 - Better Slicing Experience

New Support Algorithm

The new support algorithm further improve the printing stability and success rate, reduce the damage on the model surface, and the support and bottom valve are easier to remove. Realize one-click repair of damaged models, comprehensively improve the speed of punching and slicing, and make slicing easier to use.

Anycubic Photon Mono M5 - New Support Algorithm

Professional and Easy To Use

Using the laser-engraving process for the printing platform, allows the build plate to have a better flatness than the sandblasting platforms, which can effectively enhance the adhesion of the model, reduce the situation of the printing model falling off and warping, and greatly improve the printing success rate.

Anycubic Photon Mono M5 - Professional and Easy To UseAnycubic Photon Mono M5 - Professional and Easy To Use

Stable Operation With the Dual Linear Rails

Adopt a high-stability and precision dual linear rails lead screw Z axis, combined with a high-wear-resistant POM clearance nut, to ensure the precise operation of the Z-axis micron-level without shaking, effectively eliminating the layer grain and displaying the beauty of details.

Anycubic Photon Mono M5 - Stable Operation With the Dual Linear RailsAnycubic Photon Mono M5 - Stable Operation With the Dual Linear Rails

Anycubic Photon Mono M5
Models Display

Anycubic Photon Mono M5 - Sample Prints Anycubic Photon Mono M5 - Sample Prints Anycubic Photon Mono M5 - Sample Prints Anycubic Photon Mono M5 - Sample Prints

Anycubic Photon Mono M5
Video Introduction

Anycubic Photon Mono M5
Tech Specs

Machine Weight
19lb./8.6kg
Machine Dimensions
18.11x10.63x11.41in./
460*270*290mm(HWD)
Printing Volume
190oz./5.4L
Printing Dimensions
7.87x8.58x4.84in./
200x218x123mm(HWD)
Printing Speed
20-50mm/hr. or 0.78-1.97in./hr.
Machine Leveling
4-point manual leveling
Light Source
LED matrix UV light source
Z Axis
Double liners with 10 μm
Resin Vat
Unibody design with scale lines
Exposure Screen
10.1" monochrome
12K(11,520 x 5,120px) resolution
480:1 contrast ratio
4.7 % light transmittance
2,000 hours typical lifespan
Build Platform
Laser engraving aluminum alloy
Control Panel
4.3" TFT touch-control
Removable Cover
Effectively blocks UV radiation
Oversized Protection Film
Replaceable anti-scratch film
Power Supply
100W rated power
Data Input
USB Type-A 2.0、WIFI

Anycubic Photon Mono M5
In The Box

Anycubic Photon Mono M5 - In The Box Anycubic Photon Mono M5 - In The Box

Anycubic Photon Mono M5
Comparison

Anycubic Photon Mono M5
Anycubic Photon Mono M5s
Features
Anycubic Photon Mono M5
Anycubic Photon Mono M5s
12K 10.1" Monochrome LCD Screen
Leveling-Free
×
3X Faster Printing Speed
×
Auto Device Check
×
Resin Detection
×
Prints Status Detection
×
Anycubic APP
Anycubic Workshop 3.1

Anycubic Care+

Anycubic Download Center

Download

Product-related firmware, drivers, slicers, manuals and test models.

Anycubic tutorial videos

Tutorial Videos

Product-related video guides.

Anycubic support center

Wiki

Manuals, Maintenance and Troubleshooting
