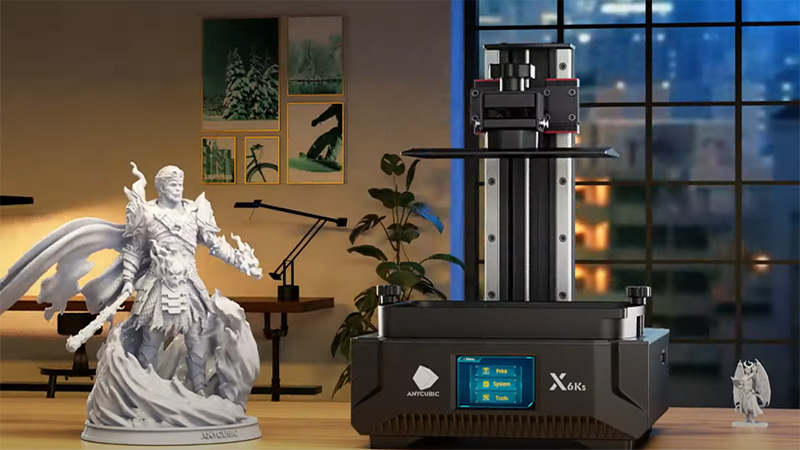

With its powerful features and user-friendly design, Anycubic Photon Mono X 6Ks becomes very popular among entry-level resin printer users. In this guide, we will guide you through the basic steps of setting up Anycubic Photon Mono X 6Ks, provide printing parameters suitable for different resins, help users have a smoother printing experience, and release your creativity easily.
- Recommended printing parameters for Anycubic Photon Mono X 6Ks
- How to set up Anycubic Photon Mono X 6Ks
- Unboxing video guide: al the details of Anycubic Photon Mono X 6Ks
- Key information and function introduction about Anycubic Photon Mono X 6Ks
Recommended Parameters For Anycubic Photon Mono X 6Ks
Printing parameters are crucial for using resin printers, helping us to get the best printing results on different models of printers. Layer height, exposure time, off time, especially these key parameters will directly affect the quality and accuracy of the print. Mastering and setting the correct printing parameters can help users successfully complete printing on Anycubic Photon Mono X 6Ks, and also support users to fine-tune the printing settings according to the needs of different projects and materials.
Basic Resin-Gray
|
Recommend Parameters |
Anycubic Photon Mono X 6Ks |
|
Layer Thickness |
0.05mm |
|
Normal Exposure Time |
2.25s |
|
Off Time |
0.5s |
|
Bottom Exposure Time |
20s |
|
Bottom Layers |
5 |
|
Z Lift Distance |
8mm |
|
Z Lift Speed |
2mm/s |
|
Z Retract Speed |
3mm/s |
|
Anti-alias |
1 |
In resin printing, thinner layer thicknesses produce finer details and smoother surfaces. Thinner layers allow for faster light penetration and curing, and require relatively shorter exposure times. Conversely, a larger layer thickness requires an appropriate increase in exposure time. The following is the exposure time corresponding to different layer thicknesses on Anycubic Photon Mono X 6Ks, which can be used as a reference for users to test and adjust according to the desired print quality.
|
Recommend Parameters |
Regular |
High-accuracy |
||||
|
Layer Thickness (mm) |
0.01-0.02 |
0.03-0.04 |
0.05 |
0.1 |
0.15 |
0.05 |
|
Normal Exposure Time (s) |
2 |
2.25 |
2.5 |
3 |
4 |
2.25 |
|
Bottom Exposure Time |
20 |
18 |
||||
How to Set Up Anycubic Photon Mono X 6Ks
Setup and calibration, are necessary steps to properly start using a resin printer. Leveling the build platform, setting the correct z-axis height, performing exposure, etc. Taking some time to complete the following steps can help users properly calibrate their Anycubic Photon Mono X 6Ks and avoid some possible printing problems.
Step 1: Connect the power and run the printer. Click: Tools --- Move Z axis --- 10mm, click 5 times, raise the z axis by 50mm.
Step 2: Install the build platform. Tear off the factory protective film and loosen the four screws on the platform. Install the build platform and tighten the knobs.
Step 3: Level the resin printer. Place the leveling paper delivered with the machine on the screen and click "HOME". Press the top of the platform by hand and tighten the four screws.
Step 4: Set the zero point and perform exposure detection. In the printer settings, find the moving Z axis and click "Z=0" to set the zero position for the printer. After the printer stops lifting, select the exposure image, and perform exposure detection.
Step 5: Install the resin tank. Tighten the knobs on both sides of the resin tank to complete the installation.
