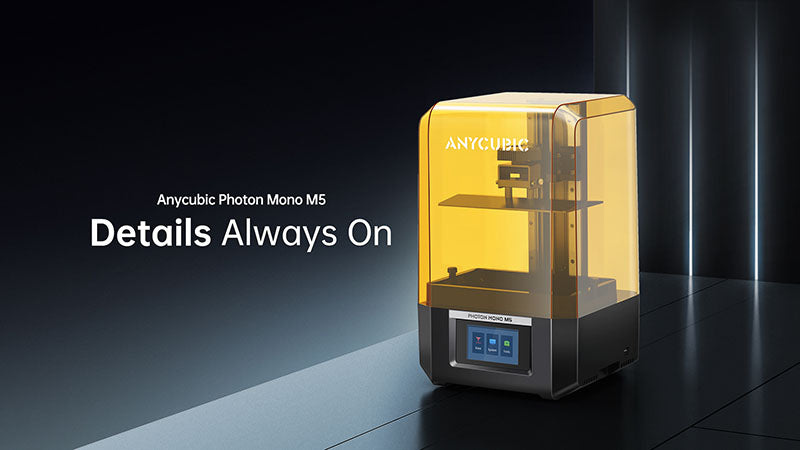

Get to Know Anycubic Photon Mono M5: Essential Information and Tips

Anycubic Photon Mono M5 is a high resolution MSLA printer. It cures liquid resins precisely and efficiently by masking the projected UV light with an LCD screen. The printing accuracy reaches 12K, which can achieve a high level of detail and unleash the creativity of 3D printing. Anycubic Photon Mono M5 comes with a user-friendly application that supports one-click printing, providing users with a more convenient printing experience.

In this guide, we will provide you with an introduction to the key information of Anycubic Photon Mono M5. Whether you are a beginner just starting out with a resin printer or an experienced enthusiast, you can refer to the following key features and machine parameters of the Anycubic Photon Mono M5. It will be useful for determining whether this printer meets your needs and expectations for a 3D printer.


    Get To Know Anycubic Photon Mono M5: Product Parameters

    Product Parameters

    Anycubic Photon Mono M5

    Key information

    • XY Resolution: 12K
    • LCD Screen: 10.1" monochrome
    • Build Volume: 200x218x123mm(HWD), 5.4L
    • Data Input: USB Type-A 2.0、WIFI

    Printer configuration

    • Printing Speed: 20-50mm/hr
    • Leveling: 4-point manual leveling
    • Build Platform: Laser engraving aluminum alloy
    • Light Source: LED matrix UV light source
    • Z Axis: Double liners with 10μm

    Machine parameters

    • Printer Weight: 8.6kg
    • Dimensions: 460*270*290mm(HWD)
    • Control Panel: 4.3" TFT touch-control
    • Power Supply: 100W rated power

    Get To Know Anycubic Photon Mono M5: Key Features

    12K LCD screen: High resolution resin printing

    Resin printers are great for creating prints with intricate designs and details. High-resolution printers can further provide incredible precision, and smoother surfaces; meet the higher needs of creators and provide users with more surprises. Are you ready to take the 3D printing experience to the next level? Anycubic Photon Mono M5 is with you, capturing the complexity of your designs and making 3D prints come to life.

    Anycubic App: Support one-click printing

    Anycubic Photon Mono M5 supports two transmission methods: WIFI and USB. Browse popular sliced model files in the app, and one-click printing can be realized. With Anycubic APP, users can get a convenient printing experience: support online search for models, online slicing, and local uploading of models; task viewing can ensure that the printing process is under control.

    Print upgrade: High quality and stability

    Anycubic Photon Mono M5 is designed with dual linear rails lead screw Z axis to provide high precision and high stability printing. Combined with high-wear-resistant POM clearance nut, it ensures the precise operation of the z-axis, effectively eliminates layer patterns, and guaranteeing print quality. This is equipped with a printing platform with laser engraving technology, which provides durability, stability and ease of use. The adhesion ability of the platform can reduce printing warping, prints not sticking to build plate and other problems to improve the success rate of printing.


    Video Guide: Unlock the Potential of Anycubic Photon Mono M5

    Unboxing | A video takes you to go through all the details of Anycubic Photon Mono M5

    Details Always On | Anycubic Photon Mono M5
