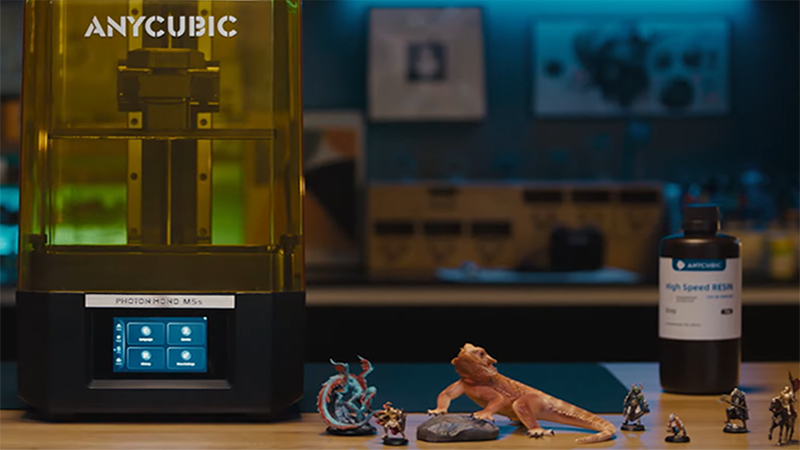

Anycubic Photon Mono M5s is a 12K resin printer, which is popular among 3D printing enthusiasts because of its high precision, intelligence, and support for high-speed printing. How to master its use and how to correctly set printing parameters of Anycubic Photon Mono M5s? This is what many users want to know. In this guide, we will provide simple answers and cover the recommended parameters for Photon Mono M5s when using different types of resin.
- 🎁Resin Deals: Dive into Savings with Resin Package Discounts
Printing with Photon Mono M5s: Printing Parameters and Slicing Software
Resin printing parameters are a set of key settings that determine how a 3D printer uses resin to create 3D prints. Usually, the printing parameters of resin printers include layer height, exposure time, lift height and speed, initial layers, etc. Properly setting the printing parameters of Anycubic Photon Mono M5s, especially when using different types of resin, can ensure the best print quality and printing efficiency.
Users of Anycubic Photon Mono M5s can choose to use the free Photon Workshop 3.1 (or higher) for model slicing. It comes with Photon Mono M5s slicing parameters and distinguishes between high-speed and standard modes. For users who need to print at high speed, with high-speed resin and high-speed release film, Photon Mono M5s can achieve an average printing speed of 105mm/h.
For users who use other types of resin, we can refer to the recommended printing parameters below and re-select the appropriate printing parameters to ensure successful printing and good print quality. For users using third party slicing software such as ChiTuBox , you can refer to the following recommended printing parameters to configure or adjust the printing parameters as needed.
Recommended Parameters For Photon Mono M5s
Below are the recommended printing parameters for Anycubic Photon Mono M5s. Available for users using the following resins: High Speed Resin, UV Sensitive Resin, Plant-based Resin, Plant-based Resin+, UV Tough Resin, DLP Craftsman Resin, Water-Wash Resin+, ABS-Like Resin+, ABS-Like Resin Pro.
| Resin/Print parameter | High Speed Resin | UV Sensitive Resin | Plant-based Resin | Plant-based Resin+ | UV Tough Resin | DLP Craftsman Resin | Water-wash Resin | ABS-like Resin+ | ABS-like Resin Pro |
| Layers Thickness | 0.1mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm | 0.05mm |
| Normal Exposure Time | 1.9s | 3.6s | 3.6s | 3.6s | 3s | 3s | 3.6s | 3.6s | 3s |
| Off Time | 0.5s | 0.5s | 0.5s | 0.5s | 0.5s | 0.5s | 0.5s | 0.5s | 0.5s |
| Bottom Exposure Time | 10s | 25s | 25s | 25s | 25s | 25s | 25s | 25s | 25s |
| Bottom Layers | 3 | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Z Lift Distance | 3mm | 8mm | 8mm | 8mm | 8mm | 8mm | 8mm | 8mm | 8mm |
| Z Lift Speed | 20mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s |
| Z Retract Speed | 20mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s | 6mm/s |
In Conclusion
Mastering resin 3D printing involves setting the correct printing parameters. In the process of using Anycubic Photon Mono M5s, use the recommended parameters as a reference, and according to your own needs, you can obtain more ideal printing results through experimentation and fine-tuning. For any needs you can seek help from Anycubic customer support.
