4 Solutions for Resolving Z-Wobble in Resin 3D Printing

3D printing requires various hardware components working in coordination, enabling a 3D printer to convert digital models into real objects. Each hardware component plays a crucial role in ensuring the smooth operation of the printer and the generation of high-quality printing results. However, hardware issues can often lead to print failures. This article mainly focuses on Z-axis hardware problems, specifically Z-wobble in resin 3D printing. Through the article, you will learn about the concept of Z wobble, its causes, and effective solutions.

What is & Causes Z-Wobble in 3D Printing?

Z wobble

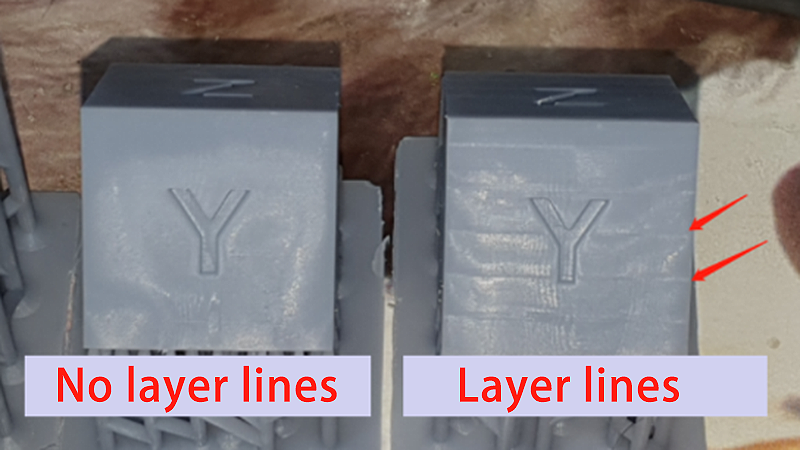

Z-wobble is a common hardware issue in 3D resin printing. It occurs when the moving parts on the Z-axis, such as the build plate, experience loosening or instability during the up-and-down movement over time. This issue not only creates noise but also results in visible layer patterns on the surface of the printed object. When selecting a 3D printer, it is recommended to choose a model with a dual linear rail Z-axis system, such as Anycubic Photon Mono M5s that is equipped with dual rails to effectively prevent and improve this problem, enhancing stability and smooth movement. But beginners should pay attention to this situation where the two rails in a dual linear rail Z-axis system printer are not aligned properly, as this can result in Z wobble.

There are several reasons that can cause Z-axis wobble, such as misaligned and rusty rails, a loose lead screw, a bent lead screw or unsmooth Z-axis. The following are four wobble fixes that can help resolve the problem.

How to Fix Z-Wobble in 3D Printing?

1. Clean Rust from the Z-Axis Rail

Clean Z-Axis

A rusty guide rail can cause unsmooth Z-axis movement and contribute to Z-wobble. To resolve this, you can use a rust remover and a dust-free cloth to clean the Z-axis rail. First, move the Z-axis to the highest point for easier cleaning. Then, spray some solvent on the rail and use a cloth to wipe back and forth to remove rust and stains. It's important to be aware that the rust remover has high fluidity, which means it may flow onto the LCD screen while cleaning. To prevent the screen from getting dirty, you can place a sheet or wrap it with cling film as a protective barrier.

2. Lubricate 3D Printer’s Z-Axis

Lubricate 3D Printer

Applying lubrication to reduce Z-wobble is necessary for achieving smooth Z-axis movement. Friction not only generates noise but also leads to wear and tear on components, so regular lubrication is essential to prolong the lifespan of your 3D printer. To lubricate the Z-axis, apply a small amount of grease, such as lubricating oil, to the lead screw. Use the printer's display to move the Z-axis up and down, ensuring that the grease is evenly distributed along the rod. You should note that avoid using lubricating oils with high fluidity. This is because such oils can more easily flow along the motor lead screw and enter the internal components of the machine.

3. Tighten the Lead Screw

Tighten the Lead Screw

In a resin printer, the lead screw is a critical component and is responsible for the vertical movement of the Z-axis. It controls the distance between the build platform and the resin vat, ensuring the proper positioning for each layer of the printed object. When the lead screw becomes loose, it can lead to Z wobble. Check the screws around the rod and ensure they are securely tightened by using Allen keys.

4. Replace the Bent Lead Screw

Replace the Bent Lead Screw

A crooked or bent lead screw will produce uneven movement of the Z-axis, leading to Z wobble. To check if your lead screw is bent, you need to disconnect the power, and remove the printer's bottom plate and resin vat in order to take out the rod. Then, use a straightedge to examine if there are any visible gaps or deviations between the straightedge and the lead screw at different points. In most cases, the lead screw and the motor in resin printers are typically integrated, so when you unfortunately find your lead screw bent, it needs to be replaced along with the motor.

In Conclusion

By understanding the concept of Z-wobble and its causes, you can effectively resolve this problem with four solutions to improve the overall print quality of your resin 3D printer. 3D printing is a challenging learning curve that requires continuous learning, perseverance, and hands-on experience to become an expert.
