The LCD screen is one of the cores of the resin MSLA printer. It acts as a mask, selectively allowing UV light to pass through in specific patterns, curing the resin layer by layer to obtain a 3D print. The LCD screen requires regular maintenance and has a certain lifespan. It is affected by a number of factors, including frequency of use, and a new LCD screen can be considered after 500-2000 hours. This guide will provide a step-by-step guide for Anycubic Photon Mono X LCD screen replacement. To help users of Mono X, replace the LCD screen easily when needed and then get the resin printer back to working properly.
Monochrome LCD Screen of Anycubic Photon Mono X
Anycubic Photon Mono X is equipped with an 8.9-inch 4K monochrome LCD screen and a printing size of 192 x 120 x 245mm (LWH). It is a resin printer that has been very popular among users in the past two years. It also features a secure and stable structural design, self-developed slicing software support, and high-performance Z-axis to ensure print quality and stability. As an entry-level choice, Mono X combines ease of use and durability, providing a good printing experience for 3D printing enthusiasts. With the upgrade of technology, the Photon Mono series, M5s and Max, provide higher-speed printing and larger-size printing.
Maintaining and replacing the LCD screen for a resin LCD 3D printer is critical to ensuring the quality and reliability of the 3D printing process. Basic maintenance tips for Mono X's LCD screen: Clean the LCD screen regularly to remove resin residue, dust or debris. Check the condition of the resin tank and FEP release film. A damaged FEP film can easily leak resin and contaminate the LCD screen, which will affect the normal operation of the screen. Please try to avoid this situation. Tutorial: Maintenance and replacement of FEP Release Film.
- 🎁Anycubic Official Accessories: LCD Screen for Photon Mono X
- 🎁Resin Deals: Dive into Savings with Resin Package
How to Replace Monochrome LCD Screen for Anycubic Photon Mono X
- Tool: New monochrome LCD screen, M2 Allen key, M2.5 Allen key
- Accessories: LCD Screen for Anycubic Photon Mono X
- Other accessories for Mono X: Anycubic Official
- Contact us for more help: Customer Support

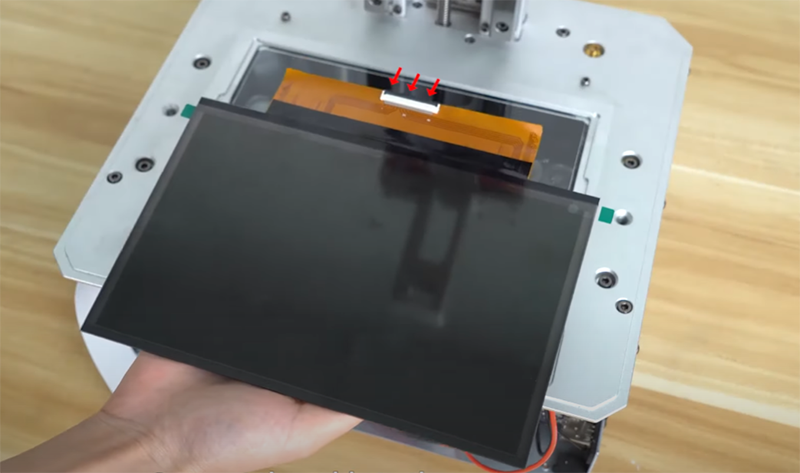

Step 1: Remove the old monochrome LCD screen. Remove the black tape around the screen. Please be careful not to damage it, you will need to use it later. Remove the metal cover on the screen cable. Remove the cable and remove the old Photon Mono X screen.
Step 2: Use an M2.5 Allen key to unscrew the screws on the front decorative panel of the Photon Mono X. Unscrew the screws on the front panel of the Photon Mono X lower with an M2 Allen key. Remove the front panel of the lower cover.
Step 3: Remove the FPC flexible cable on the core board. Remove the FPC flexible cable on the motherboard. Use an M2.5 Allen key to unscrew the screws on the adapter board, and then take it out. Then we can start to install a new monochrome LCD screen for Anycubic Photon Mono X.
Step 4: Take out the new adapter board and cable and install it, pay attention to the direction of cable installation. Fix the adapter board on the printer again with an M2.5 Allen key. If the translucent glass is stained, please wipe it clean. Connect the cable to the new screen.
Step 5: Tear off the protective film on the screen, place the screen on the groove, reattach the metal cover, and remove the protective film again. Re-install the black tape around the screen. Re-install the FPC flexible cable to the motherboard.
Step 6: Re-install the FPC flexible cable to the core board. Re-tighten the screws on the front panel of the Photon Mono X lower cover with an M2 Allen key. Re-tighten the screws on the front decorative panel of the Photon Mono X with an M2.5 Allen key.
Step 7: Test whether the screen is exposed normally. Plug in the power cord, and power on the printer. Click Tools, Detection, Next on the home menu. If the screen can be exposed normally, the monochrome LCD screen replacement of the screen is successful.
In Conclusion
If your LCD screen starts to show signs of degradation, it may be a good idea to replace it promptly. To replace the screen of Anycubic Photon Mono X, you can refer to the steps and videos provided in this tutorial. Please note that after completing the screen replacement, check and ensure the correct connection of equipment and parts, to resume the printer's operation. For more questions, contact Anycubic technicians and you will get help and problem solving.
