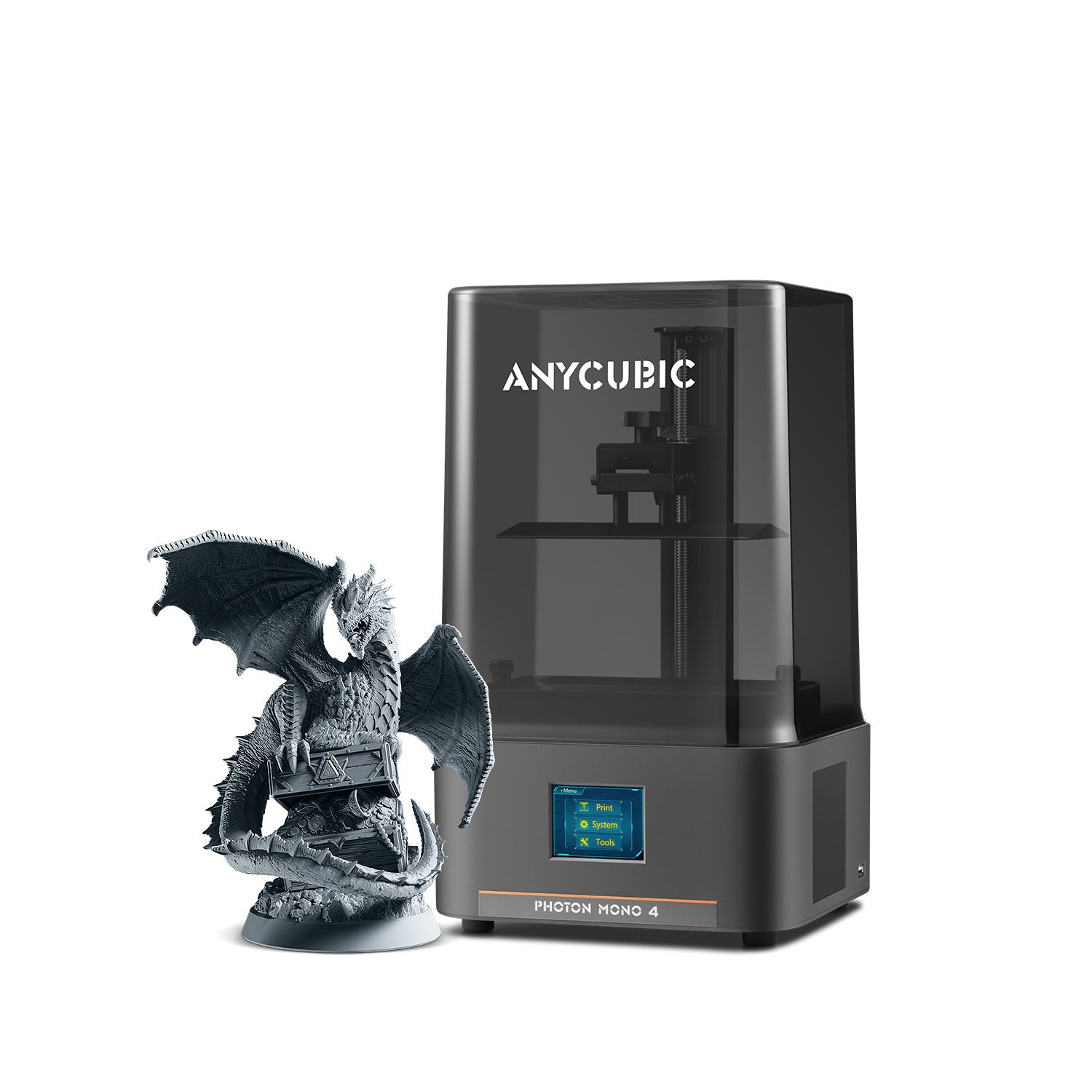

Anycubic Photon Mono 4

$189.00
$219.00 $189.00
-$30.00
Shipping calculated at checkout.

Product Features
● 10K Resolution at Entry-Level
● 7" High-Definition Screen
● Printing Speed up to 70mm/h
● LighTurbo Light Sourcing System
🎁 Pre-Order Price: From $189
⏰ Save $30! Plus Free STL Files*2
Include Resin: None

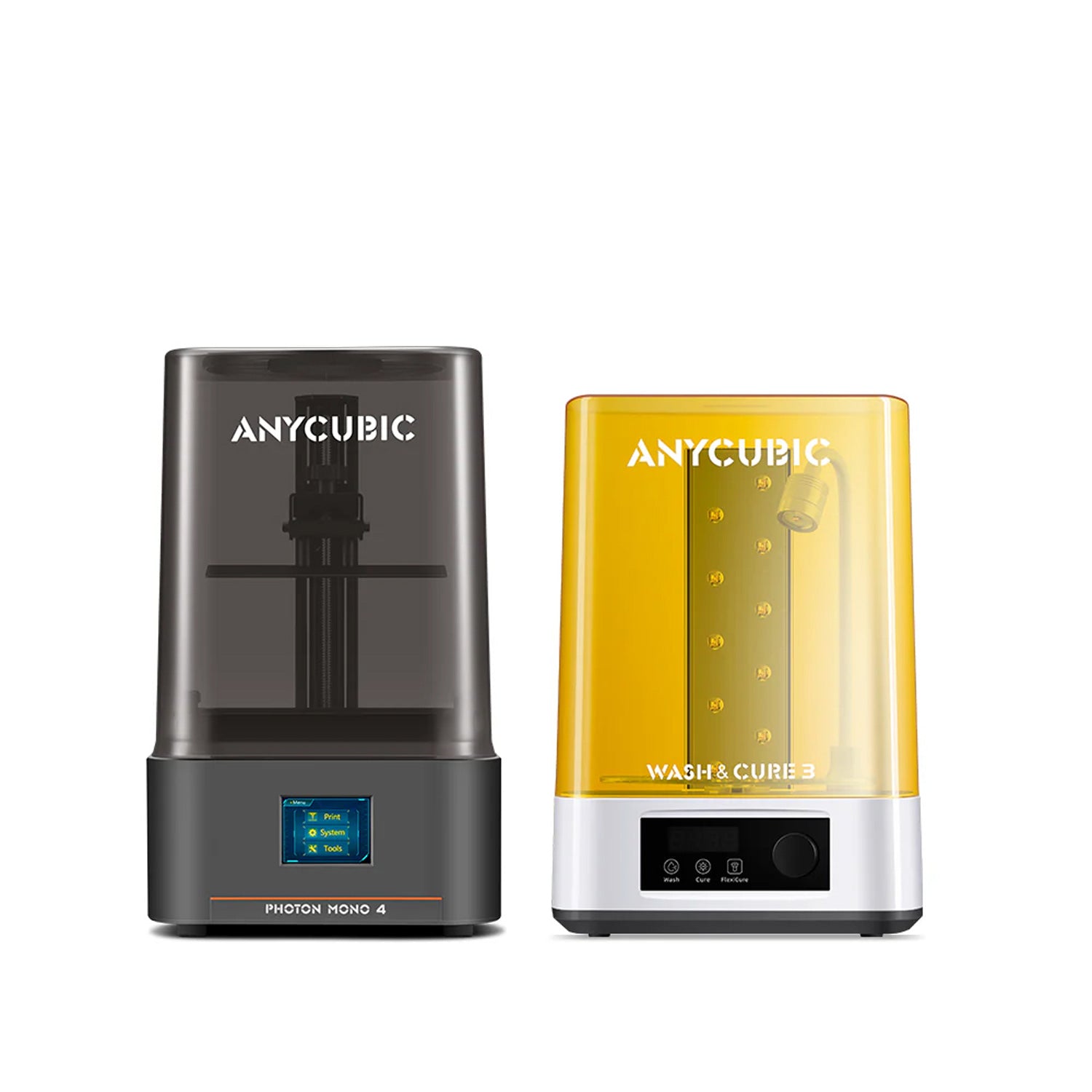

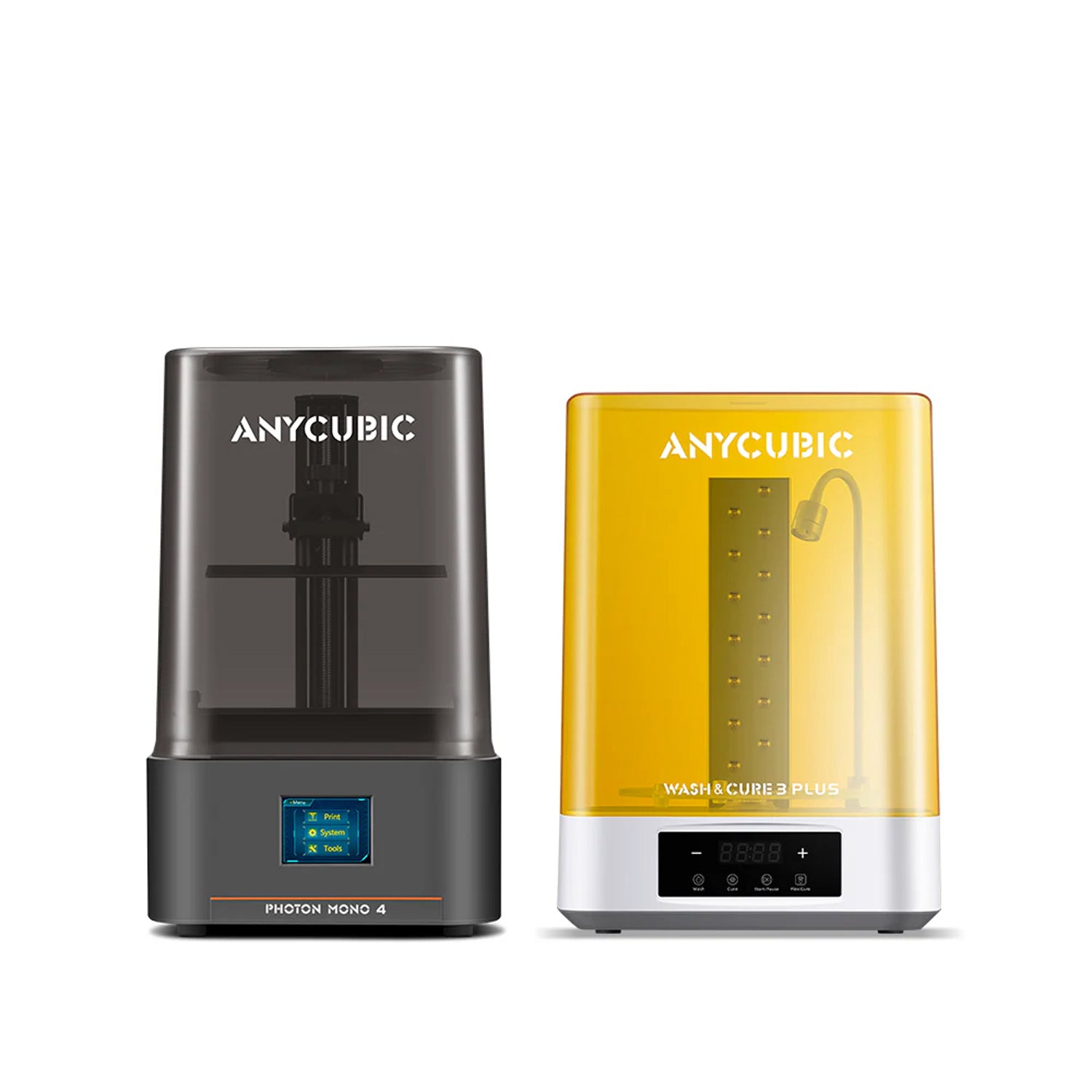

Include Wash&Cure Machine: None
Shipping To: US
🚚 AU - Ships in 24 Hours.
🚚 US - Estimated Delivery Time: Nov. 5th - Nov. 15th
🚚 EU - Estimated Delivery Time: Nov. 1st - Nov. 10th
🚚 UK - Estimated Delivery Time: Nov. 25th - Nov. 30th
🚚 CA - Estimated Delivery Time: Nov. 11th - Nov. 20th

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

$189.00
$219.00 $189.00
ANYCUBICAnycubic Kobra 2 Plus
Anycubic Kobra 2 Plus

Sample Prints

Specification

Tech specs

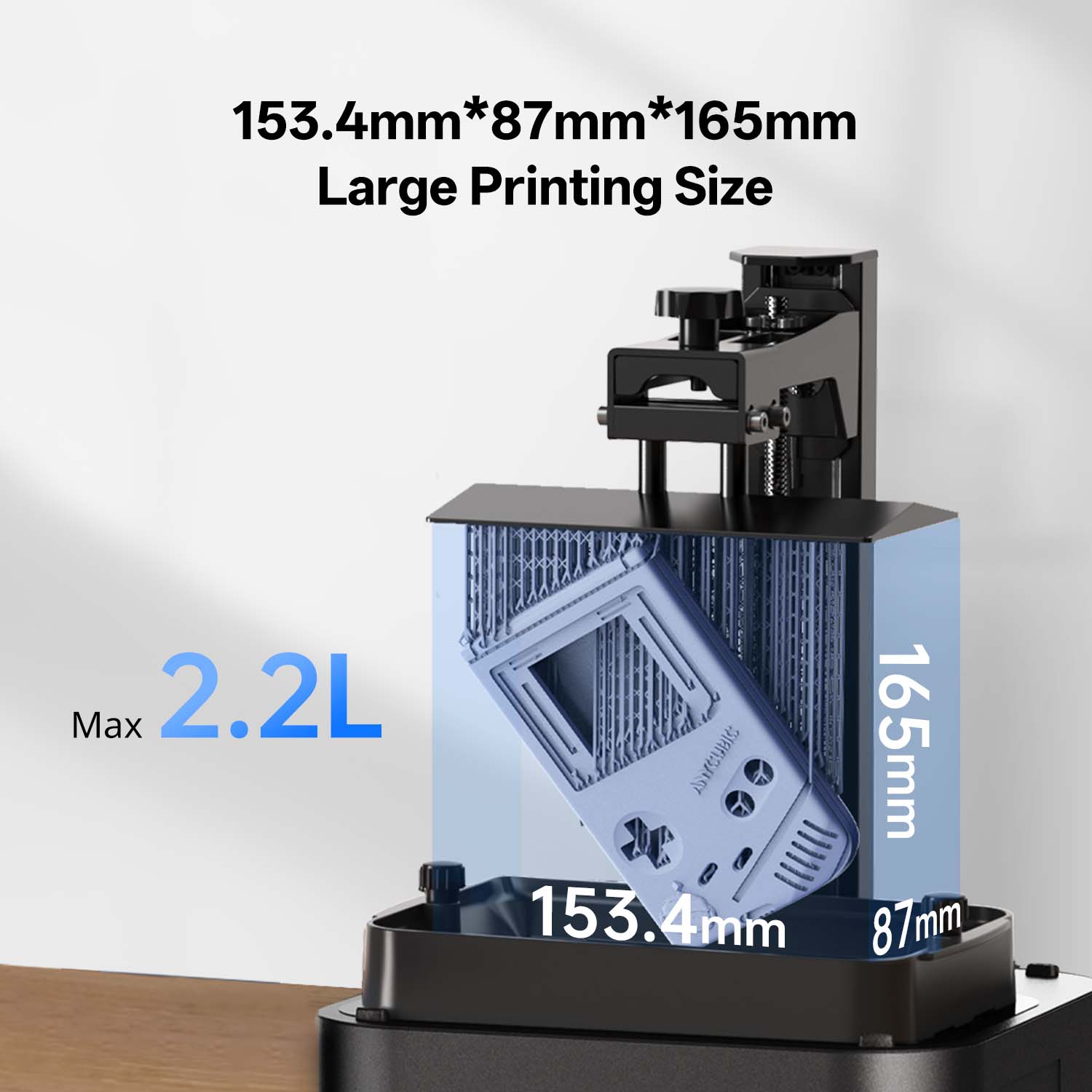

  • Build volume

    153.4mm*87mm*165mm

  • Package dimensions

    480mm*300mm*300mm

  • Printing speed

    Standard Resin 0.1mm layer height: ≤50mm/h peek speed; High Speed Resin 0.1mm layer height: ≤70mm/h peek speed

  • Machine leveling

    4-point manual leveling

  • Lcd screen size

    7-inch 10K Mono LCD

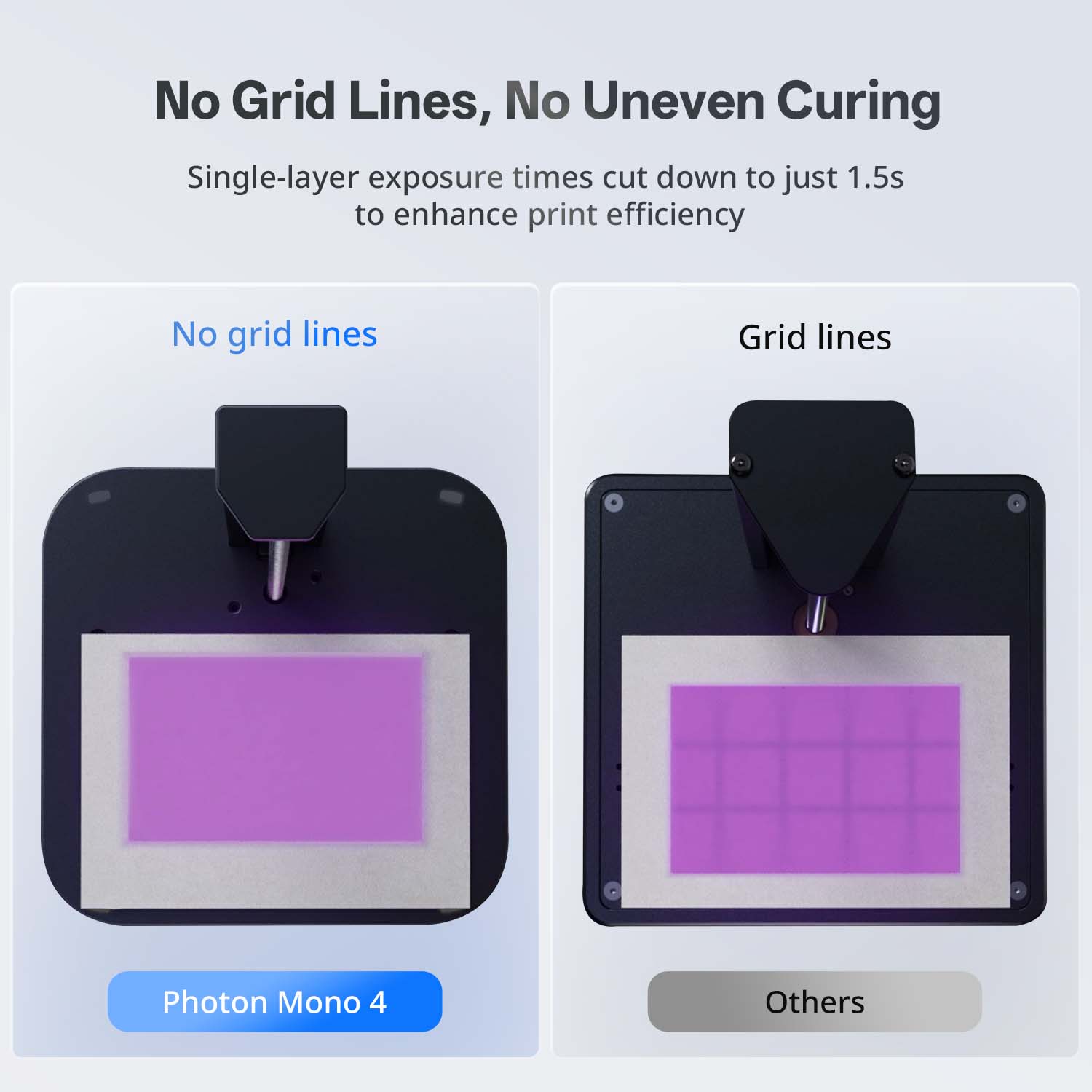

  • Light source

    Parallel matrix upgrade light source

  • Xy resolution

    17*17μm

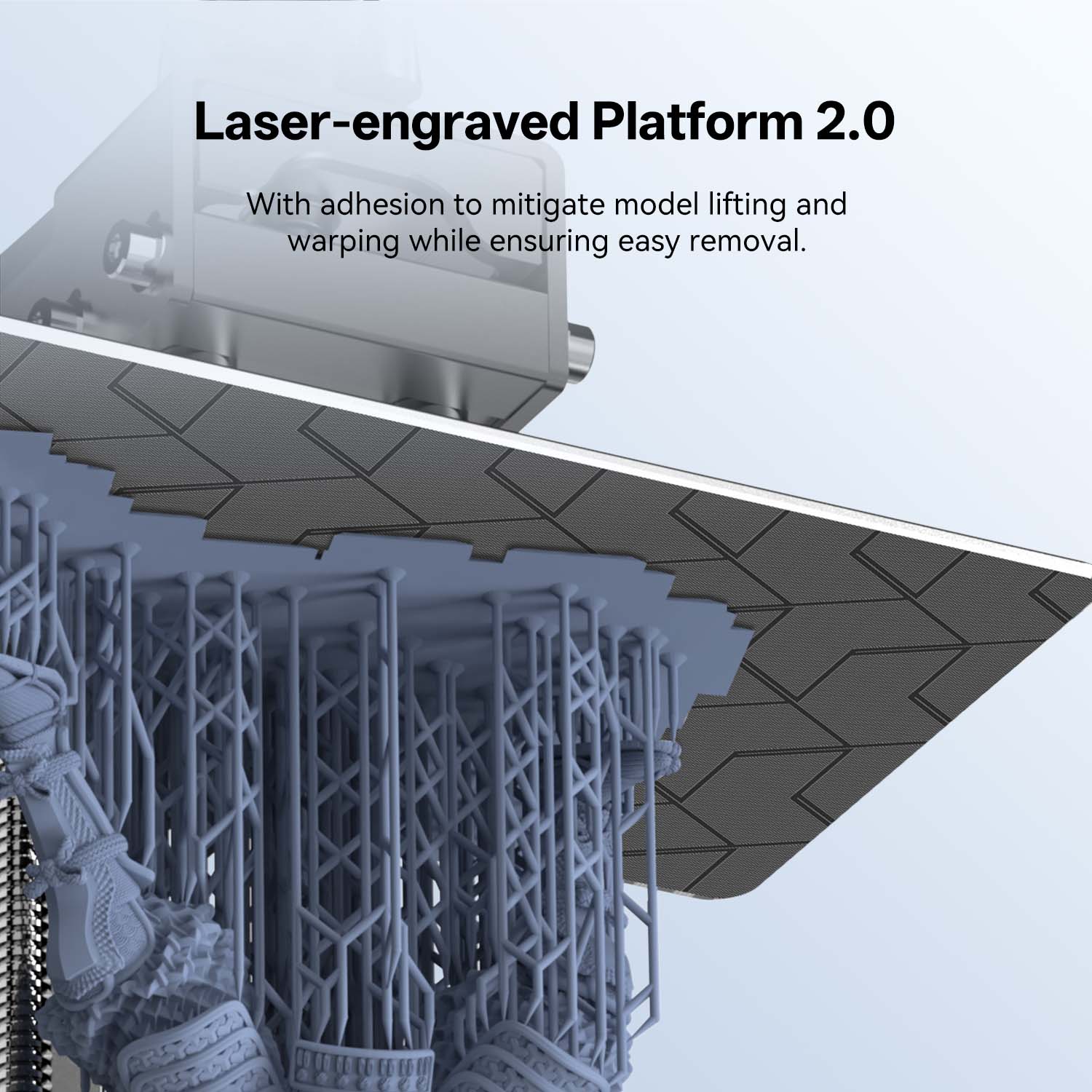

  • Build platform

    Laser-engraved platform 2.0

  • Operating screen

    2.8" TFT touch-control

  • Slicing software

    Photon Workshop

  • Material

    Supports most resins on the market (water-washable, standard, bio resin, plant-based, etc.)

  • File transfer

    USB

  • Machine weight

    4KG

  • Light uniformity

    80-90%

  • Release film

    FEP

  • Light intensity

    ~3000μW /cm²

  • Layer height

    0.03-0.15mm

In The Box

  • Photon Mono 4

  • Print Platform * 1

  • Resin Vat * 1

  • Manual * 1

  • Sreen Protector Kit

  • Leveling paper

  • Protective Equipment

  • Funnels * 5

  • Scrapers * 2

  • Hex Key Set

  • USB Drive * 1

  • Power Cord

Products Comparison

Picture Photon Mono 4 Photon Mono 4 Ultra
Printer Model Photon Mono 4 Photon Mono 4 Ultra
Build Volume 153.4mm*87mm*165mm 153.4mm*87mm*165mm
Product Dimensions 230mm*235mm*39lmm 231mm*236mm*430mm
Packaging Dimensions 480mm*300mm*300mm 512mm*300mm*305mm
Net Weight 4KG 5KG
Printing Speed Standard Resin 0.1mm Layer Thickness Peak speed ≤50mm/h | High Speed Resin 0.1mm Layer Thickness Peak speed ≤70mm/h Standard Resin 0.1mm Layer Thickness Peak speed 80mm/h | High Speed Resin 0.1mm Layer Thickness Peak speed 120mm/h
Layer Height 0.03-0.15mm 0.02-0.15mm
LCD Screen 7-inch Mono LCD 7-inch Mono LCD
Printing Resolution 10K 10K
X/Y Axis Resolution 17*17um 17*17um
Light Source Parallel matrix upgrade light source COB light source+ Fresnel lens+Light uniformity algorithm
Light Uniformity 80-90% ≥90%
Full-Stage Intelligent Assisted Printing System × √
Light Intensity ~3000μW /cm² ≥3500μW /cm²
Release Film FEP ACF

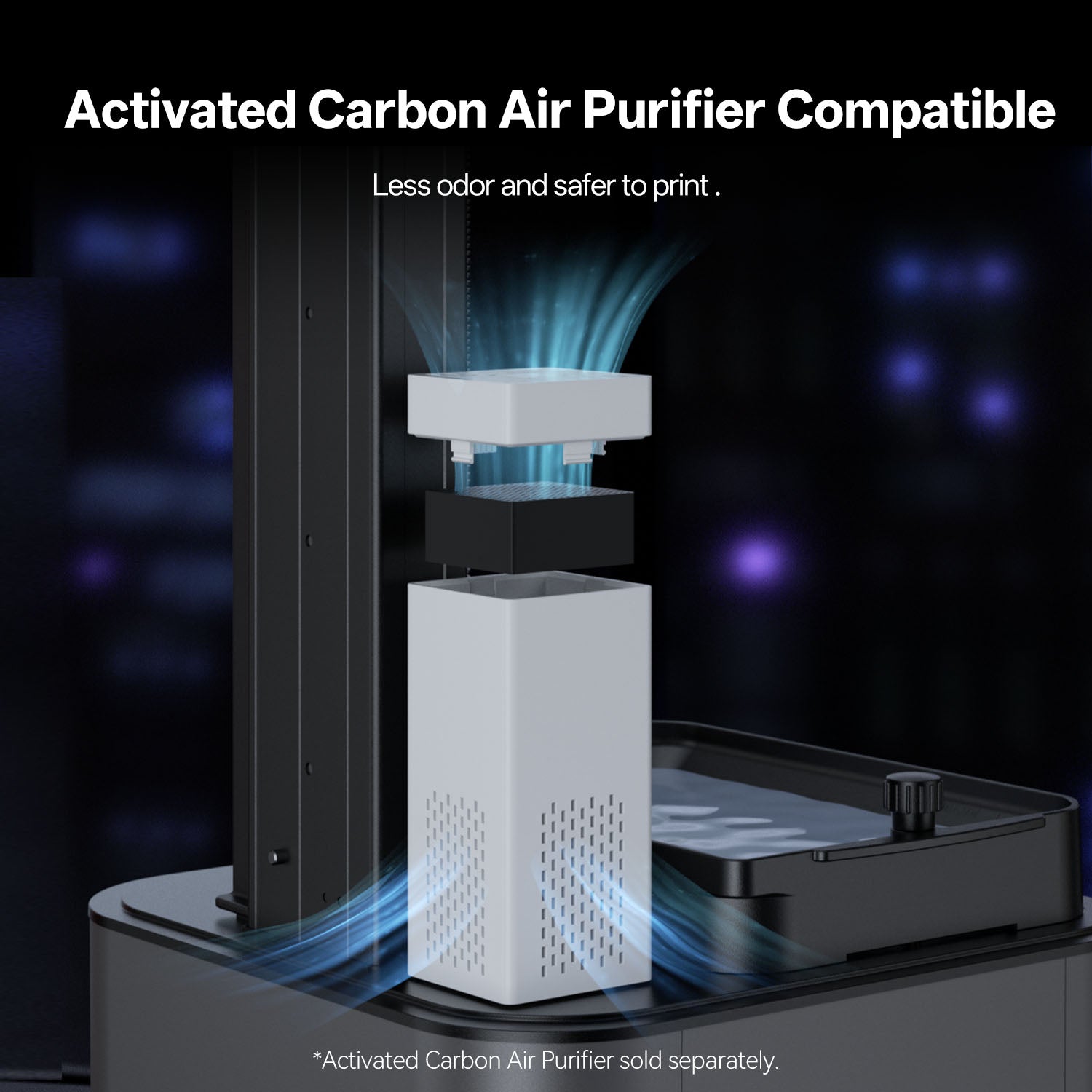

AirPure Optional(Rechargeable) Optional(usB)
Display Screen 2.8" TFT touch-control 4.3" TFT touch-control
Anycubic App × √
Machine leveling 4-point manual leveling 4-point manual leveling
Slicing Software Photon Workshop Photon Workshop
File Transfer USB USB & WiFi& LAN MODE(Q4)

FAQs

Q: How to get more information about Photon Mono 4?

A: For more information on the Photon Mono 4, please visit the Anycubic Wiki.

Q:Where should I go to download slicer software?

A：Please visit Firmware & Software to download the slicing software.

Q: What hardware is required when using a printer to clean and cure printed parts?

A: To clean and cure printed parts using a printer, you will need Cleaning Kit and Wash & Cure Machine.
