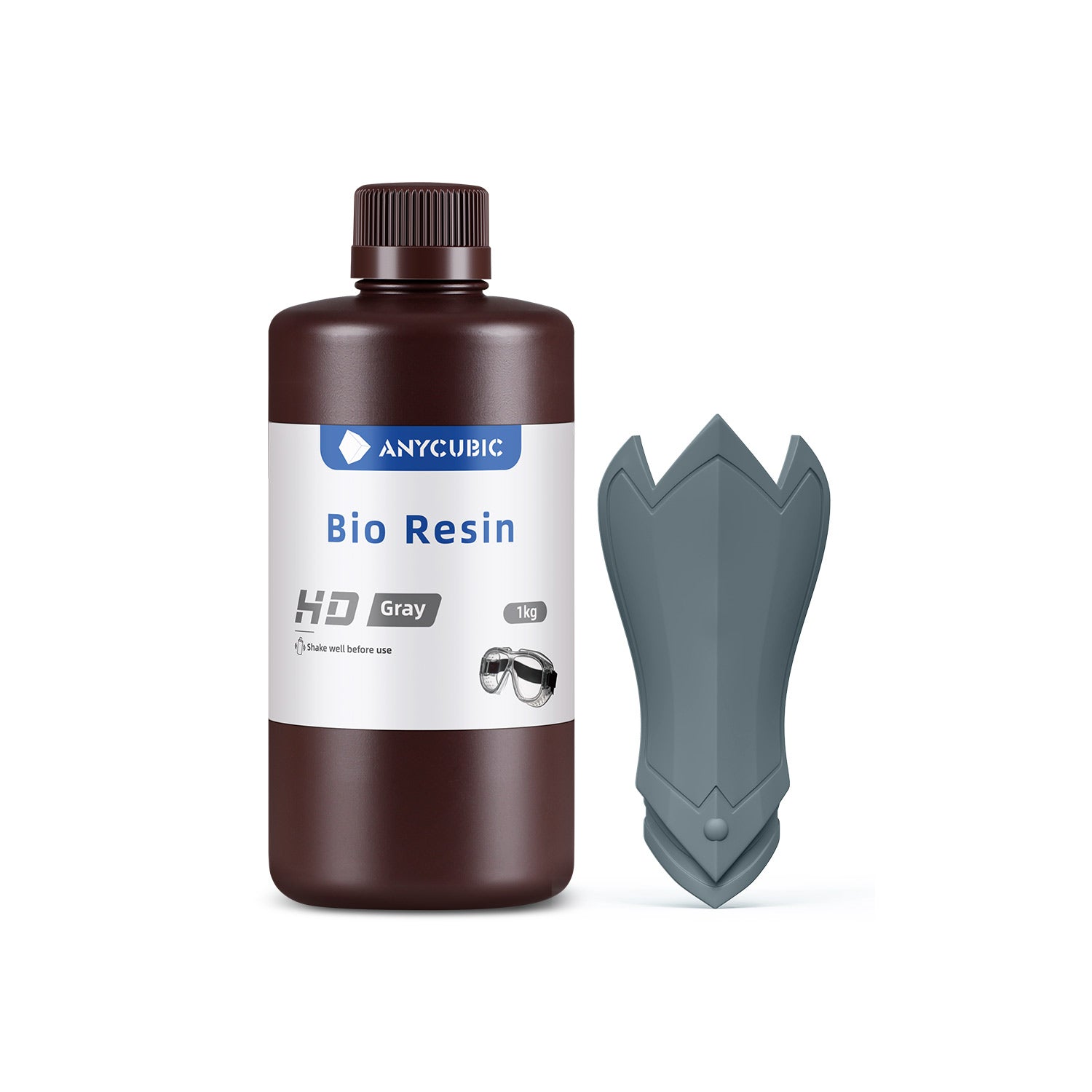

Bio Resin

Regular price $24.29
Regular price $46.99 Sale price $24.29
-$22.70
Shipping calculated at checkout.

Product Features
●Less Irritating
● Eco-Friendly & Body-Friendly
● Minimal Odor,Maximum Assurance
● High PrecisionFusion of Toughnessand Resilience
🎁 Special Offer for Black Friday Sale:
🔥 3KG price as low as $19.80/KG
🎈 5KG price as low as $19.80/KG
Size: 1KG
Shipping to: US

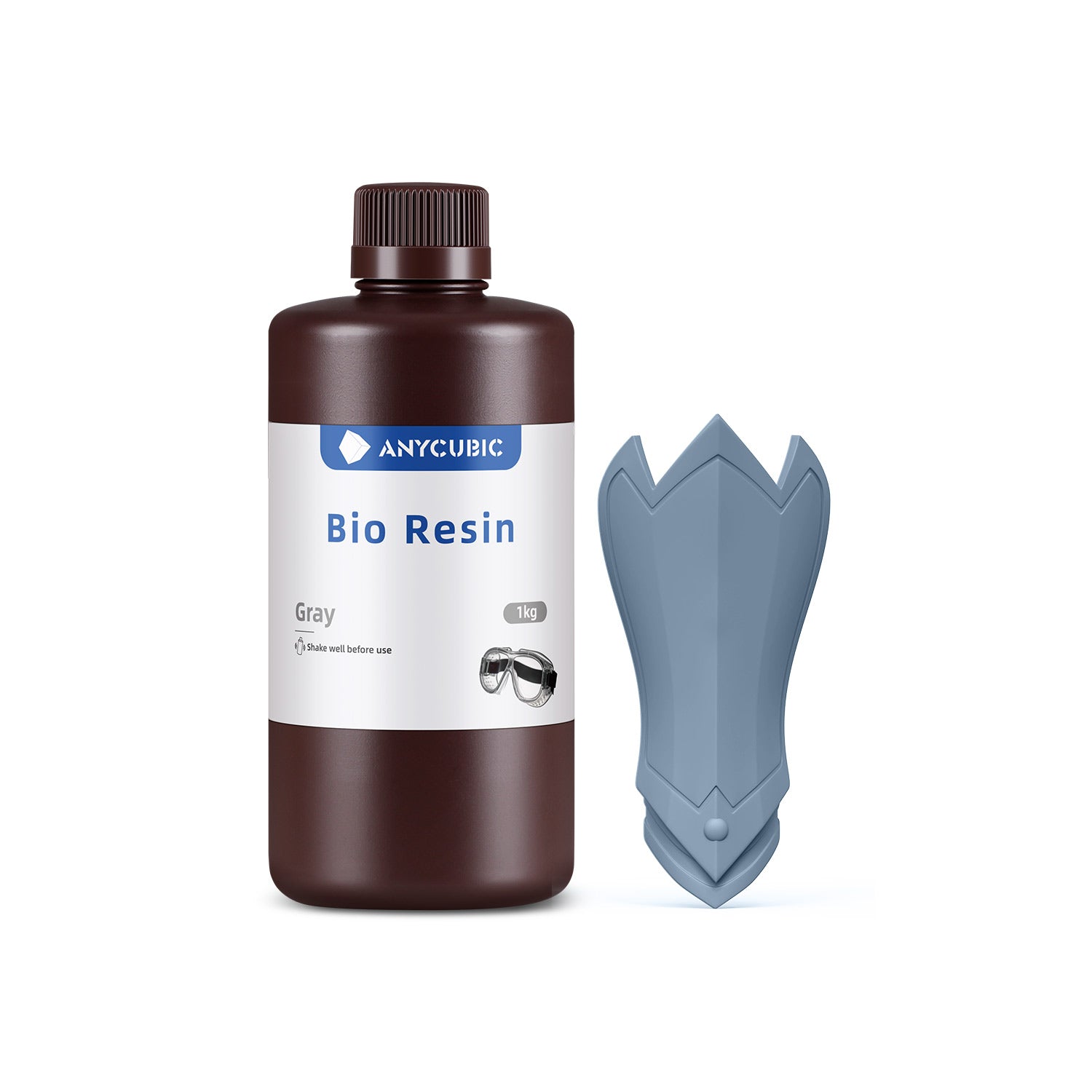

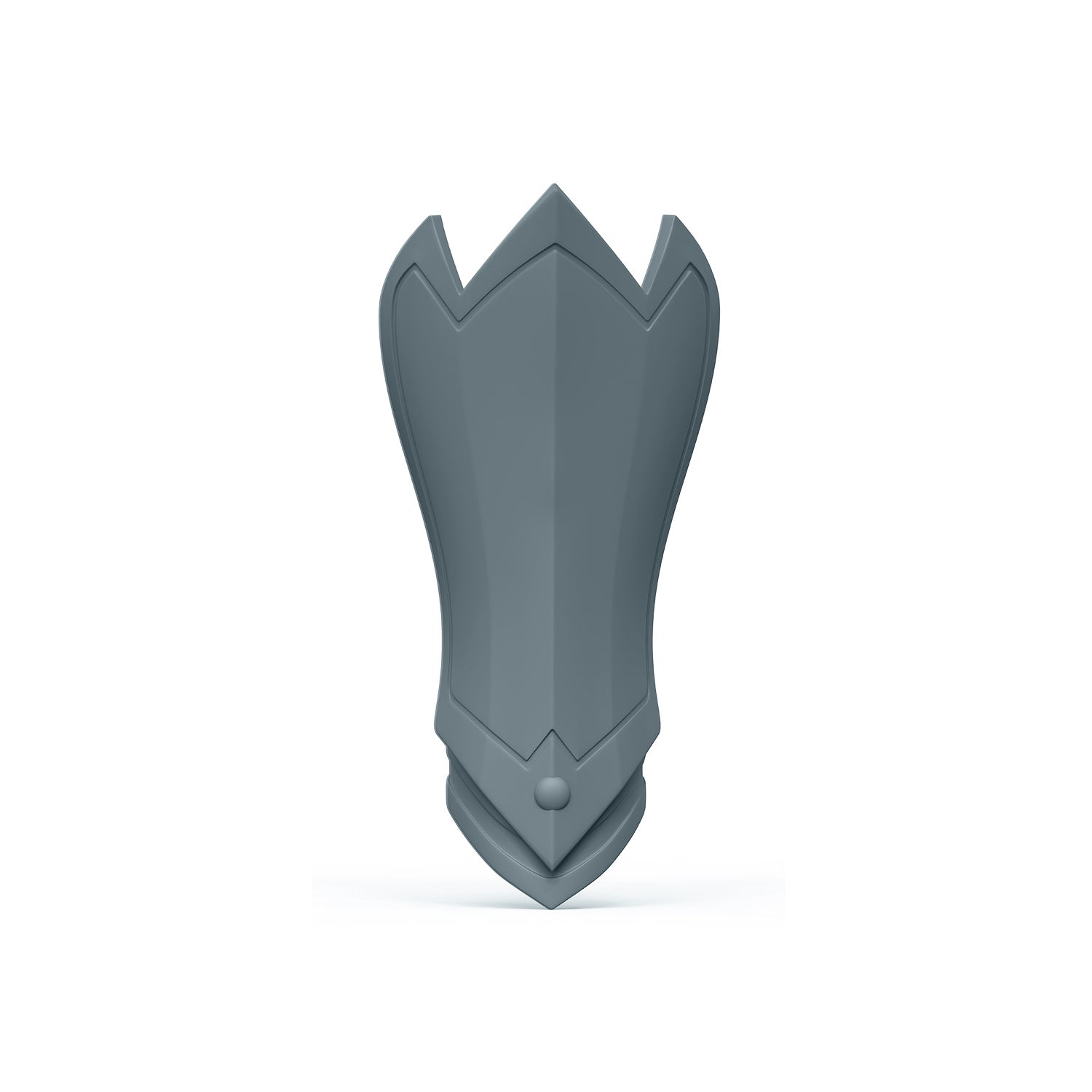

Color: Gray
🚚 Ships in 24 hours
🚚 AU - HD Gray - Estimated Delivery Time: Dec. 1st - Dec. 10th

Free Express Shipping

14-Day No Reason Return

30-Day After-Sales Guarantee

One-Year Warranty For 3D Printers

100% Secure Payment

Regular price $24.29
Regular price $46.99 Sale price $24.29

Resin Parameters

wavelength 365-405nm Elongation at Break 21-28%
Shrinkage 4.3-5.5% Flexural strength 47-57MPa
Density 1.13-1.15 g/cm³ Felxural modulus 1200-1800MPa
Viscosity 470-520 cPimPa·s Hrat Distortion Temperature 60-64℃
Surface Hardness 83-85D Tensile Strength 34-40 MPa
Bottom exposure time 20-40s (color screen 60s) Normal exposure time 1.5-3.8s (color screen 60s)
Resin Cleanup Time Wash time more 3mis with 95° isopropyl alcohol Conservation Period 1.5 Year

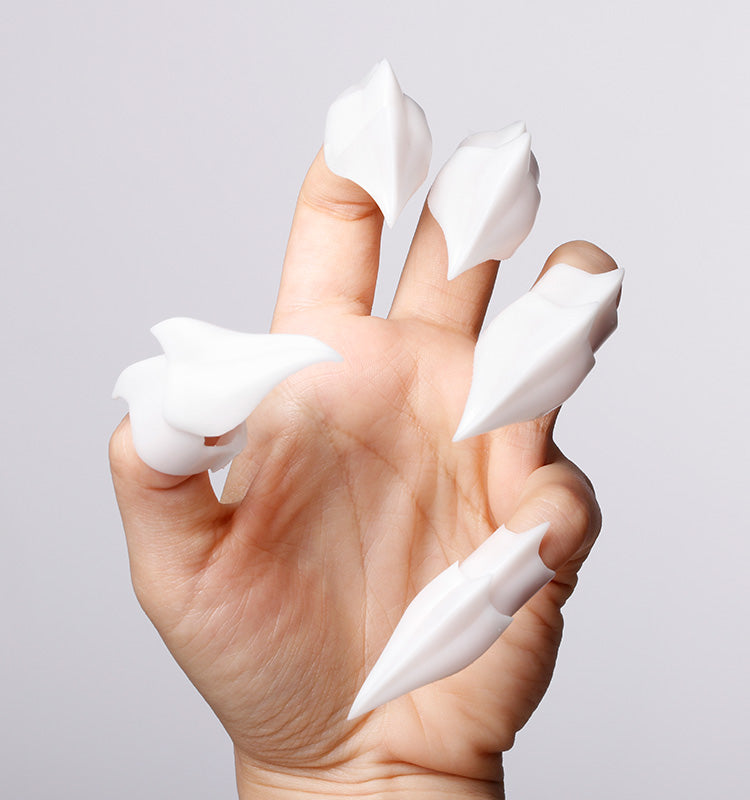

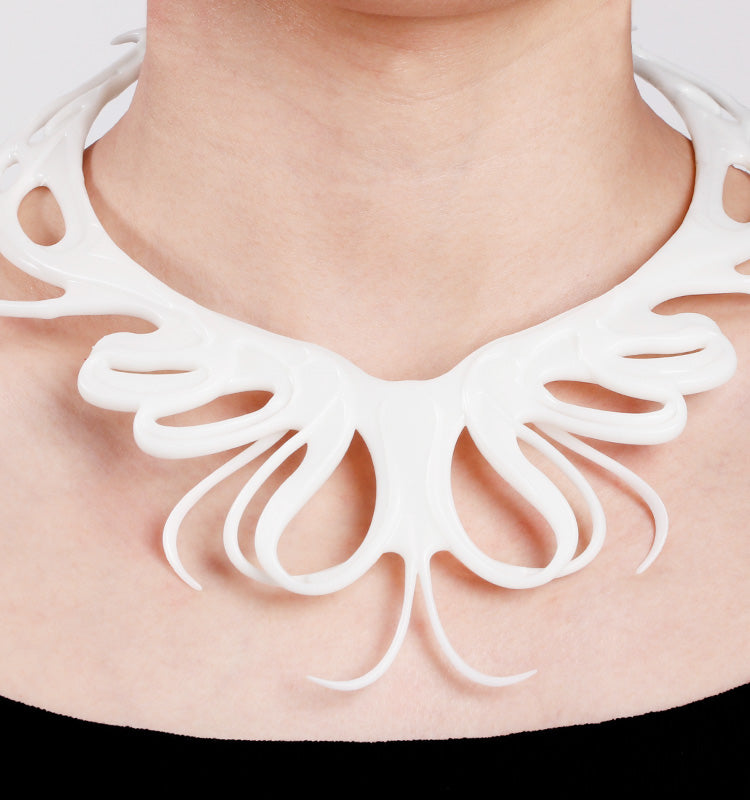

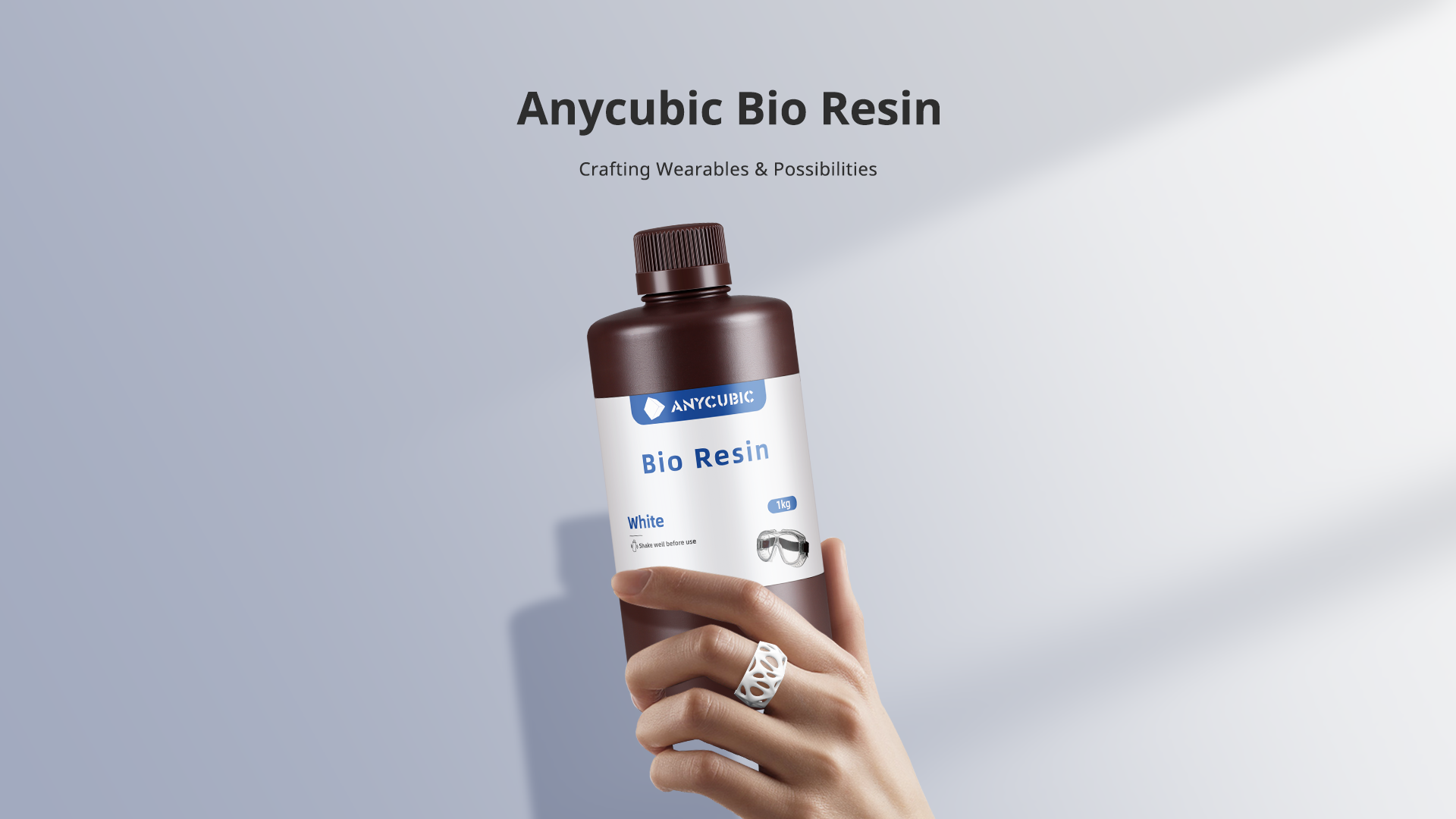

Crafting Wearables & Possibilities

Recommended Printing Parameters

3D Prints Layer Thickness Normal Exposure Time Off Time Bottom Exposure Time Bottom Layers Anti-alias Z Lift Distance Z Lift Speed Z Retract Speed
Photon Mono M7 Pro 0.05mm 1.7s 2s 35s 5 1 8mm 6mm/s 6mm/s
Photon Mono M5s Pro 0.05mm 3.2s 1s 35s 6 1 8mm 6mm/s 6mm/s
Photon Mono M5 0.05mm 2.8s 1s 35s 6 1 8mm 5mm/s 6mm/s
Photon Mono M5s 0.05mm 2.8s 1s 35s 6 1 8mm 5mm/s 6mm/s
Photon Mono X 6Ks 0.05mm 2.5s 1s 20s 6 1 8mm 3mm/s 4mm/s
Photon Mono 2 0.05mm 2.5s 1s 25s 6 1 6mm 4mm/s 6mm/s
Photon X 6K 0.05mm 2s 1s 30s 6 1 8mm 2mm/s 3mm/s
Photon Mono M3 Max 0.05mm 3s 2s 35s 6 1 10mm 4mm/s 4mm/s
Photon Mono D2 0.05mm 2.5s 1s 28s 5 1 5mm 2mm/s 3mm/s
Photon M3 Premium 0.05mm 2.5s 1s 35s 5 1 8mm 6mm/s 6mm/s
Photon Mono X2 0.05mm 2.5s 1s 25s 5 1 8mm 4mm/s 4mm/s
Photon Mono X 0.05mm 2s 1s 28s 6 1 8mm 4mm/s 4mm/s
Photon Mono 4K 0.05mm 2s 1s 40s 6 1 6mm 4mm/s 6mm/s
Photon M3 0.05mm 2s 1s 28s 5 1 6mm 3mm/s 4mm/s
Photon M3 Plus 0.05mm 1.5s 1s 28s 6 1 6mm 6mm/s 6mm/s

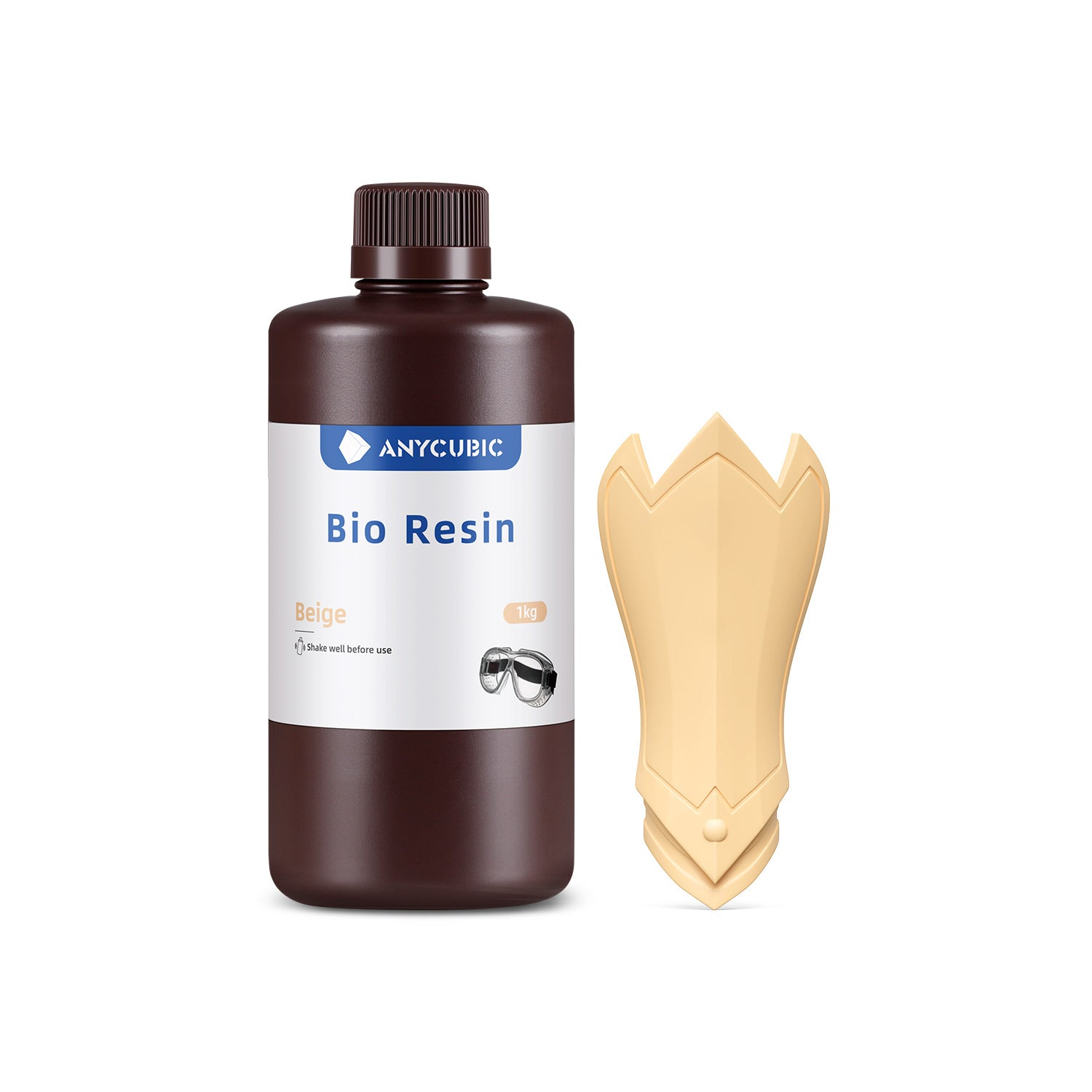

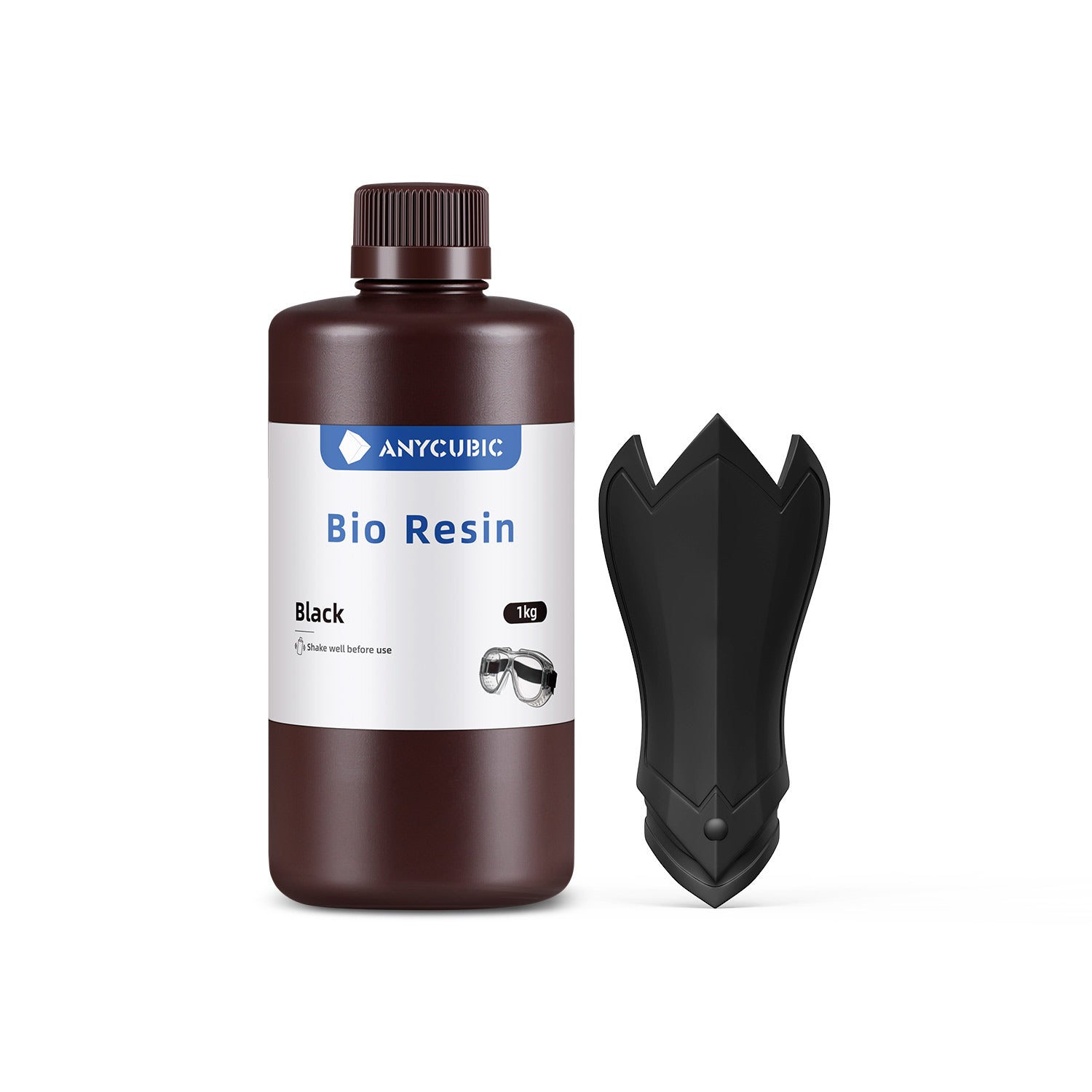

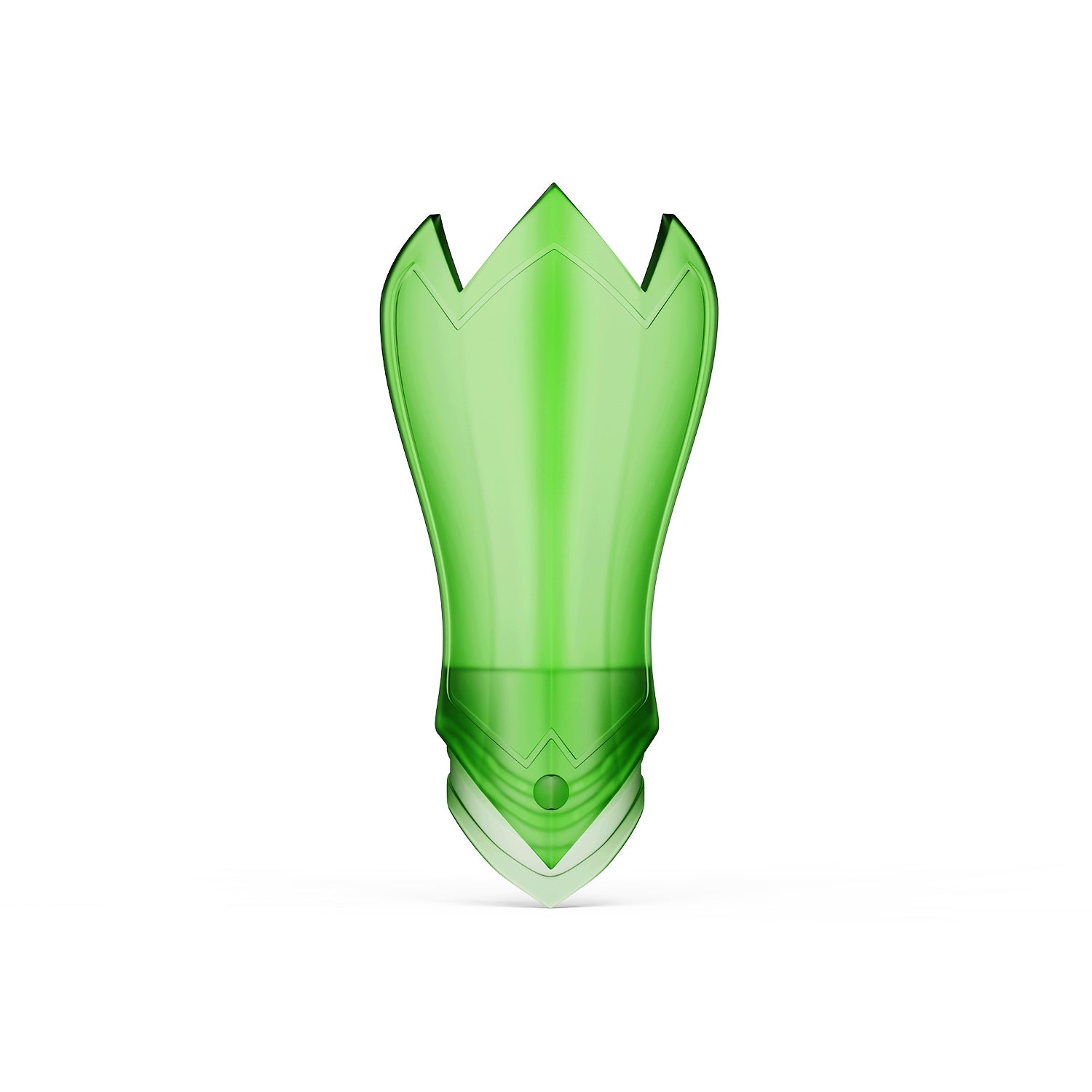

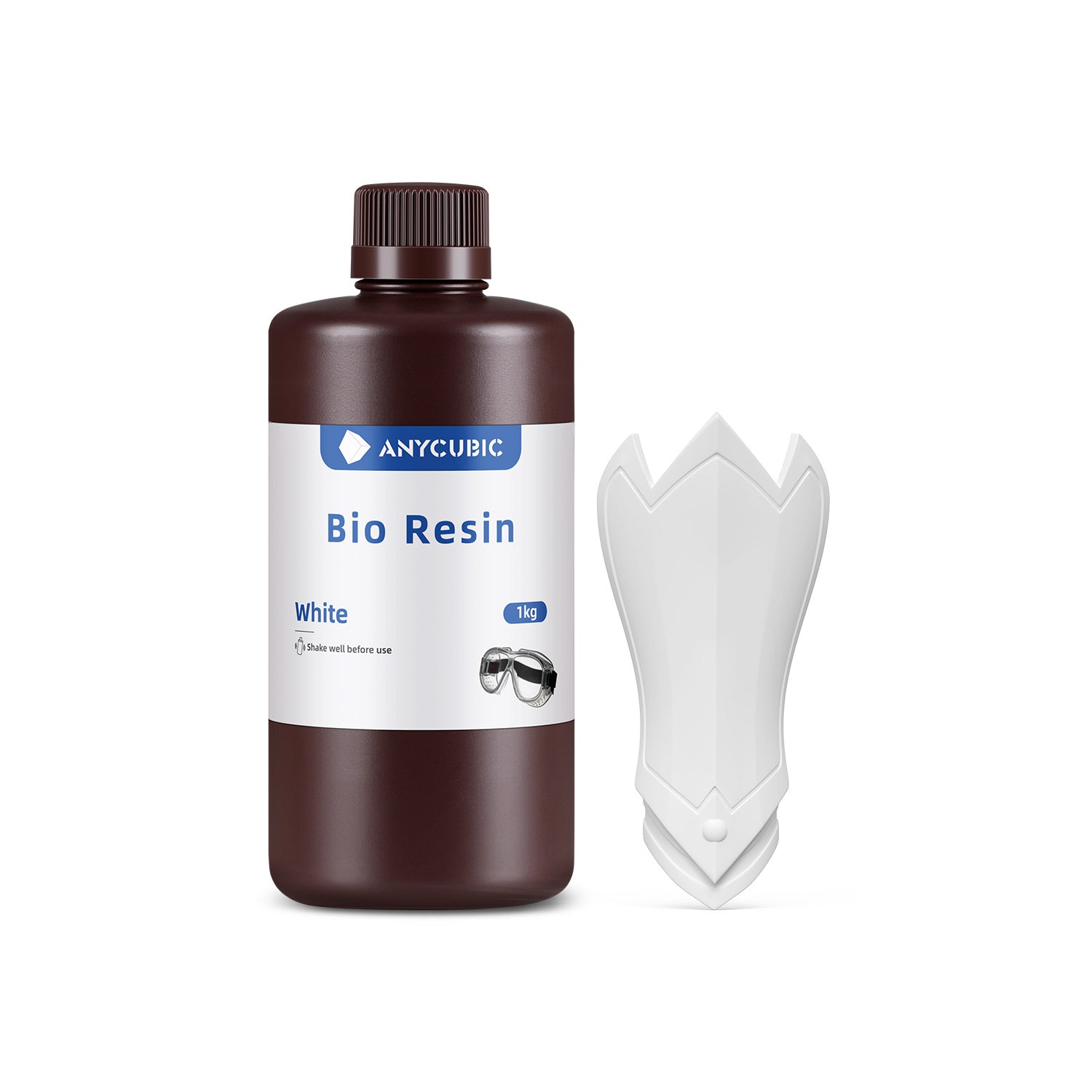

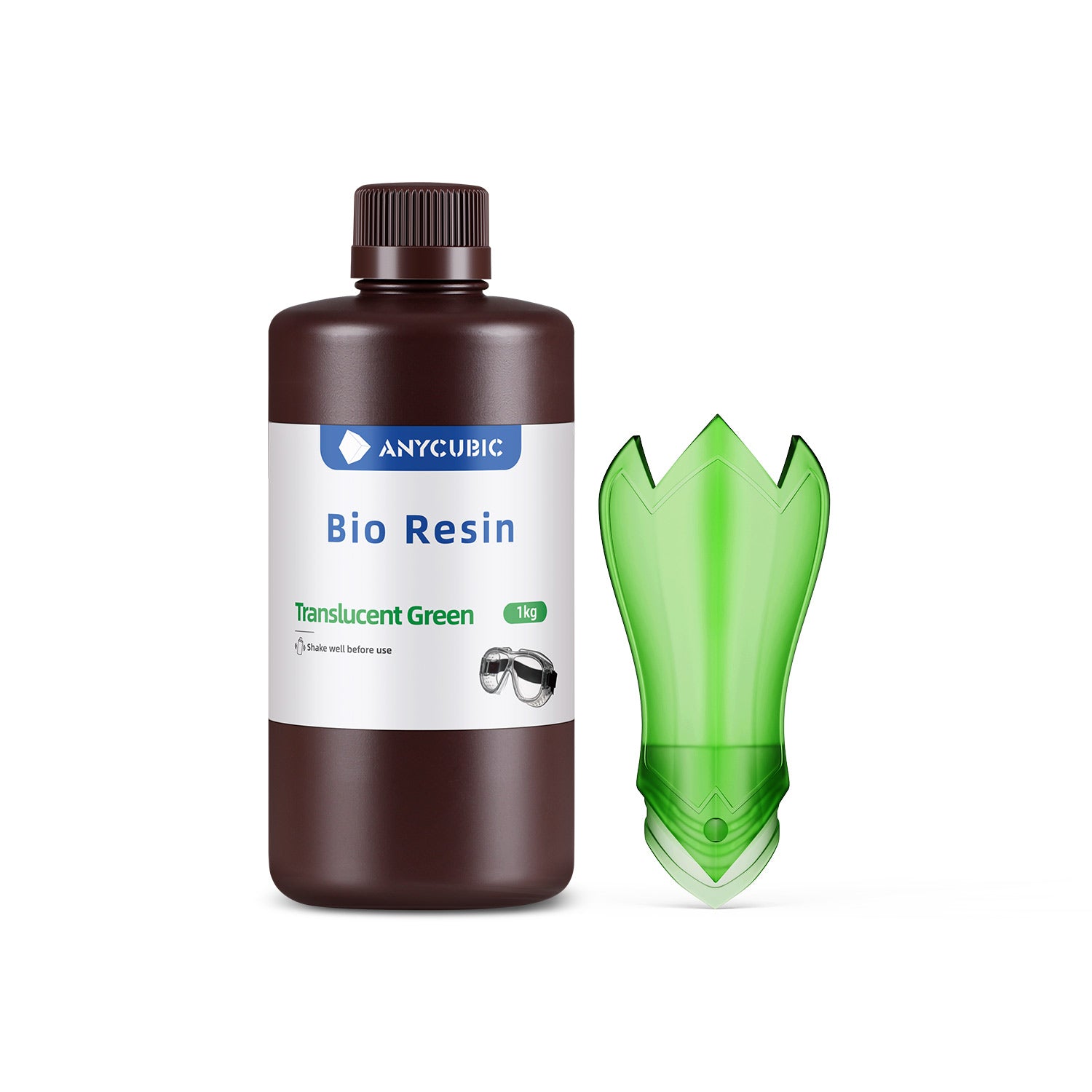

Color Type

Instructions for Use

(1) Before use:

Shake the liquid resin before use;Clean the resin tank and the molding platform to keep the bottom of the resin tank in light transmission.

(2) When using:

Unscrew the cap and add it to the resin tank according to the equipment requirements;Select the correct print parameters and settings for printing.

(3) After use:

After printing, please use the matching tools for post-processing, including blade, diagonal pliers,tweezers,containers,gloves;ethanol(≥95%),lactate or isopropyl alcohol cleaning solution;

(4) Post-processing steps:

Remove the printed model from the molding platform with a blade; Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then takenout and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.Proper processing, such as removing support, polishing, coloring, etc.

(5) Wastewater post-process:

A. Do not discharge wastewater directly into the sewer to avoid contaminating groundwater.

B. Heat the wastewater,let most of the water evaprorate,and then discard the residue after curing by curing machine and sunlight.

Precautions

1.The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light
to avoid high temperature or sunlight.

2.Suggested operating temperature is 18-35℃, and a low temperature may affect the printing effect, thus, the
resin can be properly preheated before use (not more than 60°C).

3.If the resin pigment settles, it can be used after stirring or shaking.

4.In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.

5.To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.

6.To ensure the ideal performance of the curable material it is necessary to  control the intensity and time of the light source after curing.Therefore,

The following steps are recommended:

(1) The intensity of mercury lamp or LED  light source is 5-10mW/m2,and the duration is no more than 1hour (self-regulation):

(2) The exposure time in the sun  (summer)is around 1 hour;

(3) Proximity or long -term exposure under strong light sources such as high power high-pressure mercury lamps is prohibited

(4) It is recommended to print in a dark  room or be covered with a lid while printing as resin is a photosensitive material.

(5) To avoid yellowing caused by long-term curing of High Clear Resin, please reduce the exposure time by half compared with other resin colors.

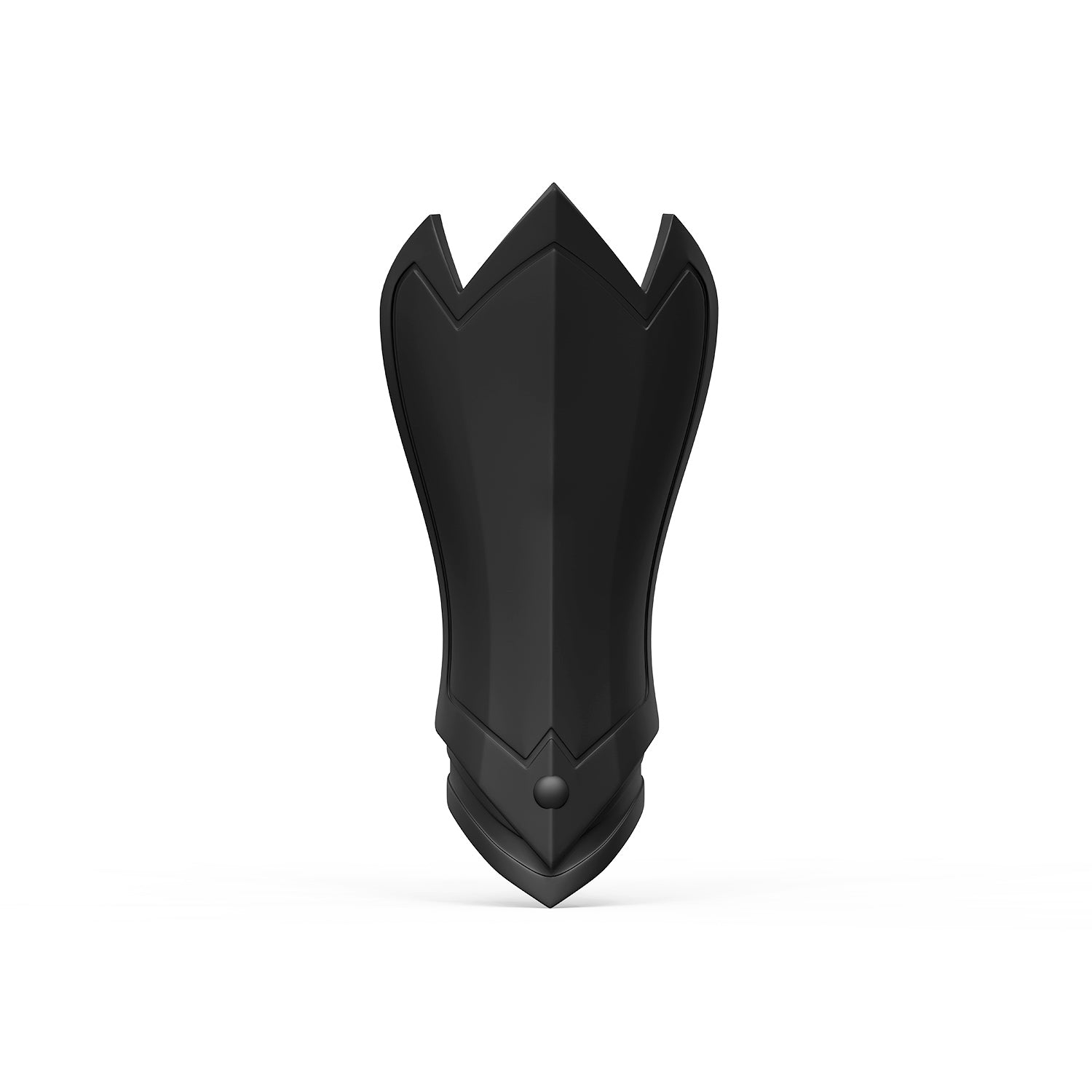

(6) Black resin may appear partially transparent in thin walls (<0.5mm), so the greater thickness can achieve better color effects.

PS: Material properties will vary depending on the molding equipment. post-curing method and testing equipment. For safety information,please refer to the MSDS of this product. If you encounter any problems while using, please feel free to contact us.

FAQs

What models are suitable for printing with Bio Resin?

Bio Resin is perfect for printing prototype appearances and structural parts of animation and game action figures, consumer electronic shells, silicone molded parts, load-bearing structural parts, tooling fixtures, snap-on parts, and models in scenarios involving skin contact.

WhDoes it have a strong odor? What can be used to clean and cure the models?

Bio Resin is virtually odorless. If curing is needed, please purchase a Wash & Cure Machine .

Where can I find the recommended printing parameters for Anycubic's printers when using Bio Resin?

You can view the recommended printing parameters on this details page. If you do not find the results you want, please contact our support team for answers.

Where can I download the MSDS file?

Click here to download the MSDS of the resin.

If I buy 3KG of resin, will I receive a 3KG bottle of resin?

When you purchase 3KG of resin, you will receive three 1KG bottles, not one single 3KG bottle. This applies to other quantities as well.

Where can I download the model for free?

Click here to download the free model.

What should I do if my model keeps failing to print?

If you are unable to print or printing fails, please contact our support team for answers.

What should I do if I receive resin that is leaking?

If your resin is leaking, it might have been damaged during transportation. Please take pictures of the product you received and contact our customer support team. They will assist you in resolving the issue.
