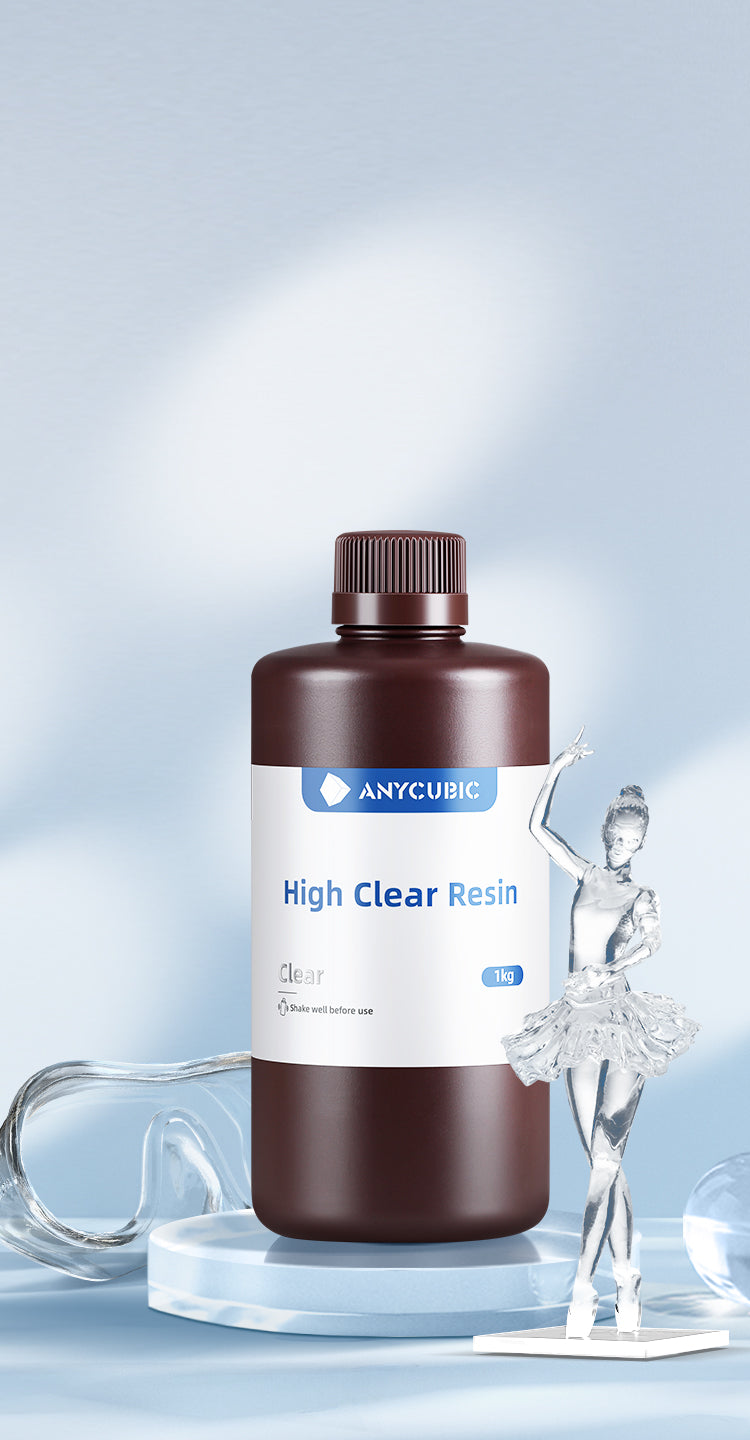

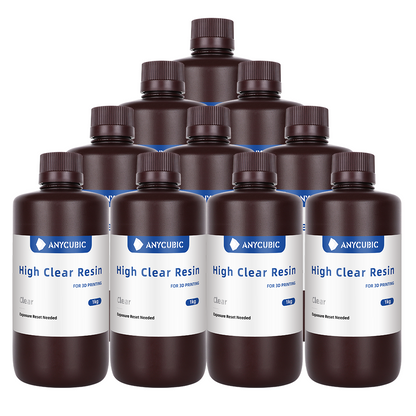

High Clear Resin 10-100kg Deals
Couldn't load pickup availability

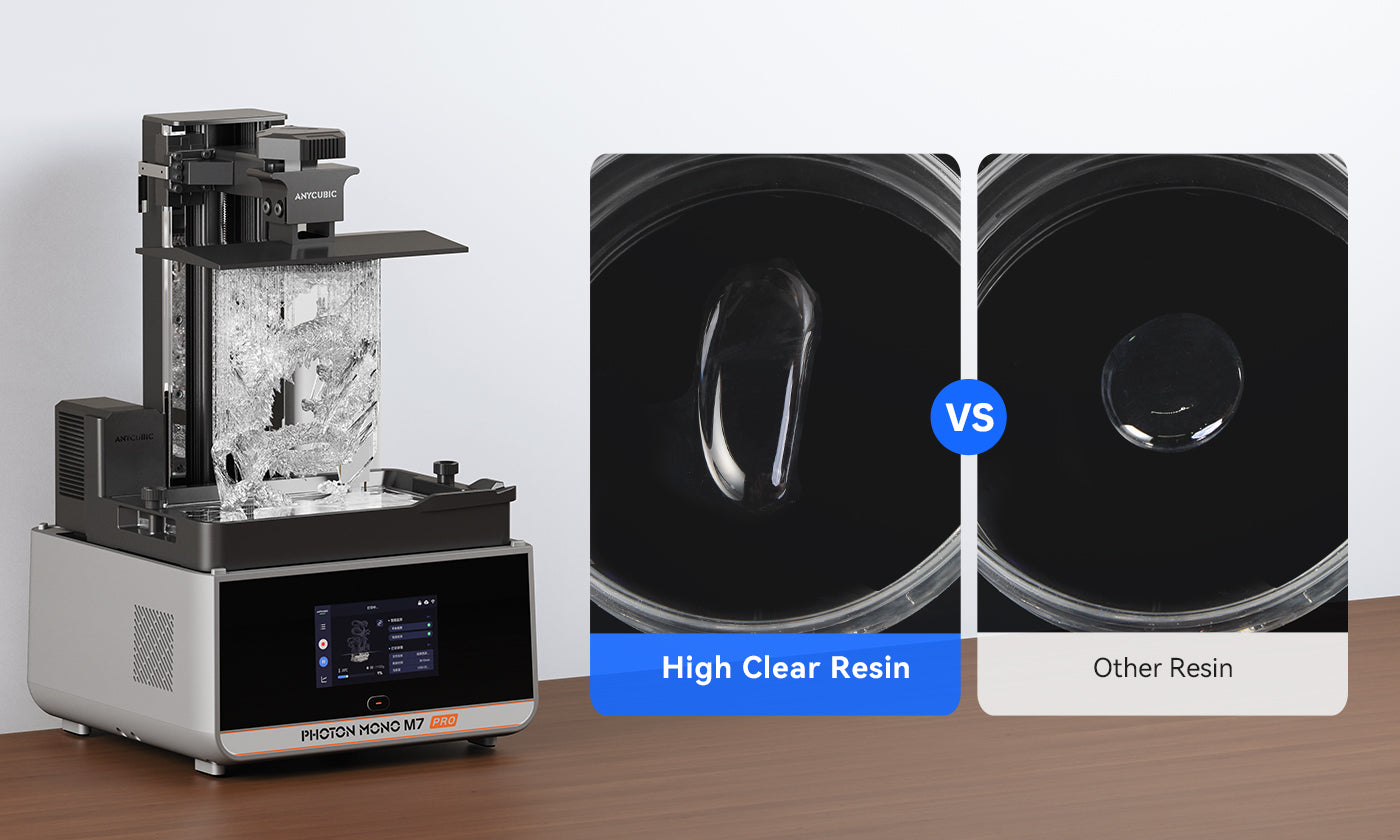

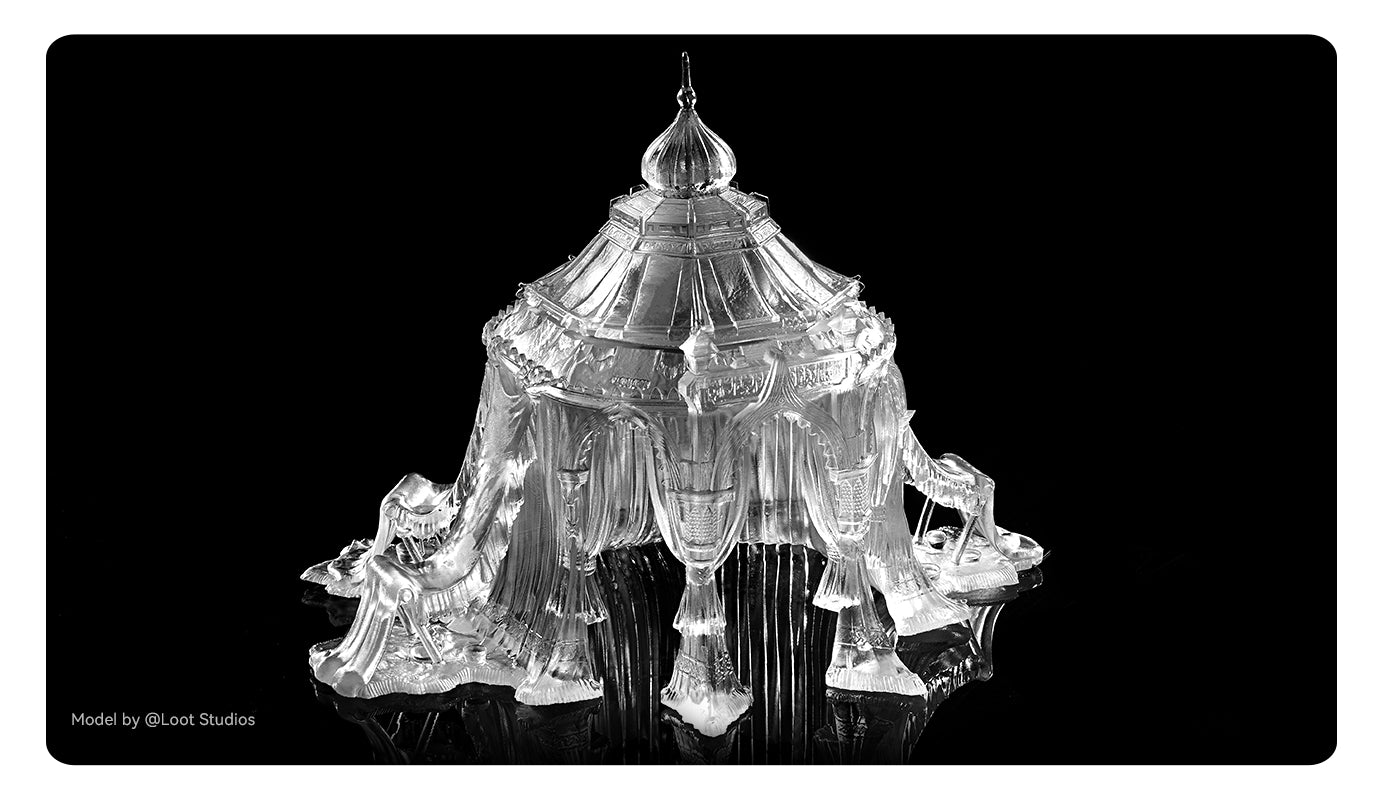

Incredibly clear and durable

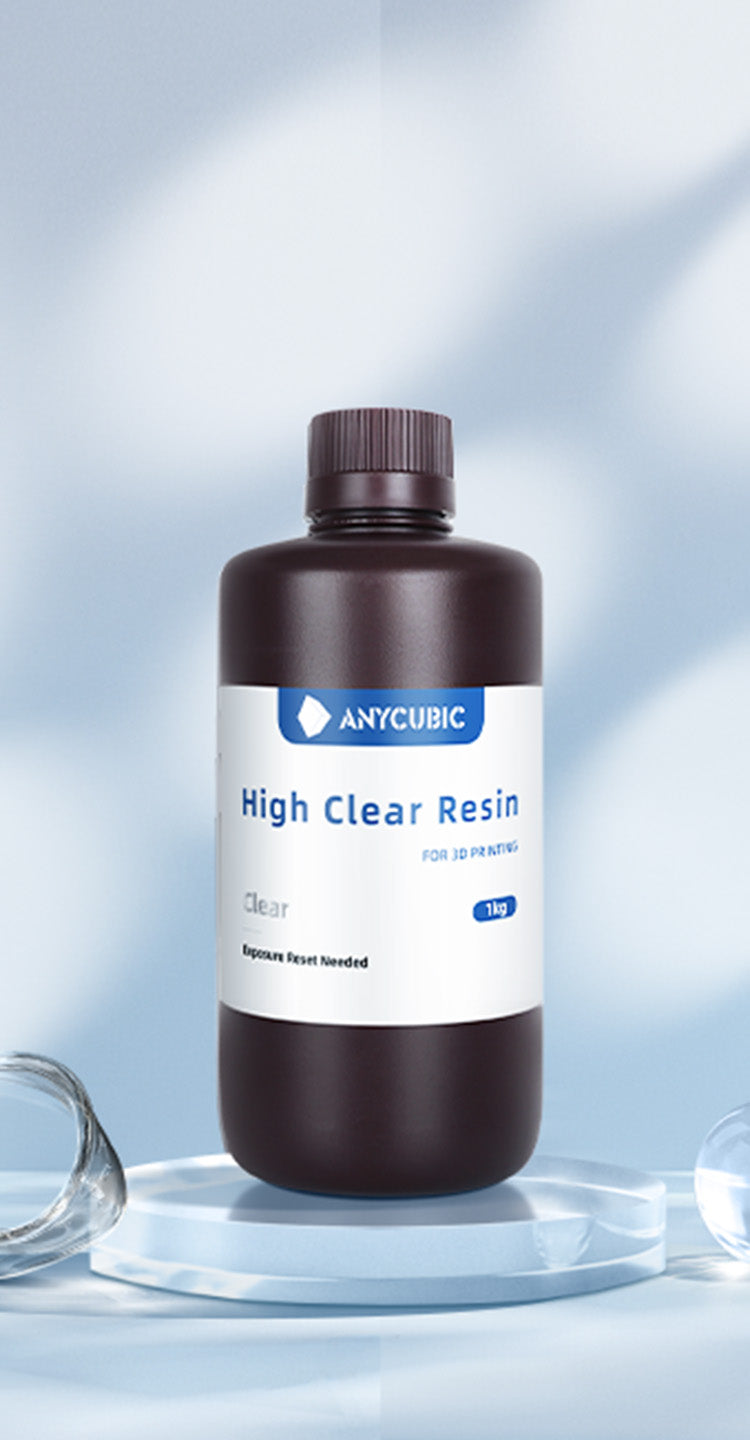

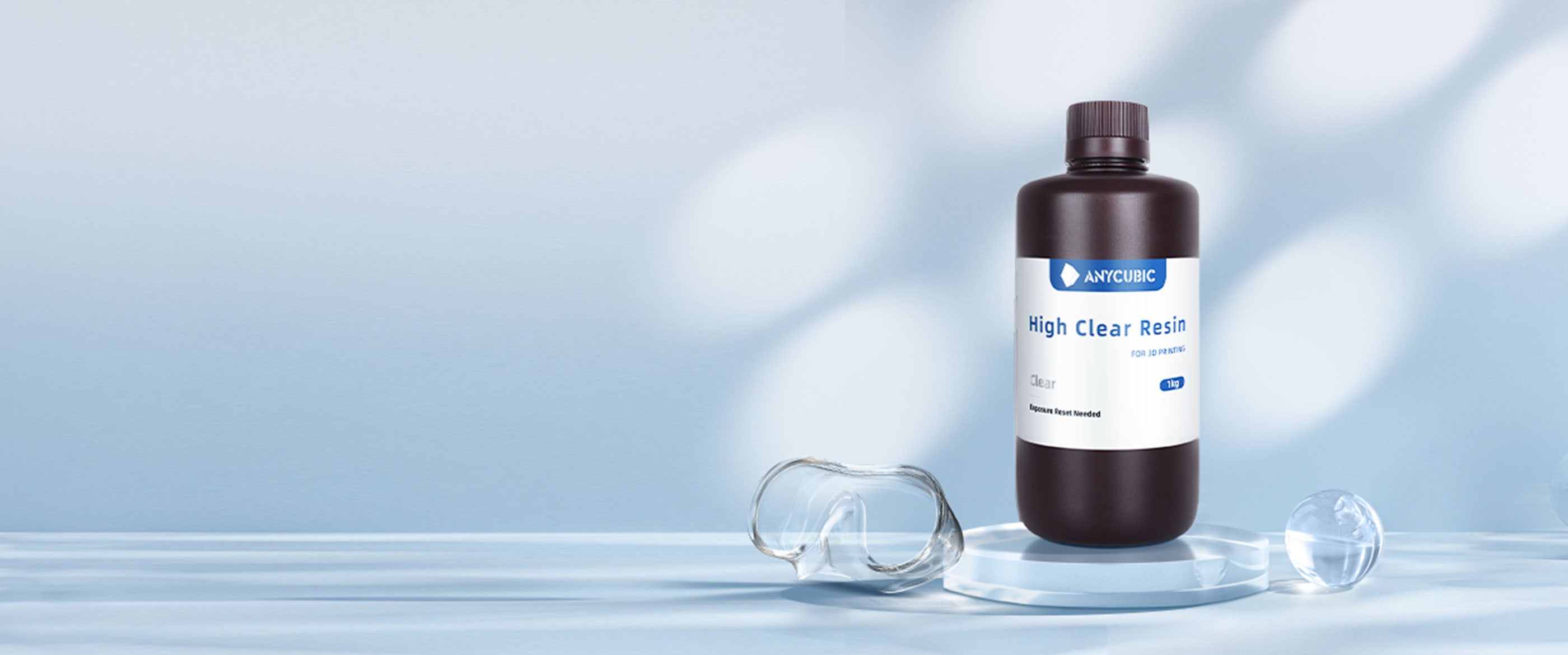

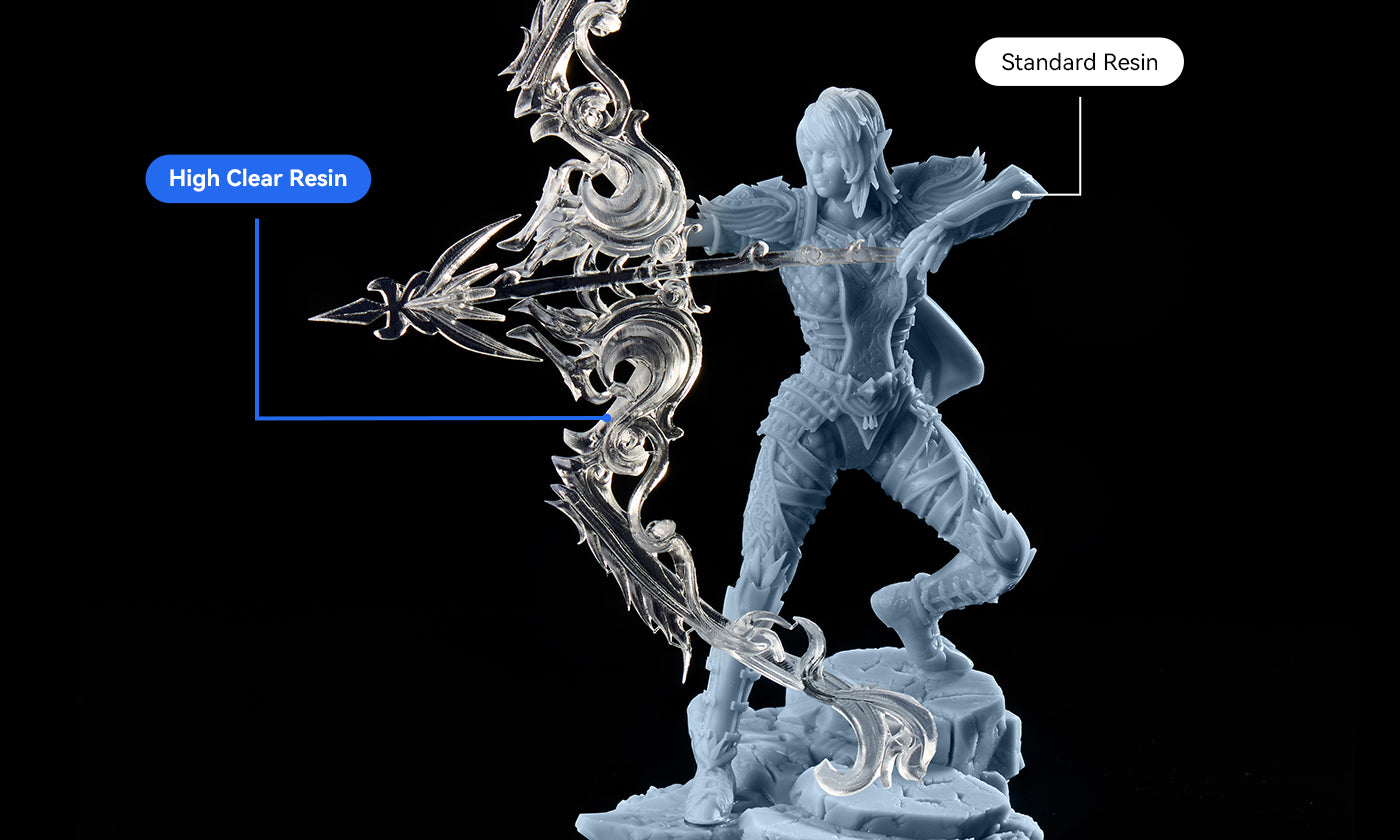

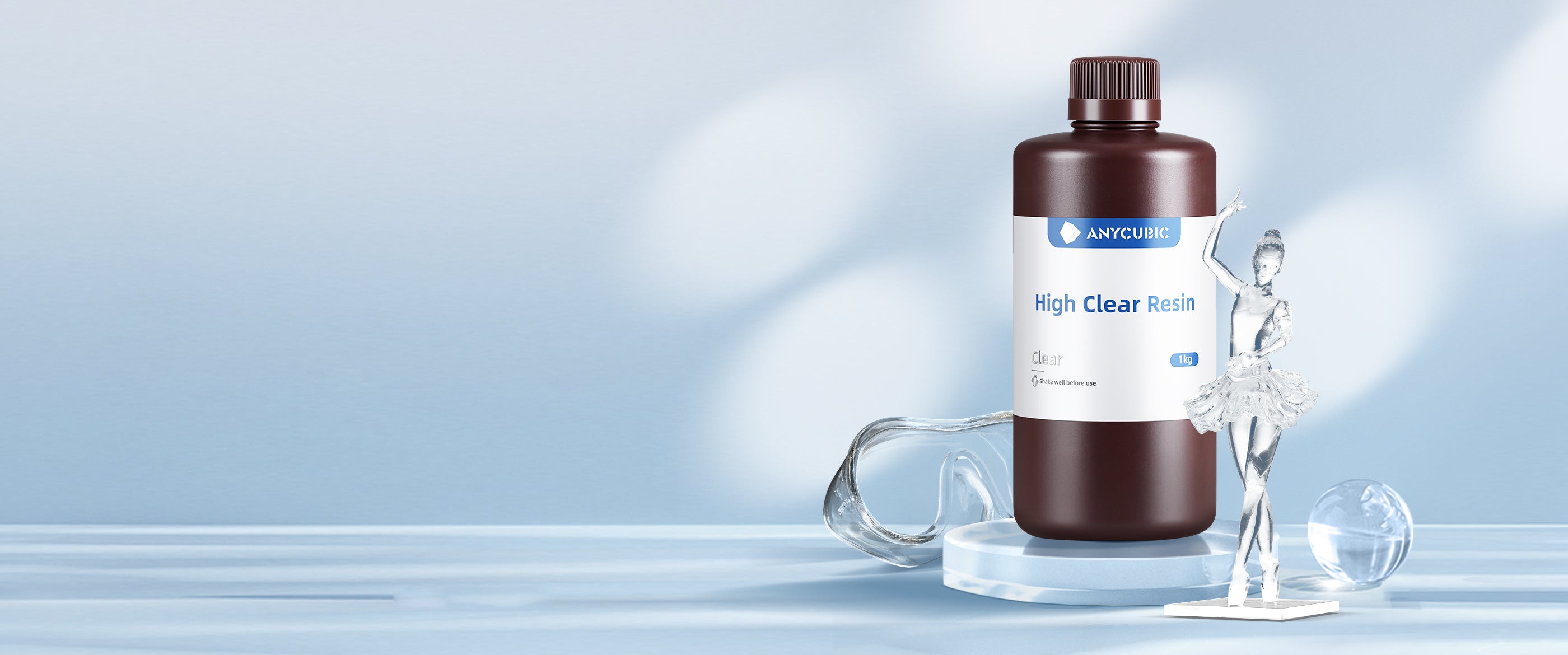

Anycubic High Clear Resin brings the prints the features of high transparency and long-lasting clarity that exceed most other resins in the market.

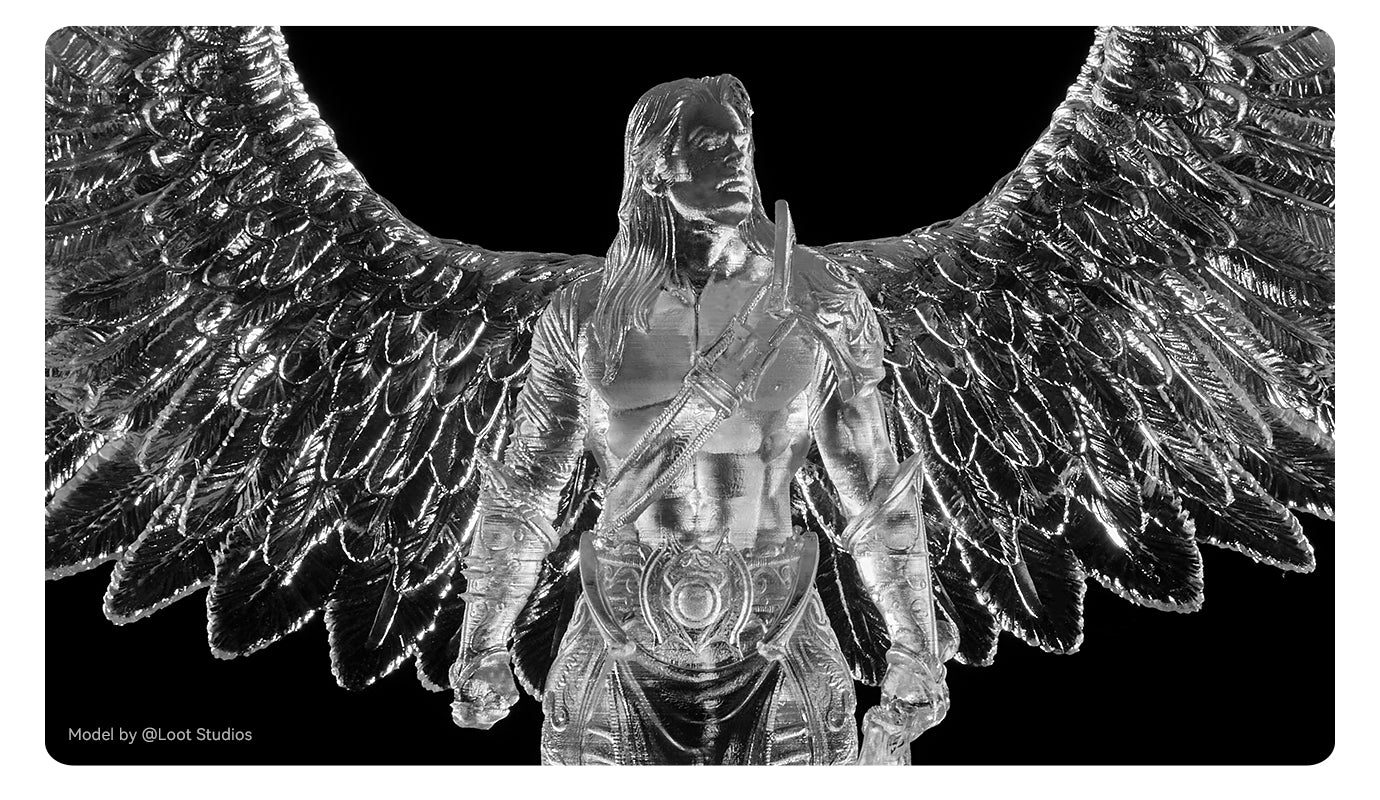

Smooth & Fine Surface Finish
It offers the parts with a detailed and stunning surface. In order to get a polished look, it's recommended to apply coats of Anycubic High Clear Resin or vanish on the surface before curing.

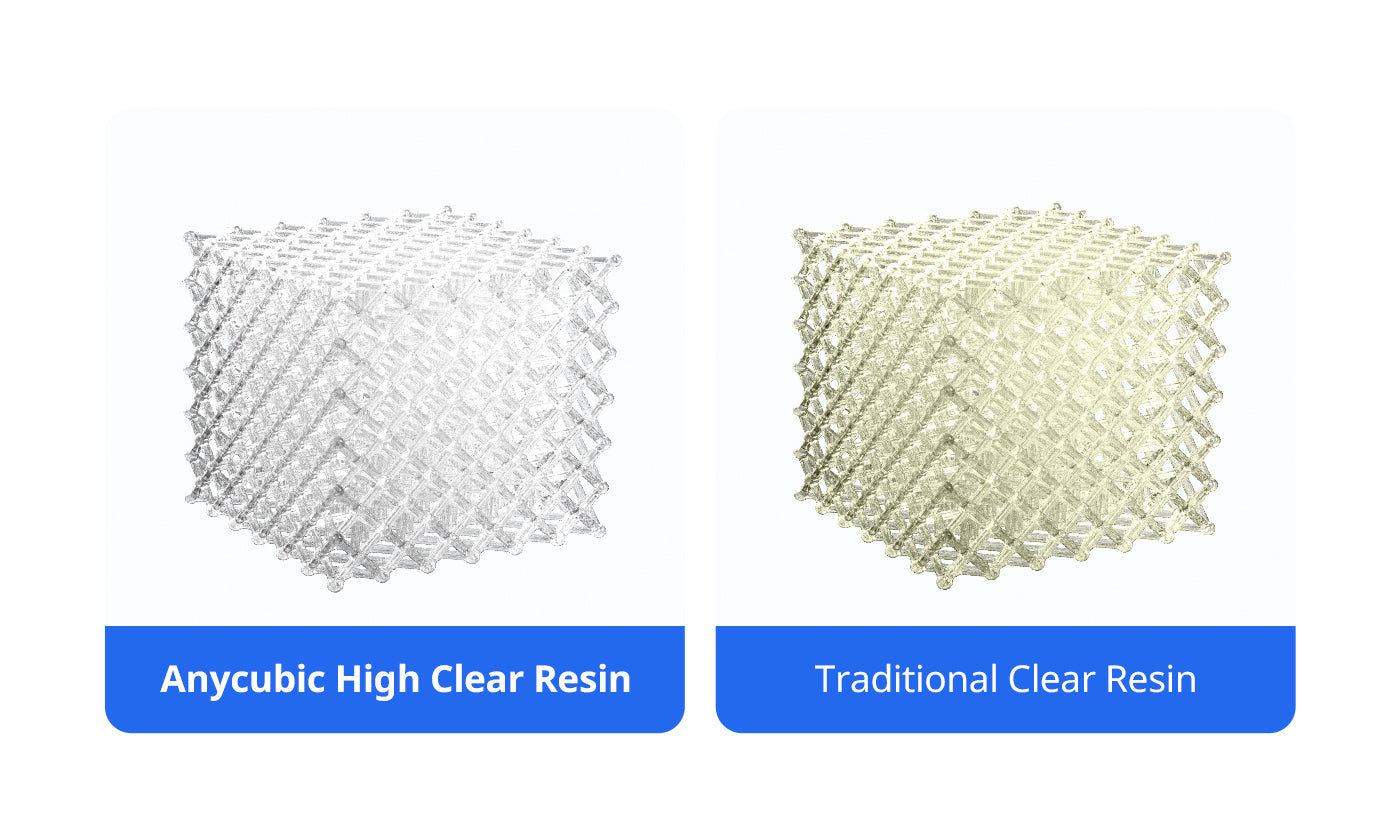

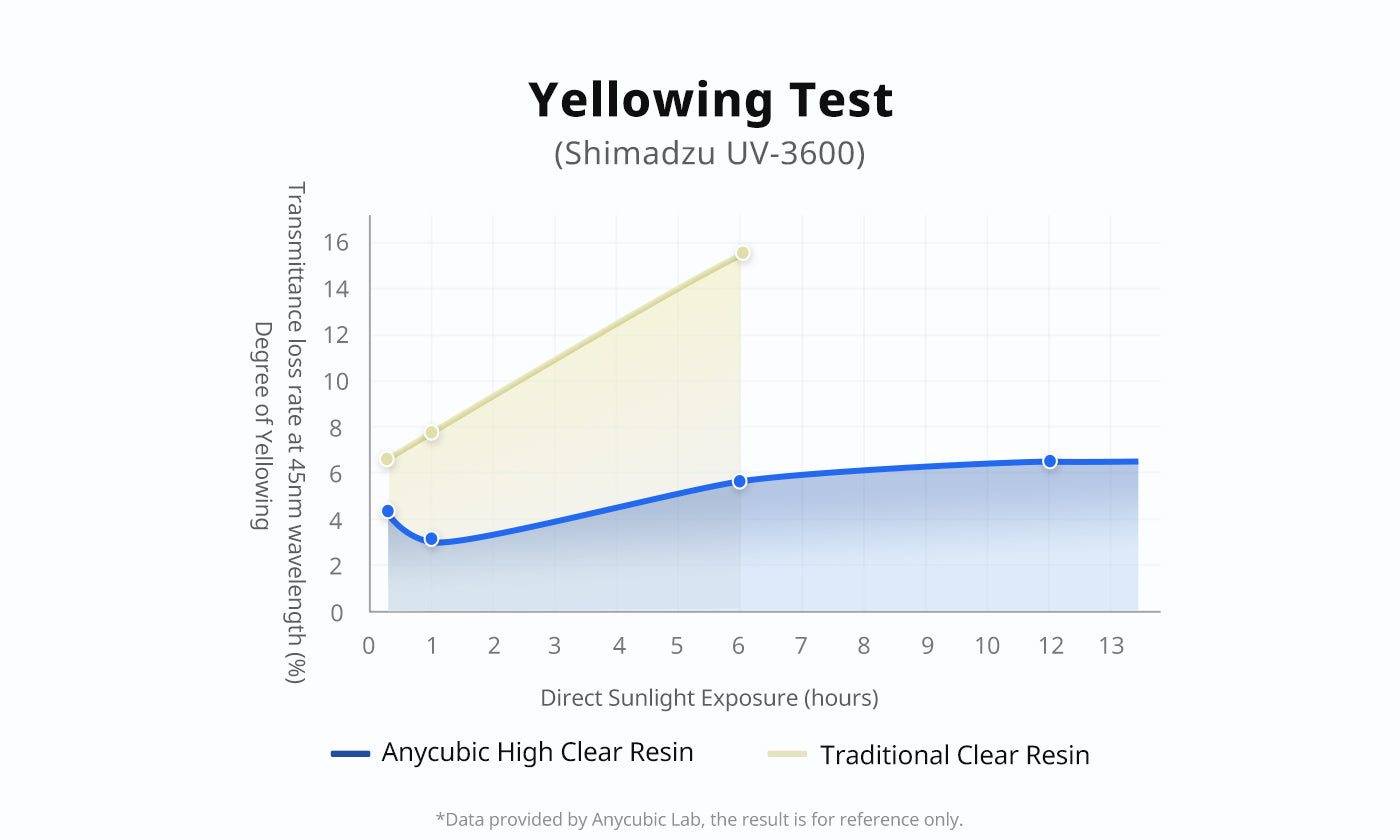

Excellent Resist Yellowing Performance
Anycubic High Clear Resin is designed to print parts that can stay crystal and clear without yielding a yellow hue in an interior environment for a long time.

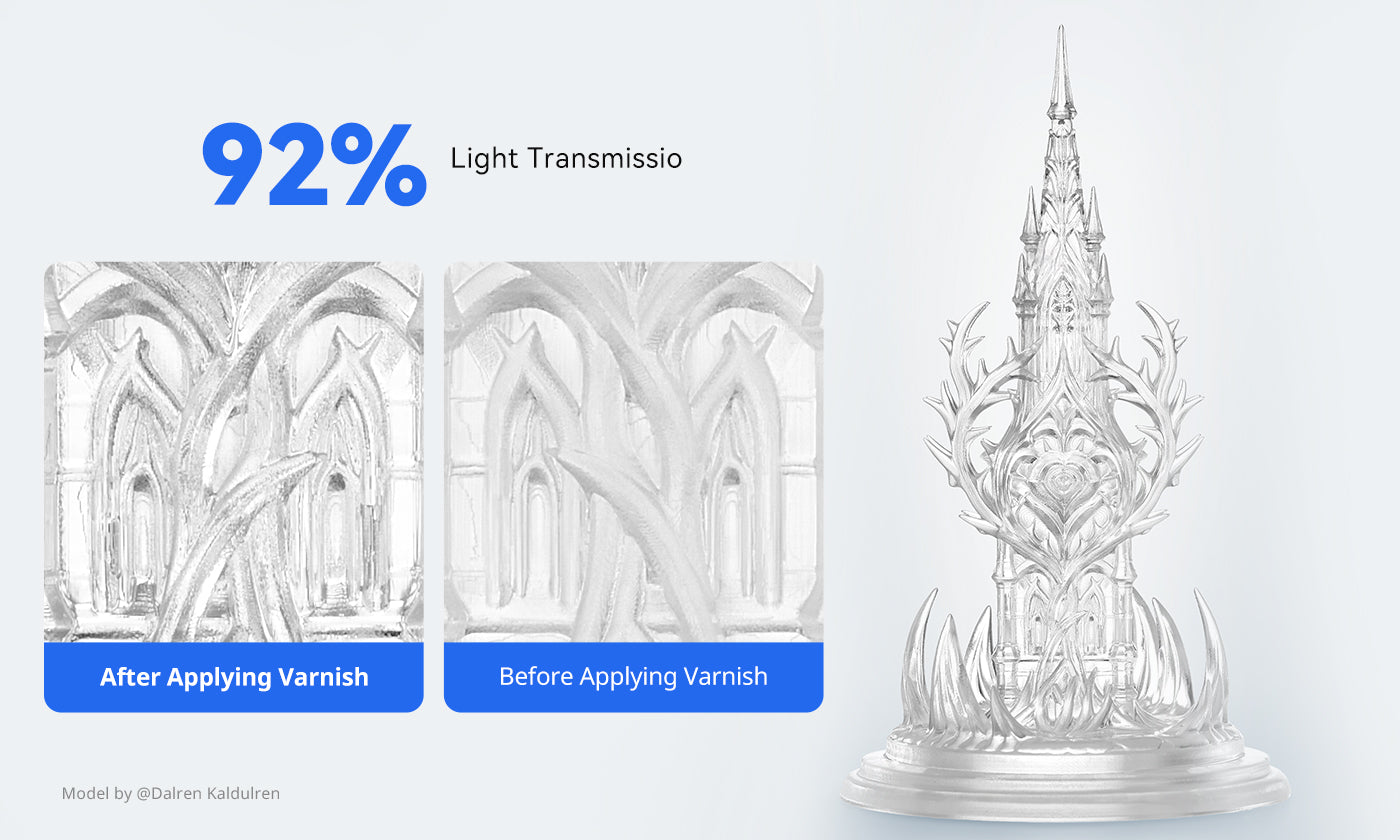

Model Varnishing
*Better long-lasting transparency and clearance after model varnishing
Tough and Resilient Mechanical Property
Due to the optimized formula, a 100% rise in resilience compared to standard resin, making the prints more durable and less likely to break.

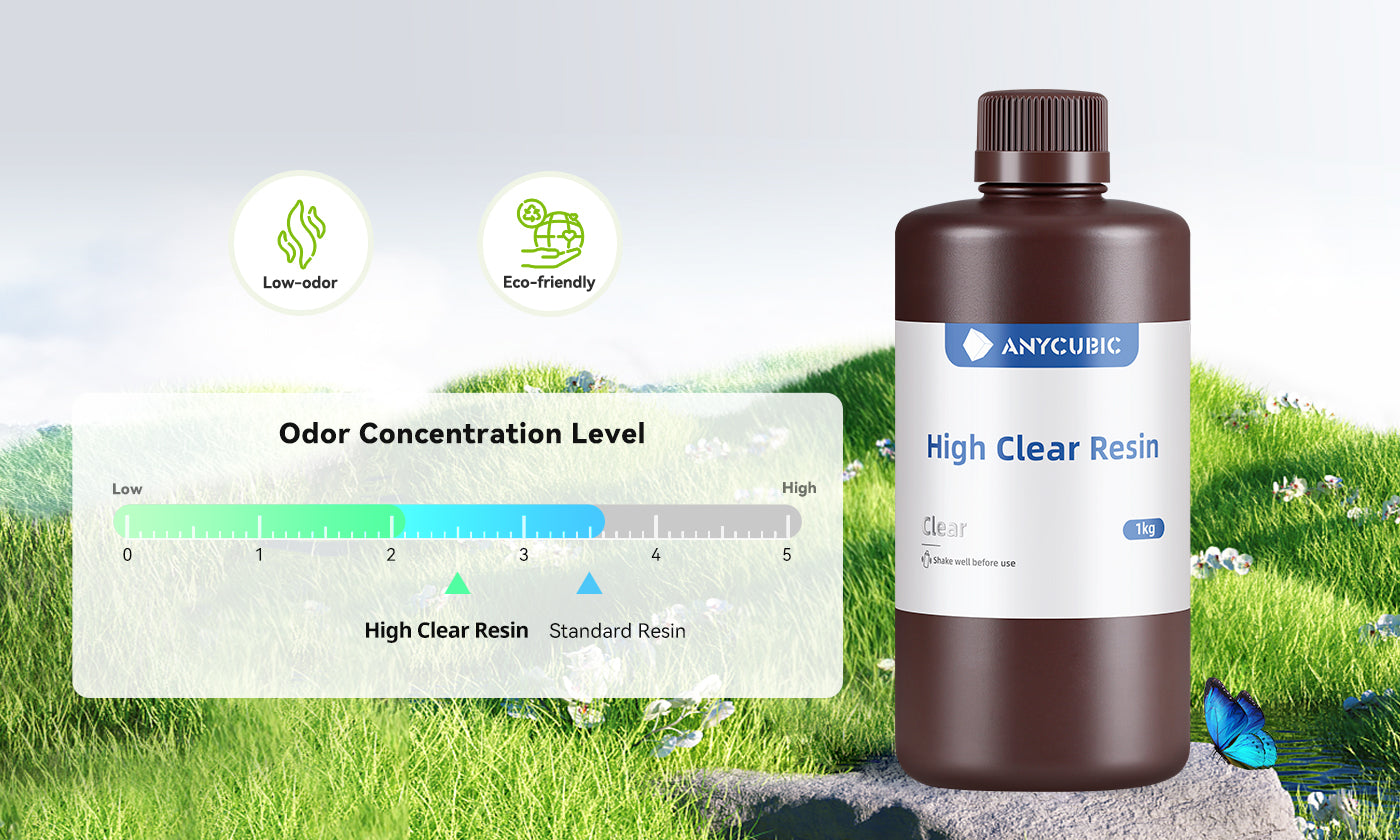

Light odor and safe
The High Clear Resin has a light odor and is less irritating, bringing users a better and safer printing experience.
Wide Compatibility and Applications

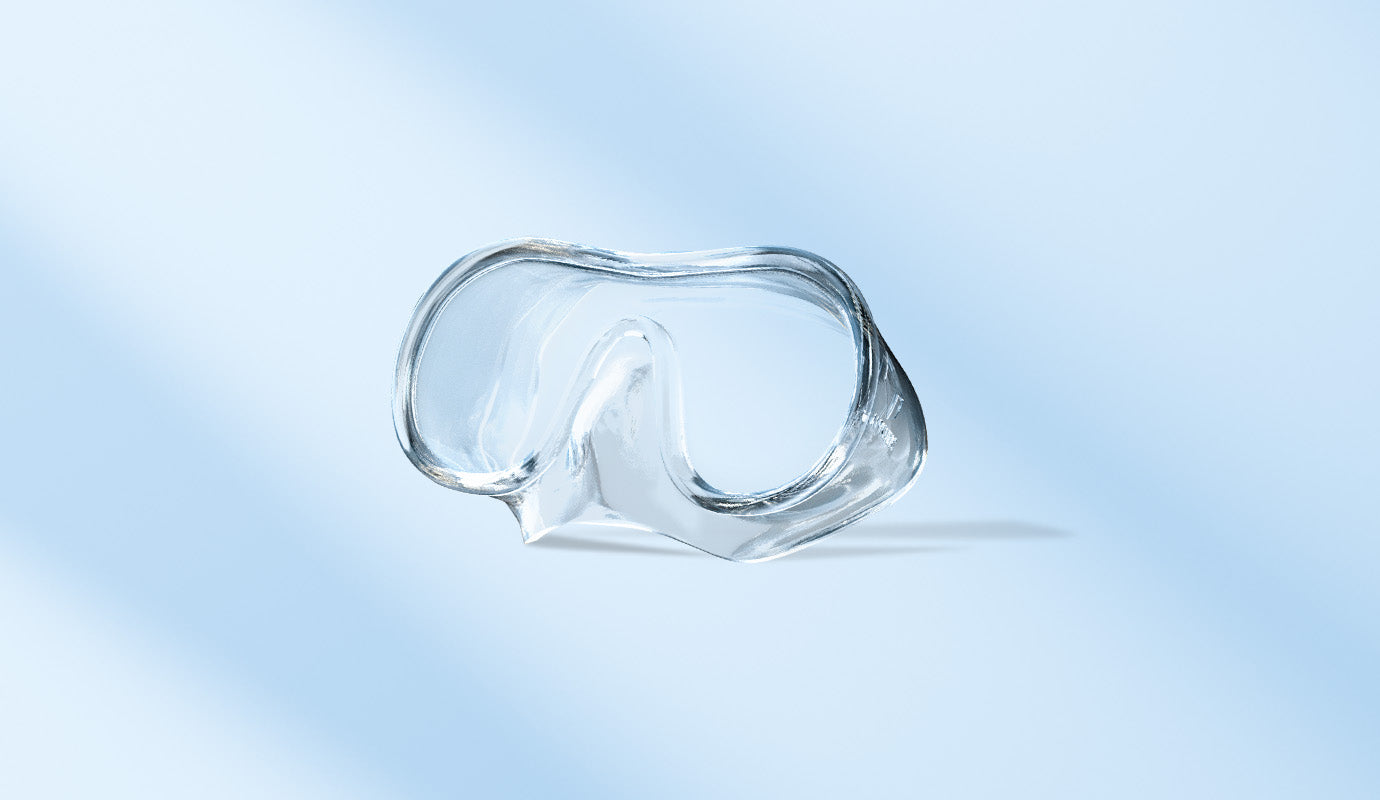

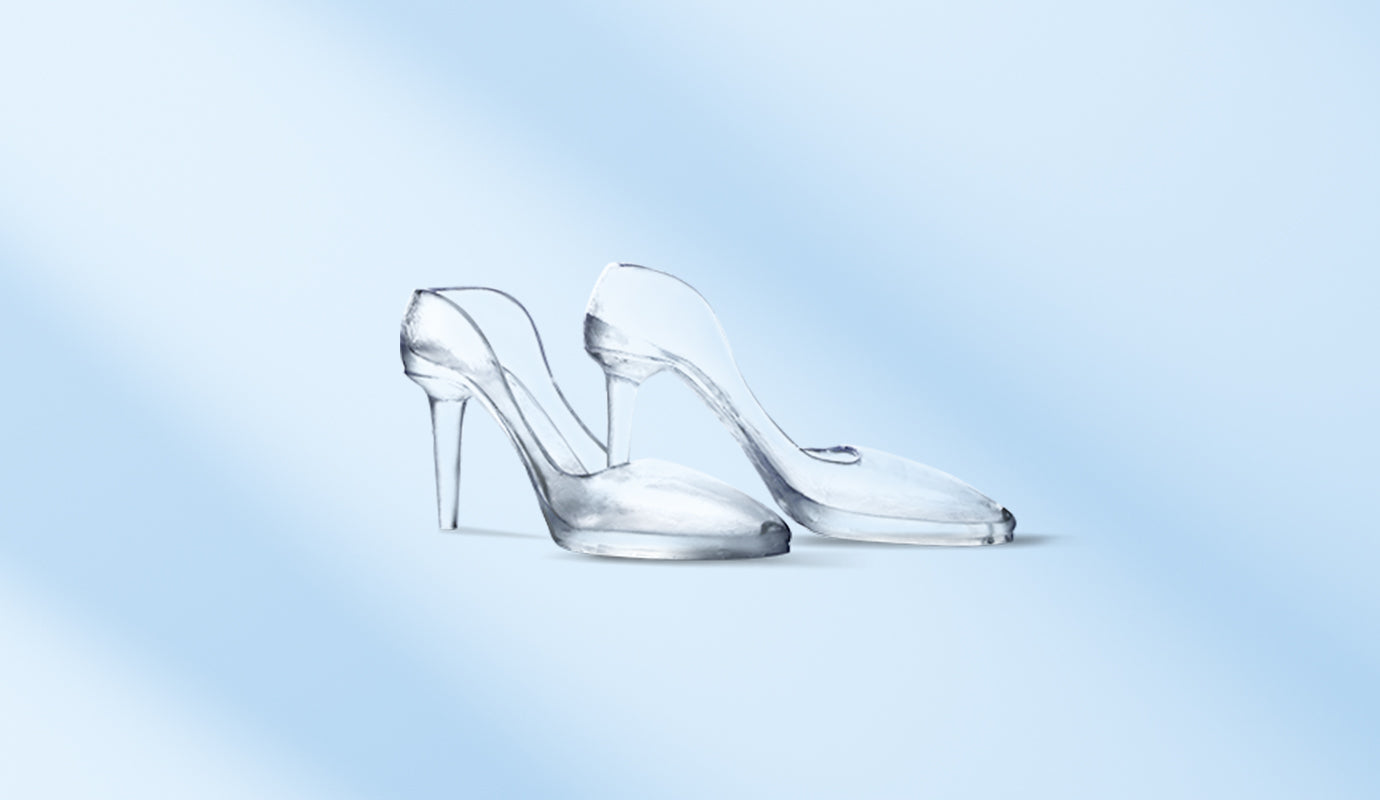

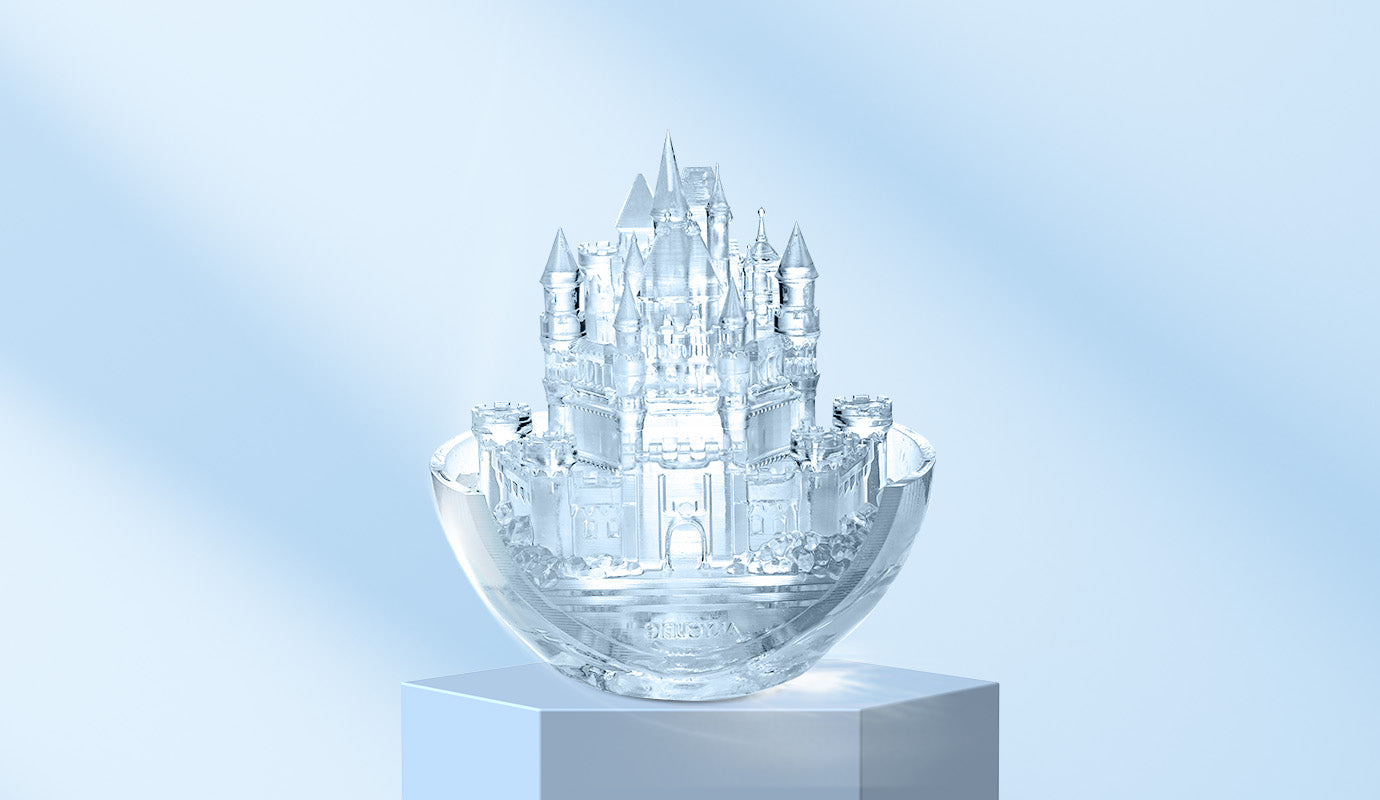

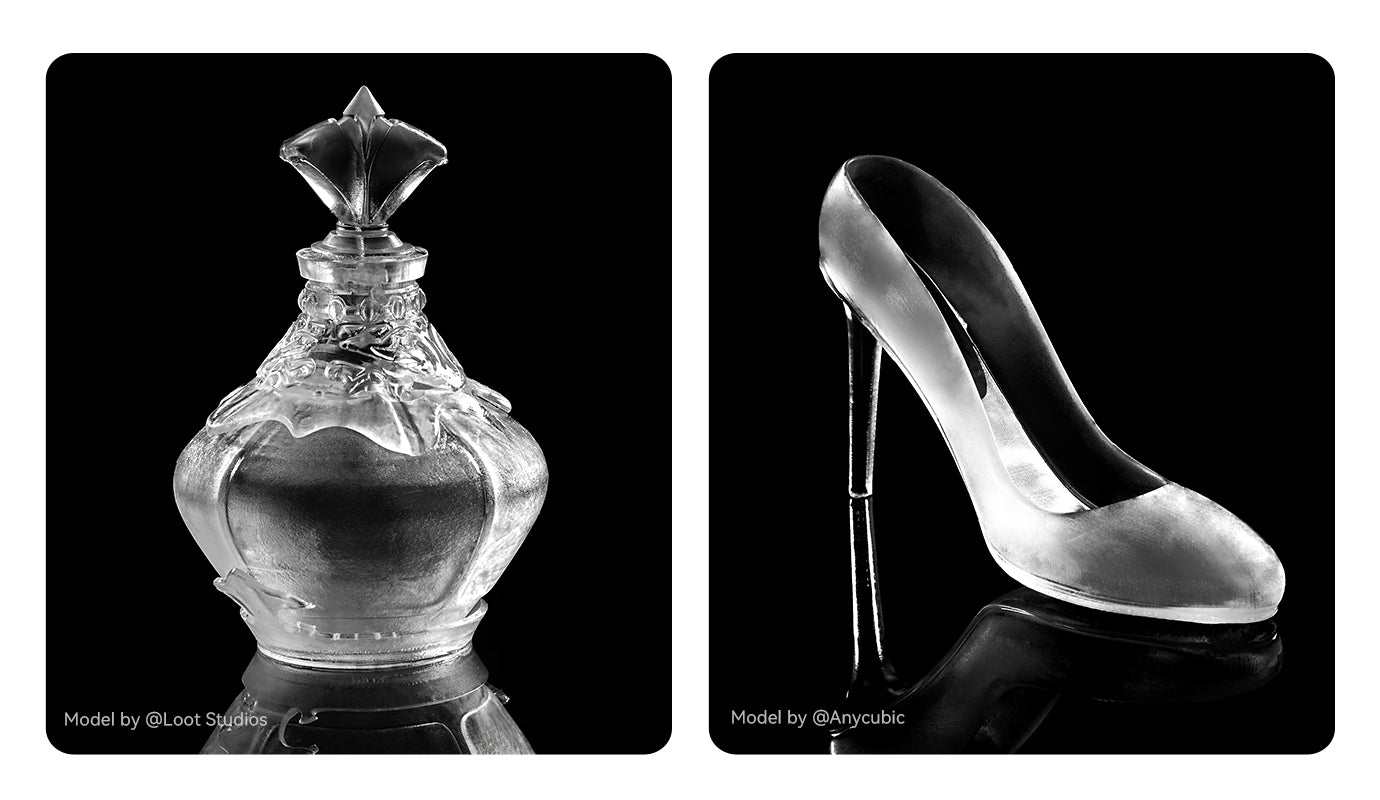

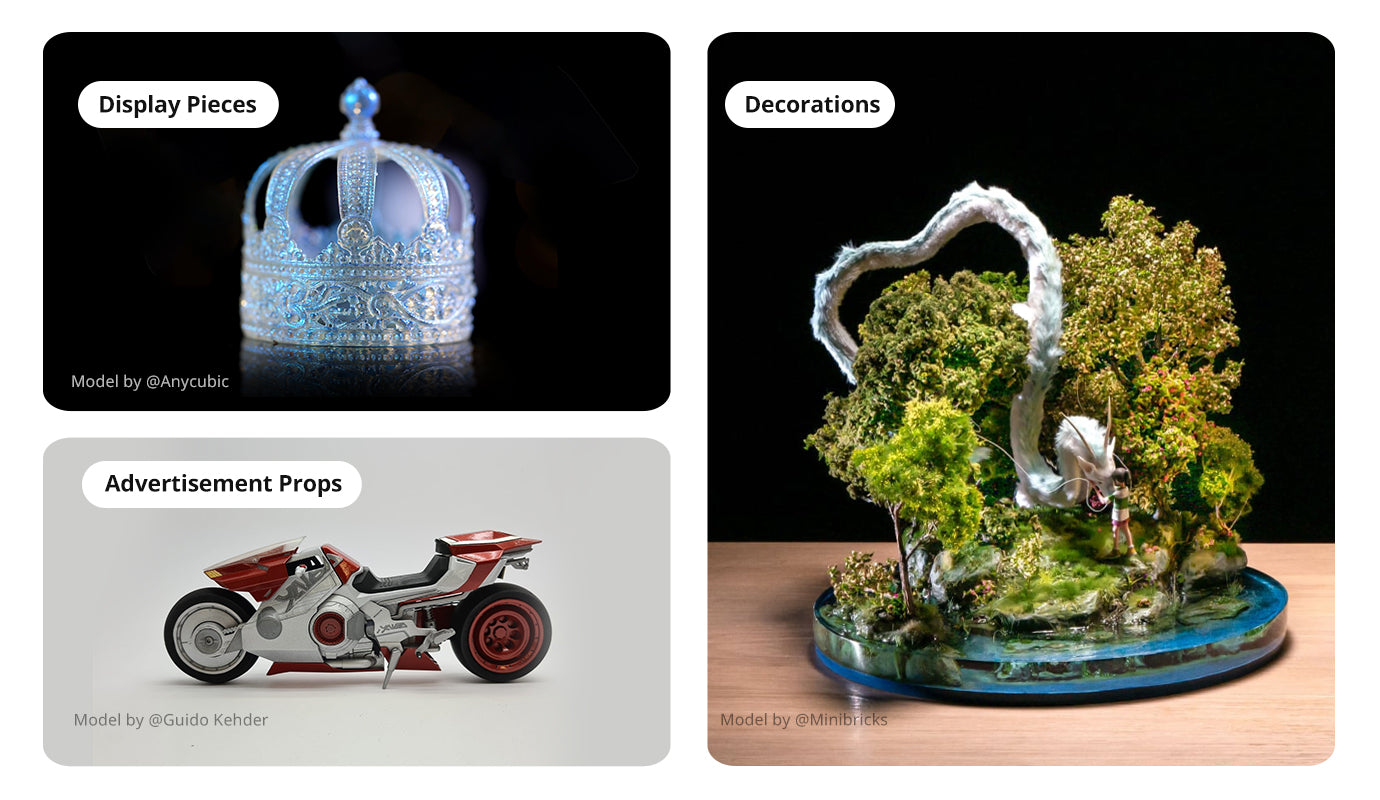

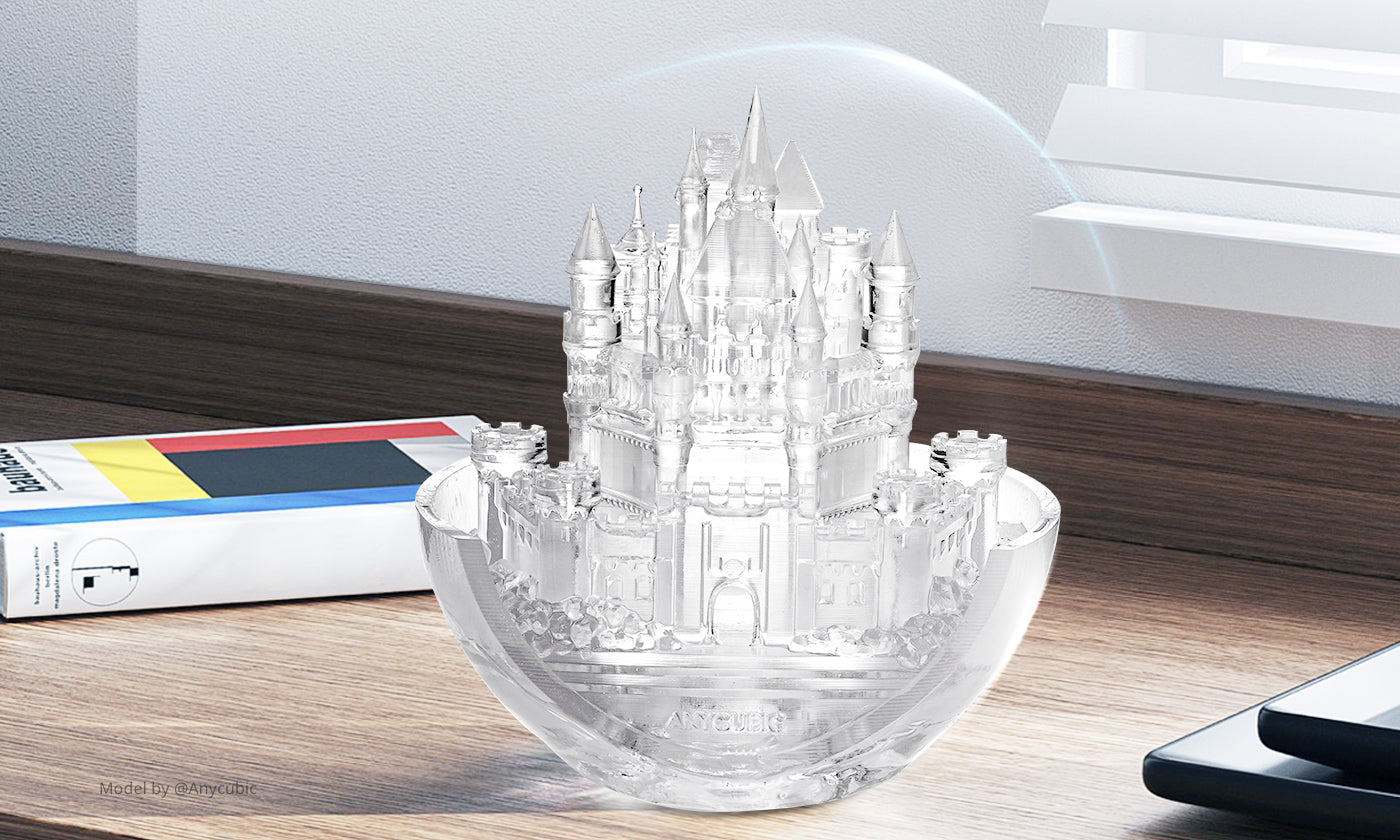

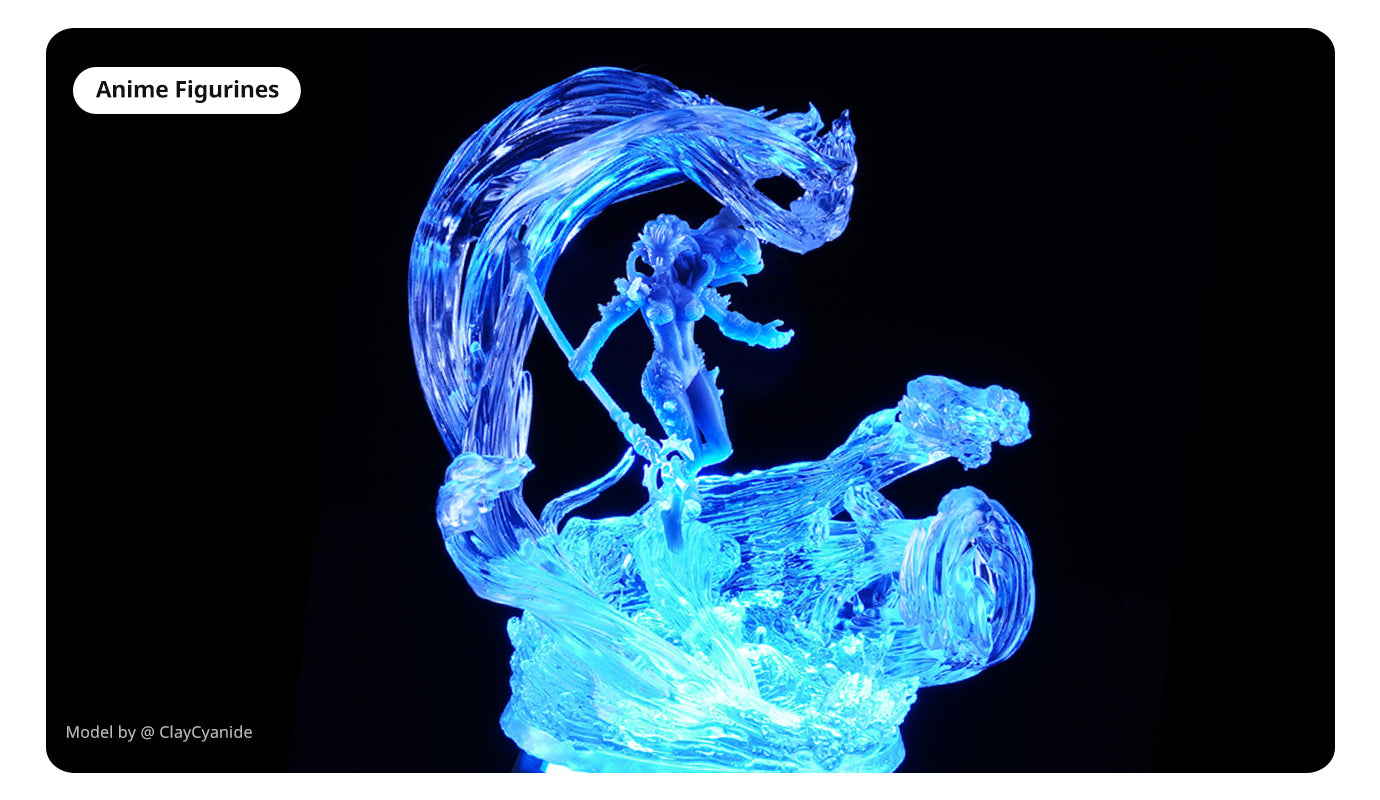

Sensitive to 365-405nm wavelength, Anycubic High Clear Resin works well with most resin 3D printers to produce excellent transparency objects like prototypes, gifts, or jewelry.
File Download
Resin Parameters
Color Type
Recommended Printing Parameters
| Printer Model | Layer Thickness | Exposure Time | Light-Off Time | Bottom Exposure Time | Bottom Layers | Anti-Aliasing Level | Z Lift Distance | Z Lift Speed | Z Retract Speed |
| Photon Mono M7 Pro | 0.05 mm | 4 s | 0.5 s | 25 s | 4 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono M7 | 0.05 mm | 4 s | 1 s | 35 s | 4 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono M5s Pro | 0.05 mm | 4 s | 0.5 s | 30 s | 5 | 1 | 8 mm | 6 mm/s | 6 mm/s |
| Photon Mono M5s | 0.05 mm | 4 s | 0.5 s | 25 s | 5 | 1 | 8 mm | 5 mm/s | 6 mm/s |
| Photon Mono M5 | 0.05 mm | 4 s | 0.5 s | 25 s | 5 | 1 | 8 mm | 5 mm/s | 6 mm/s |
Instructions for Use
(1) Before use:
Shake the liquid resin before use. Clean the resin tank and the molding platform to keep the bottom of the resin tank in good condition for light transmission.
(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements. Select the correct print parameters and settings for printing.
(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonal pliers, tweezers, containers, gloves; ethanol(≥95%), lactate, or isopropyl alcohol cleaning solution;
(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade.

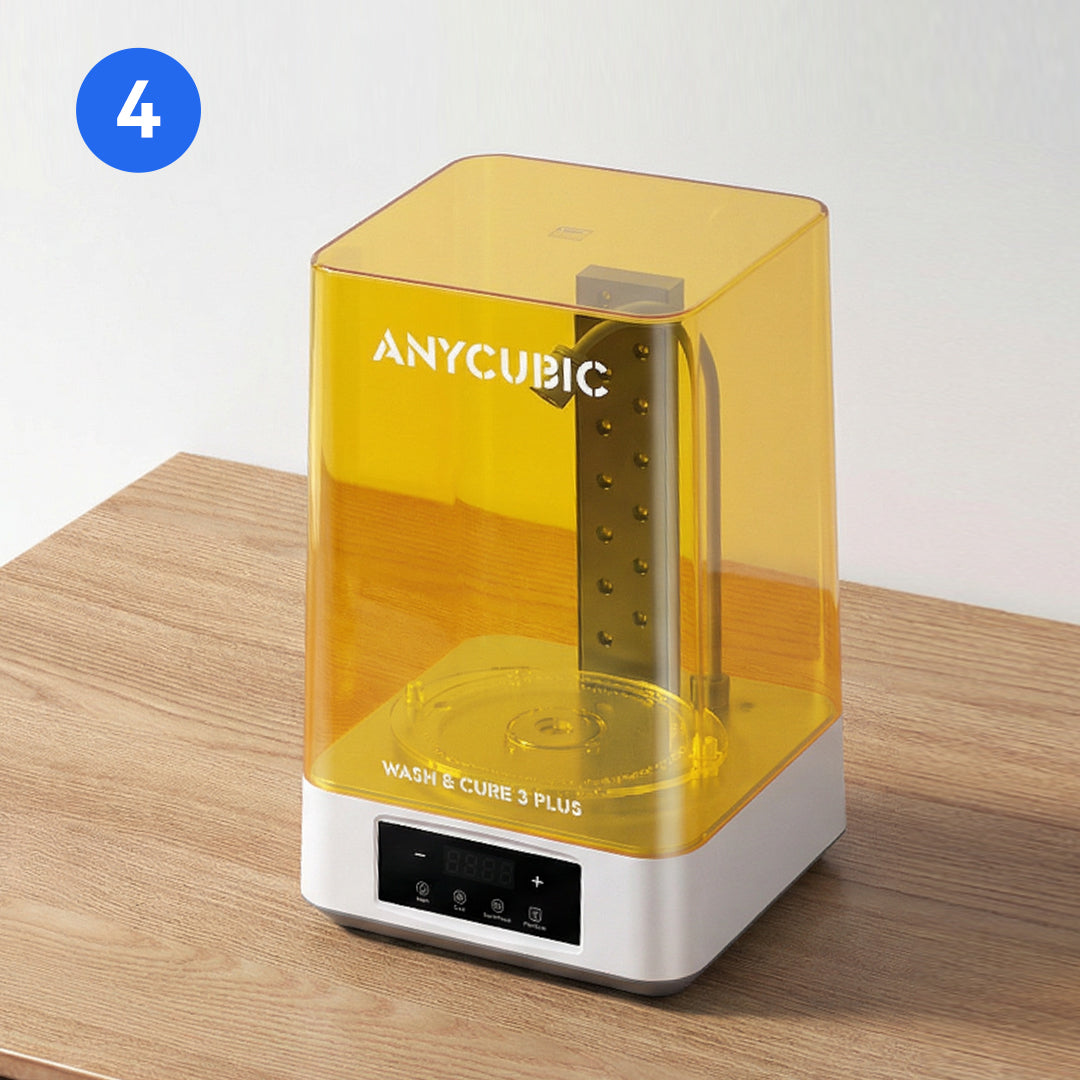

B. Submerge the model in the cleaning solution, rinse or ultrasonically wash, then take out and drain; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C.Proper processing, such as removing support, polishing, coloring, etc.
Precautions
- The ideal condition for storing uncured resin is a cool, dark place at room temperature and protected from light to avoid high temperature or sunlight.
- Suggested operating temperature is 18-35°C, and a low temperature may affect the printing effect; thus, the resin can be properly preheated before use (not more than 60°C).
- If the resin pigment settles, it can be used after stirring or shaking.
- In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
- To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
- To ensure the ideal performance of the curable material, it is necessary to control the intensity and time of the light source after curing. Therefore, the following steps are recommended:
(1) The intensity of the mercury lamp or LED light source is 5-10 mW/m², and the duration is no more than 1 hour (self-regulation);
(2)The exposure time in the sun (summer) is around 1 hour;
(3) Proximity or long-term exposure under strong light sources such as high-power high-pressure mercury lamps is prohibited.
(4) It is recommended to print in a dark room or be covered with a lid while printing, as resin is a photosensitive material.
