Resin Parameters
Wavelength | 365-405nm | Elongation at Break | 16-20% |
Density | 1.14g/cm³ | Flexural strength | 52-65MPa |
Viscosity | 75-85 cPimPa·s | Felxural modulus | 1700-3300 MPa |
Surface Hardness | 83-85D | Tensile Strength | 37-47 MPa |
Bottom exposure time | 15-25s | Normal Exposure | 1.5-2.8s |
Recommended Printing Temperature | ≥20℃ | Shelf Life | 1.5Years |
Resin wash | Wash time more 3mins with 95°isopropyl alcohol | Curing Method | 3mins under UV light |

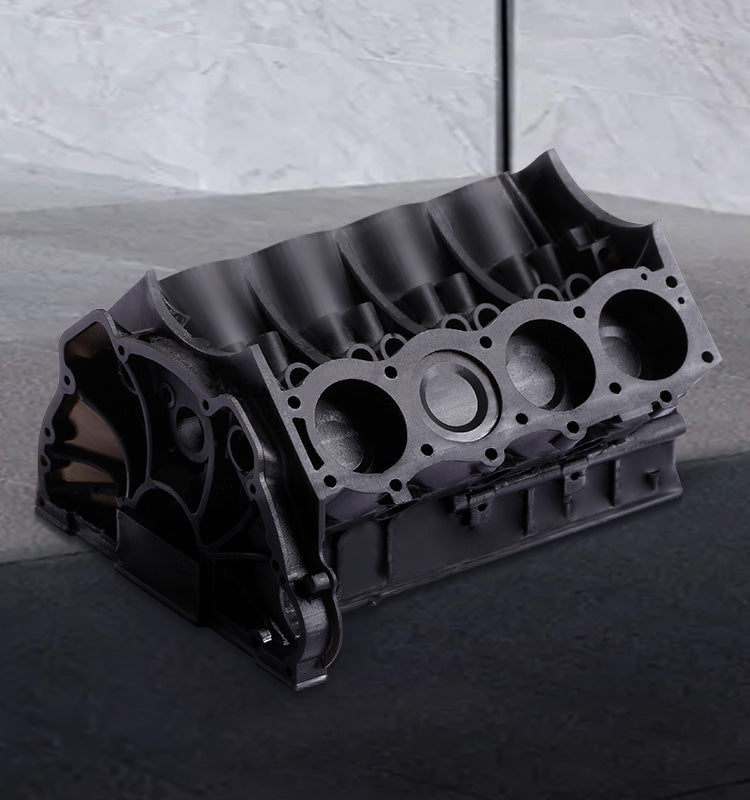

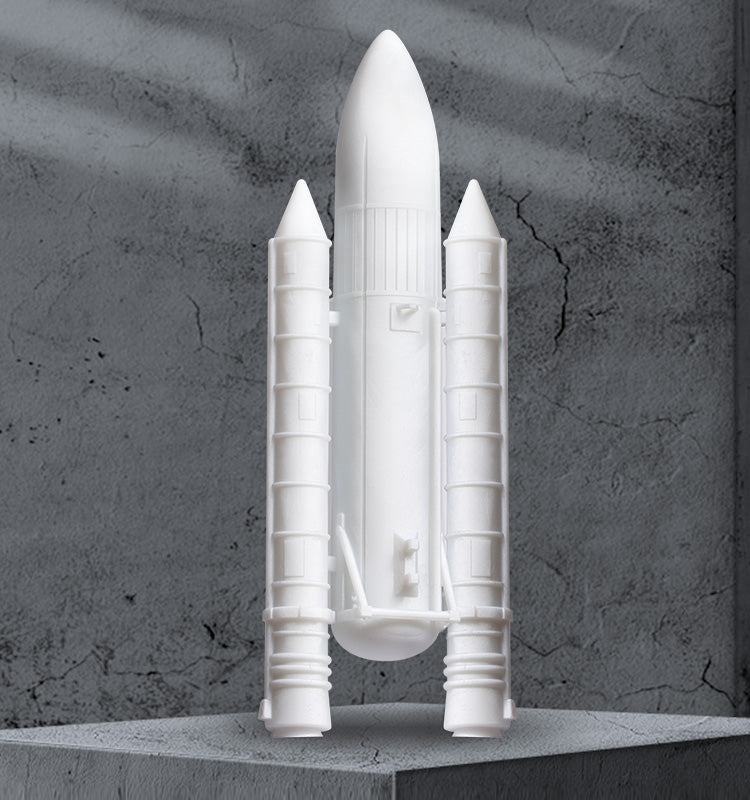

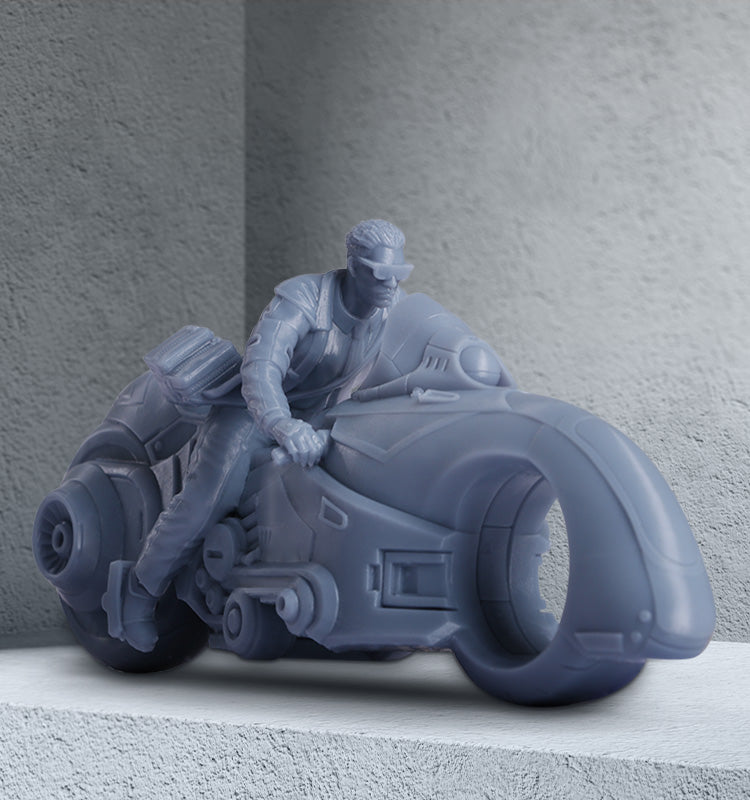

Model Print
Recommended Printing Parameters
Printer Model | Layer Thickness | Exposure Time | Off Time | Bottom Exposure Time | Bottom Layers | Anti-alias | Z Lift Distance | Z Lift Speed | Z Retract Speed |
---|---|---|---|---|---|---|---|---|---|
Photon Mono M7 Pro | 0.1mm | 1.4s | 0.5s | 15s | 3 | 1 | 4mm | 15mm/s | 15mm/s |
Photon Mono M5s Pro | 0.1mm | 1.9s | 0.5s | 15s | 5 | 1 | 3mm | 20mm/s | 20mm/s |
Photon Mono M5s | 0.1mm | 1.9s | 0.5s | 15s | 5 | 1 | 3mm | 20mm/s | 20mm/s |
Photon Mono M5 | 0.1mm | 2s | 0.5s | 15s | 5 | 1 | 5mm | 6mm/s | 6mm/s |
Photon Mono X 6Ks | 0.1mm | 2.5s | 0.5s | 15s | 5 | 1 | 6mm | 4mm/s | 6mm/s |
Photon Mono 2 | 0.1mm | 2.5s | 0.5s | 18s | 5 | 1 | 5mm | 4mm/s | 6mm/s |
Photon Mono M3 Max | 0.1mm | 2.8s | 0.5s | 25s | 6 | 1 | 8mm | 4mm/s | 4mm/s |
Photon Mono X2 | 0.1mm | 2.5s | 0.5s | 18s | 5 | 1 | 6mm | 4mm/s | 6mm/s |
Photon M3 Premium | 0.1mm | 2.5s | 0.5s | 25s | 5 | 1 | 6mm | 6mm/s | 6mm/s |
Photon X 6K | 0.1mm | 2s | 0.5s | 18s | 6 | 1 | 6mm | 4mm/s | 6mm/s |
Photon Mono 4K | 0.1mm | 2s | 0.5s | 25s | 6 | 1 | 5mm | 4mm/s | 6mm/s |
Photon D2 | 0.1mm | 2.5s | 0.5s | 18s | 5 | 1 | 5mm | 2mm/s | 3mm/s |
Photon M3 Premium | 0.1mm | 2.5s | 0.5s | 25s | 5 | 1 | 6mm | 6mm/s | 6mm/s |
Photon M3 | 0.1mm | 2s | 0.5s | 18s | 5 | 1 | 5mm | 4mm/s | 6mm/s |
Photon M3 Plus | 0.1mm | 1.5s | 0.5s | 18s | 6 | 1 | 6mm | 6mm/s | 6mm/s |
Recommendation Index
Improved toughness,more resistant to bending
Color Type
Instructions for Use
(1) Before use:
Shake the liquid resin before use;Clean the resin tank and the molding platform to keep the bottom of the resin tank in light transmission.
(2) When using:
Unscrew the cap and add it to the resin tank according to the equipment requirements;Select the correct print parameters and settings for printing.
(3) After use:
After printing, please use the matching tools for post-processing, including blade, diagonal pliers,tweezers,containers,gloves; ethanol(≥95%),lactate or isopropyl alcohol cleaning solution;
(4) Post-processing steps:
A. Remove the printed model from the molding platform with a blade;
B. Submerge the model in the cleaning solution, rinsed or ultrasonically washed, then taken out and drained; ANYCUBlC Wash and Cure machines are suggested to ensure better effect.
C.Proper processing, such as removing support, polishing, coloring, etc.
(5)Wastewater post-process:
A.Do not discharge wastewater directly into the sewer to avoid contaminating groundwater
B.Heat the wastewater,let most of the water evaporate, and then discard the residue after curing by curing machine and sunlight.
Precautions
The ideal condition for storing uncured resin is a cool, dark place at room temperature and protect from light
to avoid high temperature or sunlight.
Suggested operating temperature is 18-35℃, and a low temperature may affect the printing effect, thus, the
resin can be properly preheated before use (not more than 60°C).
If the resin pigment settles, it can be used after stirring or shaking.
In order to ensure the performance of the resin, please take out the model in time after cleaning to avoid the model soaking in water for a long time.
To ensure the mechanical properties of the model, please perform post-curing in time after cleaning and drying.
To ensure the ideal performance of the curable material it is necessary to control the intensity and time of the light source after curing.Therefore,
The following steps are recommended:
(1)The intensity of mercury lamp or LED light source is 5-10mW/m2,and the duration is no more than 1hour (self-regulation):
(2)The exposure time in the sun (summer)is around 1 hour;
(3)Proximity or long -term exposure under strong light sources such as high power high-pressure mercury lamps is prohibited
(4)It is recommended to print in a dark room or be covered with a lid while printing as resin is a photosensitive material.
(5)To avoid yellowing caused by long-term curing of High Clear Resin, please reduce the exposure time by half compared with other resin colors.
(6)Black resin may appear partially transparent in thin walls (<0.5mm), so the greater thickness can achieve better color effects.
PS: Material properties will vary depending on the molding equipment. post-curing method and testing equipment. For safety information,please refer to the MSDS of this product. If you encounter any problems while using, please feel free to contact us.
FAQs
What models are suitable for printing with High Speed Resin 2.0?
What models are suitable for printing with High Speed Resin 2.0?
High Speed Resin 2.0 is suitable for printing large cosplay tools that do not require high precision, as well as for quickly printing prototypes and structural parts.
Does it have a strong odor? What can be used to clean and cure the models?
Does it have a strong odor? What can be used to clean and cure the models?
High Speed Resin 2.0 has a slight odor and should be cleaned with isopropyl alcohol. For curing, a Wash & Cure Machineis recommended.
Where can I find the recommended printing parameters for Anycubic's printers when using High Speed Resin 2.0?
Where can I find the recommended printing parameters for Anycubic's printers when using High Speed Resin 2.0?
You can view the recommended printing parameters on this details page. If you do not find the results you want, please contact our support team for answers.
Where can I download the MSDS file?
Where can I download the MSDS file?
Click here to download the MSDS of the resin.
If I buy 3KG of resin, will I receive a 3KG bottle of resin?
If I buy 3KG of resin, will I receive a 3KG bottle of resin?
When you purchase 3KG of resin, you will receive three 1KG bottles, not one single 3KG bottle. This applies to other quantities as well.
Where can I download the model for free?
Where can I download the model for free?
Click here to download the free model.
What should I do if my model keeps failing to print?
What should I do if my model keeps failing to print?
If you are unable to print or printing fails, please contact our support team for answers.
What should I do if I receive resin that is leaking?
What should I do if I receive resin that is leaking?
If your resin is leaking, it might have been damaged during transportation. Please take pictures of the product you received and contact our customer support team. They will assist you in resolving the issue.
