Getting Started with Your Anycubic Kobra 2 Pro: Mastering the Assembly and Setting Up

Anycubic Kobra 2 Pro is the speed ace of the Kobra 2 Series. It offers 10x faster printing speed and coordinates the printing quality, ensuring that users can obtain high-quality 3D prints with high efficiency. Then, welcome to the world of fast 3D printing with Anycubic Kobra 2 Pro. This guide will walk you through unboxing, installing, setting up, and first print of your Kobra 2 Pro. Read on for more information to have a smooth printing experience.


How to Set Up Anycubic Kobra 2 Pro

The standard printing speed of Anycubic Kobra 2 Pro fast 3D printer is 300mm/s, the maximum printing speed is 500mm/s, and the printing acceleration is 20000mm/s². It is configured with optimized extruder and motion settings for precise and efficient printing. In addition to this, the Kobra 2 Pro is also a printer designed to be user-friendly and easy to install and use. Below, we'll provide detailed assembly guide, unboxing video, and pre-power-on inspection suggestion.

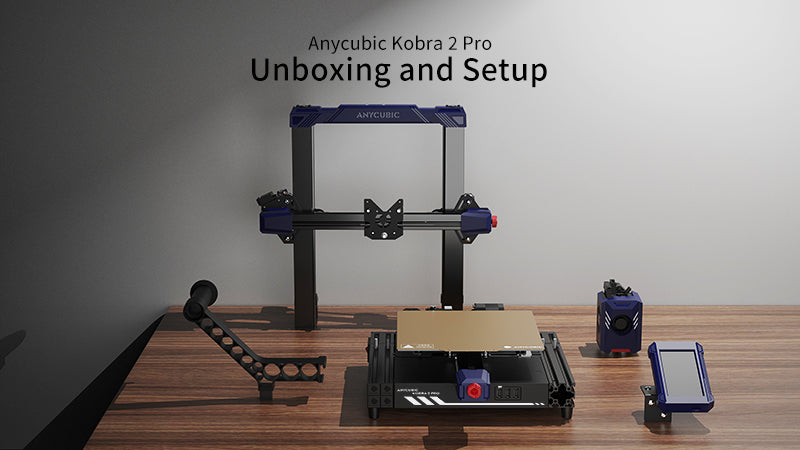

Overview of Anycubic Kobra 2 Pro

The whole machine consists of 5 modules: frame, print head, base, control panel, and filament holder. Assembly and daily maintenance are not difficult even for beginners. There is also a detailed user manual and video tutorial to help users install the Kobra 2 Pro.


Unboxing video guide: all the details of Anycubic Kobra 2 Pro

Assembly of Anycubic Kobra 2 Pro

Install frame: Use scissors to cut off the wire ties securing the gantry. Pull the Z-axis belt to raise the X-axis bracket. Assemble the printer gantry and printer base, and use the M4.0 hex key to fix it.

Install heated bed and touch screen: Slide the heated bed and assemble the magnetic build plate. Then assemble the print head, and use the M2.5 inner hexagon wrench to fix it. Connect the cable. The assembly touch screen is fixed with the M3.0 hexagon wrench.


Install the broken material detection device and filament holder: Use the M2.0 hex key to install the broken material detection device and connect the consumable tube to the quick connector. Assemble the filament holder and assemble it to the printer base.

Wire Connecting: Connect the connecting wire to the print head and use the buckle to further fix the wiring plug. According to the identification on the wiring, connect the terminal with respect to the terminal plug. Use the cable holder to secure the cables and consumable tubes. Secure the cables with zip ties.


Pre-Power-On Inspection for Anycubic Kobra 2 Pro

Check the print head: Check whether the print head shakes. If yes, use an open end wrench to adjust the hexagonal spacer post located under the print head until it slides smoothly without wobbling.

Check the build platform: Check for build plate wobble. If yes, use an open end wrench to adjust the hex spacer post located under the build plate until it slides smoothly without wobbling.

Check the belts: Adjust the X-axis and Y-axis belt tensioners screw the tensioners to the maximum, and then loosen them one turn to make the belt tight.

Check the power: Confirm whether the input mode of the power supply voltage is correct, and please adjust the appropriate voltage level according to the local voltage situation.


Leveling Printer and First Print with Anycubic Kobra 2 Pro

Anycubic Kobra 2 Pro is equipped with the upgraded LeviQ 2.0 auto-leveling system, supports smart z-axis offset and customized z-axis offset adjustment. Before printing for the first time, it is necessary to level the printer. Click on Tools - Control - Auto Leveling. Just wait for Kobra 2 Pro to finish leveling.

Start your first print job. You can select a model from the local or U disk, click and start printing. It is recommended to select a pre-loaded file for the first print model. According to the first layer of printing, you can adjust the z-axis offset value to achieve the correct distance between the print head and the build platform for good print results. Consult the user manual for more detailed information on fine-tuning settings and calibration.
