Maximizing Your 3D Printing Experience: How to Replace Motherboard of Anycubic Photon M3 Max

The motherboard, an indispensable component, is no different for resin 3D printers. Why is it so important? If replacement is required, what steps should be taken? In this guide, we will mainly look at the motherboard replacement issue of the resin printer Anycubic Photon M3 Max. Regular maintenance is essential to keeping your M3 Max in top condition. For users experiencing issues with malfunctioning 3D printers, locating the problem and replacing the motherboard when necessary can restore the working ability of this 3D printing device.

Maintenance of Resin 3D Printer

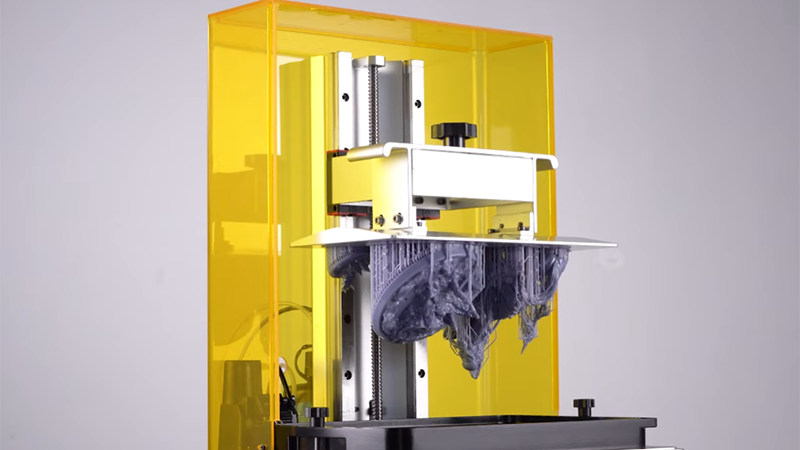

Anycubic Photon M3 Max is an impressive high-precision, large-format resin 3D printer. It has a 13.6-inch LCD screen with 6,480 x 3,600 pixels and a print size of 398x164x300 mm. It can meet the needs of printing large-size models, improve the efficiency of large-scale miniature model projects, and ensure the accuracy and stability of printing. It is the tool chosen by many 3D printing enthusiasts.

In the process of users exploring the world of 3D printing, they usually face a series of challenges, which may be setting appropriate printing parameters or post-processing the model to maintain the stability of the material.The maintenance of resin 3D printers is also a common problem that requires time to study and master. The advantage of mastering the maintenance and replacement of printer parts is not only to keep your 3D printer performing at its best, but also to save money and increase the efficiency of your investment.

maintenance-of-anycubic-photon-m3-max

How to Replace Motherboard for Anycubic Photon M3 Max

The motherboard is equivalent to the brain, controlling resin 3D printing to implement various functions and ensuring communication between software and hardware. In addition to replacement in case of failure, new upgraded motherboards, replacement to your printer can bring increased functionality, upgrades, etc. In this guide, we will show 5 steps to replace the Anycubic Photon M3 Max motherboard, which can serve as a reference for users. If you need more information and help, it is recommended to contact Anycubic official technical team. They will help you locate the problem of M3 Max and provide solutions.

tools-for-replacing-motherboard-of-m3-max

Step 1: Use an M2.5 hex key to loosen the screws that fix the front cover. First remove the screen FPC cable. Then remove the FPC soft wiring connected to the control panel on the main board and remove the front cover. Tips: It is recommended to use a mobile phone to take a photon to record the wiring position before replacement.

step-1-remove-the-wiring

Step 2: Remove the remaining wiring plugs on the motherboard one by one. Use an M2.5 hex key to loosen the screws securing the motherboard. Then take out the motherboard.

step-2-lossen-screws-on-the-motherboard

Step 3: Use an M2.5 hex key to re-fix the new motherboard. Install the wiring plugs back on the new motherboard one by one.

Step 4: Connect the FPC wire connecting the screen back to the motherboard. Connect the FPC soft wiring connected to the control panel back to the main board and install the front cover. Use the M2.5 hex key to re-fix the printer front cover.

step-3-remove-the-old-motherboard-and-install-the-new-one

Step 5: After completing the replacement of the M3 Max motherboard, please further check whether the components and connections are correct. Finally, you can power up and run a print test to ensure the replacement was successful.

check-the-new-motherboard-of-photon-m3-max

Tutorial Video: How to Replace Motherboard of Anycubic Photon M3 Max

Understanding what the resin 3D printer's motherboard does and knowing how to replace it allows users to take control and optimize their 3D printing experience. After troubleshooting the problem and determining if the motherboard needs to be replaced, you can refer to this guide and video tutorial for Anycubic Photon M3 Max motherboard replacement.
