How to Fine-Tune Z-Offset on a 3D Printer

Are you facing issues with your print's first layer warping or not adhering to the bed? Most likely, your printer's Z-offset is causing the problem, so it's important to check it right away. If you're new to FDM 3D printing and have no idea what Z-offset is, this article will explain what it is and its significance. Moreover, it will guide you on how to adjust 3D printer Z-offset.

What is Z-Offset on a 3D Printer?


3D printing Z-offset refers to the distance between the printer's nozzle and the build plate. Calibrating Z-offset is crucial that ensures accurate positioning for printing and promotes good adhesion of the first layer. You often need to calibrate the Z-offset of your printer, especially during the initial setup of your printer. Additionally, when you encounter some issues during printing that can negatively impact print quality, such as a poor first layer, inconsistent layer height, or nozzle clogging, these are signals for you to adjust your Z-offset. Even when changing materials, chaning layer height settings, or replacing the nozzle, it is necessary to re-calibrate the Z-offset as well.

Signals to adjust the 3D printer's Z-Offset:

  • First layer issues: Problems like elephant foot, layer shift, and first layer ripples.
  • Clogged nozzle: Inconsistent layer height differing from the expectation.
  • Component replacement: After replacing hardware related with the hotbed or print head, re-leveling and adjusting the Z-axis height are required.

What Can Affect the Results of Z-offset Calibration?

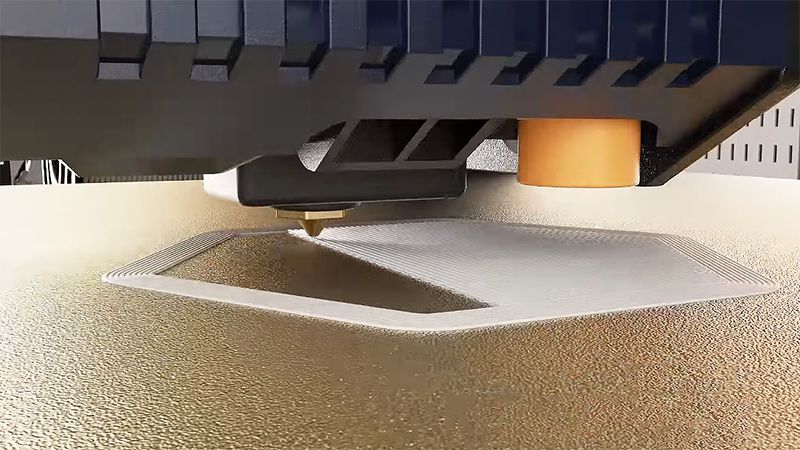

Z-offset 3D Printing

Adjusting the Z-offset is equivalent to adjusting the distance between the nozzle and the build plate. When the nozzle is too close to the build plate, it may lead to nozzle clogging and result in the nozzle rubbing against the build plate, potentially causing damage to the parts. Conversely, if the nozzle is too high, it can result in issues such as 3D print warpingfailure to stick to the bed, or layer separation.

Any factors that affect this distance (the nozzle and the build plate) will impact the calibration results. The influencing factors include not only the nozzle and build plate themselves but also the types of materials you use.

  • A level hotbed is a precondition for setting the Z-offset. The flatter the bed, the more precise the Z-offset calibration can be. Thus, leveling the 3D printer bed before Z-offset calibration.
  • The diameter of the nozzle can impact the Z-offset you set. Nozzles with larger diameters may require a larger Z-offset due to the increased extrusion, while smaller nozzles may require a smaller value.
  • Different types of materials can influence the Z-offset calibration. This is because their varying diameters can impact the extrusion volume of the melted material.
  • Hardware issues are mechanical problems that can affect the accuracy of the Z-offset. Any loose, misaligned, or aging components can have an impact on the printing precision of the printer.

How Can I Adjust the Z-Offset Properly?

Before adjusting the Z offset, it is essential to level the printer bed for successful Z offset calibration. You should perform auto bed leveling or manually level the bed, depending on the functionality of your 3D printer, to ensure that the printer bed is leveled.

There are distinct advantages and disadvantages when it comes to bed leveling methods. Manual bed leveling is often time-consuming and demands skill. On the other hand, auto bed leveling offers convenience and can be activated by a single button press. A good example of auto bed leveling is found in Anycubic Kobra 2 Neo, it uses a Z probe which is a small metal cylinder in the print head. The probe measures the distance between itself and the printer bed. If the probe consistently detects the same distance at every point on the bed, it indicates that the bed is properly leveled.

1. Manual Adjustment of Z-Offset

Calibrate Z-offset manually

After bed-leveling, place a piece of paper on the print bed to to check if your machine requires Z-offset calibration. Gently pull the paper, and if you feel slight resistance, it indicates that the Z offset might be properly adjusted. If not, adjust Z-offset value. To check the result, you can print a small-sized test model.

Most printers, including all the 3D printers in the Anycubic Kobra Series, allow users directly fine-tune the value of the Z offset in the printer's display. This functionality allows for easier access and intuitive adjustment of the Z offset, enhancing the user experience.

2. Automatic Adjustment of Z-Offset

Smart Z-offset

Pick a printer that features automatic Z-offset adjustment. For example, Anycubic Kobra 2 Neo contains a smart module. This module includes a Z probe that can precisely perform automatic bed leveling, determining the Z-axis zero position of the build plate. Then, find the zero position of the nozzle by using the nozzle to trigger the switch on the smart module. Finally, a Z-offset calibration value is generated by comparing the difference between these two zero positions, enabling automatic adjustment of the Z-offset. Certainly, it also allows users to manually fine-tune the Z-offset using the printer's screen according to their preferences. The combination of auto-leveling and smart Z-offset is the latest LeviQ 2.0 System developed by Anycubic.

Anycubic Kobra 2 Series include Kobra 2 Pro, Max, Plus, and Neo; they are all designed with Smart Z-offset module and also support customized z-axis compensation values. These four FDM printers have been fully upgraded to enhance print stability and ease of use. Anycubic Kobra 2 Pro prints at speeds of up to 500mm/s, and the printing size of Kobra 2 Max is up to 500x420x420mm, to meet the needs of different users and ensure the printing quality and smooth printing experience.

3. Slicer Software Adjustment of Z-Offset

Cura Z-offset

You can calibrate the Z-offset using slicer software. Taking Ultimaker Cura 5.1.0 as an example, find "Marketplace" in the top right corner of the interface, and then install a plugin called "Z Offset Setting". Once you have downloaded the plugin, you can search for "Z offset" in the print settings or get it in the menu of "Build Plate Adhesion" and then enable it.

Final Thought

Adjusting the Z-offset is a simple process that can make a significant difference in your print quality. It is often overlooked by beginners, but its importance should not be underestimated. Achieving accurate Z-offset calibration can be affected by bed leveling and mechanical issues, making it necessary to regularly check the printer's hardware during routine maintenance. To set the Z-offset, you can easily access it either through the printer's display or the slicer software. However, printers equipped with a smart Z-offset function offer the most effortless and time-saving method among all adjustment options. Finally, downloading a Z offset test print can help you verify if you are using the correct Z offset.
