FDM 3D printers are equipped or supported to be equipped with a filament exhaustion detection function. When it detects that the material is exhausted and the filament has reached the end, it can suspend the printing job. This function allows users to replace the filament, resume printing, and avoid printing failure caused by material shortage. Filament exhaustion detection adds convenience to the printing process and provides a user-friendly experience. For users of Anycubic Kobra Go, you can choose to install Filament Runout Sensor to realize this function, reduce material waste and ensure successful printing jobs. We will provide the guide for installing the Filament Runout Sensor for Anycubic Kobra Go.

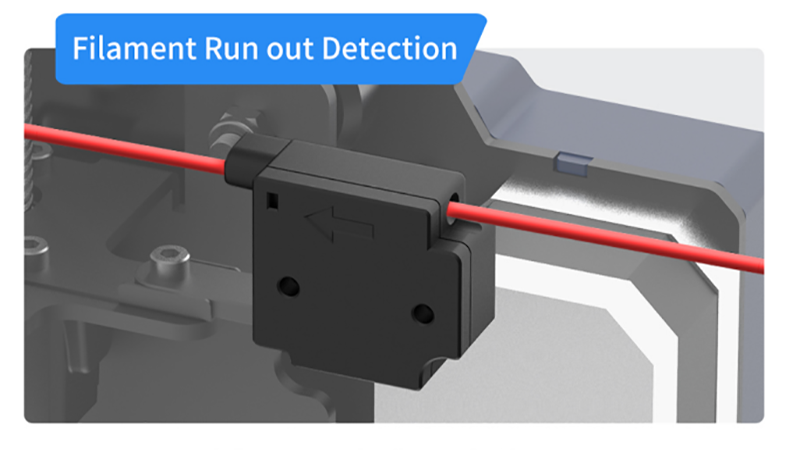

How to Install Filament Runout Sensor for Anycubic Kobra Go
Anycubic Kobra Go is a cost-effective entry-level FDM printer, equipped with the self-developed Anycubic LeviQ automatic leveling system, which is convenient for users to level with one button. With a build volume of 50 x 220 x 220 mm (HWD), a maximum nozzle temperature of 260°C, and a hot bed heated up to 110°C, it is able to meet most of the printing needs. Anycubic Kobra Go is equipped with power-off resuming function and supports filament exhaustion detection, which can effectively reduce the waste of resources and time. Below we will guide Anycubic users in detail to install filament runout sensor for Anycubic Kobra Go step by step.
Accessories and tools required for installation
- Accessories: Filament Runout Sensor for Anycubic Kobra Go, pad column, Filament Runout Sensor Cable for Anycubic Kobra Go, cable tie, cylindrical head hexagon socket screw
- Tools: Diagonal pliers, M2.5 Allen wrench
- Machine Accessories: Anycubic Official Store
Anycubic Kobra Go Filament Runout Sensor: Installation Guide Step by Step
Step 1: Referring to the figure below, assemble the Filament Runout Sensor for Anycubic Kobra Go, pad column, and hexagon socket head screw.
Step 2: Use the M2.5 Allen wrench to align and tighten the assembly in step 1 from the hole below the sheet metal part of the extruder. You can still refer to the image below.
Step 3: Referring to the figure below. Install the white terminal of the Filament Runout Sensor Cable for Anycubic Kobra Go wire to the Filament Runout Sensor for Anycubic Kobra Go.
Step 4: Referring to the figure below, use the M2.5 hexagonal wrench to unscrew the 4 screws on the bottom plate of the machine and remove the bottom cover of the machine. Install the green terminal of the Filament Runout Sensor Cable for Anycubic Kobra Go to the green interface on the main board.
Step 5: Referring to the figure below, tidy up Filament Runout Sensor Cable for Anycubic Kobra Go, and clamp the Filament Runout Sensor Cable for Anycubic Kobra Go in the wire slot.
Step 6: Referring to the figure below, use cable ties to fasten the Filament Runout Sensor Cable for Anycubic Kobra Go wire and the integrated wiring harness of the print head together. Then cut off the excess part of the cable tie with diagonal pliers.
Step 7: Install the bottom cover of the machine.
