Has Anycubic Photon M3 Max’s screen reached the end of its service life? Knowing how to maintain screen and replace it regularly is one of the essential skills for 3D printing enthusiasts. The normal operation of the LCD screen is crucial to ensuring print quality and success rate. This guide will provide a tutorial on replacing the LCD screen on the M3 Max so that its users can refer to it when needed.
Anycubic Photon M3 Max
Anyucbic Photon M3 Max is a popular large-format resin printer chosen by enthusiasts and professionals alike. It has an impressive 13.6-inch monochrome screen and excellent 7K resolution. In the field of large-size printing, the M3 Max performs well, with a printing size of 300x298x164 mm (HWD) and a printing volume of up to 14.7 liters. To protect the screen, M3 Max’s LCD screen is equipped with a portable and replaceable anti-scratch film, which protects the screen from resin and reduces unnecessary breakage. However, the resin printer's LCD screen is still consumable and may need to be replaced over time. Understanding how to maintain and replace its LCD screen is critical to ensuring high-quality printing.
How to Replace LCD Screen for Anycubic Photon M3 Max
Before you start, please prepare tools and choose a suitable environment for the replacement, it is better to make sure you work in a clean and dust-free environment. Turn off and unplug the power, check and avoid safety issues.

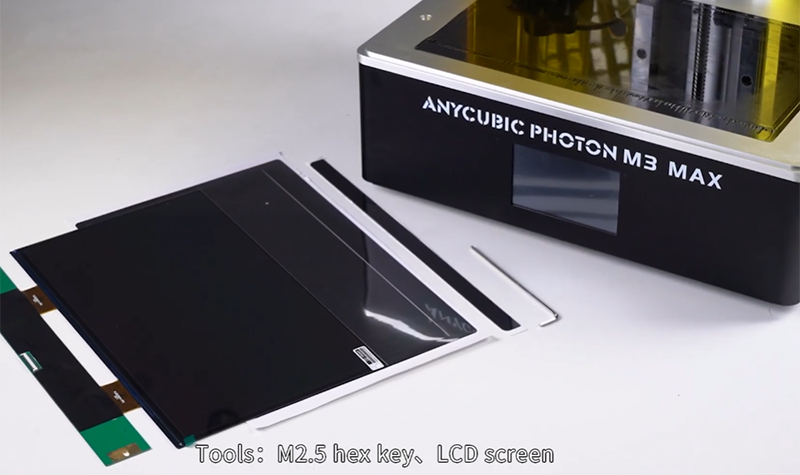

- Tools: M2.5 hex key, LCD screen
- Accessories: LCD screen for Anycubic Photon M3 Max
- Customer service: Anycubic Support
Step 1: Please raise the cantilever to the middle. Use an M2.5 hex key to loosen the screws securing, the front cover of the printer. Disconnect the FPC cable connected to the control panel on the motherboard, and remove the front cover of the printer. Separate the LCD screen FPC cable.
Step 2: Remove the black shading tape that fixes the LCD screen. Use the suction cups to remove the LCD screen.

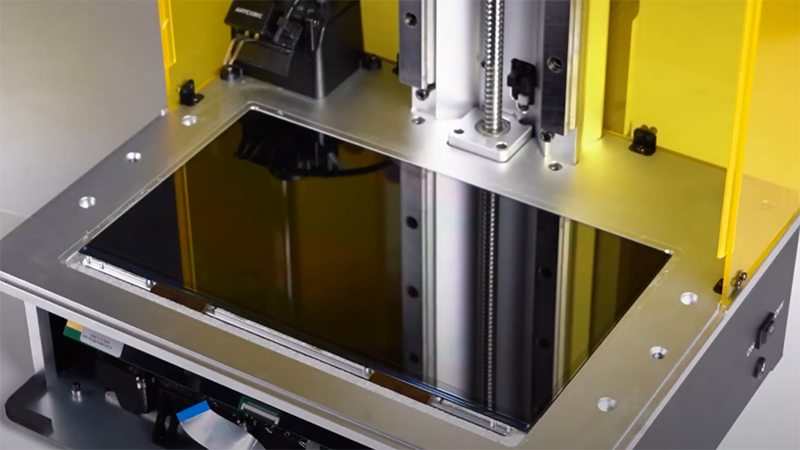

Step 3: Install the new LCD screen and please through the LCD screen wiring to the reserved holes. Use the new black shading tape to align along the border around the LCD screen.
Step 4: Reconnect the FPC cable connected to the LCD screen. Reconnect the FPC cable connecting the motherboard to the control panel.
Step 5: Use the M2.5 hex key to install and fix the front cover of the printer.
In Conclusion: Anycubic Photon M3 Max Maintenance and Replacement
Cleaning and inspecting the LCD screen regularly will not only extend its life, but also ensure that your 3D prints are always of the highest quality. For those who use a scratch-resistant film, it is also recommended that you check it regularly and replace it when it wears out. When replacing the screen of Anyucbic Photon M3 Max, you can refer to the steps in the video. If you have more questions and seek help, you can contact Anycubic customer service and technical support.
- Tutorial Video: How to Replace LCD Screen for Anycubic Photon M3 Max
