Mastering Resin Printer Maintenance: Anycubic Photon Mono 4K Screen Protector Replacement

 The LCD screen of 3D printer has a limited lifespan and, like other electronic components,will wear out and deteriorate. The frequency of use and screen quality will affect the life of the LCD screen, but we can make it more durable through proper care and maintenance. In other to better protect the screen, Anycubic Photon Mono 4K is equipped with an anti-scratch film as a screen protector on the top of the LCD screen, which can be replaced. This design can reduce unnecessary damage to the screen.


When to Use the Screen Protector of Anycubic Photon Mono 4K

The screen protector can protect the LCD screen form resin contamination and prevent it from being scratched. Anycubic Photon Mono 4k comes with a screen protector already assembled on the printer, an additional protective film available for replacement, and a film kit. If the screen protector is contaminated by resin after long-term use, please follow the steps in this tutorial to replace it.

Instruction for use:

  • The screen protector is already installed on the printer when you receive it.
  • When it’s time to replace the screen protector with a new one, you can use the replacement in the spare bag.
  • When replacing a new screen protector for Anycubic Photon Mono 4K, it is best to be in a clean environment.


How to Replace Anycubic Photon Mono 4K Screen Protector

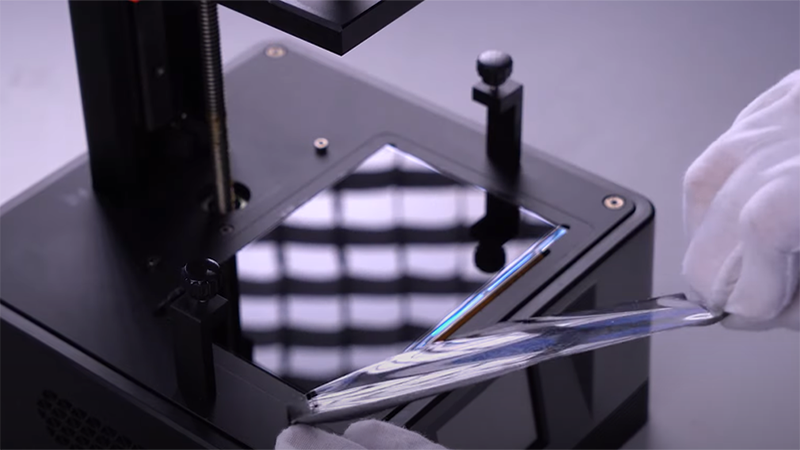

Step 1: Tear off the old screen protector and clean the curing screen with screen protector accessories.


Step 2: Peel off the backing of screen protector. Align the protector with the edge of screen and stick it from one end to the other with plastic scraper. Get the installation carefully without air bubbles.


Step 3: Use plastic scraper to remove remain bubbles by pushing each bubble to the edge of screen slightly. Smooth down the protector and peel off the front cover to finish. Finally, please paste the sticker.


The video guide will show a more detailed installation operation of the replacement Anycubic Photon Mono 4K screen protector.

Official accessories of Anycubic: Photon Mono 4K screen protector.

With a large print size of 132mm x 80mm x 165mm /5.19" x 3.14" x 6.49", Anycubic Photon Mono 4K enables rapid prototyping with improved printing efficiency. It is equipped with a 4K monochrome LCD screen to meet the printing needs of high quality and high precision. The powerful features and the lowest budget turn it into the most cost-effective 4k MSLA printer.
