Mastering Printer Maintenance: How to Replace the Touch Screen for Anycubic Photon M3 Plus

What should I do if the touch screen of the resin printer is faulty? In some cases of bumping or contamination, the touch screen may malfunction, making it impossible to interact. In this case, replacing it is a good solution to get your printer back to normal as soon as possible. In this guide, we will walk users through Anycubic Photon M3 Plus’s touchscreen replacement to help you install a new screen, restore interaction, and also allow the printer to work.

Resin printers usually use a touch screen interface to interact with users, allowing users to control the printing process, load 3D models to the printer, monitor printing progress and remaining time, and prompt machine error messages, etc. The touch interface of the resin printer makes it easier and more controllable for users to 3D print, and its interaction is crucial in the printing process. When it doesn't work properly, contact the machine's technical service staff to determine a specific solution.


How to Replace the Touch Screen for Anycubic Photon M3 Plus

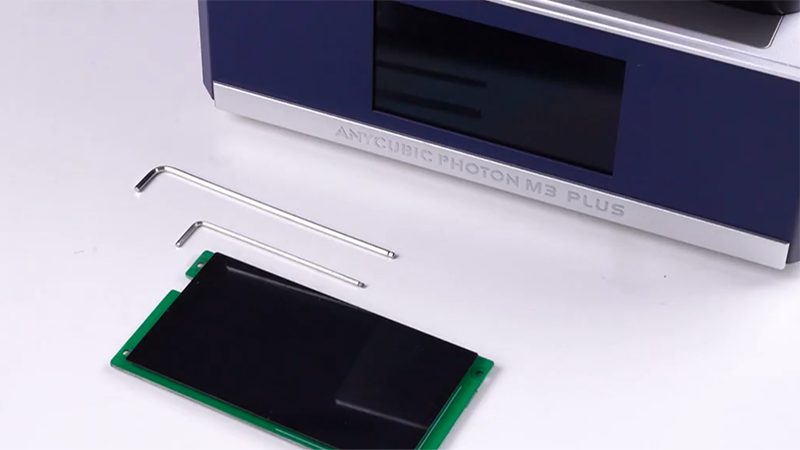

  • Tools: M2.0 hex key, M2.5 hex key, control panel(touch screen).
  • Technical Team: Anycubic Support


Step 1: Remove the control panel. Use an M2.5 hex key to loosen the screws securing the printer's nameplate and remove the nameplate.


Step 2: Use an M2.0 hex key to loosen the screws securing the front cover of the printer and remove the front cover. Remove the FPC cable connecting the control panel.


Step 3: Use an M2.5 hex key to loosen the screws securing the control panel and remove the control panel.


Step 4: Install the new control panel. Use the M2.5 hex key to re-fix the replaced control panel. Reconnect the control panel FPC cable, blue up.


Step 5: Use the M2.0 hex key to re-fix the printer front cover. Use the M2.5 hex key to fix the printer nameplate. Power on, if the control panel is normally turned on, the replacement is successful.


The Fix is In

The touch screen of a resin printer is not a consumable item, but it may need to be replaced in some cases. In case of physical damage, unresponsive touch and other failures, we need to replace it in time to ensure the normal work of the printer. The steps for replacing the touch screen of the Anycubic Photon M3 Plus are given above, which can be used as a reference for users who need to replace it. Please keep in mind that the process of replacing the touch screen varies from one printer model to another, contact the manufacturer's technical team to troubleshoot the problem and find a solution.

Technical Team: Anycubic Help Center

Video Guide: How to Replace Touch Screen for Anycubic Photon M3 Plus
